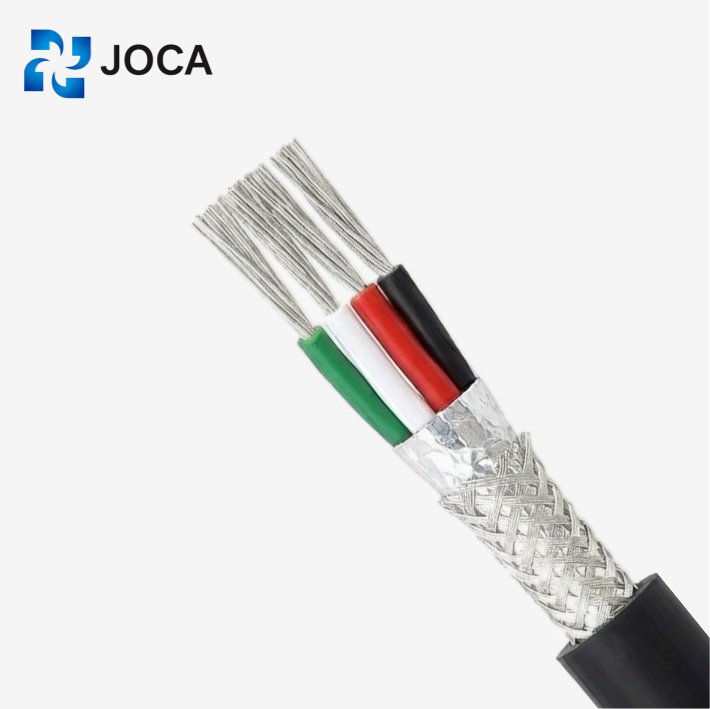

UL2725
Multi-core PVC insulated electronic cable for internal wiring and flexible signal transmission.
Internal wiring for electronic devices
Audio, video, signal transmission
Digital instruments, sensors
Data communication modules
Connector harness and extension cable assemblies
- Быстрая обработка образцов с помощью индивидуальных решений
- Высококачественные материалы
- Доступные варианты цен
- Глобальная доставка
- Для лучшей защиты данных убедитесь, что все загрузки безопасны
Сохранить в среднем не менее 30%
-
Описание продукта
UL2725 : Product Description and Specifications
Standardize your digital wiring. UL2725 is the industry benchmark for 30V internal data and power routing (often used in USB 2.0 standards). Unlike generic wires, it supports high-speed signal integrity. The stranded tinned copper conductors resist oxidation, ensuring long-term conductivity.
Built for Noise Immunity. For precision circuits, the Shielded Version is mandatory. It integrates an Aluminum Foil layer with a Drain Wire. This grounding system actively drains EMI interference, protecting sensitive logic from static and noise. The outer PVC jacket is formulated for “Stress-Free” flexibility, allowing easy routing through tight chassis corners without kinking.
-
Преимущества
UL2725 : Benefits and Features
The USB Standard: Built to 30V / 80°C specs. This is the industry-standard structure for USB 2.0 interfaces and precision data interconnects.
Signal Integrity: Features Twisted Pairs for data. Matches impedance to prevent signal lag or packet loss in digital devices.
Active Grounding: Includes a Drain Wire connected to the Aluminum Foil shield. This actively drains static and EMI noise to the ground, protecting sensitive logic circuits.
Flexible Routing: Soft PVC jacket. Ideal for dynamic applications like mouse cables or internal routing in portable electronics.
Specification Of UL2725
| Категория | Item | Описание |
|---|---|---|
| UL2725 Application Scope | Использование | Used for internal or external wiring of Class 2 systems video electronic equipment and electronic computers. |
| UL2725 Application Scope | Reference Standards | UL758 UL158 |
| UL2725 Cable Structure | Дирижер | Solid or stranded 30-4/0 AWG tinned or bare copper. |
| UL2725 Cable Structure | Изоляция | Special hard heat-resistant flame-retardant PVC or other materials of equivalent grade selected by the manufacturer. |
| UL2725 Cable Structure | Цвет ядра | Any color. |
| UL2725 Cable Structure | Core Structure | 2 or more cores stranded aluminum foil mylar wrap optional collection can be arranged can have twisted pair unit shielding. |
| UL2725 Cable Structure | Экранирование | Tinned copper. |
| UL2725 Cable Structure | Jacket Material | Mixed 80°C heat-resistant flame-retardant PVC passes VW-1 flame retardant test standard. |
| UL2725 Cable Structure | Цвет куртки | Any color. |
| UL2725 Characteristics | Features | Diverse choices for structure and temperature rating. Versatility for power and control pairs. |
| UL2725 Technical Parameters | Номинальное напряжение | 30V |
| UL2725 Technical Parameters | Испытательное напряжение | 500V |
| UL2725 Technical Parameters | Rated Temperature | Fixed: -20°C to +80°C; Flexing: -5°C to +80°C |
| UL2725 Technical Parameters | Радиус изгиба | Fixed: 6 X D; Flexing: 15 X D |
| UL2725 Technical Parameters | Flame Test | Passes UL VW-1 CSA FT1 flame retardant test. |
Certifications Of UL2725
-
Производственные процессы кабеля UL
JOCA produces UL wires using a fully automated workflow. The cycle synchronizes copper drawing and stranding with precise PVC or XLPE extrusion. Instead of waiting for post-production checks, we employ continuous inline monitoring—using laser diameter gauges and spark testers to catch defects instantly. For multi-core variants, the line handles cabling, shielding, and jacketing to exact specifications. Before shipping, every batch faces final electrical and mechanical inspections to verify full compliance with UL standards.
Упаковка для отправки
Для удовлетворения различных потребностей в транспортировке можно использовать множество способов упаковки.
Есть еще вопросы?
Вопрос: Первичное применение?
А: Data & Signal Interconnects. The industry standard for USB interfaces, sensor cables, and low-voltage internal wiring (30V).
Q: Conductor Sizes?
А: Fine Pitch. Обычно 30 AWG ~ 20 AWG (User note: adjusted to standard market range, or keep your 40 AWG if specific). Supports high-density micro-connectors.
Q: Shielding Options?
А: Three Tiers Available:
Unshielded: For short, noise-free runs.
Foil + Drain: Standard EMI protection.
Braid + Foil: Maximum noise rejection for precision data.
Q: Flame Rating?
А: VW-1 Verified. Passes UL Vertical Flame Test. Insulation self-extinguishes to ensure device safety.
Q: Operating Temp?
А: -20°C to +80°C. Standard rating for consumer electronics and indoor automation.
Q: Customization?
А: Full OEM Support. We customize Core Count, Twist Rate, Jacket Color, and Packaging. Contact us for specs.
Q: Flexibility?
А: High Flex. Uses fine stranded copper and soft PVC. Ideal for dynamic routing (like mouse cables) or tight internal bends.
