NYCWY / NAYCWY
0.6/1kV Multi-Core PVC Insulated Power Cable with corrugated concentric conductors and PVC Sheath
Copper / Aluminum conductor
PVC insulation + PVC outer sheath
Rated voltage 0.6/1kV
corrugated concentric conductors
Nastro Rame
- Used for energy supply in power stations, subscriber networks, and for underground/outdoor installations. Also capable of handling control impulses and test data.
- Elaborazione rapida dei campioni con soluzioni personalizzate
- Materiali di alta qualità
- Opzioni di prezzo convenienti
- Consegna globale
- Per una migliore protezione dei dati, assicurati che tutti i caricamenti siano sicuri
Risparmia almeno 30% in media
-
Descrizione del prodotto
NYCWY / NAYCWY Power Cable : Product Description and Specifications
The NYCWY / NAYCWY concentric conductor power cables serve as a robust solution for underground energy distribution and subscriber networks. Specificatamente, they efficiently potere industrial facilities, meter tails, and systems requiring enhanced protection. In aggiunta, il design caratteristiche a concentric copper conductor (CW) that functions as an earth, neutral, or protective path. Inoltre, this configuration actively delivers superior fault current withstand capability. Di conseguenza, the cable assicura improved EMC shielding and reliable electrical performance.
-
Vantaggi
NYCWY / NAYCWY Power Cable : Benefits and Features
Enhanced Protection: This cable design increases electrical and mechanical protection, making it ideal for demanding applications where both are essential.
Durabilità: The use of a corrugated concentric conductor (CW) significantly boosts the cable’s reliability and longevity, even in harsh environments.
Reliability: Thanks to its unique construction, the cable delivers dependable performance and ensures a high level of operational reliability.
Easy Installation and Maintenance: This cable’s design simplifies the installation process by allowing multiple cable joints without cutting any conductor, streamlining maintenance.
Versatile Usage: The cable functions as a neutral, protective, or earth conductor, offering flexibility in various configurations.
Specification Of NYCWY / NAYCWY Power Cable
| Technical Data Parameter | Technical Data Value |
|---|---|
| Conductor resistance at 20°C: | according to VDE 0295 and IEC 60228 |
| Core temperature, max: | 70°C in operation |
| Max. short circuit temperature: | 160°C , not more than 5 sec |
| Rated voltage - U0 /U (Umax): | 0.6/1(1.2) kV |
| Test voltage: | AC - 4 kV; 50 Hz |
| Gamma Temperatura | |
| Fixed installation: | -30°C to +70°C |
| Flexible Installation: | -5°C to +50°C |
| Bending radius, min. | 12xD cable |
| pecific insulation resistance at 70°C: | min, 1010 Ωx cm |
| ssible tensile stress with cable grip: | For Cu conductor = 50 N/mm2 For Al conductor = 30 N/mm2 |
| Cable Structure Component | Cable Structure Description |
| Direttore: | solid or multi-strand Cu or Al wires class 1, 2 or 5 acc. VDE 0295(IEC 60228) |
| Isolamento: | PVC type DIV4 acc. VDE0207 |
| Core identification: | according to VDE 0293 (HD 308) |
| Cores assembly: | cores stranded concentrically (cores stranded in concentric layers, for signal) |
| Inner sheath: | rubber filling compaund |

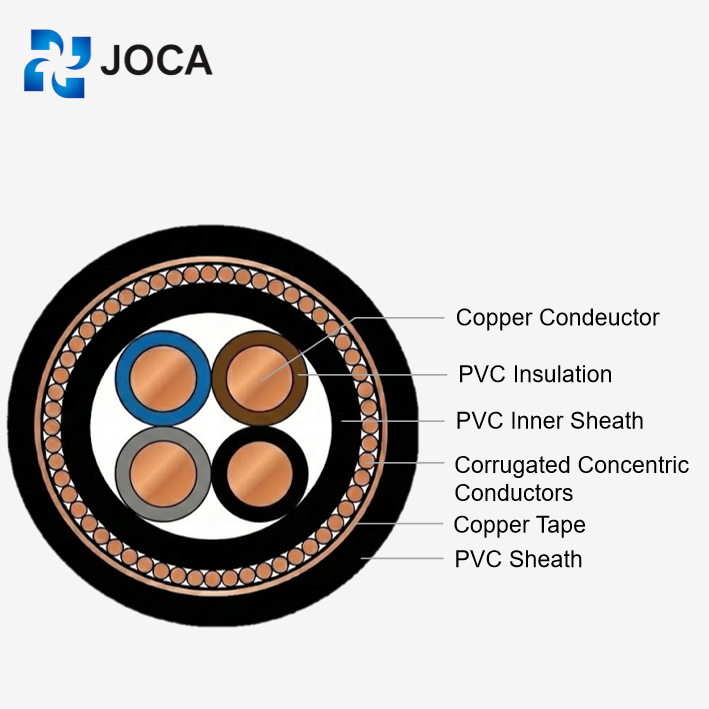

| Concentric copper conductor: | Waveconal outer conductor - copper wires and contrahelical copper tape (reverse lay copper tape) |
| Guaina: | PVC type DMV5 acc. VDE 0207 |
Dimensioni/Parametri
| Number of cores x Nominal Cross Section (No x mm²) | Overall Diameter Approx. (max.mm) | Copper weight Approx. (kg/km) | Total Weight Approx. (kg/km) |
|---|---|---|---|
| 3x10/10 | 20 | 394.0 | 775.0 |
| 3x16/16 | 22.0 | 630.0 | 1066.0 |
| 3x25/16 | 26.0 | 895.0 | 1584.0 |
| 3x35/16 | 28 | 1190.0 | 1710.0 |
| 3x50/25 | 30.0 | 1722.0 | 2368.0 |
| 3x70/35 | 33.0 | 2411.0 | 3174 |
| 3x95/50 | 38.0 | 3296.0 | 4256.0 |
| 3x120/70 | 41.0 | 4231.0 | 5314.0 |
| 3x150/70 | 45.0 | 5117.0 | 6344.0 |
| 3x185/95 | 50.0 | 6396.0 | 8054.0 |
| 3x240/120 | 56.0 | 8265.0 | 10274.0 |
| 4x10/10 | 21.0 | 492.0 | 897.0 |
| 4x16/16 | 24.0 | 787.0 | 1250.0 |
| 4x25/16 | 28.0 | 1141.0 | 1822.0 |
| 4x35/16 | 29.0 | 1535.0 | 2140.0 |
| 4x50/25 | 33.0 | 2214.0 | 3031.0 |
| 4x70/35 | 38.0 | 3100.0 | 4056.0 |
| 4x95/50 | 43.0 | 4231.0 | 5364.0 |
| 4x120/70 | 46.0 | 5412.0 | 6748.0 |
| 4x150/70 | 51.0 | 6592.0 | 8159.0 |
| 4x185/95 | 57.0 | 8216.0 | 10198.0 |
-
Production Processes Of Power Cable
Per garantire una qualità superiore, JOCA opera linee di produzione completamente digitalizzate e automatizzate per cavi alimentazione. Specificatamente, questo flusso di lavoro completo coperture trefolo conduttore, estrusione isolante, vagliatura metallica e guaina finale. Inoltre, sistemi intelligenti monitorare attivamente ogni fase per garantire prestazioni stabili e qualità del prodotto costante. In aggiunta, la fabbrica non c'è bisogno di strutture di prova avanzate, come prove di scarica parziale, prove di trazione e prove di scintilla. Di conseguenza, queste misure rigorose garanzia che ogni cavo consegnato soddisfa rigorosamente gli standard internazionali.
Imballaggio per la spedizione
Per soddisfare le varie esigenze di trasporto, ci sono molti metodi di imballaggio che possono essere utilizzati.
Hai altre domande?
Q: What is the primary application for these cables?
A: These are the backbone of Low Voltage distribution networks (0.6/1kV). They are specifically designed for municipal power supply, subscriber networks, and power stations where you need a robust underground cable that also offers interference shielding.
Q: What makes the "CW" (Corrugated Concentric) conductor special?
A: This is the key feature. Unlike standard straight copper wires, the “CW” conductor is applied in a wave (Ceander) pattern. This allows installers to spread the outer wires apart to access the inner cores without cutting the neutral/earth conductor. It makes creating branch connections (T-joints) much faster and safer, especially for house service connections.
Q: Where can I install them?
A: They are versatile. You can bury them directly underground, lay them in concrete cable ducts, submerge them in water, or run them indoors. The PVC sheath is built to handle open-air environments as well, provided it’s not subjected to constant mechanical impact.
Q: Does it act as a protective screen?
A: Yes. The concentric copper layer acts as a combined PE or PEN conductor. Additionally, because it surrounds the phase conductors, it provides an effective earthed screen against accidental contact. If a digger hits the cable, it hits the earth screen first, tripping the protection instantly.
Q: How does it compare to standard NYY cables?
A: Offre higher safety and functionality. While NYY is just insulated power, this cable (likely NYCWY) adds that concentric conductor layer. This provides better mechanical protection and necessary shielding for control impulses or data if run nearby.
Q: What is the reliability advantage for jointing?
A: As mentioned, the ability to make joints without cutting the conductor is a game-changer for grid reliability. Every time you cut a neutral to make a joint, you introduce a potential failure point. The CW design eliminates that risk, ensuring the neutral path remains solid and continuous.
Q: What are the voltage and standard ratings?
A: These are rated for 0.6/1 kV and manufactured in strict accordance with DIN VDE 0276-603 e CEI 60502-1.
Q: How do I get a quote or technical datasheet?
A: Send us your project requirements directly. We need to know the cross-section (e.g., 4×150/70), drum length, and whether you need the Ceander (CW) or standard concentric design. Our engineering team will return a spec sheet and offer within 24 hours.
