KVVP: PVC/PVC Braided Shield Control Cable

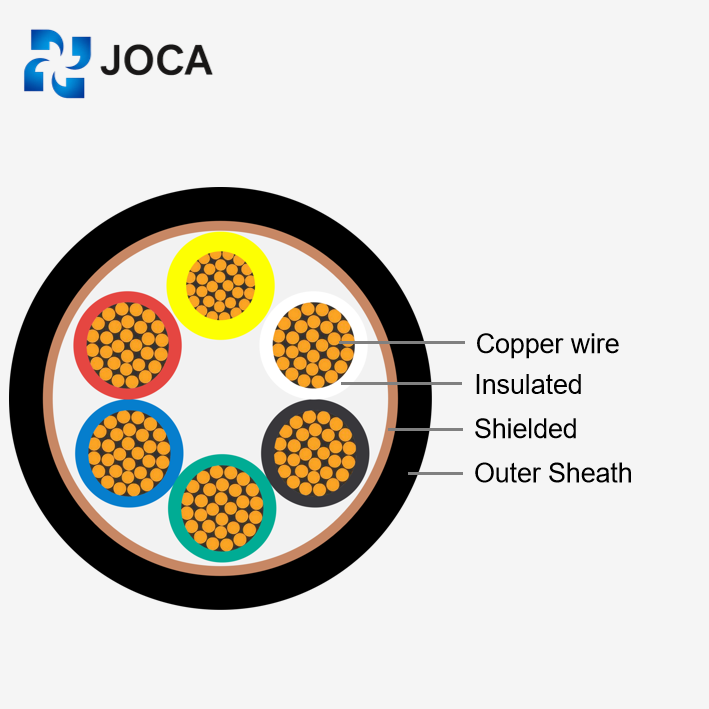

PVC Insulated Braided Shielded Control Cable
- コンダクター: Bare Copper or Tinned Copper
- 断熱材: PVC or XLPE,or FR-PVC
- Inner liner: Non-woven fabric
- Shielding: Copper Wire Braiding
- 定格電圧: 450/750V の
- テスト電圧: 3000V
- Rated Temperature: 70℃ to 90℃
- Laying temperature could not lower than 0 degree
- Bending radius: not less than 6x outer diameter
- カスタマイズされたソリューションによる高速サンプル処理
- 高品質な素材
- 手頃な価格のオプション
- グローバル デリバリー
- より良いデータ保護のために、すべてのアップロードが安全であることを確認してください
平均で少なくとも30%を保存します
-
製品の説明
KVVP: PVC/PVC Braided Shield Control Cable : Product Description and Specifications
Designated for high-noise industrial environments, the KVVP series integrates a high-density Copper Wire Braid (CWB) to secure signal stability against electromagnetic interference (EMI). Unlike unshielded counterparts, this metallic screen actively grounds external static and Radio Frequency noise, making the cable a mandatory specification for precision instrumentation, automation logic, and power distribution networks (Rated 450/750V).
-
利点
KVVP: PVC/PVC Braided Shield Control Cable : Benefits and Features
Superior Shielding: High-density copper wire braid effectively blocks interference for stable signal transmission.
耐久性のある保護: Robust Grey PVC sheath offers excellent resistance to oil, moisture, and abrasion.
High Conductivity: Premium annealed copper conductors ensure efficient and reliable performance.
Easy Installation: Clearly marked cores allow for quick circuit identification and wiring.
寸法/パラメータ
| Number of cores x Nominal cross-section mm² | Kind of conductor | Reference outside diameter of cable mm | Reference weight of cable kg/km | Max.D.C. resistance at 20°C Ω/km | Min.insulation resistance at 70°C MΩ·km |
|---|---|---|---|---|---|
| 2 x 0.75 | 1 | 7.2 | 61 | 24.5 | 0.012 |
| 2 x 0.75 | 2 | 7.5 | 65 | 24.5 | 0.014 |
| 2 x 2.5 | 1 | 9.6 | 124 | 7.41 | 0.01 |
| 2 x 2.5 | 2 | 10.2 | 135 | 7.41 | 0.01 |
| 2 x 10 | 2 | 15.7 | 377 | 1.83 | 0.0065 |
| 5 x 0.75 | 1 | 8.7 | 101 | 24.5 | 0.012 |
| 5 x 0.75 | 2 | 9.1 | 108 | 24.5 | 0.014 |
| 5 x 2.5 | 1 | 12.7 | 247 | 7.41 | 0.01 |
| 5 x 2.5 | 2 | 13.4 | 267 | 7.41 | 0.01 |
| 5 x 10 | 2 | 20.4 | 769 | 1.83 | 0.0065 |
| 10 x 0.75 | 1 | 11.6 | 176 | 24.5 | 0.012 |
| 10 x 0.75 | 2 | 12.2 | 189 | 24.5 | 0.014 |
| 10 x 2.5 | 1 | 17.2 | 447 | 7.41 | 0.01 |
| 10 x 2.5 | 2 | 18.2 | 483 | 7.41 | 0.01 |
| 10 x 10 | 2 | 28.4 | 1452 | 1.83 | 0.0065 |
| 30 x 0.75 | 1 | 17.6 | 450 | 24.5 | 0.012 |
| 30 x 0.75 | 2 | 18.6 | 483 | 24.5 | 0.014 |
| 30 x 2.5 | 1 | 26 | 1167 | 7.41 | 0.01 |
| 30 x 2.5 | 2 | 27.6 | 1262 | 7.41 | 0.01 |
| 61 x 0.75 | 1 | 23.8 | 857 | 24.5 | 0.012 |
| 61 x 0.75 | 2 | 25.1 | 906 | 24.5 | 0.014 |
| 61 x 2.5 | 1 | 36 | 2320 | 7.41 | 0.01 |
| 61 x 2.5 | 2 | 38.3 | 2509 | 7.41 | 0.01 |
-
Production Processes Of Control cable
Control cables are manufactured via pressure extrusion to lock in PVC density. Quality control goes beyond standard metrics: we conduct mandatory oil resistance and bending tests on each production lot. This verifies actual performance against IEC specs, ensuring durability in real-world automation environments.
配送用梱包
さまざまな輸送ニーズを満たすために、使用できる梱包方法は数多くあります。.
もっと質問がありますか?
Q: 構造定義 (KVVP)?
A: GB/T 9330 Standard.
K: Control Cable
V: PVC Insulation
V: PVC Sheath
P: Copper Wire Braid (CWB) Shield Rated 450/750V. Functionally equivalent to international shielded control specs.
Q: Purpose of Copper Braid?
A: EMI/RFI Rejection. The metallic braid blocks Electromagnetic Interference from VFDs, heavy motors, and transformers. Mandatory for maintaining signal integrity in noisy industrial zones.
Q:KVV vs. KVVP?
A: Shielding Factor.
KVV: Unshielded. General purpose.
KVVP: Shielded. Slightly larger OD. Provides critical protection against signal distortion.
Q:Outdoor Installation?
A: Requires Protection. Standard PVC is not UV-stabilized. Must be routed inside conduits to prevent sun degradation. Optional: UV-resistant Black Sheath available upon request.
Q: Installation Bending Radius?
A: ≥ 6x OD (Overall Diameter). Due to the metallic shield, the cable is stiffer. Strict adherence is required to prevent shield deformation.
Q: Fire Safety Options?
A: Custom Specs Available.
ZR-KVVP: Flame Retardant.
NH-KVVP: Fire Resistant (Maintains circuit in fire).
WDZ-KVVP: Low Smoke Zero Halogen (LSZH).
Q: Voltage Rating?
A: 450/750V. Standard for control logic, monitoring loops, and secondary protection circuits.
Q : Selection Guide: KVVP vs. RVVP?
A: Conductor Stiffness.
KVVP: Fixed Installation. Uses Rigid Class 1 or 2 conductors.
RVVP: Mobile/Tight Spaces. Uses Flexible Class 5 fine strands.
