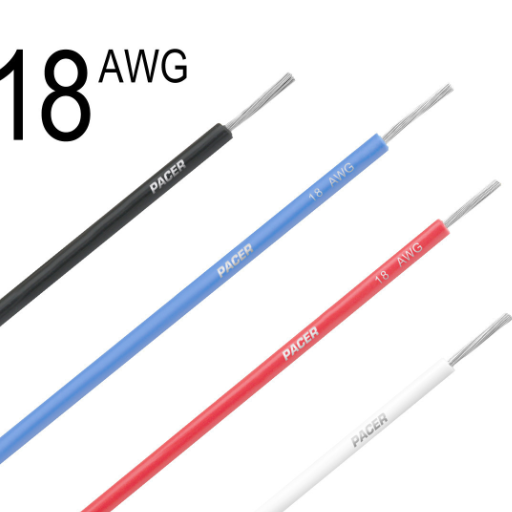

What is 18 Gauge Wire?

18-gauge wire, according to the American Wire Gauge system, has a diameter of 0.0403 inches (1.024 mm). This type of wire is intended for low to moderate current conditions, such as automotive wiring, small appliances, and LED lighting. It gives a balance between flexibility and resistance. It can handle a number of projects. Current carrying capacity depends on insulation type and other considerations.

Definition and Characteristics of 18 AWG

18 AWG, when it comes to the wire, becomes a truly versatile conductor. It is seen very commonly in electrical and electronic applications. The current-carrying capacity also varies with the material of insulation and the ambient operating temperature. As such, it oscillates somewhere between 10 and 16 amperes. Critically useful in keeping together in a little current, it may be found anywhere from a small appliance to an automotive harness, besides an electrician’s toolbox. Blog on: Audio systems for some nice wiring from the signal and LED installations. The consistent thickness of the wire provides an apt balance for handling its required flexibility to get routed in some very tight areas, en route. pthread

Wiring of 18-gauge is selected by taking into account its various attributes, such as voltage drops, insulation type (PVC, Teflon, or silicone), and environmental conditions (moisture or heat) the wire is subjected to. Choosing the right wire style for a given job ensures safe and efficient operation and prevents overheating and high resistance. Although cost-effective and easily accessible for a multitude of technical or professional applications, 18-gauge wire arguably stands at the top of the pedestal many times.

Applications of 18 AWG Wire in Wiring Projects

The 18 AWG wire is both sufficiently flexible and capable of transmitting sufficient electrical current. This versatile wire is used in total low-voltage systems: doorbells, security systems, electronic circuit connections, and LED lighting. These systems carry nothing substantial for the 18 AWG cable current load. It is quite frequently used in car wiring for many electrical accessories, such as speakers and light fixtures. These systems are utilized either with vehicle voltage lights or power-driven horns, or fans, given their great flexibility and abrasion-resistant durability at moderate mechanical resistance.

It is this 18-AWG wire that is the favorite selection for use in control circuits, thermostats, industrial automation, and everywhere else for maintaining consistent connectivity throughout short to medium distances with very little voltage drop. An 18-AWG wire can be used in demanding settings by a broad range of insulation materials, thanks to its ability to handle oil, heat, or UV rays, but still perform well. Subsequently, the size/efficiency/versatility ratio confirms its role in both residential and commercial wiring applications.

Comparison with Other Wire Gauges

Some of the most significant factors defining the massive differences between 18 AWG wire from other wire gauges are current capacity, resistance, along practical application. For instance, 16 AWG wires, with relatively thicker coatings, have lower resistance and higher power delivery, and hence the advantage of carrying more current is a must, and that is why the wire finds itself being employed in larger appliances or perhaps the industrial machinery. It isn’t as flexible and isn’t suited for tight spaces or intricate installations as much due to its thickness. For a more or less opposite observation, 20 AWG wires, being slimmer than 18 AWG wires, are also employed in more modest-power settings like small electronics and signal transmissions. The reason for this is its higher resistance as well as low current-carrying capacity.

Determining the proper wire gauge depends on specific factors like the current rating, the distance to travel of the wire run, and environmental factors. The 18 AWG wire seems an all-around good option for moderate needs for power and signal; choosing based on conductivity, durability, and flexibility trade-offs will lead to the best performance in both residential and commercial applications.

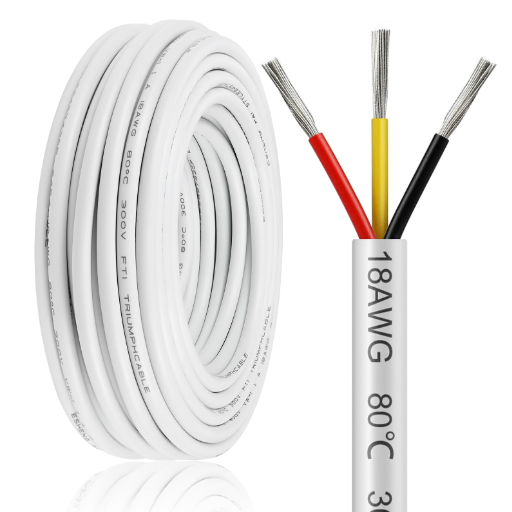

Ampacity of 18 AWG Wire

In a standard application of power transmission within the wire capabilities, the amperage rating of 18 AWG wire sets limits that border on 10 amperes and is code-related. The lampacity/ampacity can significantly vary by factors like insulation type, ambient temperature, and free air or conduit condition. This value, if upheld, allows for the safe and efficient operation of most systems; however, it is best if local jurisdictional electrical codes and standards-etc. are consulted when designing a specific installation.

Understanding Ampacity and Its Importance

The amount of electricity that a wire can carry without overheating is referred to as the wire’s “ampacity.” The metal, cross-sectional area, insulation type, and surrounding environment all control it. For example, compared with the amount of heat that aluminum dissipates, copper, with its lower resistance and higher conductivity, can carry a higher ampacity. Aside from the conductor’s configuration, other stuff like the ambient temperature, placement in conduit, and exposure to direct sunlight greatly influence the wire’s ampacity.

Maximum Current Ratings for 18 Gauge Wire

The current carried by 18-gauge wire is governed by a myriad of criteria related to the temperature, insulation, and environment in which the wire routes. As a rule of thumb, an 18-gauge wire will take 10A under ideal conditions when in standard impingement cable. But when the code is taken into consideration, it requires you to make use of a continuous carrying capacity at 80% of the wire series. So typically, the conductor is limited to 8A on tons of cables. When these cables are exposed to elevated temperatures or are bunched with other conductors, their load must be derated. The 18-gauge wire may carry higher currents because a low-voltage system tends to compensate somewhat; therefore, cable length becomes vital. Observe NEC guidelines or manufacturers’ specifications to see that the degree of compliance is true for your installation, given that application value can vary widely between situations.

Factors Affecting Ampacity of 18 AWG Wire

While multiple factors may influence 18 AWG wire ampacity, deciding upon the most appropriate performance would require an analysis of them all. Ambient temperature is one such factor that can have a negative effect on the carrying capacity of the wire at high temperatures, due to increased resistance, which could cause overheating. Wire insulation type is also of relevance, since ampacity is dependent on insulation type and its temperature rating and electrical properties. Another significant consideration is wire bundling and conduit conditions. When more wires are bunched together, excessive heat dissipation forces derating to prevent a disturbing temperature rise. For low-voltage systems, wire length and voltage drop considerations must also be taken into account in order to keep the supplied voltage within acceptable limits over the required distance. It is always recommended that local regulations and manufacturer data be consulted if one has to assess these aspects for an authentic picture.

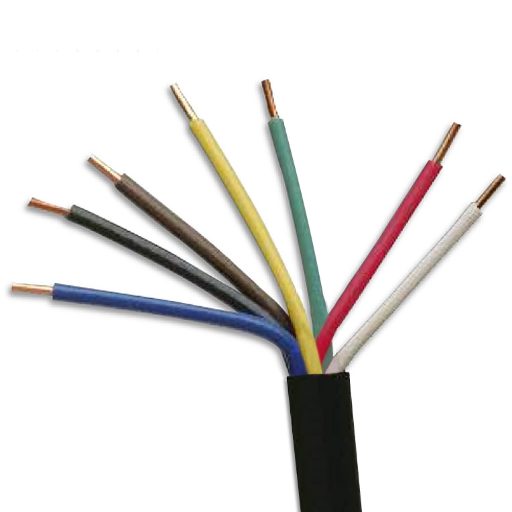

Extension Cords and 18 AWG Wire

While using the 18-gauge wire equipped on extension cords, one also needs to consider the maximum current-carrying capacity at which the wire may safely be used. Ordinarily, in the case of the length of wire reachable, particularly under normal conditions of installation, the 18-gauge wire will normally be able to carry up to 10 amperes; however, the cord length is the paramount concern because, the longer the cord, the greater the resistance, that can lead to further corresponding voltage reduction, thereby causing overheating and thus reduced efficiency.

For safety considerations, it is better to see that an 18-gauge extension cord is used only for low-power appliances that will not draw current more than perhaps below the wire’s amp rating. In many applications, these cords are meant for very light-duty use, such as the operation of home electronics, lamps, and small household appliances. Make certain that the particulars of any cord under consideration, such as the power rating and length, are believed to be compatible with the appliances that might be attached to it.

Safe Use of 18 Gauge Wire in Extension Cords

When using an extension cord made with 18 AWG wire, you need to practice extra caution in following safety regulations to prevent any electric hazard or equipment damage. An 18-gauge wire can carry a maximum of approximately 10 amps for short distances, specifically 50 feet, with a minimal voltage drop. However, as the length of the extension cord increases, its capacity decreases owing to higher resistance, thereby making it inadvisable for use on power-packed devices.

Voltage Drop Considerations for Long Runs

When considering the power requirements of the proposed circuit made over longer distances, the voltage drop becomes one of the most important countermeasures. Excessive voltage drop will affect the circuit, rendering it ineffective, and may conversely damage the associated components. Basically, the current flow and the length of a circuit from the heat source to the load are the principal factors that affect voltage drop. More resistance is created through wire length, causing a voltage drop. Thus, thicker wires with lower AWG values are recommended to lower resistance and improve the conductive properties.

The practical ways to decrease voltage drop assume minimizing the distance where possible, which means upgrading to higher-conductivity materials or splitting the total load across more than one circuit. As to longer circuits, refer to the installed electrical codes or standards at your location to meet requirements and also to optimize performance.

Choosing the Right Wire for Appliances

The selection of the correct appliance wire depends on an assessment of the appliance’s power needs, the environment set up, and the existing safety standards. Some crucial considerations must be factored into amperage needs, voltage rating, and distance from the appliance to the power source. For example, appliances like ovens and air conditioners, which draw heavier amperage, need wiring of 10-gauge or larger to withstand such currents. For smaller items like lamps and chargers, wires of 16- or 18-gauge are fine.

Moreover, material selection: copper or aluminum, can greatly affect the wire’s conductivity and durability. Despite the high costs incurred on its purchase, copper wires are more widely used due to their high conductivity and lower resistance compared to aluminium wire. Most applications, therefore, tend to support the use of copper wiring, whereas aluminum can only be recommended for cost-effective cables where they can maintain good fidelity. Handle with care, as aluminum wires run the serious risk of oxidation.

Additionally, environmental factors, such as moisture and heat exposure, should have an influence on your decision as well. Wires with insulation such as thermoplastic or thermoset (e.g., THHN or XHHW) are great for high-temperature resistance and long abuse resistance. Always comply with local electrical codes (like the NEC in the U. S.) to ensure that chosen wire properties satisfy the safety guidelines, and if you have any doubts, feel free to consult a qualified electrician to avoid the danger of connection and fire accidents. Choosing the right wiring will be the perfect criterion for guaranteed best performance of the two units and longer life, and safer operation.

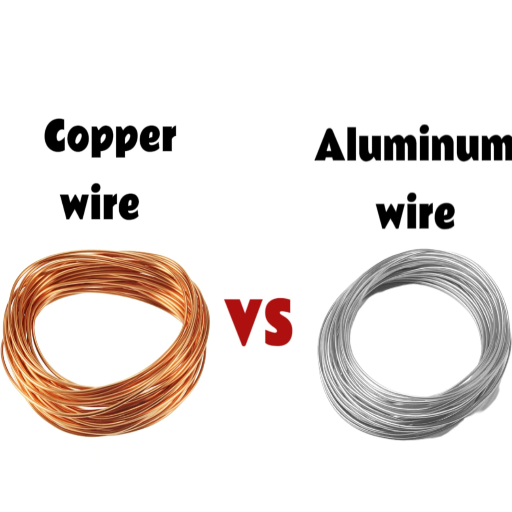

Copper vs. Aluminum Wire

Copper and aluminum wires have their distinct advantages and disadvantages. On one side, copper is more conductive, durable, and offers better corrosion resistance, making it the preferred choice most of the time. This also ensures better connectivity, especially in handling greater loads for a smaller gauge. However, copper is also quite costly and heavier than aluminum.

Aluminum wire, however, while not as conductive or as durable as copper, is very light and cheap. It is almost always the material used in applications that can tolerate a lesser degree of conductivity and strength, but where the cost and weight of the conductors are crucial, such as in the transmission of electric power over long distances or for large-scale electrical distribution systems.

While making the choice between copper and aluminum wire, users can take into consideration the intended use, load requirements, and budget constraints. Proper installation is critical, especially for aluminum wire, to avert issues like disconnection or thermal expansion.

Comparison of 18 AWG Copper and Aluminum Wire

The primary considerations in comparing 18 AWG copper and aluminum wire are electrical conductivity, physical properties, durability, and cost. Copper is an outstanding conductor of electricity, about 60% more effective than aluminum; therefore, it is very efficient at transmitting electricity with low resistance, further reducing energy loss. This aspect usually makes it more desirable in applications requiring high performance and reliability.

In terms of physical properties, copper shows higher density and strength, thus enabling it to endure greater mechanical pressure and wear. On the other hand, aluminum is light and, correspondingly, cheap, which may be attractive for weight- and cost-conscious applications. However, being a lighter metal, aluminum is definitely weaker and is more prone to such problems as loosening connections or oxidation due to thermal expansion, especially in terminals.

Ultimately, it comes down to individual-specific requirements in the decision for aluminum or copper. In cases of stringent performance and durability requirements, such as household circuits and high-power industrial systems, copper is normally the preferred choice. Aluminum usually suffices for the lower-cost, lower-demand conditions if the necessary installation procedures are maintained, therefore safeguarding the need to mitigate the drawbacks associated with aluminum. It is important to consult your local electric codes and standards to ensure a safe and compliant use.

Benefits of Using AWG Copper Wire

AWG copper wire has always been sought after for electrical systems’ series of lucrative features. Initially, copper is a great electrical conductor in relation to other metals; owing to its ability to transmit electricity efficiently throughout a wire, in most instances, such wires reduce energy detractor loss to the wire. That is to say, the efficiency at which the power is used inside the wire is very high, and hence, a minimal amount of heat is produced, enabling higher system reliability. The package deal is that copper wire can make good use of some good tensile strength and great heat resistance, for this reason to resist straining while changing form due to loads and thermal excursions. In other words, the corrosion resistance of copper guarantees a long-lasting use in an environment where there are acidic or humid conditions. Finally, using copper wires, with almost all other parts and couplings available, becomes a compact entity equal to a feature; thus, no staining by a surrounding corrosive environment that would be very detrimental to other affiliated materials. These properties sharpen the AWG copper wire’s reliable response to the extreme electrical demands and challenges in residential and industrial niches, respectively.

Stranded vs. Solid Wire를 사용하는 경우

단단한 철사와 좌초된 철사 사이 마지막 결정은 특정한 신청 및 주위 환경 조건에 달려 있습니다. 좌초된 철사는 많은 더 작은 계기 철사로 함께 당겨지고 아주 가동 가능한 지휘자를 형성하기 위하여 뒤틀어 건설됩니다. 수시로,좌초된 철사를 위한 필요성은 로봇 공학,자동 배선,이동할 수 있는 장비와 관련되었던 고압선,등에 있는 빈번한 움직임 또는 진동이 특히 높은 곳에 발음됩니다. 철사의 융통성은 도관 및 단단한 공간을 통해서 보다 적게 격렬한 여정을 전달합니다.

반면에,단단한 철사의 구조는 단 하나 단단한 지휘자의 그것입니다. 그것은 상대적으로 보다 적게 가동 가능합니다,그러나 튼튼하고 안정되어 있는 것을 요구하고,그 결과로,철사가 조정 위치에 남아 있어야 하는 주거 전기 배선과 같은 영원한 임명을 위해 더 적당한 남아 있습니다. 단단한 철사는 그런 신청 및 조금 진동을 가진 환경을 위한 좌초된 철사와 비교될 때 더 적은 비용을 냅니다. 단단한 철사는 공정한 가격 이외에 더 낮은 저항을 생성합니다.

궁극적으로 동적, 고진동 환경 또는 복잡한 배선 설치에서는 연선을 선택해야 하며, 내구성, 단순성 및 비용 효율성이 주요 관심사인 간단하고 고정된 응용 분야에서는 단선을 선택해야 합니다.

18 AWG의 배선에서 흔히 발생하는 실수

회로와 그 결과에 과부하가 걸립니다

따라서 회로에 가해지는 요구의 합이 설계된 용량을 초과 할 때마다 회로 과부하가 발생합니다. 상기 과부하는 대부분 너무 많은 소비 장치 또는 기기가 동시에 연결되어 높은 전력을 끌어들이는 것으로 인해 발생하는 이벤트입니다. 다른 경우에는 배선에 잘못된 크기가 포함될 수 있습니다. 예를 들어 사용자를 교육하고 예방하는 데 문제가있는 징후 중에는 다음과 같습니다: 가열 된 전선,기능하는 트립 회로 차단기 또는 최악의 경우 화재가 발생할 정도로 과열 될 가능성.

회로에 과부하가 걸리면 배선 주변의 절연이 저하되어 단락과 같은 더 나쁜 결과가 발생할 수 있습니다. 더욱이,잦은 전력 중단,연결된 장비의 성능 저하,시스템 구성 요소의 조기 마모는 반복적인 과부하로 인해 발생할 수 있습니다. 회로 과부하는 부하를 신중하게 분배하고 설계 과정에서 제시된 제한 사항을 존중하며 배선을 업그레이드하거나 고전력 사용을 위해 별도의 회로를 추가함으로써 가장 잘 방지할 수 있습니다. 이러한 모든 안전 위험은 적절한 계획뿐만 아니라 전기 코드 준수를 통해서도 잘 종료될 수 있습니다.

차단기에 부적절한 와이어 크기 사용

철사와 차단기 수용량이 일치하지 않을 때,안전 문제의 수는,특히 과열,화재 위험,장비 기능상실 초래될 수 있습니다. 나는 진심으로 차단기 등급과 그것을 비교해서 적당한 철사 크기를 지키는 것이 안전한 전기 가동에 있는 근본적인 요소이다는 것을 믿습니다. 철사 크기가 작은 경우에,짐의 밑에 밖으로 착용되는외에,과열을 위한 책임일 수 있습니다; 부적당한 차단기 성과는 알려질 수 있었습니다. 나는 항상 특정한 차단기 등급을 위한 적당한 철사 크기를 골라내기 위하여 관련된 부호 및 지시어를 보는 것을 보장합니다. 이것은 위험을 감소시키고 안전 기준이 지켜질 수 있다는 것을 지킵니다.

배선 오류를 방지하기 위한 팁
