ES-H09VV-F

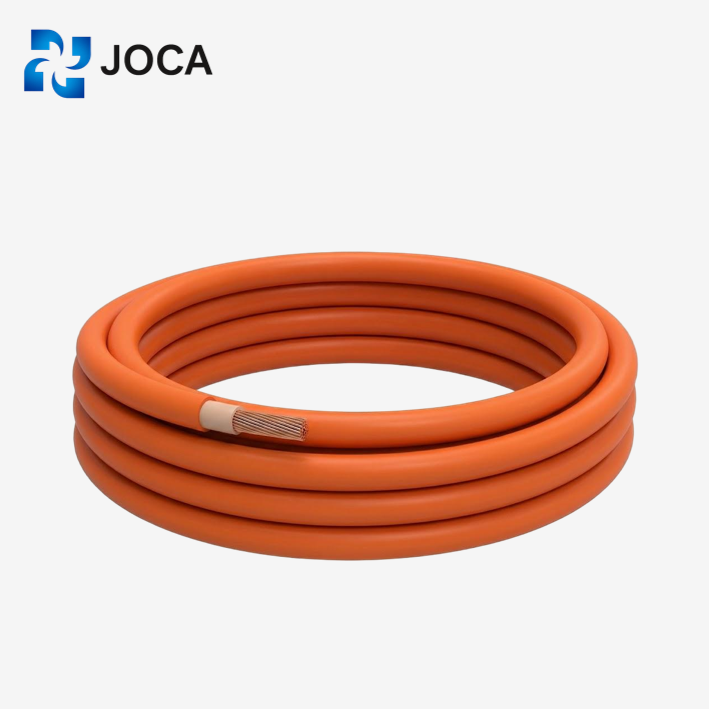

Heat resistant 90℃ PVC insulated sheathed battery cable for electrical energy storage system
Double Protection Structure: Features both PVC insulation and a robust PVC outer sheath (“VV”) for enhanced resistance against mechanical impact and abrasion.
高靈活性: Class 5 fine copper stranding ensures easy routing in tight battery cabinets.
抗化學性: Excellent resistance to battery acid, alkali, and oil.
阻燃劑: Self-extinguishing PVC material ensures safety in fire incidents.
ESS Optimized: Specifically calibrated for DC 900V-1500V energy storage environments.
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
ES-H09VV-F : Product Description and Specifications
JOCA engineers the ES-H09VV-F specifically for DC Energy Storage Systems (ESS). Rated for DC 900V, this cable features a double PVC layer (insulation + sheath) for superior durability compared to standard cables. Its flexible Class 5 copper conductor ensures easy installation in tight battery cabinets, while strictly meeting PPP 58049A 標準。.
-
優點
ES-H09VV-F : Benefits and Features
Double PVC Protection: “VV” design (Double Insulation) offers maximum resistance to abrasion and impact.
高靈活性: Class 5 fine copper strands allow easy routing in compact spaces.
Chemical Resistant: Effectively withstands battery acid, oil, and heat (-40°C to +90°C).
安全認證: Manufactured in compliance with PPP 58049A and CQC1143.
尺寸/參數
| Nominal cross-section (mm²) | Class of Conductor | Insulation Thickness (mm) | Sheath Thickness (mm) | Upper Limit of Average Outside Diameter (mm) | Cable Reference Weight (kg/km) | Max. DC Resistance - Non Electroplating (Ω/km) | Max. DC Resistance - Electroplating (Ω/km) |
|---|---|---|---|---|---|---|---|
| 4 | 5 | 1.0 | 0.7 | 6.8 | 65 | 4.95 | 5.09 |
| 4 | 6 | 1.0 | 0.7 | 6.8 | 69 | 4.95 | 5.09 |
| 6 | 5 | 1.0 | 0.7 | 7.4 | 88 | 3.30 | 3.39 |
| 6 | 6 | 1.0 | 0.7 | 7.4 | 94 | 3.30 | 3.39 |
| 10 | 5 | 1.0 | 0.7 | 8.5 | 138 | 1.91 | 1.95 |
| 10 | 6 | 1.0 | 0.7 | 8.5 | 136 | 1.91 | 1.95 |
| 16 | 5 | 1.0 | 0.7 | 9.8 | 195 | 1.21 | 1.24 |
| 16 | 6 | 1.0 | 0.7 | 9.8 | 194 | 1.21 | 1.24 |
| 25 | 5 | 1.2 | 0.8 | 12.0 | 294 | 0.780 | 0.795 |
| 25 | 6 | 1.2 | 0.8 | 12.0 | 303 | 0.780 | 0.795 |
| 35 | 5 | 1.2 | 0.8 | 13.6 | 391 | 0.554 | 0.565 |
| 35 | 6 | 1.2 | 0.8 | 13.6 | 394 | 0.554 | 0.565 |
| 50 | 5 | 1.4 | 0.8 | 15.9 | 547 | 0.386 | 0.393 |
| 50 | 6 | 1.4 | 0.8 | 15.9 | 549 | 0.386 | 0.393 |
| 70 | 5 | 1.4 | 0.9 | 18.0 | 754 | 0.272 | 0.277 |
| 70 | 6 | 1.4 | 0.9 | 18.0 | 779 | 0.272 | 0.277 |
| 95 | 5 | 1.6 | 0.9 | 20.3 | 1010 | 0.206 | 0.210 |
| 95 | 6 | 1.6 | 0.9 | 20.3 | 1027 | 0.206 | 0.210 |
| 120 | 5 | 1.6 | 0.9 | 22.4 | 1248 | 0.161 | 0.164 |
| 120 | 6 | 1.6 | 0.9 | 22.4 | 1228 | 0.161 | 0.164 |
| 150 | 5 | 1.8 | 1.0 | 24.8 | 1551 | 0.129 | 0.132 |
| 150 | 6 | 1.8 | 1.0 | 24.8 | 1530 | 0.129 | 0.132 |
| 185 | 5 | 2.0 | 1.0 | 27.3 | 1890 | 0.106 | 0.108 |
| 185 | 6 | 2.0 | 1.0 | 27.3 | 1880 | 0.106 | 0.108 |
| 240 | 5 | 2.2 | 1.1 | 30.9 | 2445 | 0.0801 | 0.0817 |
| 240 | 6 | 2.2 | 1.1 | 30.9 | 2416 | 0.0801 | 0.0817 |
-
Production Processes Of Battery cable
To ensure optimal power transmission, JOCA active manufactures high-performance Battery Cables using advanced extrusion technology. 另外, this automated process integrates fine copper stranding with precision insulation to ensure consistent thickness. 而且, we design these cables to effectively resist battery acid, oil, and high temperatures. 因此, our rigorous quality testing guarantees that every cable provides reliable connectivity and strictly meets international safety standards.
裝運包裝
為了滿足各種運輸需求,可以使用多種包裝方法。.
還有更多問題嗎?
Q: What does "VV" stand for in the ES-H09VV-F model name?
A: “VV” indicates that the cable has two layers of Polyvinyl Chloride (PVC) material: one layer for the inner insulation and a second layer for the outer sheath. This double insulation offers better protection than single-insulated cables.
Q: What is the maximum voltage rating for this battery cable?
A: The ES-H09VV-F is rated for DC 900V (conductor to earth) and is suitable for most commercial and industrial energy storage applications.
Q:Is the conductor material pure copper?
答: Yes, JOCA uses high-purity oxygen-free copper (OFC) or tinned copper (upon request) to ensure maximum conductivity and reduced resistance.
Q:Can I use this cable for outdoor battery installations?
答: While the PVC sheath provides excellent protection, we recommend using black-sheathed versions for outdoor use to ensure UV resistance. Please consult our sales team for specific outdoor requirements.
Q: What is the operating temperature range?
A: The cable is designed to operate safely in temperatures ranging from -40°C to +90°C for fixed installations, covering most climate conditions.
Q:該電纜是否符合特定行業標準?
答: 是的,JOCA 嚴格遵守 ES-H09VV-F 的生產規定 PPP 58049A, CQC1143, 和 IEC 60227 安全性和性能標準。.
Q:ES-H09VV-F 電纜是否足夠靈活,可以容納緊密的電池櫃?
答:當然。我們採用 5 類細絞合銅導體,專門為緊湊型儲存系統中的緊密彎曲半徑提供出色的靈活性。.
Q:JOCA 可以客製化外護套的顏色嗎?
答:是的,雖然橙色(用於高壓警告)和黑色是標準配置,但我們可以根據您的專案要求製造客製化顏色(例如紅色)。.
