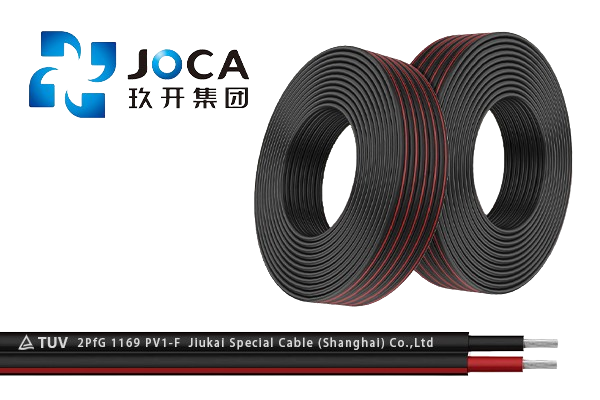

TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Solar Cable
Insights on TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Solar Cable from Chinese Manufacturers
- Applied on earth/rooftop/floating solar power plants
- Certified by TUV/UL/IEC/CE/Ad8/CPR ad lifetime of 25 years
- Applicable in tough indoor and outdoor environment after being irradiated by electrons
- Interoperates with most of the major sun connectors
- Orders should take about a week to be delivered within 200km.
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
Solar Cable TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Product Description and Specifications
的 太陽能電池板 wire is a highly flexible cord connecting photovoltaic solar systems. It’s perfect for different 太陽能 fields and has certifications like TUV, UL, IEC, CE, and RETIE, and compliance with UL4703, IEC62930, EN50618, and CPR standards. It is a versatile cable that meets the solar industry’s requirements in difficult places such as roofs, deserts, lakesides, and mountains. Its stable connection performance ensures photovoltaic systems’ long-term safety and efficiency, thus reducing failure rates and operational costs, leading to sustainable PV profitability. Effectively and securely energize your PV installations.
-

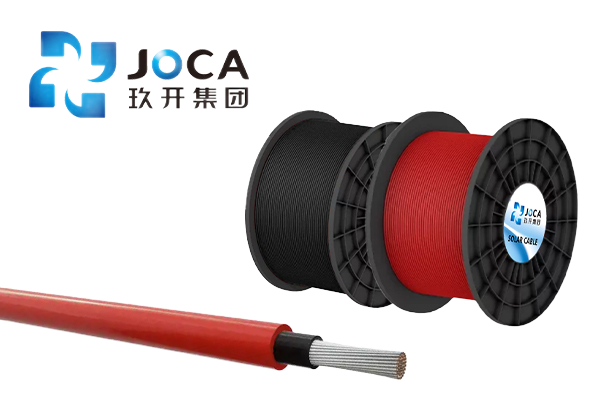

優點
Advantages of TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Solar Cable: Benefits and Features
a. Electron-beam cross-linked compounds
b. UV, ozone, and hydrolysis resistant
c. High temperature resistant, the materials do not melt or flow
d. Good cold flexibility
e. Very long service life > 25 years at 90 c
f. Compatible with all popular connectors
Specification Of TUV 2pfg 1169 Solar Cable
| 電纜施工 | |
|---|---|
| 指揮 | Tinned copper, electrical property & Structure in accordance with EN60228 Class 5. |
| 絕緣 | LSZH electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer's request. |
| 外護套 | LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer's request. |
| 技術規格 | |
| 標稱電壓 | UO/U 0.6/1KV(AC)/ 1KV(DC) |
| 測試電壓 | No break down at 6.5kv(AC)50HZ 5min &20℃±0.5/15kv(DC)5min 20℃±0.5 |
| Temperature Rating connectors | Working temperature -40℃~+90℃，Max conductor temperature 125C(continuously20h),Allowable short circuit temperature 200℃ in 5second |
| 服務壽命 | Expected life spanz25 years |
| 彎曲半徑 | 固定安裝>4D,偶爾移動>5D |
| 材料特性/標準 | |
| Fire-resistant Performance | IEC 60332-1 |
| Gas Emission | IEC 61034£»EN50268-2 |
| Low fire load | DIN 51900 |
| Approvals | TUV 2PFG 1169/08.2007 PV1-F |
| UNE211 23 | UNE 20.460-5-52,UTE C 32-502 |
尺寸/參數
| 施工 | 導體結構 | Insulation Nominal Thickness ( | Sheath Nominal Thickness | Outer diameter | ConductorResistance at 20¡æ Max | 當前承載能力 |
|---|---|---|---|---|---|---|
| n×mm2 | n×mm | 毫米 | 毫米 | 毫米 | Ω/Km | A |
| 2×2.5 | 49x0.24x2 | ≥0.5 | ≥0.5 | 5.2x10.9 | 8.21 | 33 |
| 2×4.0 | 56×0.28x2 | ≥0.5 | ≥0.5 | 5.9x12.2 | 5.09 | 44 |
| 2×6 | 84×0.28x2 | ≥0.5 | ≥0.5 | 6.2x12.9 | 3.39 | 57 |
| 2×10 | 77x0.39x2 | ≥0.5 | ≥0.5 | 7.3x15.1 | 1.95 | 79 |
Certifications Of PV1-F
-
Production Processes Of PV1-F
The smart and digital factory in the JOCA Cable Factory has integrated the entire production and inspection process to be intelligent and digital. It eliminates errors and flaws that were present when workers assembled their products manually at first, thus enhancing the dependability of these goods. In addition, it has all the necessary testing equipment in place and uses various detection technologies, such as digital smart image tests and laser tests, among others, so that the quality of shipped items is confident.
裝運包裝
Multiple packaging methods, suitable for different transport conditions.
| 包裝圖片 | 包裝方法 | 數量/托盤(件) | 米/托盤 (M) | 千瓦/托盤(公斤) | 托盤尺寸(米) | 托盤/20GP | 米/20GP |
|---|---|---|---|---|---|---|---|
 | 100M/ROLL | 4mm²-176pcs | 4mm²-17600m | 4mm²-1144kgs | 1.12x1.12x1.12m | 20 | 4mm²-352000m |
| 6mm²-160pcs | 6mm²-16000m | 6mm²-1360kgs | 6mm²-320000m | ||||
| 200M/ROLL | 4mm²-90pcs | 4mm²-18000m | 4mm²-1170kgs | 1.12x1.12x1.12m | 20 | 4mm²-360000m |
| 6mm²-81pcs | 6mm²-16200m | 6mm²-1377kgs | 6mm²-324000m | ||||
 | 100m/plastic drum | 4mm²-125pcs | 4mm²-12500m | 4mm²-850kgs | 1.12x1.12x1.12m | 20 | 4mm²-250000m |
| 6mm²-100pcs | 6mm²-10000m | 6mm²-900kgs | 6mm²-200000m | ||||
 | 500m/wood drum | 4mm²-27pcs | 4mm²-13500m | 4mm²-1197kgs | 1.12x1.12x1.12 | 20 | 4mm²-270000m |
| 6mm²-27pcs | 6mm²-13500m | 6mm²-930kgs | 6mm²-270000m | ||||
| 1000M/wood drum | 4mm²-12pcs | 4mm²-12000m | 4mm²-830kgs | 1.12x1.12x1.12 | 20 | 4mm²-240000m |
| 6mm²-12pcs | 6mm²-12000m | 6mm²-1070kgs | 6mm²-240000m |
還有更多問題嗎?
Q: What does the abbreviation TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Solar Cable represent?
A: The TUV 2pfg 1169 Solar Cable DC 1000V PV1-F Solar Cable is a special solar cable used in photovoltaic systems. It’s certified by the TUV and can withstand a maximum of 1000 v.
Q: What are some notable features of the TUV 2pfg 1169 Solar Cable?
A: The product’s key features include UV resistance, flexibility for easy installation, and reliable materials that guarantee longer use in solar power applications.
Q: How is the TUV 2pfg 1169 Solar Cable different from other solar cables?
A: Its certification by TUV makes it unique among others. This indicates that it is safe and meets specific standards required for any solar application. It has also been made to survive outdoor conditions and UV exposure.
Q: Can I use my home's TUV-approved residential and commercial solar installations?
A: The cable can be used for residential residences or large-scale projects such as big shopping centers or similar commercial spaces like office buildings. Its dependability and longevity make this brand ideal for multiple applications.
Q: Can you combine inverters with the panels using TUV 2pfg 1169 Solar Cables?
A: Yes, these cable models are compatible with panels and inverters used alongside them. They receive solar panel power, which is then converted into electric currents through an efficient inverter system.
Q: Why should I purchase products like the TUV-certified solar cable –TUF2PFG1169SolarCable?
A: International safety guidelines require your system to adhere to an array of performance metric adherences. These wires are designed to last long but still deliver power in the most efficient manner possible.
Q: How can I know the size and length of TUV 2pfg 1169 Solar Cable for my solar project?
A: For a suitable cable specification, contact a professional solar installer or engineer who will evaluate your system’s needs.
