架空裸導體
Engineered for Strength and Reliability

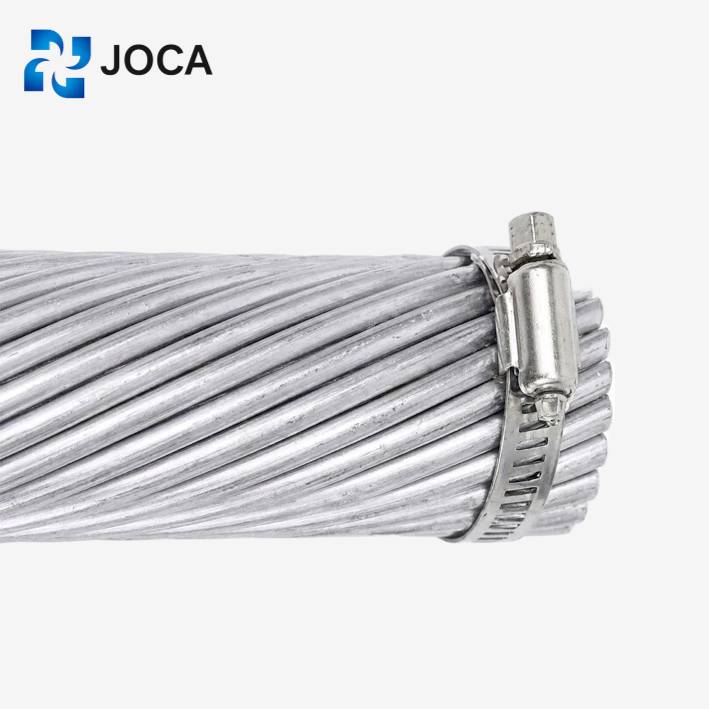

High-Conductivity Aluminum Conductor for Overhead Transmission Lines
High-Strength Aluminum Alloy Conductor for Overhead Transmission Lines

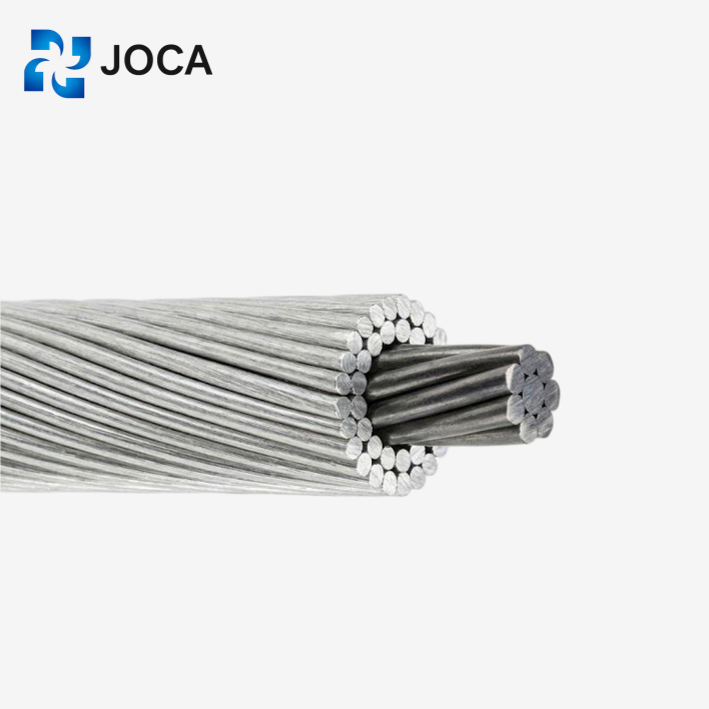

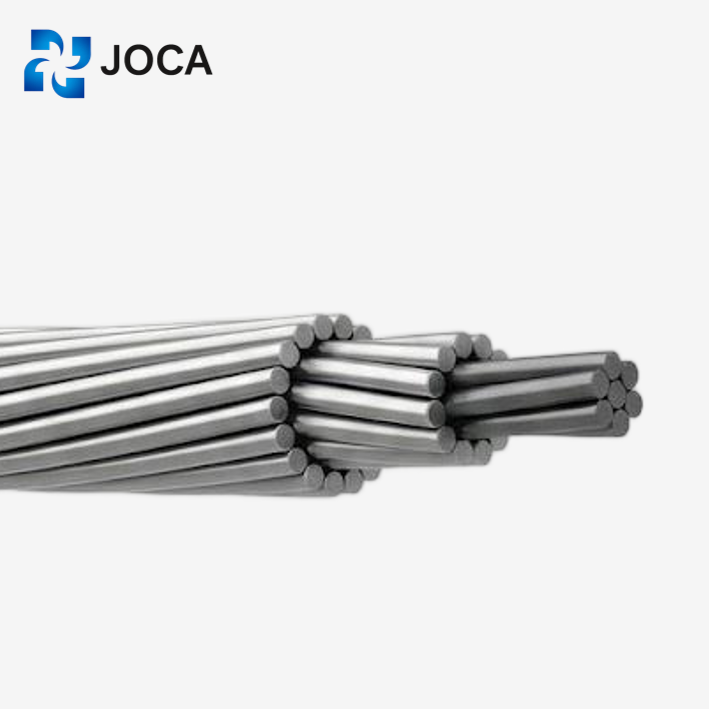

High-Strength Aluminum-Clad Steel Reinforced Conductor for Overhead Transmission Lines
歡迎來到我們的工廠
-
Why Choose JOCA's Overhead Bare Conductors?
Reasons to Choose Joca's Transmission Solutions:
Superior Conductivity & Strength
High-purity Aluminum & Steel core (ACSR/AAAC) ensure optimal conductivity and high tensile strength for long spans.
符合行業標準
Strict adherence to IEC, ASTM, BS, and DIN standards, guaranteeing reliability for global transmission projects.
極高的耐用性
Engineered for harsh environments. Resists corrosion, oxidation, and mechanical stress from wind or ice.
Efficient Transmission
Excellent strength-to-weight ratio allows for less sag and longer spans, reducing tower costs.
可信的全球合作夥伴
Proven global track record. JOCA provides not just conductors, but comprehensive technical support and logistics.
收到快速電源線報價
1。 您正在尋找什麼產品?
2.請在評論部分詳細說明您的具體要求。.
3。填寫提供的表格,我們的技術團隊會及時回覆!
4。 需要技術協助?聯絡我們經驗豐富的工程師!
最新文章 #
JOCA 在 2026 年越南太陽能與儲存直播
2026年7月8日至9日,JOCA有線電視集團殺青。。。.
展覽結束,聯繫持續| JOCA @Intersolar 歐洲 2026
從6月23日起25,JOCA做出了一個強大而令人難忘的...
JOCA誠摯邀請您參加2026年SNEC光電博覽會
JOCA誠摯邀請您參加SNEC光電博覽會...
常見問題
If you want to know more about JOCA’s Overhead Bare Conductor
Q: What’s the practical difference between ACSR, AAC, and AAAC?
答: It’s a trade-off between strength and conductivity. AAC is pure aluminum—great conductivity but low strength, so it’s strictly for short spans. ACSR adds a steel core, giving you the tensile strength needed for long transmission spans but is heavier. AAAC is the modern middle ground: you get better corrosion resistance than ACSR and higher strength than AAC, making it ideal for coastal or polluted areas.
Q: Which standards do you manufacture to?
答: We base our production lines on IEC 61089 和 ASTM B232 mostly. But depending on the destination, we also run to BS 215, DIN 48204, or AS 3607. Basically, if you have a specific grid code, we just need the spec sheet to match the tolerance.
Q: Do I need anti-corrosion grease for coastal lines?
答: For ACSR in coastal zones? Yes, absolutely. If you don’t grease the steel core, salt spray will kill it from the inside out. We apply Type A or Type B high-grade grease during stranding to seal the core gap. It’s a must-have for longevity in those environments.
Q: What’s the voltage range for these conductors?
答: They cover the full spectrum. We supply everything from MV distribution lines right up to 800kV EHV (Extra-High Voltage) transmission backbones. The conductor design just scales up with the voltage requirements.
Q: Can these handle long river or valley crossings?

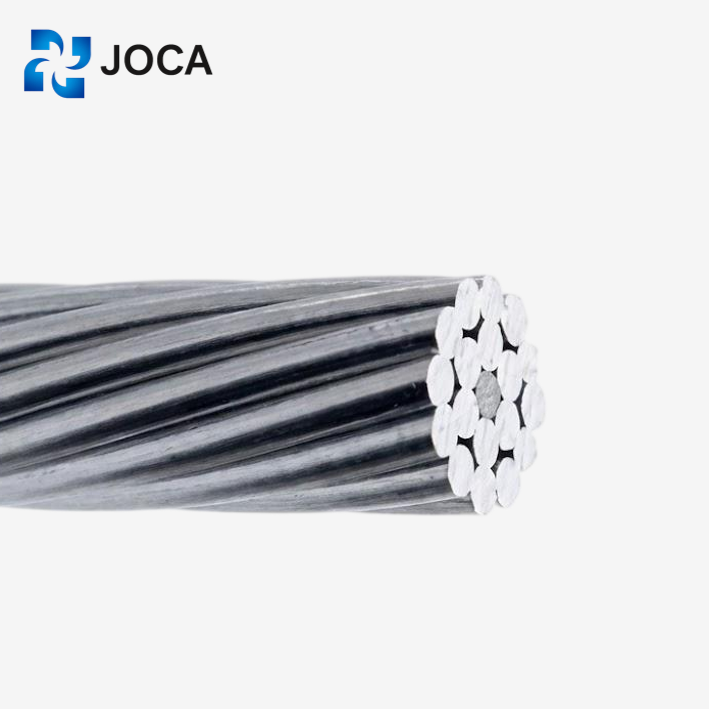

答: Yes. This is where ACSR 或者 AACSR really shines. Because of the steel reinforcement, they have minimal sag under high tension. We design specific high-strength strandings exactly for those wide river crossings where tower spacing is huge.
Q: Can you do custom stranding?
答: Sure. We often customize the lay direction or specific diameter to match existing infrastructure, especially for retrofitting or line upgrade projects where you need to match the old cables exactly.
Q: What do you need for a quote?
答: Just send us the 標準 (like ASTM) and the specific Code Name (like “Drake”, “Hawk”, or “Wolf”). That tells us everything we need for the construction. If you have a custom spec, attach the datasheet and our engineering team will calculate the weight and price.
