H07V-R
450/750V Stranded Copper PVC Insulated Single Core Cable

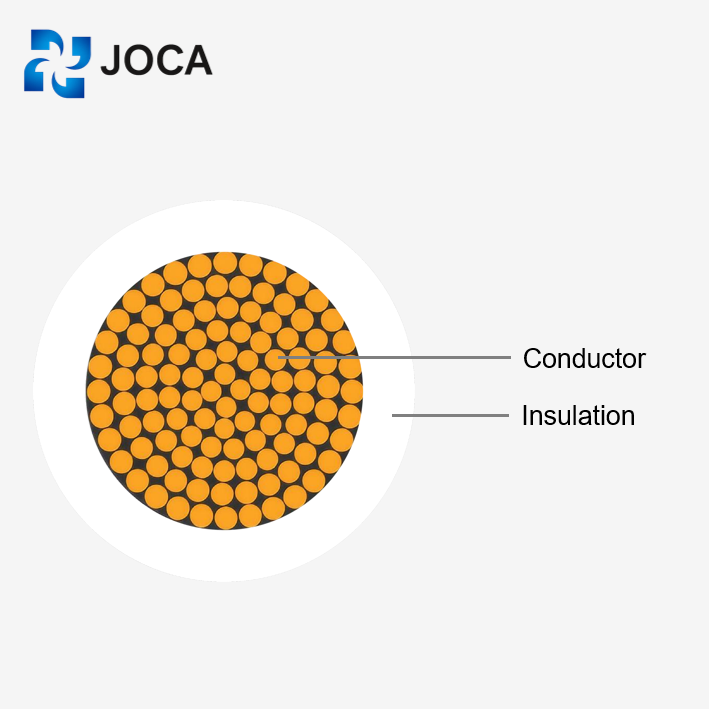

指揮: Stranded bare copper or tinned copper (Class 2), compliant with IEC 60228 / VDE 0281.
絕緣: PVC/TI1 (Standard) or PVC/TI2 (Heat Resistant), compliant with DIN VDE 0281 Part 1 / HD 21.1.
電壓額定值: 450/750V
測試電壓: 2500V
溫度範圍: -20°C至+70°C(固定安裝)
最小。彎曲半徑: 12D(電纜外徑)
- 合規性: RoHS, CE, IEC 60228, VDE 0281, HD 21.3 S3.
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
H07V-R: Product Description and Specifications
的 H07V-R is a standardized 450/750V single-core non-sheathed cable featuring a stranded bare or tinned copper conductor. Designed for flexibility and durability, it is ideal for internal wiring in switchboards, control panels, and power distribution systems where semi-exposed or embedded installation is required.
-
優點
H07V-R: Benefits and Features
Internal wiring of electrical appliance switchboards and apparatus panels.
Connection bridges between electronic and electrical equipment in switchgear cubicles.
Lighting systems requiring semi-exposed or embedded conduits.
Fixed installations in dry environments.
尺寸/參數
| 模型 | 標稱橫截面(毫米²) | Approx. Overall Diameter (mm) | 大約。重量(公斤/公里) |
|---|---|---|---|
| H07V-R | 1.5 | 2.9 | 20.9 |
| H07V-R | 2.5 | 3.6 | 32.6 |
| H07V-R | 4.0 | 4.2 | 48.2 |
| H07V-R | 6.0 | 4.8 | 67.2 |
| H07V-R | 10 | 6.1 | 111.7 |
| H07V-R | 16 | 7.1 | 168.1 |
| H07V-R | 25 | 9.0 | 263.1 |
| H07V-R | 35 | 10.2 | 352.2 |
-
電纜的生產過程
我們的生產依賴最先進的製造設備來確保卓越的電纜性能。該過程整合了精度 銅拉拔和退火 與先進 絕緣擠壓 厚度均勻的技術。在整個生產過程中,嚴格的品質控制措施包括 線上火花測試 自動直徑監測應用於每米。這種嚴格的工作流程保證了我們的電纜符合嚴格要求 IEC 和 GB 標準 用於住宅和工業用途。.
裝運包裝
為了滿足各種運輸需求,可以使用多種包裝方法。.
還有更多問題嗎?
Q:產品名稱?
答: 擱淺剛性單芯。.
產品標準: 高清21.3 S3 / DIN VDE 0281 第 3 部分.
指揮: IEC 60228 /VDE 0295 2 級 (擱淺)。.
絕緣: DIN VDE 0281 第 1 部分 / 高清21.1.
合規性: CE 低壓指令 (73/23/EEC, 93/68/EEC),rohs。.
Q:H07V-R(鏈狀)與 H07V-U(固體)?
答: 處理和尺寸。.
H07V-U(1 級): 實心核心。最適合小尺寸(< 10mm²)。大規格時難以彎曲。.
H07V-R(2 級): 絞線芯(7+ 線)。. 保持直線運行的剛性,但提供足夠的靈活性以輕鬆終止尺寸 ≥16mm².
Q: Voltage & Temp Ratings?
答: 操作規格。.
電壓: 450/750V (Test: 2500V).
Working Temp: -20°C to +70°C (Fixed).
短路: +160°C(最大 5 秒)。.
Q:Standards & Compliance?
答: EU Harmonized.
規格: DIN VDE 0281-3 /IEC 60227-3。.
CE: Complies with current LVD 2014/35/EU.
RoHS: 指令 2011/65/EU。.
Q:Insulation Material?
答: PVC Type TI 1.
Grade: Thermoplastic PVC TI 1 (EN 50363-3).
特點: “Free-Stripping” compound ensures clean removal from the stranded conductor without adhesion, speeding up termination.
Q:戶外應用?
答: 不。. Standard PVC TI 1 degrades under UV exposure. Use only in dry indoor environments or inside sealed, UV-resistant trunking.
Q: Available Range?
答: Class 2 Focus.
Overlap: 1.5mm² – 10mm² (Alternative to Solid).
標準: 16mm² – 240mm² (Primary choice for power distribution).
Q : Minimum Bending Radius?
答: 12 x OD.
固定安裝: 12D
