980 CY。P

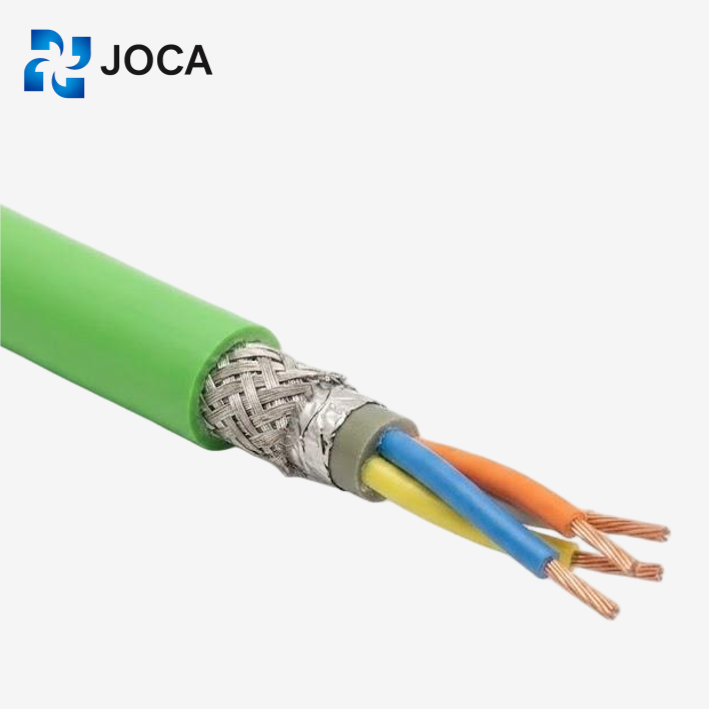

用於高扭力工業機器人的屏蔽 PUR 電纜
指揮: Fine oxygen-free copper wire, multi-stranded. Compliant with DIN VDE 0295 和 IEC 60228 Class 6 conductor standards.
絕緣: TPE (Thermoplastic Elastomer).
Core Identification: Color coded or numbered (Customizable according to customer requirements).
屏蔽: Tinned copper wire braid (High density).
外套: PUR (Polyurethane).
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
980 CY.P : Product Description and Specifications
The H07RN-F Heavy Duty Rubber Cable serves as the premier solution for flexible power transmission in demanding industrial environments. 具體來說, this robust cable 特點 stranded copper conductors insulated with high-quality EPR (Ethylene Propylene Rubber). 另外, a tough PCP (Polychloroprene) outer sheath actively protects the core against mechanical stress, oil, grease, and water. 而且, the weather-resistant design allows for reliable operation in extreme temperatures, making it ideal for construction sites, stage lighting, and mobile generators. 因此, ,喬卡 製造 this product to strictly comply with EN 50525-2-21 standards, ensuring maximum safety for dynamic applications.
-
優點
980 CY.P : Benefits and Features
EMC Compliance: Copper shielding effectively prevents electromagnetic interference.
High Durability: High wear resistance, scratch resistance, and excellent vibration resistance.
抗化學性: Resistant to oil, acids, alkalis, and hydrolysis.
應用: Suitable for high-speed mobile use, robot arms, and harsh industrial environments (torsion applications).
尺寸/參數
| 模型 | Core Structure (N x mm^2) | 大約。外徑(毫米) | 大約。重量(公斤/公里) |
|---|---|---|---|
| 980 CY。P | 2×0.14 | 4.5 | 26 |
| 980 CY。P | 3×0.14 | 4.7 | 28 |
| 980 CY。P | 4×0.14 | 5.2 | 35 |
| 980 CY。P | 5×0.14 | 5.5 | 39 |
| 980 CY。P | 6×0.14 | 5.8 | 44 |
| 980 CY。P | 7×0.14 | 6.4 | 53 |
| 980 CY。P | 8×0.14 | 6.7 | 60 |
| 980 CY。P | 9×0.14 | 7.1 | 65 |
| 980 CY。P | 10×0.14 | 7.5 | 75 |
| 980 CY。P | 12×0.14 | 8.2 | 85 |
| 980 CY。P | 14×0.14 | 8.7 | 100 |
| 980 CY。P | 16×0.14 | 9.1 | 107 |
| 980 CY。P | 2×0.2 | 4.7 | 28 |
| 980 CY。P | 3×0.2 | 5.1 | 34 |
| 980 CY。P | 4×0.2 | 5.4 | 38 |
| 980 CY。P | 5×0.2 | 5.7 | 43 |
| 980 CY。P | 6×0.2 | 6.3 | 53 |
| 980 CY。P | 7×0.2 | 6.7 | 60 |
| 980 CY。P | 8×0.2 | 7.0 | 68 |
| 980 CY。P | 9×0.2 | 7.6 | 79 |
| 980 CY。P | 10×0.2 | 8.1 | 88 |
| 980 CY。P | 12×0.2 | 8.9 | 101 |
| 980 CY。P | 14×0.2 | 9.3 | 119 |
| 980 CY。P | 16×0.2 | 9.6 | 120 |
| 980 CY。P | 2×0.25 | 5.0 | 32 |
| 980 CY。P | 3×0.25 | 5.2 | 36 |
| 980 CY。P | 4×0.25 | 5.6 | 42 |
| 980 CY。P | 5×0.25 | 6.2 | 50 |
| 980 CY。P | 6×0.25 | 6.5 | 58 |
| 980 CY。P | 7×0.25 | 6.9 | 66 |
| 980 CY。P | 8×0.25 | 7.5 | 78 |
| 980 CY。P | 9×0.25 | 7.9 | 87 |
| 980 CY。P | 10×0.25 | 8.4 | 98 |
| 980 CY。P | 12×0.25 | 9.2 | 112 |
| 980 CY。P | 14×0.25 | 9.9 | 140 |
| 980 CY。P | 16×0.25 | 10.2 | 143 |
| 980 CY。P | 2×0.3 | 5.2 | 34 |
| 980 CY。P | 3×0.3 | 5.4 | 38 |
| 980 CY。P | 4×0.3 | 5.7 | 45 |
| 980 CY。P | 5×0.3 | 6.3 | 54 |
| 980 CY。P | 6×0.3 | 6.7 | 62 |
| 980 CY。P | 7×0.3 | 7.1 | 71 |
| 980 CY。P | 8×0.3 | 7.7 | 84 |
| 980 CY。P | 9×0.3 | 8.2 | 94 |
| 980 CY。P | 10×0.3 | 8.8 | 109 |
| 980 CY。P | 12×0.3 | 9.5 | 121 |
| 980 CY。P | 14×0.3 | 10.2 | 150 |
| 980 CY。P | 16×0.3 | 10.6 | 156 |
| 980 CY。P | 2×0.34 | 5.2 | 35 |
| 980 CY。P | 3×0.34 | 5.4 | 39 |
| 980 CY。P | 4×0.34 | 5.7 | 46 |
| 980 CY。P | 5×0.34 | 6.3 | 56 |
| 980 CY。P | 6×0.34 | 6.7 | 64 |
| 980 CY。P | 7×0.34 | 7.1 | 74 |
| 980 CY。P | 8×0.34 | 7.7 | 87 |
| 980 CY。P | 9×0.34 | 8.2 | 97 |
| 980 CY。P | 10×0.34 | 8.8 | 113 |
| 980 CY。P | 12×0.34 | 9.5 | 125 |
| 980 CY。P | 14×0.34 | 10.2 | 155 |
| 980 CY。P | 16×0.34 | 10.6 | 162 |
| 980 CY。P | 2×0.4 | 5.8 | 42 |
| 980 CY。P | 3×0.4 | 6.0 | 48 |
| 980 CY。P | 4×0.4 | 6.6 | 59 |
| 980 CY。P | 5×0.4 | 7.1 | 68 |
| 980 CY。P | 6×0.4 | 7.6 | 80 |
| 980 CY。P | 7×0.4 | 8.3 | 95 |
| 980 CY。P | 8×0.4 | 8.8 | 107 |
| 980 CY。P | 9×0.4 | 9.4 | 120 |
| 980 CY。P | 10×0.4 | 10.2 | 139 |
| 980 CY。P | 12×0.4 | 11.2 | 164 |
| 980 CY。P | 14×0.4 | 12.1 | 200 |
| 980 CY。P | 16×0.4 | 12.5 | 205 |
| 980 CY。P | 2×0.5 | 6.5 | 53 |
| 980 CY。P | 3×0.5 | 6.8 | 62 |
| 980 CY。P | 4×0.5 | 7.3 | 75 |
| 980 CY。P | 5×0.5 | 8.1 | 88 |
| 980 CY。P | 6×0.5 | 8.6 | 102 |
| 980 CY。P | 7×0.5 | 9.5 | 123 |
| 980 CY。P | 8×0.5 | 10.1 | 138 |
| 980 CY。P | 9×0.5 | 10.7 | 156 |
| 980 CY。P | 10×0.5 | 11.7 | 185 |
| 980 CY。P | 12×0.5 | 12.9 | 206 |
| 980 CY。P | 14×0.5 | 13.9 | 248 |
| 980 CY。P | 16×0.5 | 14.3 | 264 |
| 980 CY。P | 2×0.75 | 6.9 | 63 |
| 980 CY。P | 3×0.75 | 7.3 | 74 |
| 980 CY。P | 4×0.75 | 8.0 | 94 |
| 980 CY。P | 5×0.75 | 8.6 | 106 |
| 980 CY。P | 6×0.75 | 9.4 | 129 |
| 980 CY。P | 7×0.75 | 10.2 | 149 |
| 980 CY。P | 8×0.75 | 11.0 | 179 |
| 980 CY。P | 9×0.75 | 11.7 | 202 |
| 980 CY。P | 10×0.75 | 12.7 | 232 |
| 980 CY。P | 12×0.75 | 14.1 | 267 |
| 980 CY。P | 14×0.75 | 15.2 | 316 |
| 980 CY。P | 16×0.75 | 15.6 | 333 |
| 980 CY。P | 2×1.0 | 8.1 | 76 |
| 980 CY。P | 3×1.0 | 8.7 | 96 |
| 980 CY。P | 4×1.0 | 9.4 | 116 |
| 980 CY。P | 5×1.0 | 10.3 | 136 |
| 980 CY。P | 6×1.0 | 11.1 | 159 |
| 980 CY。P | 7×1.0 | 12.2 | 193 |
| 980 CY。P | 8×1.0 | 13.0 | 220 |
| 980 CY。P | 9×1.0 | 14.2 | 255 |
| 980 CY。P | 10×1.0 | 15.4 | 293 |
| 980 CY。P | 2×1.5 | 8.8 | 102 |
| 980 CY。P | 3×1.5 | 9.5 | 129 |
| 980 CY。P | 4×1.5 | 10.2 | 158 |
| 980 CY。P | 5×1.5 | 11.2 | 189 |
| 980 CY。P | 6×1.5 | 12.3 | 228 |
| 980 CY。P | 7×1.5 | 13.3 | 264 |
| 980 CY。P | 8×1.5 | 14.4 | 309 |
| 980 CY。P | 9×1.5 | 15.6 | 358 |
| 980 CY。P | 10×1.5 | 17.0 | 410 |
| 980 CY。P | 2×2.5 | 11.0 | 167 |
| 980 CY。P | 3×2.5 | 11.6 | 204 |
| 980 CY。P | 4×2.5 | 12.8 | 251 |
| 980 CY。P | 5×2.5 | 14.1 | 299 |
| 980 CY。P | 6×2.5 | 15.4 | 362 |
| 980 CY。P | 7×2.5 | 17.0 | 430 |
| 980 CY。P | 8×2.5 | 18.4 | 512 |
| 980 CY。P | 9×2.5 | 19.9 | 591 |
| 980 CY。P | 10×2.5 | 21.6 | 678 |
| 980 CY。P | 2×4.0 | 12.4 | 218 |
| 980 CY。P | 3×4.0 | 13.1 | 266 |
| 980 CY。P | 4×4.0 | 14.5 | 342 |
| 980 CY。P | 5×4.0 | 15.9 | 403 |
| 980 CY。P | 6×4.0 | 17.4 | 486 |
-
機器人電纜的生產流程
確保卓越的靈活性, ,喬卡 製造 使用先進的高性能機器人電纜 短距佈線 和 擠壓 技術。. 具體來說, ,這個自動化的工作流程 整合 超細銅絞合(6 類)、抗扭芯組裝和壓力擠壓。. 另外, 線路 適用 機械堅韌的絕緣材料和堅固的 PUR(聚氨酯)外護套可抵抗磨損和油污。. 而且, 我們的品質控制團隊積極主動 行為 每批進行數百萬次循環拖鏈和彎曲測試。. 因此, ,這個嚴格的過程 保證 我們的電纜嚴格符合動態自動化系統的國際標準。.
裝運包裝
為了滿足各種運輸需求,可以使用多種包裝方法。.
還有更多問題嗎?
Q: Primary Application for 980 CY.P?
答: Shielded 3D Motion.
設計: A 屏蔽 high-performance torsion cable designed for 6-Axis Robots and rotary equipment.
目標: Ideal for robot arm bodies (Articulated Robots) where EMI 保護 is required alongside extreme twisting and bending capabilities.
Q: Oil & Chemical Resistance (PUR)?
答: Machining Center Ready.
Jacket: Robust Polyurethane (PUR).
性能: Offers exceptional resistance to 礦物油, synthetic coolants (cutting fluids), hydrolysis, and microbes.
好處: Prevents cable swelling or degradation in harsh CNC and automotive production environments.
Q: EMI Protection Capabilities?
答: High-Density Shielding.
結構: 特點a 鍍錫銅編織盾 with high optical coverage (≥ 85%).
功能: Ensures EMC (Electromagnetic Compatibility) compliance by blocking noise from Servo Drives and VFDs, protecting sensitive feedback signals in automated systems.
Q:Torsion & Bending Limits?
答: ± 90°C Dynamic Stress.
Torsion: Engineered for twisting angles of ± 90°C per meter (verified at 60 cycles/min).
Bending: Minimum radius of 6 X D (Cable Diameter) for mobile use, allowing installation in tight robot wrist joints.
Q:工作溫度?
答: Extreme Environment Rated.
移動: -40°C 到 +90°C
固定: -50°C 到 +105°C
Use Case: Remains flexible in 冷藏自動化 and withstands high heat in welding cells.
Q: Benefits of TPE Insulation?
答: Low Capacitance & Friction.
機械: TPE(熱塑性彈性體) has a low coefficient of friction, reducing internal heat/wear during torsion.
電氣: 提供 低電容 compared to PVC. This is critical for shielded cables to minimize signal attenuation over long transmission distances.
Q:額定電壓?
答: Signal to Power.
Data/Signal Cores: 評級 30V/300V (DIN 47100 color code).
Power Cores: 評級 600V (1kv Test Voltage).
註: Please confirm the specific cross-section rating in the datasheet.
Q : Outdoor Capabilities?
答: All-Weather Design.
是的: The PUR jacket is naturally 抗紫外線 and ozone-resistant.
應用: Suitable for outdoor gantry robots and material handling systems exposed to sunlight and varying weather conditions.
