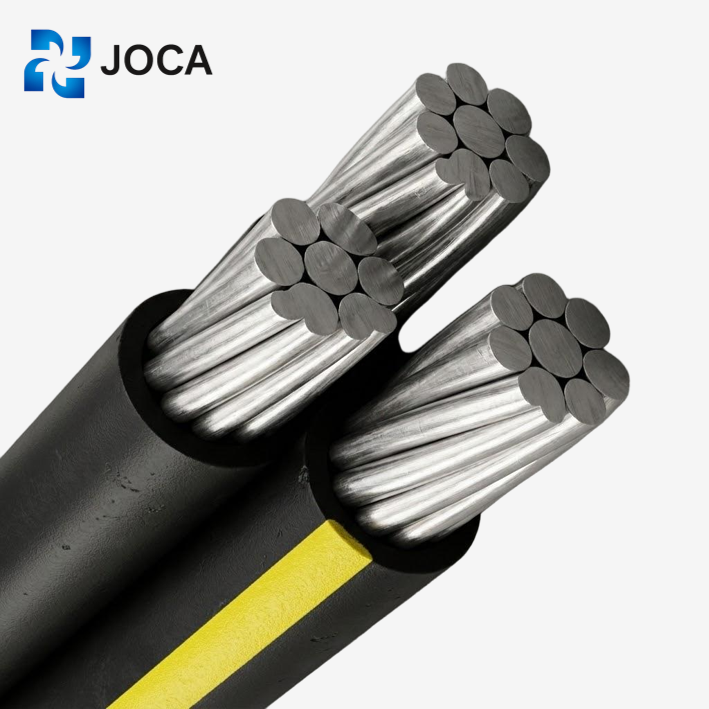

600 volt secondary Type URD cable -aluminum conductor

Q: Q: Direct Burial Capability?

答: 已驗證。. Engineered specifically for Direct Earth Burial 和 Ducting (Wet or Dry soil conditions).

Q: Q: Thermal Rating?

答: 90°C (Continuous Normal Operation).

Q: Q: Neutral Conductor Identification?

答: Visual Coding: Marked with Yellow Striping (or Full Yellow Jacket) to prevent phasing errors.

Q: Q: Alloy Specifications?

答: 材質: 1350-H19 Aluminum 或者 AA-8000 Series Alloy (Dependent on specific configuration).

Q: Q: Chemical/Moisture Resistance?

答: High Resilience. 的 XLPE dielectric system blocks heat, ozone, oil, and common sub-surface chemical agents.

Q: Q: UL Certification?

答: 合規性: Single conductors are UL Listed (Type USE-2) for underground service entrance.

Q: Q: Above-Ground Application?

答: Restricted. Primary design is for underground networks. Above-ground installation (risers) requires verification of local code/sunlight resistance ratings.

Q: Q: How to Request Pricing/Specs?

答: 行動: Click the "Contact Us" button or view the 賣家簡介 directly for official quotations.

用於二次配電的單雙工三工電纜和雙工電纜

建築:

Conductors: Class B compressed stranded Aluminum (1350-H19 or AA-8000 series) per ASTM B231/B800/B801.
絕緣: Black Thermoset Cross-linked Polyethylene (XLPE).

適用標準:

ICEA S-105-692: 600V Single layer thermoset insulated utility underground distribution cable.
UL 854: Service Entrance Cables.

平均至少節省 30%

產品說明

Secondary URD Cable: Product Description and Specifications

Engineered for 600V underground residential distribution, this Secondary URD specification utilizes concentric stranded or compressed 1350-H19 aluminum conductors. The assembly relies on a ruggedized XLPE dielectric system, selected explicitly to block moisture ingress and resist trench abrasion during direct burial or duct installation. Compliance is strictly validated against ICEA and ASTM standards for secondary network reliability, ensuring mechanical durability without requiring additional conduit protection.

優點

Secondary URD Cable: Benefits and Features

Dielectric System: Black XLPE. Specified for high thermal stability and abrasion resistance. (No jacket required).
Duct Optimization: Compressed Stranding. Reduces outer diameter (OD). Engineering result: Lowers friction coefficient during duct pulling.
Neutral Identification: Visual Coding: Yellow Striping (or jacket) on neutral. Eliminates phasing errors during termination.
Metallurgy: AA-8000 Series Alloy. Selected for high conductivity-to-weight ratio and superior bend radius compared to standard 1350 aluminum.
Deployment Rating: 600V. Verified for 直接埋葬 或者 Raceway (Conduit) installation.

Specification Of Secondary URD Cable

SINGLE DUPLEX TRIPLEX QUADRUPLEX 600V SECONDARY URD

類型	Code Name	Phase Size (AWG/kcmil)	Phase Stranding	Phase Insulation (mils)	Neutral Size (AWG/kcmil)	Neutral Stranding	Neutral Insulation (mils)	Single Phase Diameter (mils)	Complete Cable Diameter (mils)	Weight (lb/kft)	Ampacity Direct Burial	Ampacity Duct/Conduit	NEC Ampacity 60°C	NEC Ampacity 75°C	NEC Ampacity 90°C
Single	Cornell	8	7	60				260	260	34	74	36	40	44	49
Single	Princeton	6	7	60				300	300	47	96	47	46	56	59
Single	Mercer	4	7	60				350	350	67	117	60	63	72	81
Single	Clemson	2	7	60				410	410	97	154	82	86	100	108
Single	Kenyon	1	19	80				490	490	128	171	97	98	111	124
Single	Harvard	1/0	19	80				520	520	154	193	112	115	133	146
Single	Yale	2/0	19	80				570	570	186	221	132	132	150	162
Single	Tufts	3/0	19	80				620	620	225	253	155	150	172	189
Single	Beloit	4/0	19	80				680	680	274	290	185	173	200	221
Single	Hofstra	250	37	95				750	750	329	317	199	196	228	248
Single	Gonzaga	300	37	95				810	810	385	349	223	224	255	281
Single	Rutgers	350	37	95				850	850	439	381	248	242	278	302
Single	Dartmouth	400	37	95				900	900	493	410	272	259	300	329
Single	棕色的	450	37	95				940	940	547	439	295	-	-	-
Single	Emory	500	37	95				980	980	601	464	318	299	344	378
Single	Duke	600	61	110				1090	1090	725	514	355	328	377	416
Single	Furman	700	61	110				1160	1160	830	549	386	362	416	459
Single	Sewanee	750	61	110				1190	1190	883	567	403	368	427	470
Single	Fordham	1000	61	110				1340	1340	1144	665	492	431	494	540
Duplex	Bard	8	7	60	8	7	60	262	524	76	70	55
Duplex	Claflin	6	7	60	6	7	60	298	596	91	95	70
Duplex	Delgado	4	7	60	4	7	60	345	690	129	125	90
Duplex	Everett	2	7	60	2	7	60	403	806	189	187	100
Triplex	Erskine	6	7	60	6	7	60	298	644	136	95	70
Triplex	Vassar	4	7	60	4	7	60	345	745	194	125	90
Triplex	Stephens	2	7	60	4	7	60	403	870	260	165	120
Triplex	Ramapo	2	7	60	2	7	60	403	870	290	165	120
Triplex	Brenau	1/0	19	80	2	7	60	512	1106	409	215	160
Triplex	Bergen	1/0	19	80	1/0	19	80	512	1106	476	215	160
Triplex	Converse	2/0	19	80	1	19	80	555	1199	490	245	180
Triplex	Hunter	2/0	19	80	2/0	19	80	555	1199	540	245	180
Triplex	Hollins	3/0	19	80	1/0	19	80	603	1302	586	280	205
Triplex	Sweetbriar	4/0	19	80	2/0	19	80	658	1421	740	315	240
Triplex	Monmouth	4/0	19	80	4/0	19	80	658	1421	847	315	240
Triplex	Pratt	250	37	95	3/0	19	80	732	1581	857	345	265
Triplex	Wesleyan	350	37	95	4/0	19	80	831	1795	1135	415	320
Triplex	Rider	500	37	95	350	37	95	980	2117	1248	495	395
Triplex	Fairfield	750	61	110	500	37	95	1188	2860	2304	615	525
Quadruplex	Tulsa	4	7	60	4	7	60	345	833	258	120	85
Quadruplex	Dyke	2	7	60	4	7	60	403	973	367	155	115
Quadruplex	Wittenberg	2	7	60	2	7	60	403	973	375	155	115
Quadruplex	Notre Dame	1/0	19	80	2	7	60	512	1236	574	200	150
Quadruplex	Purdue	1/0	19	80	1/0	19	80	512	1236	596	200	150
Quadruplex	Syracuse	2/0	19	80	1	19	80	555	1340	664	225	170
Quadruplex	Lafayette	2/0	19	80	2/0	19	80	555	1340	720	225	170
Quadruplex	Swarthmore	3/0	19	80	1/0	19	80	603	1456	805	250	195
Quadruplex	Davidson	3/0	19	80	3/0	19	80	603	1456	874	250	195
Quadruplex	Wake Forest	4/0	19	80	2/0	19	80	658	1588	1036	290	225
Quadruplex	Earlham	4/0	19	80	4/0	19	80	658	1588	1066	290	225
Quadruplex	Rust	250	37	95	3/0	19	80	760	1830	1213	325	210
Quadruplex	Slippery Rock	350	37	95	4/0	19	80	831	1945	1544	385	305
Quadruplex	Wofford	500	37	95	350	37	95	990	2390	2251	467	420
Quadruplex	Windham	750	61	110	500	37	95	1200	2890	3266	615	492

DUPLEX TRIPLEX QUADRUPLEX 600V SECONDARY URD

Category	Code Name	Phase AWG	Phase Stranding	Phase Insulation Thickness	Neutral AWG	Neutral Stranding	Neutral Insulation Thickness	Diameter Single Phase (mils)	Diameter Complete Cable (mils)	Weight (lbs/kft)	Ampacity Direct Burial	Ampacity In Ducts
DUPLEX	Bard	8	7	60	8	7	60	262	524	76	70	55
DUPLEX	Clafin	6	7	60	6	7	60	298	596	91	95	70
DUPLEX	Delgado	4	7	60	4	7	60	345	690	129	125	90
DUPLEX	Everett	2	7	60	2	7	60	403	806	189	187	100
TRIPLEX	Erskine	6	7	60	6	7	60	298	644	136	95	70
TRIPLEX	Vassar	4	7	60	4	7	60	345	745	194	125	90
TRIPLEX	Stephens	2	7	60	4	7	60	403	870	260	165	120
TRIPLEX	Ramapo	2	7	60	2	7	60	403	870	290	165	120
TRIPLEX	Brenau	1/0	19	80	2	7	60	512	1106	409	215	160
TRIPLEX	Bergen	1/0	19	80	1/0	19	80	512	1106	476	215	160
TRIPLEX	Converse	2/0	19	80	1	19	80	555	1199	490	245	180
TRIPLEX	Hunter	2/0	19	80	2/0	19	80	555	1199	540	245	180
TRIPLEX	Hollins	3/0	19	80	1/0	19	80	603	1302	586	280	205
TRIPLEX	Sweetbriar	4/0	19	80	2/0	19	80	658	1421	740	315	240
TRIPLEX	Monmouth	4/0	19	80	4/0	19	80	658	1421	847	315	240
TRIPLEX	Pratt	250	37	95	3/0	19	80	732	1581	857	345	265
TRIPLEX	Wesleyan	350	37	95	4/0	19	80	831	1795	1135	415	320
TRIPLEX	Rider	500	37	95	350	37	95	980	2117	1248	495	395
TRIPLEX	Fairfield	750	61	110	500	37	95	1188	2860	2304	615	525
QUADRUPLEX	Tulsa	4	7	60	4	7	60	345	833	258	120	85
QUADRUPLEX	Dyke	2	7	60	4	7	60	403	973	367	155	115
QUADRUPLEX	Wittenberg	2	7	60	2	7	60	403	973	375	155	115
QUADRUPLEX	Notre Dame	1/0	19	80	2	7	60	512	1236	574	200	150
QUADRUPLEX	Purdue	1/0	19	80	1/0	19	80	512	1236	596	200	150
QUADRUPLEX	Syracuse	2/0	19	80	1	19	80	555	1340	664	225	170
QUADRUPLEX	Lafayette	2/0	19	80	2/0	19	80	555	1340	720	225	170
QUADRUPLEX	Swarthmore	3/0	19	80	1/0	19	80	603	1456	805	250	195
QUADRUPLEX	Davidson	3/0	19	80	3/0	19	80	603	1456	874	250	195
QUADRUPLEX	Wake Forest	4/0	19	80	2/0	19	80	658	1588	1036	290	225
QUADRUPLEX	Earlham	4/0	19	80	4/0	19	80	658	1588	1066	290	225
QUADRUPLEX	Rust	250	37	95	3/0	19	80	760	1830	1213	325	210
QUADRUPLEX	Slippery Rock	350	37	95	4/0	19	80	831	1945	1544	385	305
QUADRUPLEX	Wofford	500	37	95	350	37	95	990	2390	2251	467	420
QUADRUPLEX	Windham	750	61	110	500	37	95	1200	2890	3266	615	492

600V TRI-RATED 8000 SERIES ALUMINUM URD

Code Name	Phase Size (AWG/kcmil)	Phase Stranding	Phase Insulation Thickness (mils)	Neutral Size (AWG/kcmil)	Neutral Stranding	Neutral Insulation Thickness (mils)	Single Phase Cond. Diameter (mils)	Complete Cable Diameter (mils)	Weight (lb/kft)	Ampacity Direct Burial	Ampacity In Ducts
VASSAR-8000	4	7	60	4	7	60	345	745	191	125	90
STEPHENS-8000	2	7	60	4	7	60	403	870	246	165	120
RAMAPO-8000	2	7	60	2	7	60	403	870	290	165	120
BRENAU-8000	1/0	19	80	2	7	60	512	1106	389	215	160
BERGEN-8000	1/0	19	80	1/0	19	80	512	1106	476	215	160
CONVERSE-8000	2/0	19	80	1	19	80	555	1199	483	245	180
HUNTER-8000	2/0	11	80	2/0	11	80	555	1199	545	245	180
SWEETBRIAR-8000	4/0	19	80	2/0	19	80	658	1421	715	315	240
MONMOUTH-8000	4/0	19	80	4/0	19	80	658	1421	802	315	240
PRATT-8000	250	37	95	3/0	19	80	732	1581	867	345	265
WESLEYAN-8000	350	37	95	4/0	19	80	831	1795	1165	415	320

Production Processes Of Aerial Bundled Cable

The aerial cable manufacturing infrastructure operates a closed-loop digital automation system, integrating conductor stranding, insulation extrusion, and final sheathing into a continuous workflow. Process stability relies on embedded sensor arrays tracking extrusion parameters in real-time, eliminating manual variances. Quality validation is enforced through specific in-line hardware, including dual-axis laser diameter gauges and high-voltage spark testers, while the physical laboratory conducts destructive tensile and elongation analysis to verify compliance with international standards before shipment.

裝運包裝

為了滿足各種運輸需求,可以使用多種包裝方法。.

還有更多問題嗎?

我們已在下面編制了有關規範、安全標準和應用程式的最常見問題。如果您沒有看到您正在尋找的內容,或沒有特定的自訂要求,只需直接聯絡我們的工程團隊即可。.

Q: Direct Burial Capability?

答: 已驗證。. Engineered specifically for Direct Earth Burial 和 Ducting (Wet or Dry soil conditions).

Q: Thermal Rating?

答: 90°C (Continuous Normal Operation).

Q: Neutral Conductor Identification?

答: Visual Coding: Marked with Yellow Striping (or Full Yellow Jacket) to prevent phasing errors.

Q: Alloy Specifications?

答: 材質: 1350-H19 Aluminum 或者 AA-8000 Series Alloy (Dependent on specific configuration).

Q: Chemical/Moisture Resistance?

答: High Resilience. 的 XLPE dielectric system blocks heat, ozone, oil, and common sub-surface chemical agents.

Q: UL Certification?

答: 合規性: Single conductors are UL Listed (Type USE-2) for underground service entrance.

Q: Above-Ground Application?

答: Restricted. Primary design is for underground networks. Above-ground installation (risers) requires verification of local code/sunlight resistance ratings.

Q: How to Request Pricing/Specs?

答: 行動: Click the “聯絡我們” button or view the 賣家簡介 directly for official quotations.
