Es-H15Z-F TÜV Energiespeicherkabel Batteriekabel
- Applicable to Solar Power Stations on the Ground /Roof/ Floating
- Certified by TUV/UL/IEC/CE/Ad8/CPR & Lasting for 25 years
- It is used for connecting the battery, battery pack, or combination box with the power conversion system in the solar storage system.
- Suitable for any type of rechargeable battery
- Delivery within 7 work days, if you are within 200 km.
- Schnelle Musterverarbeitung mit maßgeschneiderten Lösungen
- Hochwertige Materialien
- Erschwingliche Preisoptionen
- Globale Lieferung
- Für einen besseren Datenschutz ist darauf zu achten, dass alle Uploads sicher sind
Sparen Sie durchschnittlich mindestens 30%
-
Produktbeschreibung

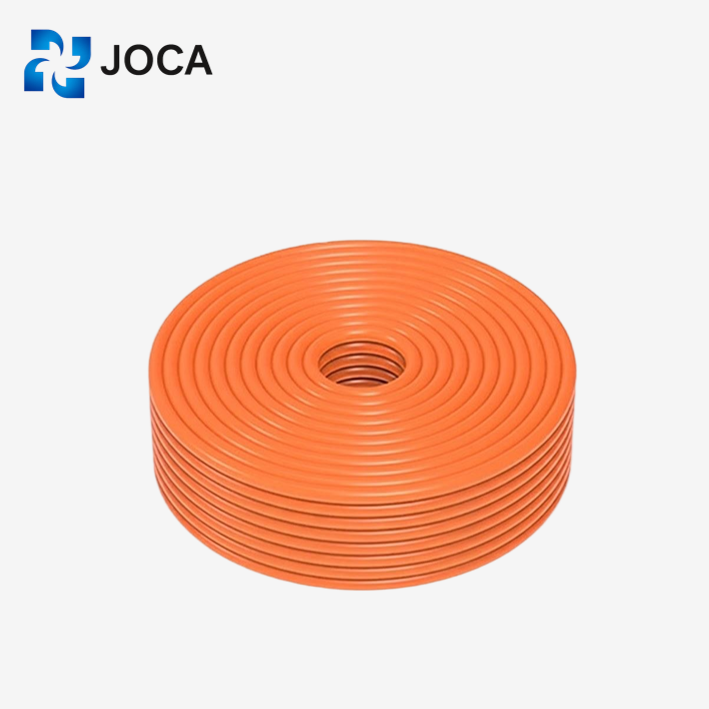

Es-H15Z-F TUV Certified DC1500V Energy battery and inverter Storage Cable:Product Description and Specifications
Die Es-H15Z-F DC1500V is a TUV-approved flexible storage cable designed specifically for solar energy systems. It suits various applications, including large-scale solar farms, rooftop PV stations, and floating power plants. We engineered this multi-purpose cable to meet the diverse demands of the solar industry. It effectively connects internal wiring in electronic equipment, such as linking batteries to inverters. Its stable connection performance guarantees long-term safety and operational stability. Furthermore, this reduces failure rates and lowers maintenance costs. We ensure your PV installations run quickly, efficiently, and safely, maximizing your investment’s profitability.
-
Vorteile
Discover the benefits of Es-H15Z-F TUV Energy Storage Cable Battery Cable - a reliable energy storage solution with top-notch performance.
a. Compounds cross-linked by an electron beam
b. Resistant to UV, ozone and hydrolysis.
c. They can withstand high temperatures without melting or flowing.
d. Excellent flexibility at low temperatures
e. have a very long service life. More than 25 years at 90 c
Specification Of Es-H15z-F Energy battery Storage Cable
| Cable Construction | |
|---|---|
| Leiter | Class 5 tinned copper or bare copper wire |
| Isolierung | XLPO |
| Nennspannung | DC 1500V |
| Prüfspannung | 4500v |
| Temperaturbewertung | 125℃ |
| Lebensdauer | Erwartete Lebensdauer 25 Jahre |
| Zertifizierung | CQC1143,Ppp58049A |
Abmessungen/Parameter
| Conductor | Isolierung | ||||
|---|---|---|---|---|---|
| mm² | No./mm | Nom.Dia (mm) | Nom. Thick (mm) | Nom. Dia (mm) | MAX.COND Resistance (Ω/km, 20°C, DC) |
| 4 | 56/0.30 | 2.59 | 0.8 | 4.25 | 5.09 |
| 6 | 84/0.30 | 3.17 | 0.8 | 4.85 | 3.39 |
| 10 | 78/0.40 | 4.08 | 1 | 5.9 | 1.95 |
| 16 | 126/0.40 | 5.59 | 1.1 | 7.9 | 1.24 |
| 25 | 196/0.40 | 6.95 | 1.3 | 9.7 | 0.795 |
| 35 | 276/0.40 | 8.3 | 1.3 | 11 | 0.565 |
| 50 | 396/0.40 | 9.9 | 1.5 | 13 | 0.393 |
| 70 | 553/0.40 | 11.7 | 1.5 | 14.8 | 0.277 |
| 95 | 760/0.40 | 13.87 | 1.5 | 17 | 0.21 |
| 120 | 950/0.40 | 15.5 | 1.5 | 18.6 | 0.164 |
| 150 | 1178/0.40 | 17.26 | 1.7 | 20.9 | 0.132 |
| 185 | 1463/0.40 | 19.24 | 1.9 | 23.2 | 0.108 |
| 240 | 1911/0.40 | 23.4 | 2 | 27.6 | 0.0817 |
Certifications Of Es-H15z-F Energy battery Storage Cable
-
Production Processes Of Es-H15z-F Energy battery Storage Cable
The JOCA manufacturing facility is a state-of-the-art smart factory where production and inspection are digitally integrated. By replacing manual labor with automated computer systems, we eliminate human error and significantly increase product reliability. Additionally, the facility is equipped with advanced testing instruments, including complete inspection systems and digital image detection technology. These rigorous protocols ensure every cable meets strict quality standards before delivery.
Verpackung für den Versand
Various packaging methods designed to cater to different transportation conditions.
| Verpackungsbilder | Verpackungsmethode | Qty/palette (Stk) | Meter/palette (M) | GW/palette (KGS) | Palettengröße (m) | Palette/20GP | Meter/20 GP |
|---|---|---|---|---|---|---|---|
![]() | 100 M/ROLLE | 4 mm²-176 Stück | 4 mm²-17600 m | 4 mm²-1144 kg | 1,12 x 1,12 x 1,12 m | 20 | 4 mm²-352000 m |
| 6 mm²-160 Stück | 6 mm²-16000 m | 6 mm²-1360 kg | 6 mm²-320000 m | ||||
![]() | 200 M/ROLLE | 4 mm²-90 Stück | 4 mm²-18000 m | 4 mm²-1170 kg | 1,12 x 1,12 x 1,12 m | 20 | 4 mm²-360000m |
| 6 mm²-81 Stück | 6 mm²-16200 m | 6 mm²-1377 kg | 6 mm²-324000 m | ||||
![]() | 100 m/plastische Trommel | 4 mm²-125 Stück | 4 mm²-12500 m | 4 mm²-850 kg | 1,12 x 1,12 x 1,12 m | 20 | 4 mm²-250000m |
| 6 mm²-100 Stück | 6 mm²-10000 m | 6 mm²-900 kg | 6 mm²-200000m | ||||
![]() | 500 m/Holztrommel | 4 mm²-27 Stück | 4 mm²-13500 m | 4 mm²-1197 kg | 1.12x1.12x1.12 | 20 | 4 mm²-270000m |
| 6 mm²-27 Stück | 6 mm²-13500 m | 6 mm²-930 kg | 6 mm²-270000m | ||||
![]() | 1000 M/Holz Trommel | 4 mm²-12 Stück | 4 mm²-12000 m | 4 mm²-830 kg | 1.12x1.12x1.12 | 20 | 4 mm²-240000m |
| 6 mm²-12 Stück | 6 mm²-12000 m | 6 mm²-1070 kg | 6 mm²-240000m |
Haben Sie noch mehr Fragen?
Q: What is es-h15z-f tuv energy storage cable battery cable?
A: The es-h15z-f tuv energy storage cable battery cable is a special kind of wire that can be used for storing electricity, which meets TUV safety requirements.
Q: What does the es-h15z-f battery cable do in particular?
A: This type of battery wire has many features including being made from highly conductive copper strands wrapped in XLPO insulation rated for temperatures up to 125°C and resistant against UV rays or ozone degradation. It also has both TUV and UL certification marks on it.
Q: How does the energy storage cable insulate its material?
A: Energy Storage Cables are insulated using Cross-Linked Polyolefin (XLPO) because this material offers excellent chemical stability along with mechanical as well as thermal robustness.
Q: Can we use this product for solar power generation purposes?
A: Yes, the energy storage cable ESP15BB-K is designed specifically for solar applications due to ability work under higher than normal direct current (DC) voltages found in photovoltaic systems (PV) panels array combiner boxes etc..
Q: Where should I look if I want to buy a good quality supplier who sells these cables?
A: A good idea might be to contact manufacturers based either throughout China or within Europe – just make sure they provide genuine parts backed by certified bodies such as TUV Rheinland Group so you know what you’re getting into terms of product reliability & safety standards followed during manufacturing process itself.
Q: Which certifications does this power transmission line have?
A: The power transmission line has been certified by TUV and UL organization which ensures compliance with international safety regulations while maintaining high-quality standards throughout the production process.
F: Wie wirkt sich die XLPO-Isolierung auf das Leistungsniveau von Energiespeicherkabeln aus?
A:XLP-isolierte Drähte verfügen im Vergleich zu anderen Typen über eine überlegene Wärmebeständigkeit und eignen sich daher ideal für den Einsatz in anspruchsvollen Anwendungen wie Solarkraftwerken (SPP) oder sogar großen Stromversorgungssystemen, die Materialien erfordern, die hohen Temperaturbedingungen über lange Zeiträume standhalten können.
F: Kann das Es-h15Z-F-Kabel im Freien verwendet werden?
A: Ja, das es-h15z-f-Kabel ist wetterfest und hält der Einwirkung von UV-Strahlen, Ozon oder anderen Elementen im Zusammenhang mit Außenumgebungen stand, sodass es gut funktionieren sollte, wenn es in solchen Bereichen ordnungsgemäß installiert wird.
F: Wie hoch sind die Spannungswerte für dieses Produkt?
A: Das Energiespeicherkabel es-h15z-f verfügt über eine Gleichstromleistung von bis zu 1500 V, was bedeutet, dass es schwere Lasten bewältigen kann, ohne dass entlang seiner Länge großer Widerstand erzeugt wird, wodurch die Effizienz während des Stromübertragungsprozesses sichergestellt wird.
F: Woher weiß ich, ob dieses Kabel meine Projektanforderungen erfüllt?
A: Sie sollten alle technischen Spezifikationen, die Ihr Lieferant bezüglich seiner es-h15z-f Batteriekabel zur Verfügung stellt, sorgfältig durchlesen und auch prüfen, ob diese den TÜV-Standards entsprechen, wie es aus Sicherheitsgründen erforderlich ist.
