Luftgebündeltes Kabel
Reliable Overhead Power Distribution

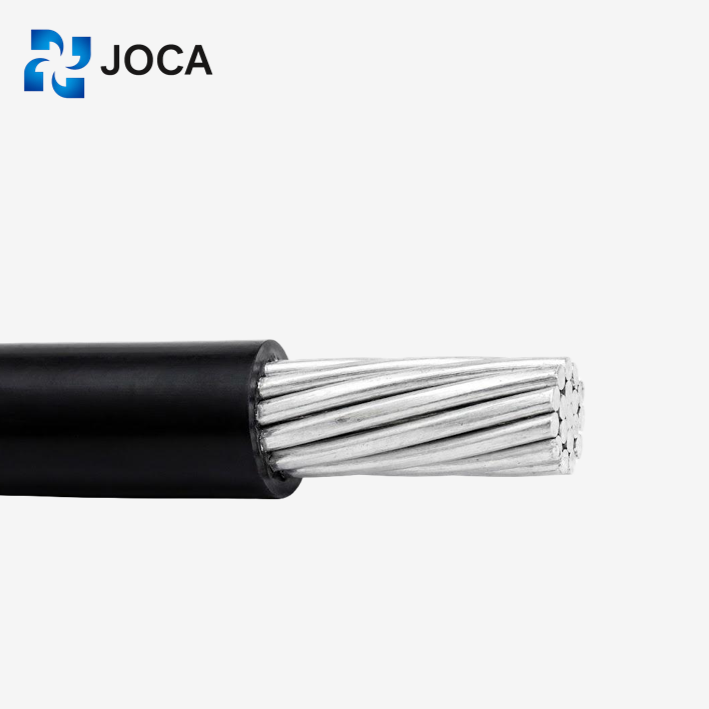

Weather-Resistant Covered Conductor for Overhead Distribution Lines

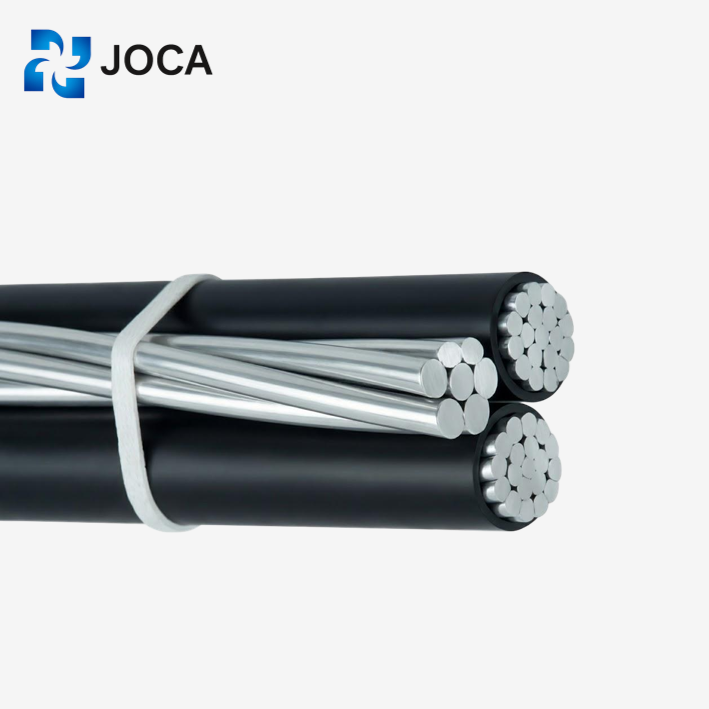

Single Duplex Triplex and Quaplex Cables for secondary power distribution

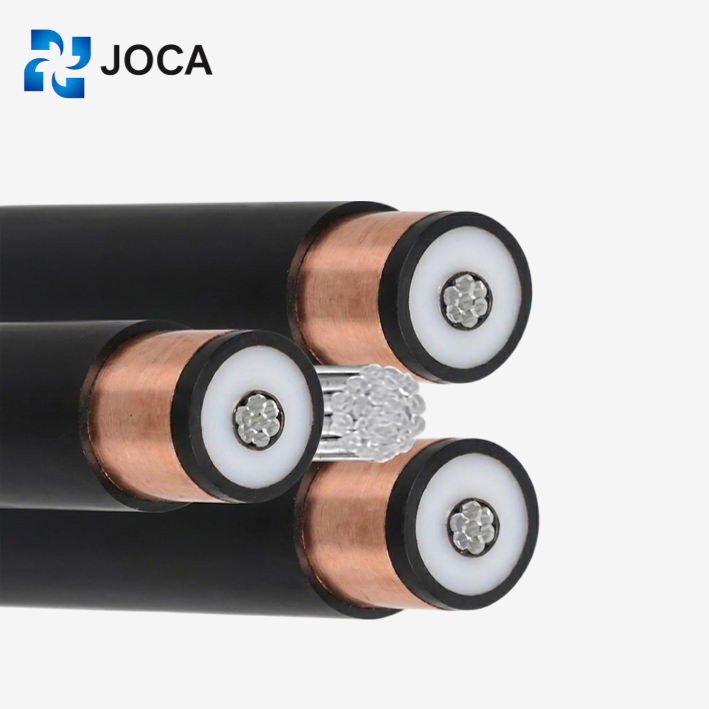

11KV 33KV Medium Voltage MV Aerial Bundled Conductor (ABC) XLPE Cables

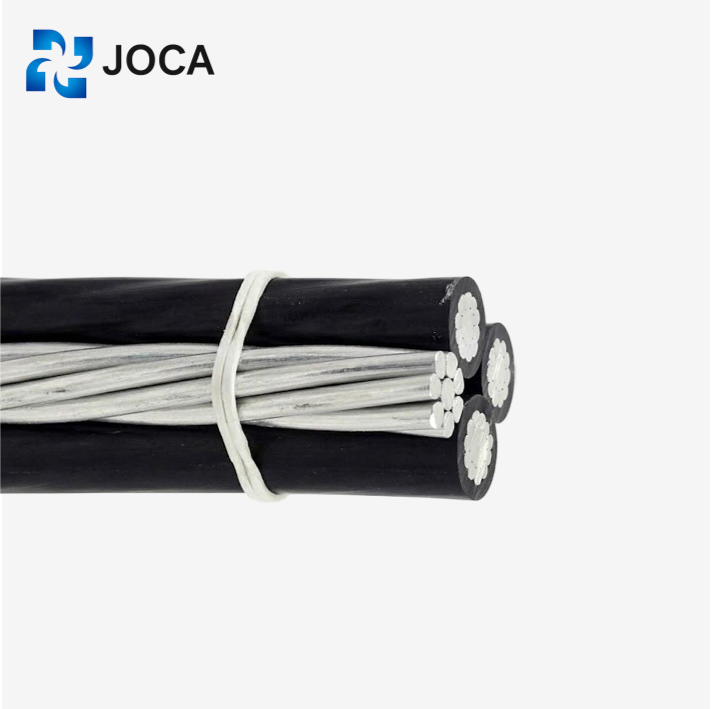

PE&XLPE Aerial Bundle Cables for Overhead Distribution Lines
Overhead Self-Supporting Bundle Cable with XLPE Insulation
Die Rolle von Stromkabeln bei der Stabilität elektrischer Systeme kann nicht unterschätzt werden Dieses Handbuch bietet Informationen über unsere zertifizierten Stromkabel, einschließlich Industriestandards, technischer Spezifikationen und Vorteile. Diese eignen sich am besten für Ingenieure, die die Leistung ihrer Netze maximieren möchten.
-

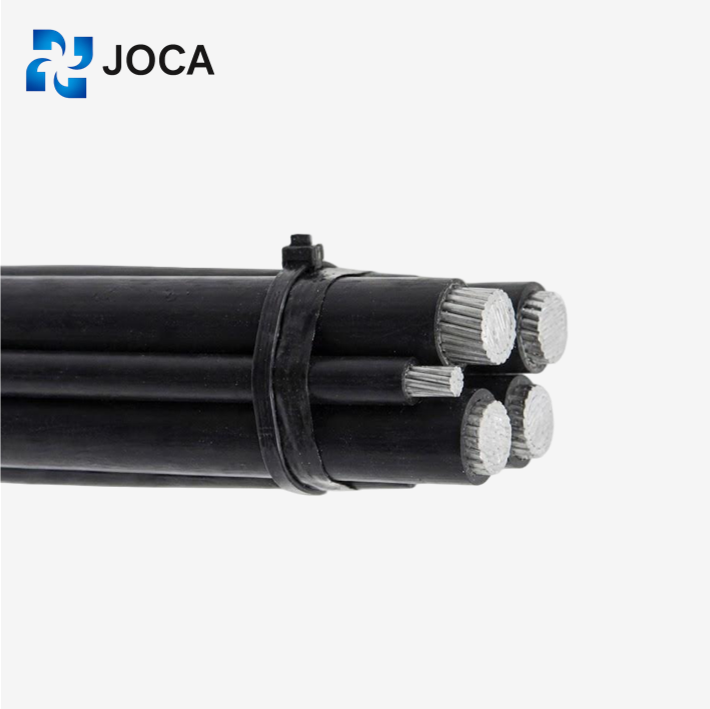

Why Choose JOCA's LV ABC Cables?
Reasons to Choose Joca's Aerial Bundled Cable:
Superb Quality
Premium Materials: Manufactured with high-grade 1350-H19 aluminum conductors and top-tier XLPE insulation to ensure efficient power transmission, minimal line losses, and superior tensile strength.
Industry Compliant
International Standards: Strictly adheres to IEC, ASTM, and ICEA standards (including CAAI / CAAI-S specifications), guaranteeing safety and reliability for overhead secondary distribution networks.
Durability & Protection
Weather-Resistant Design: Engineered for harsh outdoor environments. Our UV-stabilized XLPE insulation provides superior protection against intense sunlight, weathering, and abrasion from tree contact, significantly reducing fault rates.
Einfache Installation
Engineered for Efficiency: The self-supporting bundled design simplifies pole-to-pole installation. It requires less tree trimming and allows for longer spans compared to bare conductors, saving valuable project time and labor costs.
Glaubwürdiger globaler Partner
Global Export Experience: With a proven track record in serving utility companies worldwide, JOCA provides not just cables, but comprehensive technical support for overhead line solutions and reliable logistics.
Erhalten Sie ein schnelles Preisangebot für Stromkabel
1. Welches Produkt suchen Sie?
2. Bitte geben Sie im Kommentarbereich Ihre speziellen Anforderungen an.
3. Füllen Sie das bereitgestellte Formular aus und unser technisches Team wird umgehend antworten!
4. Technische Hilfe benötigen? kontaktieren Sie unsere erfahrenen Ingenieure!
Neueste Artikel
JOCA bei Solar & Storage Live Vietnam 2026
Vom 8. bis 9. Juli 2026 hat die JOCA Cable Group...
Die Ausstellung endet, die Verbindung hält an | JOCA @ Intersolar Europe 2026
Ab dem 23. Juni 25 machte JOCA ein kraftvolles und unvergessliches...
JOCA lädt Sie herzlich zur SNEC PV POWER EXPO 2026 ein
JOCA lädt Sie herzlich zur SNEC PV POWER EXPO ein...
Häufig gestellte Fragen
If you want to know more about JOCA’s Aerial Bundled Cable
Q: What are the primary deployment scenarios for LV ABC (CAAI/CAAI-S)?
A: These bundles are engineered for 0.6/1kV low-voltage distribution networks, particularly in retrofitting urban grids and electrifying rural sectors. They are the technical standard for environments requiring high reliability in congested corridors, heavily vegetated areas, or temporary construction power feeds where bare conductors pose safety risks.
Q: Which specific international standards govern your manufacturing process?
A: Production strictly adheres to IEC 60502 und NFC 33-209 specifications. Depending on regional requirements, we also comply with ASTM/ANSI standards and specific national codes such as NTP 370.254 (for CAAI configurations), ensuring full electrical and mechanical compliance.
Q: Technical comparison: Why specify XLPE over PVC insulation?
A: XLPE (Cross-linked Polyethylene) is a thermosetting material, distinct from thermoplastic PVC. It offers a higher continuous operating temperature (90°C vs. 70°C) and superior resistance to thermal deformation. This allows for higher current carrying capacity (ampacity) and enhanced durability against UV degradation and environmental stress cracking.
Q: What is the operational advantage of ABC over bare conductors?
A: ABC systems fundamentally increase grid reliability (reducing SAIDI/SAIFI indices) by eliminating faults caused by phase-to-phase contact (clashing) or vegetation interference. Furthermore, the insulated design mitigates non-technical losses (illegal tapping) and significantly reduces clearance requirements in narrow rights-of-way.
Q: Can the neutral messenger be customized for specific mechanical loads?
A: Yes. The messenger specification is dictated by span length and tensile strength requirements. We offer three standard variations: AAC/AAAC (Aluminum Alloy) for standard spans, ACSR (Steel Reinforced) for high-tensile needs, and Galvanized Steel for specific legacy support systems.
Q: Are these cables rated for high-salinity or corrosive environments?
A: Yes, provided the correct messenger is specified. While the XLPE phase insulation is inherently resistant to salt spray, for coastal deployments, we strictly recommend Greased ACSR oder AAAC messengers to prevent galvanic corrosion on the neutral support wire.
Q: What core configurations are available?
A: We manufacture the full range of multiplex configurations: Duplex (1 phase + neutral), Triplex, and Quadruplex (3 phases + neutral). Additional pilot cores (street lighting conductors) can be integrated into the bundle as per project BOM (Bill of Materials) requirements.
Q: How to initiate a technical inquiry or quotation?
A: Please submit your technical schedule or BOM (including cross-section area, core count, and messenger type) via the contact form. Our engineering department will generate a formal specification sheet and commercial proposal aligned with your project scope.
