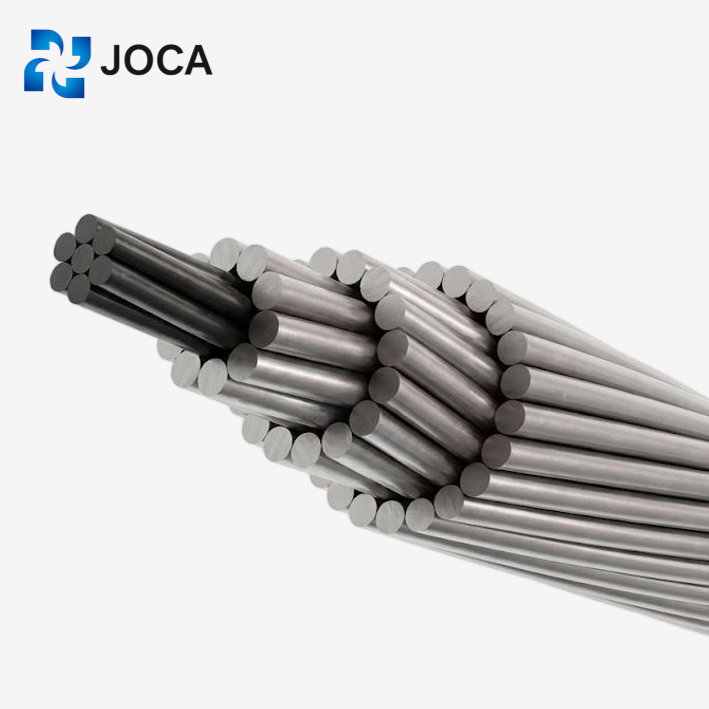

ACSR/AW/EN TANT QUE CONDUCTEUR
High-Strength Aluminum-Clad Steel Reinforced Conductor for Overhead Transmission Lines
- ACSR/AW conductors are widely used as phase conductors in overhead transmission and distribution systems.
- They are preferred over standard ACSR in areas requiring:
High corrosion resistance
Long-span or high-tension lines
Lightweight yet durable conductors
Environments with salt spray, pollutants, or high humidity
- Traitement rapide des échantillons avec des solutions personnalisées
- Matériaux de haute qualité
- Options de prix abordables
- Livraison mondiale
- Pour une meilleure protection des données, assurez-vous que tous les téléchargements sont sécurisés
Économisez au moins 30% en moyenne
-
Description du produit
ACSR/AW Conductor : Product Description and Specifications
Le ACSR/AW (Aluminum-Clad Steel Reinforced) series represents an advanced take on traditional reinforced conductors. By wrapping hard-drawn 1350-H19 aluminum wires around a specialized aluminum-clad steel core, we’ve eliminated the typical vulnerability of exposed steel. This design handles the heavy tension of overhead lines while significantly cutting down on power loss and total cable weight. Because the core is clad in aluminum rather than just galvanized, it offers a much longer service life and “bulletproof” corrosion resistance. It’s the superior choice for modern grids where long-term durability and electrical efficiency are the non-negotiable priorities.
-
Avantages
ACSR/AW Conductor : Benefits and Features
Total Corrosion Barrier: Aluminum-clad steel prevents bi-metallic corrosion—ideal for salt air and industrial zones.
High Strength-to-Weight: Aluminum cladding is lighter than zinc, allowing for significantly longer spans and less tower stress.
Low Energy Loss: High-purity cladding improves core conductivity, reducing resistive heating across the grid.
Decade-Plus Stability: Built for extreme environments with a permanent metallic bond that won’t peel or degrade.
Superior Sag Control: The reinforced core handles massive mechanical loads without the stretching issues of all-aluminum wires.
Lower O&M Costs: Drastically reduces maintenance cycles and long-term “per-kilometer” operational expenses.
Specification Of ACSR/AW Conductor
| ID | Standard | Description |
|---|---|---|
| 1 | British Standards-BS-215 | Aluminum wire, 1350-H19 for electrical purposes |
| 2 | American Standard-ASTM B-549 | Aluminum-clad steel core wire for aluminum conductors, aluminum-clad steel reinforced, either AW2 (normal strength) or AW3 (high strength) |
| 3 | International Electrotechnical Commission International Standards-IEC 61089 | Aluminum conductors, concentric-lay-stranded, aluminum-clad steel reinforced (ACSR/AW) |
Dimensions/Paramètres
| Nominal Aluminum Area (mm2) | Name Code | Stranding Aluminum | Stranding AS | Stranding Aluminum Diameter (mm) | Stranding AS Diameter (mm) | Sectional Area of Aluminum (mm2) | Total Sectional Area (mm2) | Approx Overall Diameter (mm) | Approx Mass (kg/km) | Calculated DC resistance @20℃ (Ω/km) | Calculated Breaking load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | GOPHER | 6 | 1 | 2.36 | 1.26 | 26.25 | 30.62 | 7.08 | 100.8 | 1.0349 | 9.89 |
| 30 | WEASEL | 6 | 1 | 2.59 | 1.59 | 31.61 | 38.68 | 7.77 | 121.5 | 0.8592 | 11.79 |
| 40 | FERRET | 6 | 1 | 3.00 | 3.00 | 42.41 | 49.48 | 9.00 | 163.0 | 0.6405 | 15.66 |
| 50 | RABBIT | 6 | 1 | 3.35 | 3.35 | 52.88 | 61.70 | 10.05 | 203.2 | 0.5136 | 19.06 |
| 70 | HORSE | 12 | 7 | 2.79 | 2.79 | 77.33 | 93.35 | 13.95 | 243.1 | 0.3286 | 63.95 |
| 100 | DOG | 6 | 7 | 4.72 | 7.57 | 105.0 | 118.5 | 14.15 | 393.0 | 0.2619 | 33.01 |
| 150 | WOLF | 30 | 7 | 2.59 | 2.59 | 158.1 | 174.94 | 18.13 | 471.6 | 0.1694 | 71.64 |
| 150 | DINGO | 18 | 1 | 3.35 | 3.35 | 153.7 | 171.96 | 16.75 | 495.0 | 0.1781 | 36.46 |
| 175 | LYNX | 30 | 7 | 2.79 | 2.79 | 183.4 | 202.94 | 18.95 | 547.4 | 0.1534 | 41.52 |
| 175 | CARACAL | 18 | 1 | 3.61 | 3.61 | 184.3 | 203.99 | 18.05 | 574.9 | 0.1534 | 37.90 |
| 200 | PANTHER | 30 | 7 | 3.00 | 3.00 | 212.1 | 233.1 | 21.00 | 632.8 | 0.1263 | 95.34 |
| 200 | JAGUAR | 18 | 1 | 3.86 | 3.86 | 210.6 | 232.3 | 19.30 | 657.2 | 0.1342 | 46.50 |
| 400 | ZEBRA | 54 | 3 | 3.18 | 3.18 | 428.9 | 484.5 | 28.62 | 1238 | 0.06456 | 137.76 |
| Code Word | Taille (AWG ou kcmil) | Stranding (AL/AW) | Diameter AL (in) | Diameter AW (in) | Diameter Complete Cable (in) | Weight AL (lbs/1000ft) | Weight AW (lbs/1000ft) | Weight Total (lbs/1000ft) | Rated Strength (lbs) | Resistance DC@20°C (ohms/1000ft) | Resistance AC@75°C (ohms/1000ft) | Allowable Ampacity (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Swan/AW | 4 | 6/1 | 0.0834 | 0.0834 | 0.250 | 39 | 16 | 55 | 1780 | 0.3917 | 0.4770 | 145 |
| Swante/AW | 2 | 7/1 | 0.1029 | 0.1029 | 0.297 | 62 | 22 | 84 | 2280 | 0.3184 | 0.3642 | 148 |
| Sparrow/AW | 2 | 6/1 | 0.1052 | 0.1052 | 0.316 | 52 | 25 | 87 | 2760 | 0.2462 | 0.2997 | 194 |
| Sparate/AW | 1 | 6/1 | 0.0974 | 0.1299 | 0.352 | 78 | 32 | 110 | 3050 | 0.1957 | 0.2397 | 225 |
| Robin/AW | 1 | 6/1 | 0.1182 | 0.1182 | 0.355 | 78 | 31 | 109 | 3450 | 0.1950 | 0.2337 | 225 |
| Raven/AW | 1/0 | 6/1 | 0.1327 | 0.1327 | 0.392 | 94 | 42 | 136 | 4290 | 0.1570 | 0.1870 | 301 |
| Quail/AW | 2/0 | 6/1 | 1.490 | 1.490 | 0.447 | 124 | 50 | 174 | 5130 | 0.1227 | 0.1494 | 301 |
| Pigeon/AW | 3/0 | 6/1 | 0.1462 | 0.1462 | 0.502 | 156 | 63 | 219 | 6300 | 0.09747 | 0.1188 | 347 |
| Penguin/AW | 4/0 | 6/1 | 0.1877 | 0.1877 | 0.563 | 197 | 79 | 277 | 7690 | 0.07709 | 0.09422 | 402 |
| Waxwing/AW | 266.8 | 18/1 | 1.172 | 1.172 | 0.609 | 250 | 83 | 333 | 6820 | 0.06364 | 0.07776 | 451 |
| Partridge/AW | 266.8 | 26/7 | 0.1277 | 0.1277 | 0.640 | 251 | 98 | 349 | 9320 | 0.06169 | 0.07541 | 465 |
| Ostrich/AW | 300 | 26/7 | 0.1037 | 0.0835 | 0.353 | 93 | 39 | 132 | 12100 | 0.05489 | 0.06761 | 492 |
| Merlin/AW | 336.4 | 18/1 | 0.1277 | 0.1277 | 0.721 | 312 | 104 | 416 | 13050 | 0.04897 | 0.05891 | 537 |
| Linnet/AW | 336.4 | 26/7 | 0.1138 | 0.0885 | 0.721 | 317 | 130 | 447 | 16700 | 0.04795 | 0.05682 | 547 |
| Oriole/AW | 397.5 | 18/1 | 0.1486 | 0.1486 | 0.743 | 373 | 150 | 522 | 9780 | 0.04268 | 0.05230 | 580 |
| Chickadee/AW | 397.5 | 26/7 | 0.1236 | 0.0961 | 0.783 | 374 | 146 | 520 | 15800 | 0.04144 | 0.05072 | 597 |
| Brant/AW | 397.5 | 30/7 | 0.1511 | 0.1127 | 0.868 | 374 | 195 | 569 | 19600 | 0.04059 | 0.04965 | 608 |
| Ibis/AW | 477 | 18/1 | 0.1628 | 0.1440 | 0.814 | 447 | 59 | 507 | 11500 | 0.03566 | 0.04344 | 651 |
| Pelican/AW | 477 | 18/1 | 0.1628 | 0.1440 | 0.814 | 447 | 59 | 507 | 11500 | 0.03566 | 0.04344 | 651 |
| Flicker/AW | 477 | 24/7 | 0.1628 | 0.1440 | 0.815 | 450 | 81 | 531 | 14200 | 0.03566 | 0.04344 | 682 |
| Hawk/AW | 477 | 26/7 | 0.1355 | 0.1054 | 0.858 | 449 | 175 | 624 | 18900 | 0.03453 | 0.04231 | 669 |
| Hen/AW | 477 | 30/19 | 0.1570 | 0.0784 | 0.850 | 451 | 192 | 643 | 19100 | 0.03566 | 0.04444 | 682 |
| Osprey/AW | 556.5 | 18/1 | 0.1758 | 0.1758 | 0.879 | 522 | 69 | 591 | 13200 | 0.03080 | 0.03749 | 715 |
| Parakeet/AW | 556.5 | 24/7 | 0.1628 | 0.1430 | 0.915 | 524 | 163 | 687 | 19300 | 0.02989 | 0.03667 | 731 |
| Dove/AW | 556.5 | 26/7 | 0.1360 | 0.1198 | 0.953 | 525 | 224 | 749 | 18900 | 0.02989 | 0.03627 | 737 |
| Eagle/AW | 556.5 | 30/7 | 0.1362 | 0.1362 | 0.953 | 525 | 293 | 818 | 26800 | 0.02899 | 0.03551 | 751 |
| Peacock/AW | 556.5 | 30/19 | 0.1597 | 0.0849 | 0.953 | 575 | 212 | 787 | 17100 | 0.02749 | 0.03377 | 770 |
| Squab/AW | 605 | 26/7 | 0.1525 | 0.1186 | 0.966 | 570 | 222 | 792 | 23600 | 0.02583 | 0.03341 | 777 |
| Teal/AW | 636 | 30/19 | 0.1130 | 0.0852 | 0.994 | 571 | 211 | 782 | 28350 | 0.02672 | 0.03274 | 791 |
| Kingbird/AW | 636 | 18/1 | 0.1880 | 0.1880 | 0.940 | 596 | 79 | 675 | 15000 | 0.02667 | 0.03826 | 778 |
| Rook/AW | 636 | 24/7 | 0.1564 | 0.0977 | 0.977 | 599 | 114 | 713 | 21600 | 0.02613 | 0.0294 | 794 |
| Grosbeak/AW | 636 | 26/7 | 0.1564 | 0.1216 | 0.990 | 599 | 233 | 832 | 24800 | 0.02588 | 0.03179 | 801 |
| Egret/AW | 666.6 | 30/19 | 0.1167 | 0.0874 | 1.000 | 601.4 | 327.5 | 928.9 | 29930 | 0.02495 | 0.03069 | 818 |
| Flamingo/AW | 666.6 | 24/7 | 0.1600 | 0.1222 | 1.014 | 628 | 243 | 872 | 23100 | 0.02495 | 0.03069 | 818 |
| Gannet/AW | 666.6 | 26/7 | 0.1601 | 0.1245 | 1.014 | 628 | 207.7 | 835.7 | 23300 | 0.02500 | 0.03084 | 825 |
| Starling/AW | 715.5 | 24/7 | 0.1635 | 0.0938 | 1.051 | 674 | 268 | 942 | 27500 | 0.02300 | 0.02830 | 863 |
| Redwing/AW | 715.5 | 30/7 | 0.1544 | 0.0926 | 1.081 | 676 | 360 | 1036 | 33400 | 0.02260 | 0.02777 | 878 |
| Tern/AW | 795 | 45/7 | 0.1329 | 0.0886 | 1.063 | 749 | 124 | 873 | 21500 | 0.02135 | 0.02638 | 896 |
| Mallard/AW | 795 | 30/19 | 0.1628 | 0.0977 | 1.104 | 751 | 490 | 1241 | 30500 | 0.02070 | 0.02549 | 938 |
| Ruddy/AW | 900 | 45/7 | 0.1414 | 0.0943 | 1.131 | 848 | 140 | 988 | 24000 | 0.01886 | 0.02330 | 970 |
| Catbird/AW | 954 | 36/1 | 0.1628 | 1.628 | 1.140 | 938 | 62.5 | 1000 | 19460 | —— | —— | —— |
| Rail/AW | 954 | 45/7 | 0.1456 | 0.0971 | 1.165 | 899 | 129 | 1028 | 25400 | 0.01779 | 0.02201 | 1003 |
| Ortolan/AW | 1033.5 | 45/7 | 0.1515 | 1.110 | 1.213 | 973 | 161 | 1134 | 27200 | 0.01641 | 0.02044 | 1054 |
| Bluejay/AW | 1113 | 45/7 | 0.1573 | 1.160 | 1.259 | 1045 | 172 | 1217 | 29300 | 0.01606 | 0.01905 | 1103 |
| Finch/AW | 1113 | 54/19 | 0.1436 | 0.0862 | 1.293 | 1058 | 319 | 1377 | 37500 | —— | —— | —— |
| Bunting/AW | 1192.5 | 45/7 | 0.1628 | 1.085 | 1.302 | 1125 | 186 | 1311 | 31300 | —— | —— | —— |
| Bittern/AW | 1192.5 | 55/7 | 0.1681 | 1.135 | 1.208 | 1200 | 186 | 1386 | 33400 | —— | —— | —— |
| Pheasant/AW | 1272 | 54/19 | 0.1585 | 0.0921 | 1.382 | 1240 | 364 | 1604 | 42400 | 0.01315 | 0.01466 | 1216 |
| Bobolink/AW | 1431 | 45/7 | 0.1378 | 1.189 | 1.427 | 1348 | 232 | 1580 | 37600 | 0.01186 | 0.01503 | 1283 |
| Lapwing/AW | 1590 | 45/7 | 0.1880 | 1.504 | 1.498 | 1435 | 248 | 1745 | 41800 | 0.01069 | 0.01366 | 1365 |
| Code Word | Conductor Size (mm2) | Stranding (AL/AW) | Diameter AL (mm) | Diameter ACS (mm) | Diameter Cable (mm) | Force nominale (kN) | Linear Weight (kg/km) | Resistance DC@20°C (Ω/km) | Resistance AC@75°C (Ω/km) | Ampacité admissible (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| Condor/AW | 402.8 | 54/7 | 3.08 | 3.08 | 27.72 | 123.7 | 1459 | 0.0686 | 0.0846 | 913 |
| Drak/AW | 402.8 | 30/19 | 4.44 | 2.48 | 28.11 | 135.7 | 1549 | 0.0679 | 0.0836 | 922 |
| Mallard/AW | 402.8 | 30/19 | 4.14 | 2.48 | 28.04 | 165.1 | 1726 | 0.0667 | 0.0820 | 938 |
| Ruddy/AW | 456.0 | 45/7 | 3.59 | 2.40 | 31.06 | 106.8 | 1470 | 0.0607 | 0.0750 | 986 |
| Canary/AW | 456.0 | 45/7 | 3.38 | 2.40 | 28.73 | 137.9 | 1653 | 0.0619 | 0.0764 | 970 |
| Cardinal/AW | 483.4 | 45/7 | 3.38 | 3.38 | 29.53 | 146.4 | 1751 | 0.0584 | 0.0709 | 1022 |
| Rail/AW | 483.4 | 54/19 | 3.70 | 2.47 | 26.91 | 113.0 | 1558 | 0.0572 | 0.0725 | 1003 |
| Ortolan/AW | 523.7 | 45/7 | 3.85 | 2.57 | 31.65 | 120.6 | 1687 | 0.0528 | 0.0655 | 1074 |
| Curlew/AW | 523.7 | 45/7 | 3.85 | 2.57 | 30.78 | 158.4 | 1896 | 0.0538 | 0.0671 | 1054 |
| Bluejay/AW | 564.0 | 45/7 | 4.00 | 2.66 | 32.84 | 134.0 | 1819 | 0.0493 | 0.0614 | 1121 |
| Finch/AW | 564.0 | 54/19 | 3.65 | 2.19 | 31.29 | 166.8 | 2043 | 0.0527 | 0.0625 | 1103 |
| Bunting/AW | 604.2 | 45/7 | 4.14 | 2.76 | 33.99 | 139.3 | 1948 | 0.0460 | 0.0574 | 1168 |
| Grackle/AW | 604.2 | 45/7 | 3.77 | 2.27 | 33.09 | 178.8 | 2187 | 0.0476 | 0.0574 | 1150 |
| Bittern/AW | 644.5 | 45/7 | 4.27 | 2.85 | 35.18 | 148.6 | 2077 | 0.0431 | 0.0540 | 1216 |
| Pheasant/AW | 644.5 | 54/19 | 3.90 | 2.34 | 31.16 | 168.6 | 2333 | 0.0438 | 0.0551 | 1196 |
| Dipper/AW | 684.6 | 45/7 | 4.40 | 2.93 | 36.17 | 157.9 | 2207 | 0.0406 | 0.0510 | 1261 |
| Martin/AW | 684.6 | 45/7 | 4.02 | 2.41 | 35.28 | 200.6 | 2478 | 0.0412 | 0.0520 | 1240 |
| Bobolink/AW | 725.1 | 45/7 | 4.53 | 3.02 | 37.89 | 167.3 | 2337 | 0.0384 | 0.0483 | 1306 |
| Plover/AW | 725.1 | 54/19 | 4.14 | 2.48 | 35.25 | 212.2 | 2625 | 0.0389 | 0.0493 | 1283 |
| Nuthatch/AW | 765.1 | 45/7 | 4.65 | 3.10 | 38.23 | 176.6 | 2467 | 0.0363 | 0.0458 | 1351 |
| Parrot/AW | 765.1 | 54/19 | 4.25 | 2.55 | 33.55 | 228.3 | 2768 | 0.0369 | 0.0469 | 1296 |
| Lapwing/AW | 805.7 | 45/7 | 4.78 | 3.22 | 39.24 | 188.0 | 2598 | 0.0345 | 0.0438 | 1391 |
| Falcon/AW | 805.7 | 45/7 | 4.36 | 2.62 | 35.80 | 235.8 | 2917 | 0.0351 | 0.0448 | 1365 |
| Chukar/AW | 901.9 | 84/19 | 3.70 | 2.22 | 29.18 | 219.8 | 2995 | 0.0319 | 0.0403 | 1464 |
| Kiwi/AW | 1098 | 72/7 | 4.24 | 2.94 | 44.25 | 214.8 | 3367 | 0.0260 | 0.0340 | 1364 |
| Bluebird/AW | 1092 | 84/19 | 4.07 | 2.44 | 37.75 | 267.5 | 3626 | 0.0258 | 0.0346 | 1613 |
| Thrasher/AW | 1171 | 76/19 | 4.43 | 2.07 | 45.79 | 246.0 | 3678 | 0.0243 | 0.0326 | 1680 |
| Code Word | Taille (AWG ou kcmil) | Stranding (AL/AW) | Diameter AL (in) | Diameter AW (in) | Diameter Complete Cable (in) | Weight AL (lbs/1000ft) | Weight AW (lbs/1000ft) | Weight Total (lbs/1000ft) | Rated Strength (lbs) | Resistance DC@20°C (ohms/1000ft) | Resistance AC@75°C (ohms/1000ft) | Allowable Ampacity (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grouse/AW | 80.0 | 8/1 | 0.1000 | 0.1670 | 0.367 | 75.1 | 62.6 | 137.7 | 4890 | 0.1942 | 0.2357 | 227 |
| Petrel/AW | 101.8 | 12/7 | 0.0921 | 0.0921 | 0.460 | 96.0 | 133.9 | 229.9 | 9910 | 0.1425 | 0.1736 | 281 |
| Minorca/AW | 110.8 | 12/7 | 0.0961 | 0.0961 | 0.481 | 104.5 | 145.8 | 250.3 | 10800 | 0.1326 | 0.1594 | 297 |
| Leghorn/AW | 134.6 | 12/7 | 0.1059 | 0.1059 | 0.530 | 127.0 | 177.0 | 304.0 | 13000 | 0.1078 | 0.1313 | 335 |
| Guinea/AW | 159.0 | 12/7 | 0.1151 | 0.1151 | 0.576 | 150.0 | 209.1 | 359.1 | 15300 | 0.09123 | 0.1112 | 372 |
| Dotterel/AW | 176.9 | 12/7 | 0.1261 | 0.1261 | 0.631 | 180.0 | 251.0 | 399.5 | 16900 | 0.08201 | 0.09988 | 398 |
| Dorking/AW | 190.8 | 12/7 | 0.1261 | 0.1261 | 0.631 | 180.0 | 251.0 | 431.0 | 18300 | 0.07601 | 0.09621 | 418 |
| Brahma/AW | 203.2 | 16/19 | 0.1127 | 0.0977 | 0.714 | 197.1 | 411.0 | 602.7 | 21100 | 0.06570 | 0.07994 | 464 |
| Cochin/AW | 211.3 | 12/7 | 0.1327 | 0.1327 | 0.664 | 199.3 | 278.0 | 477.3 | 19800 | 0.06863 | 0.8364 | 445 |
| Code Number | Steel Ratio % | Areas A1 mm2 | Areas SA1A mm2 | Areas Total mm2 | Number of Wires A1 | Number of Wires SA1A | Wire Diameter AL mm | Wire Diameter SA1A mm | Diameter Core mm | Diameter Conductor mm | Linear Mass kg/km | Rated Strength kN | DC Resistance @20°C ohm/km |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 6.7 | 15.0 | 2.56 | 17.6 | 1 | 1 | 1.81 | 1.81 | 5.43 | 5.43 | 59.0 | 5.91 | 1.7923 |
| 25 | 6.4 | 24.0 | 4.00 | 28.0 | 1 | 1 | 2.26 | 2.26 | 6.78 | 9.21 | 90.0 | 9.00 | 1.1471 |
| 40 | 6.1 | 37.0 | 10.1 | 47.1 | 3 | 3 | 2.85 | 2.85 | 8.55 | 10.7 | 232.2 | 14.21 | 0.7169 |
| 50 | 6.0 | 48.0 | 5.6 | 53.6 | 1 | 1 | 3.58 | 3.58 | 10.51 | 13.5 | 368.6 | 31.84 | 0.2868 |
| 100 | 9.6 | 96.0 | 6.5 | 102.6 | 4 | 1 | 4.51 | 4.51 | 13.5 | 14.8 | 460.8 | 44.49 | 0.2303 |
| 125 | 12.0 | 120.0 | 16.7 | 136.7 | 6 | 1 | 3.43 | 1.89 | 5.66 | 15.4 | 589.8 | 56.18 | 0.1800 |
| 150 | 6.9 | 150.0 | 10.6 | 160.6 | 4 | 1 | 3.74 | 3.34 | 7.34 | 16.4 | 614.9 | 63.42 | 0.1440 |
| 160 | 7.5 | 160.0 | 12.0 | 172.0 | 4 | 1 | 3.74 | 3.13 | 6.74 | 17.4 | 589.8 | 56.18 | 0.1803 |
| 200 | 9.4 | 192.0 | 31.3 | 223.3 | 6 | 3 | 3.07 | 2.39 | 7.16 | 19.4 | 737.2 | 69.27 | 0.1443 |
| 250 | 9.8 | 244.0 | 26.0 | 270.0 | 6 | 2 | 3.43 | 2.67 | 8.00 | 21.7 | 921.5 | 86.58 | 0.1153 |
| 315 | 6.9 | 310.0 | 21.4 | 331.4 | 7 | 7 | 2.96 | 1.97 | 5.92 | 22.3 | 996.4 | 78.33 | 0.09170 |
| 350 | 7.1 | 345.0 | 26.2 | 371.2 | 7 | 7 | 2.96 | 1.97 | 5.92 | 23.7 | 1161.1 | 107.6 | 0.07918 |
| 400 | 6.9 | 393.0 | 32.2 | 425.2 | 7 | 7 | 3.22 | 2.22 | 6.67 | 26.7 | 1265.2 | 97.50 | 0.07220 |
| 450 | 6.9 | 442.0 | 50.6 | 473.0 | 7 | 7 | 3.02 | 3.02 | 7.94 | 28.3 | 1402.9 | 124.2 | 0.07230 |
| 450 | 6.9 | 442.0 | 50.6 | 473.0 | 7 | 7 | 3.54 | 2.36 | 7.08 | 28.3 | 1423.4 | 107.5 | 0.06420 |
| 500 | 6.9 | 492.0 | 54.0 | 526.0 | 7 | 7 | 3.73 | 2.49 | 7.46 | 29.8 | 1581.6 | 119.4 | 0.05780 |
| 500 | 6.4 | 484.0 | 62.8 | 547.0 | 7 | 7 | 3.38 | 3.38 | 9.10 | 31.6 | 1771.3 | 150.4 | 0.05780 |
| 560 | 12.7 | 543.0 | 68.8 | 612.0 | 54 | 19 | 3.58 | 2.15 | 10.73 | 32.2 | 1956.3 | 169.4 | 0.05160 |
| 560 | 6.9 | 550.0 | 38.1 | 588.0 | 54 | 7 | 3.98 | 2.63 | 7.89 | 31.6 | 1771.3 | 133.8 | 0.05160 |
| 630 | 12.7 | 611.0 | 77.4 | 688.0 | 54 | 19 | 3.79 | 2.28 | 11.89 | 33.5 | 2200.9 | 150.5 | 0.04580 |
| 630 | 6.9 | 619.0 | 48.8 | 668.0 | 45 | 7 | 4.19 | 2.79 | 8.37 | 33.5 | 1986.2 | 150.4 | 0.04580 |
| 710 | 12.7 | 688.0 | 77.6 | 765.0 | 19 | 7 | 4.03 | 2.42 | 12.08 | 36.3 | 2483.0 | 214.7 | 0.04070 |
| 710 | 6.9 | 701.0 | 52.0 | 753.0 | 19 | 7 | 4.19 | 2.48 | 7.48 | 37.4 | 2412.8 | 167.7 | 0.03610 |
| 800 | 8.3 | 784.0 | 63.3 | 847.0 | 19 | 7 | 3.45 | 3.45 | 10.34 | 37.9 | 2598.9 | 206.4 | 0.03620 |
| 800 | 8.3 | 775.0 | 78.5 | 853.0 | 19 | 7 | 3.65 | 2.75 | 7.94 | 39.7 | 2714.4 | 188.6 | 0.03210 |
| 900 | 4.3 | 890.0 | 38.5 | 928.0 | 7 | 7 | 3.97 | 2.65 | 7.94 | 39.7 | 2714.4 | 188.6 | 0.03210 |
| 900 | 4.3 | 882.0 | 72.0 | 954.0 | 7 | 7 | 4.18 | 2.73 | 9.20 | 40.8 | 2923.3 | 221.9 | 0.02980 |
| 1000 | 4.3 | 989.0 | 42.7 | 1032.0 | 7 | 7 | 4.16 | 2.79 | 8.37 | 41.8 | 3016.2 | 209.5 | 0.02890 |
| 1000 | 4.3 | 972.0 | 55.3 | 1027.0 | 7 | 7 | 4.43 | 1.77 | 8.85 | 42.1 | 3078.6 | 228.0 | 0.02890 |
| 1120 | 8.1 | 1108.0 | 48.0 | 1157.0 | 19 | 7 | 4.08 | 2.45 | 12.24 | 44.9 | 3628.3 | 282.9 | 0.02580 |
| 1250 | 4.2 | 1237.0 | 52.2 | 1289.0 | 7 | 7 | 4.68 | 1.87 | 9.35 | 46.8 | 3764.1 | 260.6 | 0.02310 |
| 1250 | 8.1 | 1225.0 | 99.8 | 1325.0 | 84 | 19 | 4.31 | 2.59 | 12.93 | 47.4 | 4049.5 | 315.7 | 0.02310 |
-
Processus de production de conducteurs nus aériens
JOCA exploite une ligne de production numérisée spécifiquement pour la fabrication de conducteurs nus aériens Le flux de processus commence par l'inspection des tiges d'aluminium brutes, se déplaçant à travers le tréfilage à grande vitesse et le toronnage de précision dans un environnement unique et suivi des données Pour prévenir les défauts, nous avons intégré des capteurs intelligents qui surveillent le diamètre et la douceur de surface de chaque couche de conducteur en temps réel Cette configuration automatisée utilise la technologie de mesure laser pour imposer le strict respect des normes ASTM, IEC et BS. En supprimant la variabilité manuelle, le système garantit que chaque bobine d'AAC, AAAC ou ACSR maintient une résistance à la traction constante et des performances électriques stables, même sous une exposition environnementale extrême.
Emballage pour expédition
Pour répondre à divers besoins de transport, il existe de nombreuses méthodes d'emballage qui peuvent être utilisées.
Vous avez plus de questions ?
Q : Qu'est-ce qui définit exactement la construction ACSR/AW ?
UN: C'est une version avancée de conducteurs renforcés. On bloque 1350-H19 aluminium sur un noyau revêtu d'aluminium plutôt que galvanisé. Cela crée une liaison métallique permanente qui bloque la rouille et réduit le poids.
Q : Pourquoi choisir l'acier recouvert d'aluminium par rapport à l'acier galvanisé traditionnel
UN: Le conducteur principal est durée de vie de la corrosion. L'acier galvanisé finit par rouiller lorsque le zinc s'use. Les revêtements en aluminium sont plus épais et chimiquement identiques aux fils extérieurs, ce qui évite la corrosion bimétallique dans les zones côtières.
Q : Y a-t-il une différence de poids significative
UN: Oui. L'acier recouvert d'aluminium a une densité plus faible. Cela allège l'ensemble du câble, ce qui se traduit par moins de tension sur vos tours et un meilleur contrôle de l'affaissement sur les longues portées.
Q: Which core strength grades are available?
UN: We follow ASTM B549 specs. You can choose from AW1 (Normal), AW2 (Extra), or AW3 (High Strength). For most high-tension transmission projects, AW2 and AW3 are the industry standards.
Q: Where is this conductor the "best fit"?
UN: Use it where reliability is non-negotiable—specifically coastal grids, industrial crossing, or ultra-long spans. It’s built for spots where standard ACSR would fail too early due to salt or chemical exposure.
Q: Does the AW core actually help with power loss?
UN: Indirectly, yes. The aluminum layer on the core is more conductive than zinc. This slightly improves the overall electrical efficiency and keeps the conductor’s resistance stable over decades of service.
Q: How does it hold up in salt-spray environments?
UN: It’s arguably the best reinforced conductor for marine areas. The aluminum-on-aluminum design means there’s no “sacrificial” layer to fail, so salt and humidity can’t get to the steel center.
Q: What about thermal stability at high temperatures?
UN: ACSR/AW handles the 75°C to 90°C range without a sweat. The aluminum cladding maintains better mechanical bonding with the outer strands during thermal expansion than galvanized alternatives.
