N2XSEBY/NA2XSEBY

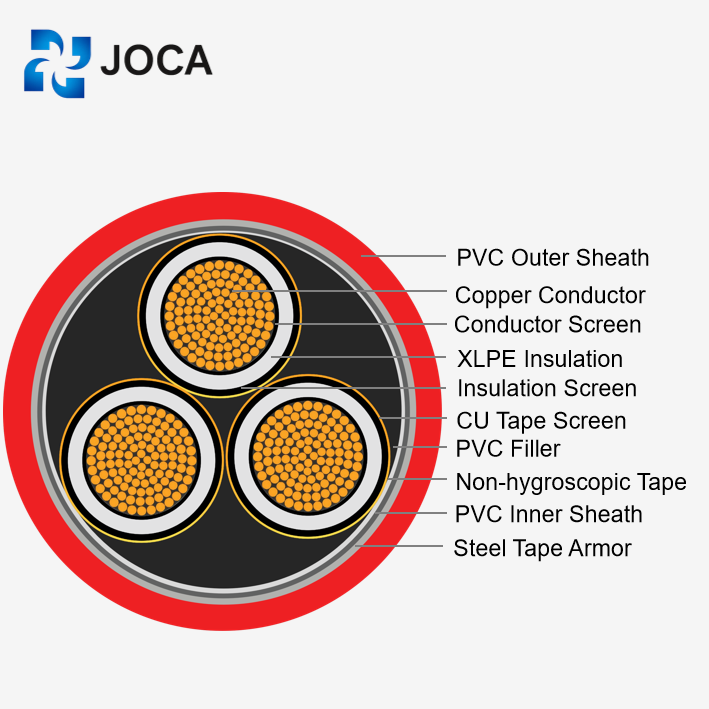

3.6KV-35KV XLPE Insulation Steel Tape Armoured and PVC Jacket power cable
- 指揮: 銅或鋁(根據 IEC 60502-2 的 2 類)。.
- 絕緣 :XLPE
- 金屬螢幕 :銅帶
- 分離層 :非吸濕膠帶。.
- 內鞘 :聚氯乙烯
- 鎧甲 : Steel Tape Armor (STA).
- 外護套 :聚氯乙烯
- 顏色 :通常是紅色或黑色。.
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
N2XSEBY/NA2XSEBY : Product Description and Specifications
的 N2XSEBY (銅)和 NA2XSEBY (Aluminum) series are engineered for Medium Voltage networks ranging from 3.6kV to 35kV. Unlike standard cables, this specification incorporates Double Steel Tape Armor (DSTA). This metallic reinforcement creates a rigid barrier against crushing loads, allowing for direct burial in cable trenches where mechanical pressure is a concern. The core is insulated with high-grade XLPE and protected by a heavy-duty PVC sheath, ensuring full compliance with IEC 60502-2 standards for grid stability.
-
優點
N2XSEBY/NA2XSEBY : Benefits and Features
Steel Tape Armor (DSTA): The cable utilizes double layers of galvanized steel tape. This structure is specifically engineered to resist radial crushing loads, making it the standard choice for direct burial in soil.
XLPE Insulation: 評級為 90°C continuous operation. This material provides significantly higher dielectric strength and thermal headroom than legacy PVC insulation.
Copper Tape Screen: A metallic tape layer applied over the insulation to uniformly control electric field stress and provide a designated path for fault currents.
Conductor Flexibility: Specification allows for Class 2 Stranded Copper (for ampacity) or Aluminum (for weight reduction), depending on load requirements.
Protective Sheathing: The ST2 type PVC jacket creates a hermetic seal against moisture ingress and chemical corrosion in underground environments.
尺寸/參數
| 橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | Armored tape thickness (approx.) (mm) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 2.5 | 0.1 | 1.2 | 0.5 | 2.2 | 39.3 | 2474 | 2002 |
| 35 | 緊湊的圓形 | 7.2 | 2.5 | 0.1 | 1.3 | 0.5 | 2.3 | 42.3 | 2947 | 2286 |
| 50 | 緊湊的圓形 | 8.4 | 2.5 | 0.1 | 1.3 | 0.5 | 2.4 | 45.1 | 3537 | 2593 |
| 70 | 緊湊的圓形 | 10.0 | 2.5 | 0.1 | 1.4 | 0.5 | 2.5 | 48.9 | 4351 | 3030 |
| 95 | 緊湊的圓形 | 11.7 | 2.5 | 0.1 | 1.4 | 0.5 | 2.6 | 52.8 | 5297 | 3504 |
| 120 | 緊湊的圓形 | 13.1 | 2.5 | 0.1 | 1.5 | 0.5 | 2.8 | 56.4 | 6277 | 4012 |
| 150 | 緊湊的圓形 | 14.6 | 2.5 | 0.1 | 1.6 | 0.5 | 2.9 | 60.0 | 7373 | 4541 |
| 185 | 緊湊的圓形 | 16.3 | 2.5 | 0.1 | 1.6 | 0.5 | 3.0 | 63.9 | 8665 | 5172 |
| 240 | 緊湊的圓形 | 18.5 | 2.6 | 0.1 | 1.7 | 0.5 | 3.2 | 69.7 | 10618 | 6087 |
| 300 | 緊湊的圓形 | 20.7 | 2.8 | 0.1 | 1.8 | 0.5 | 3.4 | 76.3 | 12836 | 7173 |
| 400 | 緊湊的圓形 | 23.8 | 3.0 | 0.1 | 2.0 | 0.8 | 3.7 | 86.1 | 17195 | 9644 |
| 500 | 緊湊的圓形 | 26.6 | 3.2 | 0.1 | 2.1 | 0.8 | 3.9 | 94.8 | 20887 | 11448 |
| 橫截面積(mm2) | 結構 | Outer diameter (mm) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲線外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 3.4 | 0.1 | 1.3 | 2.5 | 2.5 | 48.0 | 4175 | 3703 |
| 35 | 緊湊的圓形 | 7.2 | 3.4 | 0.1 | 1.3 | 2.5 | 2.6 | 50.8 | 4733 | 4072 |
| 50 | 緊湊的圓形 | 8.4 | 3.4 | 0.1 | 1.4 | 2.5 | 2.7 | 53.8 | 5491 | 4547 |
| 70 | 緊湊的圓形 | 10.0 | 3.4 | 0.1 | 1.5 | 2.5 | 2.8 | 57.6 | 6446 | 5124 |
| 95 | 緊湊的圓形 | 11.7 | 3.4 | 0.1 | 1.5 | 2.5 | 2.9 | 61.5 | 7530 | 5737 |
| 120 | 緊湊的圓形 | 13.1 | 3.4 | 0.1 | 1.6 | 2.5 | 3.0 | 64.9 | 8628 | 6363 |
| 150 | 緊湊的圓形 | 14.6 | 3.4 | 0.1 | 1.6 | 2.5 | 3.1 | 68.3 | 9794 | 6963 |
| 185 | 緊湊的圓形 | 16.3 | 3.4 | 0.1 | 1.7 | 2.5 | 3.3 | 72.6 | 11326 | 7834 |
| 240 | 緊湊的圓形 | 18.5 | 3.4 | 0.1 | 1.8 | 3.15 | 3.5 | 79.2 | 14268 | 9737 |
| 300 | 緊湊的圓形 | 20.7 | 3.4 | 0.1 | 1.9 | 3.15 | 3.6 | 84.8 | 16641 | 10978 |
| 400 | 緊湊的圓形 | 23.8 | 3.4 | 0.1 | 2.0 | 3.15 | 3.9 | 92.3 | 20362 | 12811 |
| 500 | 緊湊的圓形 | 26.6 | 3.4 | 0.1 | 2.1 | 3.15 | 4.1 | 99.3 | 24203 | 14764 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲帶外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 4.5 | 0.1 | 1.4 | 0.5 | 2.5 | 48.9 | 3227 | 2755 |
| 35 | 緊湊的圓形 | 7.2 | 4.5 | 0.1 | 1.4 | 0.5 | 2.6 | 51.7 | 3711 | 3050 |
| 50 | 緊湊的圓形 | 8.4 | 4.5 | 0.1 | 1.5 | 0.5 | 2.7 | 54.7 | 4372 | 3428 |
| 70 | 緊湊的圓形 | 10.0 | 4.5 | 0.1 | 1.5 | 0.5 | 2.8 | 58.4 | 5208 | 3886 |
| 95 | 緊湊的圓形 | 11.7 | 4.5 | 0.1 | 1.6 | 0.5 | 3.0 | 62.6 | 6271 | 4477 |
| 120 | 緊湊的圓形 | 13.1 | 4.5 | 0.1 | 1.7 | 0.5 | 3.1 | 66.0 | 7254 | 4989 |
| 150 | 緊湊的圓形 | 14.6 | 4.5 | 0.1 | 1.7 | 0.5 | 3.2 | 69.5 | 8420 | 5588 |
| 185 | 緊湊的圓形 | 16.3 | 4.5 | 0.1 | 1.8 | 0.5 | 3.3 | 73.5 | 9731 | 6239 |
| 240 | 緊湊的圓形 | 18.5 | 4.5 | 0.1 | 1.9 | 0.5 | 3.5 | 78.9 | 11715 | 7184 |
| 300 | 緊湊的圓形 | 20.7 | 4.5 | 0.1 | 2.0 | 0.8 | 3.7 | 85.8 | 14774 | 9111 |
| 400 | 緊湊的圓形 | 23.8 | 4.5 | 0.1 | 2.1 | 0.8 | 3.9 | 93.1 | 18350 | 10798 |
| 500 | 緊湊的圓形 | 26.6 | 4.5 | 0.1 | 2.2 | 0.8 | 4.1 | 101.0 | 21990 | 12551 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲帶外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 緊湊的圓形 | 7.2 | 5.5 | 0.1 | 1.5 | 0.5 | 2.8 | 56.6 | 4182 | 3521 |
| 50 | 緊湊的圓形 | 8.4 | 5.5 | 0.1 | 1.6 | 0.5 | 2.9 | 59.6 | 4866 | 3922 |
| 70 | 緊湊的圓形 | 10.0 | 5.5 | 0.1 | 1.6 | 0.5 | 3.0 | 63.3 | 5738 | 4417 |
| 95 | 緊湊的圓形 | 11.7 | 5.5 | 0.1 | 1.7 | 0.5 | 3.1 | 67.3 | 6783 | 4990 |
| 120 | 緊湊的圓形 | 13.1 | 5.5 | 0.1 | 1.8 | 0.5 | 3.2 | 70.7 | 7847 | 5582 |
| 150 | 緊湊的圓形 | 14.6 | 5.5 | 0.1 | 1.8 | 0.5 | 3.3 | 74.2 | 8972 | 6141 |
| 185 | 緊湊的圓形 | 16.3 | 5.5 | 0.1 | 1.9 | 0.5 | 3.5 | 78.4 | 10352 | 6859 |
| 240 | 緊湊的圓形 | 18.5 | 5.5 | 0.1 | 2.0 | 0.8 | 3.7 | 85.0 | 13229 | 8698 |
| 300 | 緊湊的圓形 | 20.7 | 5.5 | 0.1 | 2.1 | 0.8 | 3.8 | 90.5 | 15523 | 9860 |
| 400 | 緊湊的圓形 | 23.8 | 5.5 | 0.1 | 2.2 | 0.8 | 4.1 | 98.0 | 19110 | 11559 |
| 500 | 緊湊的圓形 | 26.6 | 5.5 | 0.1 | 2.3 | 0.8 | 4.3 | 105.9 | 22909 | 13470 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲帶外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 緊湊的圓形 | 8.4 | 8.0 | 0.1 | 1.8 | 0.5 | 3.3 | 71.6 | 6279 | 5335 |
| 70 | 緊湊的圓形 | 10.0 | 8.0 | 0.1 | 1.8 | 0.5 | 3.4 | 75.2 | 7189 | 5868 |
| 95 | 緊湊的圓形 | 11.7 | 8.0 | 0.1 | 1.9 | 0.5 | 3.5 | 79.3 | 8305 | 6511 |
| 120 | 緊湊的圓形 | 13.1 | 8.0 | 0.1 | 2.0 | 0.8 | 3.7 | 84.1 | 10257 | 7992 |
| 150 | 緊湊的圓形 | 14.6 | 8.0 | 0.1 | 2.0 | 0.8 | 3.8 | 87.5 | 11435 | 8603 |
| 185 | 緊湊的圓形 | 16.3 | 8.0 | 0.1 | 2.1 | 0.8 | 3.9 | 91.6 | 12933 | 9441 |
| 240 | 緊湊的圓形 | 18.5 | 8.0 | 0.1 | 2.2 | 0.8 | 4.1 | 96.9 | 15043 | 10512 |
| 300 | 緊湊的圓形 | 20.7 | 8.0 | 0.1 | 2.3 | 0.8 | 4.2 | 102.5 | 17412 | 11749 |
| 400 | 緊湊的圓形 | 23.8 | 8.0 | 0.1 | 2.4 | 0.8 | 4.5 | 110.0 | 21229 | 13678 |
| 500 | 緊湊的圓形 | 26.6 | 8.0 | 0.1 | 2.5 | 0.8 | 4.7 | 117.9 | 25145 | 15706 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | Armored tape thickness (mm) | 護套厚度(毫米) | Cable Outer diameter (approximate) (mm) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 緊湊的圓形 | 8.4 | 9.3 | 0.1 | 1.9 | 0.5 | 3.5 | 78.2 | 7076 | 6132 |
| 70 | 緊湊的圓形 | 10.0 | 9.3 | 0.1 | 2.0 | 0.8 | 3.6 | 83.3 | 8864 | 7543 |
| 95 | 緊湊的圓形 | 11.7 | 9.3 | 0.1 | 2.0 | 0.8 | 3.8 | 87.3 | 10094 | 8301 |
| 120 | 緊湊的圓形 | 13.1 | 9.3 | 0.1 | 2.1 | 0.8 | 3.9 | 90.7 | 11190 | 8925 |
| 150 | 緊湊的圓形 | 14.6 | 9.3 | 0.1 | 2.2 | 0.8 | 4.0 | 94.4 | 12527 | 9695 |
| 185 | 緊湊的圓形 | 16.3 | 9.3 | 0.1 | 2.2 | 0.8 | 4.1 | 98.2 | 14003 | 10511 |
| 240 | 緊湊的圓形 | 18.5 | 9.3 | 0.1 | 2.3 | 0.8 | 4.3 | 103.6 | 16160 | 11629 |
| 300 | 緊湊的圓形 | 20.7 | 9.3 | 0.1 | 2.4 | 0.8 | 4.4 | 109.1 | 18691 | 13028 |
| 400 | 緊湊的圓形 | 23.8 | 9.3 | 0.1 | 2.5 | 0.8 | 4.7 | 116.6 | 22446 | 14895 |
| 橫截面積(mm2) | 結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲帶外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 緊湊的圓形 | 8.4 | 10.5 | 0.1 | 1.9 | 0.8 | 3.7 | 85.6 | 8793 | 7849 |
| 70 | 緊湊的圓形 | 10.0 | 10.5 | 0.1 | 2.0 | 0.8 | 3.8 | 89.5 | 9817 | 8495 |
| 95 | 緊湊的圓形 | 11.7 | 10.5 | 0.1 | 2.0 | 0.8 | 3.9 | 93.3 | 11036 | 9243 |
| 120 | 緊湊的圓形 | 13.1 | 10.5 | 0.1 | 2.1 | 0.8 | 4.1 | 96.9 | 12241 | 9976 |
| 150 | 緊湊的圓形 | 14.6 | 10.5 | 0.1 | 2.2 | 0.8 | 4.2 | 100.6 | 13558 | 10726 |
| 185 | 緊湊的圓形 | 16.3 | 10.5 | 0.1 | 2.2 | 0.8 | 4.3 | 104.4 | 15085 | 11592 |
| 240 | 緊湊的圓形 | 18.5 | 10.5 | 0.1 | 2.3 | 0.8 | 4.5 | 109.8 | 17381 | 12850 |
| 300 | 緊湊的圓形 | 20.7 | 10.5 | 0.1 | 2.4 | 0.8 | 4.6 | 115.3 | 19830 | 14167 |
| 400 | 緊湊的圓形 | 23.8 | 10.5 | 0.1 | 2.5 | 0.8 | 4.9 | 122.8 | 23689 | 16138 |
| 500 | 緊湊的圓形 | 26.6 | 10.5 | 0.1 | 2.9 | 0.8 | 5.2 | 131.6 | 26584 | 17145 |
-
電纜的生產流程
確保卓越的品質, ,喬卡 經營 完全數位化和自動化的生產線 電源電纜. 具體來說, ,這個綜合的工作流程 覆蓋 導體絞合、絕緣擠壓、金屬屏蔽和最終護套。. 而且, ,智能係統 主動監控 每個階段都確保穩定的性能和一致的產品品質。. 另外, ,工廠 利用 先進的測試設施,如局部放電測試、拉伸測試和火花測試。. 因此, ,這些嚴格的措施 保證 每條交付的電纜都嚴格符合國際標準。.
裝運包裝
為了滿足各種運輸需求,可以使用多種包裝方法。.
還有更多問題嗎?
Q: N2XSEBY vs. NA2XSEBY: What is the technical difference?
答: The distinction lies strictly in the conductor metal. N2XSEBY utilizes Copper conductors. 的 “A” 在 NA2XSEBY denotes Aluminum conductors, which offer a lighter, cost-optimized alternative for similar voltage grades.
Q:電壓應用範圍?
答: These cables are engineered for the full Medium Voltage spectrum, typically covering 3.6/6kv 最多 26/35kv.
Q: Standard Sheath Colors?
答: Standard production runs are typically 紅色的 或者 黑色的. However, UV-stabilized Black is recommended for outdoor exposure.
Q: Manufacturing Standards?
答: The construction and testing strictly adhere to IEC 60502-2.
Q: Can this be installed outdoors?
答: 是的。. The PVC outer jacket provides necessary weather and UV resistance. For extreme sunlight exposure, we specifically recommend the black sheath option.
Q: Insulation Material?
答: XLPE (Cross-Linked Polyethylene). We use this instead of PVC to allow for a higher continuous operating temperature of 90°C.
Q: Does it include a metallic screen?
答: Correct. 它的特點是 銅帶 screen. This layer is critical for controlling electric field stress and providing a path for fault currents.
Q: Composition of the inner and outer sheaths?
答: Both the inner bedding and the final outer jacket utilize Extruded PVC (Type ST2) for mechanical durability.
