Tauchkabel
Hochleistungs-3-Kern-Flachgummikabel für tiefe Bohrlöcher und Bohrlöcher
Technical Specifications :
- Cable Shape: Flat (3-Core / 4-Core)
- Spannungsbewertung: 0.6/1kV (High Voltage Rating)
- Leiter: Class 5 Flexible Tinned Copper (Corrosion Resistant)
- Isolierung: High-Grade EPR (Type 3GI3)
- Sheath: Water Resistant Rubber (Type EM2)
- Betriebstemperatur: -40°C to +90°C
- Max. Water Temp: Up to +60°C (Submerged)
- Biegeradius: 3x Cable Height (Extremely Flexible)
- Water Resistance: IP68 / AD8 (Permanent Submersion)
- Schnelle Musterverarbeitung mit maßgeschneiderten Lösungen
- Hochwertige Materialien
- Erschwingliche Preisoptionen
- Globale Lieferung
- Für einen besseren Datenschutz ist darauf zu achten, dass alle Uploads sicher sind
Sparen Sie durchschnittlich mindestens 30%
-
Produktbeschreibung
Submersible Cable : Product Description and Specifications

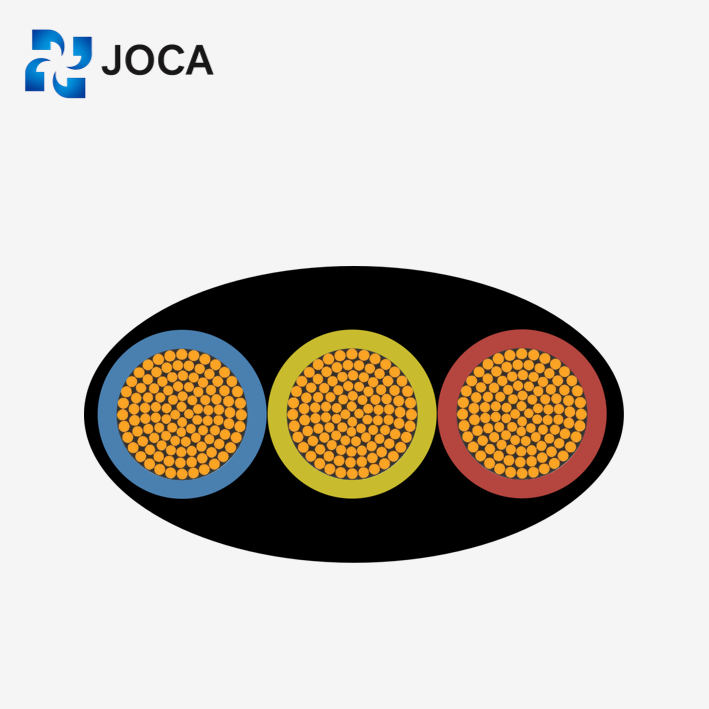

Deep well casings leave zero margin for bulky wiring. The JOCA Flat Submersible Cable is engineered specifically for this space constraint. Its low-profile flat geometry slides effortlessly between the pump riser and the borehole wall, preventing the “snagging” and jacket abrasion common with round cables.
Internally, we utilize Tinned Electrolytic Copper (Class 5 flexible) rather than bare copper. This tin layer is critical—it stops the conductors from turning black (oxidizing) in high-humidity environments. The core is sealed inside a specialized water-resistant Rubber or EPR compound, tested to withstand massive hydrostatic pressure at depths up to 300 meters. Rated for 0,6/1 kV power systems and compliant with IEC 60245, this cable guarantees a permanent, watertight link for submersible pumps in drinking water or industrial drainage wells.
-
Vorteile
Submersible Cable : Benefits and Features
Fits Narrow Boreholes: Die flat, low-profile geometry slides easily into tight casings without scraping the walls or jamming the pump.
Stops “Black Copper”: We use fully tinned conductors to block oxidation. The wire stays bright and conductive, even after years in humid, underwater conditions.
Long-Distance Power: Bewertet für 0,6/1 kV, it handles the voltage drop of deep-well transmission without overheating or power loss.
Potable Water Safe: The jacket uses non-toxic, food-grade rubber compounds, certified safe for drinking water pumps and eco-sensitive wells.
Zero Leakage: The pressure-tested sheath forms an impermeable barrier against water ingress, even at hydrostatic pressures up to 300m depth.
Abmessungen/Parameter
| No. of Cores | Nominal Cross Sectional Area (mm²) | Nominal Diameter of Conductor (mm) | Height Min (mm) | Height Max (mm) | Width Min (mm) | Width Max (mm) | Nominal Weight (kg/km) | Maximum Tensile Load (N) |
|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 2.4 | 7.0 | 8.0 | 15.5 | 16.5 | 260 | 180 |
| 3 | 6 | 2.9 | 7.5 | 8.5 | 17.5 | 18.5 | 330 | 270 |
| 3 | 10 | 3.8 | 10.3 | 11.0 | 23.1 | 24.1 | 550 | 450 |
| 3 | 16 | 4.9 | 12.2 | 13.2 | 28.0 | 29.5 | 820 | 720 |
| 3 | 25 | 6.1 | 14.2 | 15.2 | 33.0 | 34.5 | 1180 | 1125 |
| 3 | 35 | 7.2 | 16.0 | 17.5 | 37.0 | 38.7 | 1560 | 1575 |
| 3 | 50 | 8.9 | 18.5 | 20.0 | 44.1 | 45.8 | 2190 | 2250 |
| 3 | 70 | 10.6 | 20.5 | 22.0 | 50.5 | 52.5 | 2890 | 3150 |
| 3 | 95 | 12.3 | 23.1 | 23.9 | 57.1 | 57.9 | 3610 | 4275 |
| 3 | 120 | 14.2 | 25.1 | 25.9 | 62.1 | 62.9 | 4420 | 5400 |
| 3 | 150 | 15.5 | 26.8 | 27.6 | 67.2 | 68.0 | 5370 | 6750 |
| 3 | 185 | 17.0 | 28.6 | 29.4 | 72.6 | 73.4 | 6440 | 8325 |
| 4 | 4 | 2.4 | 8.0 | 9.0 | 23.0 | 24.0 | 400 | 240 |
| 4 | 6 | 2.9 | 8.5 | 9.5 | 24.5 | 25.5 | 490 | 360 |
| 4 | 10 | 3.8 | 10.0 | 11.0 | 29.5 | 30.5 | 710 | 600 |
| 4 | 16 | 4.9 | 12.0 | 13.0 | 34.5 | 35.5 | 1040 | 960 |
| 4 | 25 | 6.1 | 15.8 | 17.2 | 42.1 | 43.5 | 1660 | 1500 |
| 4 | 35 | 7.2 | 18.6 | 19.4 | 48.6 | 49.8 | 2190 | 2100 |
| 4 | 50 | 8.9 | 19.4 | 20.2 | 56.8 | 57.6 | 2880 | 3000 |
| 4 | 70 | 10.6 | 24.0 | 24.8 | 65.4 | 66.6 | 4060 | 4200 |
| 4 | 95 | 12.3 | 25.6 | 26.4 | 73.0 | 74.2 | 5050 | 5700 |
| 4 | 120 | 14.2 | 28.3 | 29.1 | 83.8 | 85.0 | 5580 | 7200 |
-
Production Processes Of Rubber cable
JOCA produces these cables using Continuous Vulcanization (CV) technology. This automated system synchronizes copper stranding with rubber extrusion, allowing the EPR insulation und PCP outer sheath to cure evenly. This integrated process ensures a consistent, solid bond between layers without structural defects. regarding quality control, we perform routine oil immersion and flexibility tests on production batches to verify compliance with IEC 60245 and EN 50525.
Verpackung für den Versand
Um den verschiedenen Transportanforderungen gerecht zu werden, können viele Verpackungsmethoden verwendet werden.
Haben Sie noch mehr Fragen?
F: Warum flach statt rund?
A: Räumung. Round cables jam in tight casings. Flat cables don’t. They slide past the pump riser without rubbing against the borehole wall. No friction, no snagging.
F: Echte Tiefenbewertung?
A: 300 Meter (30 Bar). Wir verwenden eine Gummimischung hoher Dichte, Sie blockiert das Eindringen von Wasser physikalisch und sorgt so für eine dauerhafte Isolierung auch unter massivem hydrostatischem Druck.
F: Salzwasser- und Abwassersicher?
A: Ja. Die Jacke ist chemisch inert Sie greift Salzlösung, Verdauungssäuren und Schlamm. Unlike cheap rubber, this material won’t swell or rot in wastewater tanks.
F: Warum Kupferkonserven?
A: Töten “Black Copper” (oxidation). Nackter Draht wird schwarz und versagt bei Feuchtigkeit Durch das Verzinnen bleiben die Litzen hell und leitfähig für die Lebensdauer der Pumpe.
F: Spannungsgrenze?
A: 0,6/1 kV. Gebaut für die Handhabung von Motorstartspitzen. Es widersteht der Spannungsbelastung, die Kabel mit niedrigerer Nennleistung während Tiefbrunnenpumpvorgängen ausbrennt.
F: Temperaturbereich?
A:
Air: -40°C to +90°C.
Water: Max +60°C. (Hot water speeds up rubber aging, so we recommend staying under 60°C for longevity).
Q: Is the sheath tough?
A: Drag it. It’s built for abuse. The heavy-duty jacket resists tearing even when pulled against rocky well walls or sharp casing edges.
Q: Sizing rule of thumb?
A: Watch the Spannungsabfall. Long vertical runs kill voltage. Don’t just match the Amps; calculate for a <3% drop at the motor terminal. When in doubt, go one size thicker.
