MV Aerial Cable / Tree Wire

Q: Q: Primary Grid Application?

A: Overhead Distribution. Specifically for dense vegetation zones (Tree Wire) or narrow Right-of-Way (ROW) where bare conductors risk intermittent phase-to-ground faults.

Q: Q: Metallurgy Options (Customizable)?

A: Available: Aluminum, AAAC, ACSR, Copper, AWAC, or ACAR. Selection basis: Local tensile strength and conductivity requirements.

Q: Q: Is the covering touch-safe?

A: Negative. This is a covered conductor , not a shielded/insulated cable. Strict Protocol: Treat as energized/bare wire at all times during O&M.

Q: Q: Voltage Classification?

A: Standard: 15kV, 25kV, 35kV. Extended: Up to 46kV upon technical review.

Q: Q: Inquiry & Technical Support?

A: Action: Click "Contact Us" or access the Seller Profile for specific project quotes and datasheet downloads.

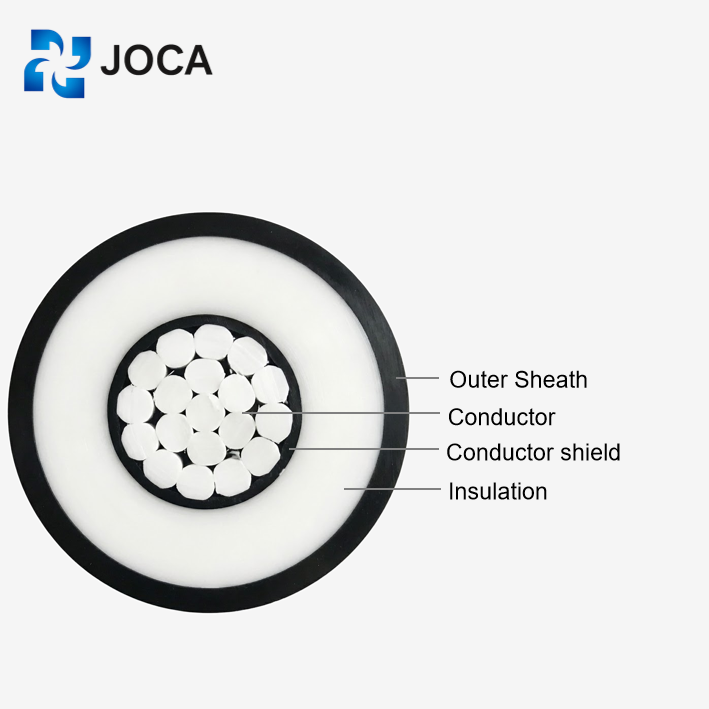

Aluminum or Aluminum Alloy or ACSR Conductor, XLPE/HDPE Insulated

Conductor : Stranded Round Aluminum Conductor & All Aluminum Alloy
Conductor screen : black semicon-ducting polyethylene
Insulation : natural linear lowdensity polyethylene
Outer Jacket : black orgray high densitypolyethylene

Save at least 30% on average

Home » Aerial Bundled Cable » MV Aerial Cable / Tree Wire

Product Description

MV Aerial Cable / Tree Wire : Product Description and Specifications

Medium Voltage Covered Conductor (Tree Wire) for overhead distribution circuits. The assembly utilizes a multi-layer composition: Conductor (Al/ACSR) ->Semi-Con Screen -> Insulation -> HDPE Jacket. Operational Logic: The HDPE jacket serves as a non-shielded dielectric barrier, preventing immediate short circuits during momentary vegetation contact.¹ Designed specifically to optimize reliability in wooded right-of-way zones compared to bare conductors.

Advantages

MV Aerial Cable / Tree Wire : Benefits and Features

Fault Mitigation Geometry: Multi-Layer Barrier: Conductor Shield + Dielectric Layer + Track-Resistant Jacket. Specifically engineered to stop phase-to-ground faults from intermittent tree contact or wildlife interference.
Metallurgy & Tension: Conductor Choice: Aluminum, Alloy, or ACSR (Custom Copper/AWAC configurations). Constraint: Optimized for specific span-length tensile loads.
Environmental Armor: HDPE Outer Sheath. High ESCR (Environmental Stress Crack Resistance) rating. Protects against UV degradation and surface tracking in humid, high-pollution zones.

Dimensions/Parameters

IEC BS EN 50397 Standard 15kv 25kv 35kv Overhead Covered Conductor

Voltage Rating	Cross Section (mm2)	No. of wires	Conductor dia. (mm)	Overall Diameter (mm)	Minimum breaking load (kgf)	Approx. weight (kg/km)	Max. DC-resistance at 20°C (Ohm/km)	Ampacity 90°C (A)
15kV	35	7	7.1	13.6	464	190	0.868	187
15kV	50	7	8.2	14.7	663	235	0.641	225
15kV	70	19	9.7	16.2	928	315	0.443	282
15kV	95	19	11.5	18	1259	400	0.32	345
15kV	120	19	12.9	19.4	1591	500	0.253	401
15kV	150	19	14.2	20.7	1988	580	0.206	456
15kV	185	37	16.2	22.6	2452	695	0.164	525
15kV	240	37	18.4	24.9	3182	875	0.125	625
15kV	300	37	20.7	27.1	3977	1070	0.1	721
25kV	35	7	7.1	15.7	464	235	0.868	186
25kV	50	7	8.2	16.8	663	305	0.641	224
25kV	70	19	9.7	18.3	928	370	0.443	280
25kV	95	19	11.5	20.1	1259	460	0.32	343
25kV	120	19	12.9	21.5	1591	560	0.253	397
25kV	150	19	14.2	22.8	1988	650	0.206	450
25kV	185	37	16.2	24.8	2452	770	0.164	519
25kV	240	37	18.4	27	3182	960	0.125	617
25kV	300	37	20.7	29.3	3977	1155	0.1	712
35kV	70	19	9.7	25.7	928	620	0.443	270
35kV	95	19	11.5	27.5	1259	732	0.32	329
35kV	120	19	12.9	28.9	1591	830	0.253	381
35kV	150	19	14.2	30.2	1988	937	0.206	432
35kV	185	37	16.2	32.2	2452	1083	0.164	497
35kV	240	37	18.4	34.4	3182	1290	0.125	589
35kV	300	37	20.7	36.7	3977	1502	0.1	674

Australia Standard MV 6.35/11kv 12.7/22kV CCT Overhead Covered Conductor, Aerial Cables. AS/NZS 3675

Category (Material/Voltage)	Conductor size (No./mm)	Conductor d.c. resistance at 20°C (Ω/km)	Conductor a.c. resistance at 80°C (Ω/km)	Reactance at 50 Hz (Ω/km)	Current Capacity 30°C Still air (A)	Current Capacity 30°C 1.0 m/s wind (A)	Current Capacity 30°C 2.0 m/s wind (A)	Current Capacity 40°C Still air (A)	Current Capacity 40°C 1.0 m/s wind (A)	Current Capacity 40°C 2.0 m/s wind (A)	Fault current rating (kA for 1 sec)	Everyday working tension (kN)	Maximum working tension (kN)	Minimum breaking load (kN)	Minimum bending radius (mm)
Alloy 6201	7/2.75	0.799	0.988	0.331	125	210	235	110	185	210	3.5	1.51	5.8	11.6	200
Alloy 6201	7/3.75	0.430	0.532	0.312	180	300	345	160	270	310	6.4	2.82	10.9	21.7	245
Alloy 6201	7/4.75	0.268	0.331	0.297	245	410	465	220	365	415	10.3	4.52	17.4	34.8	290
Alloy 6201	19/3.50	0.183	0.227	0.281	315	515	595	280	460	530	15.2	6.67	25.7	51.3	340
Alloy 1120	7/2.75	0.713	0.881	0.331	130	220	250	115	195	225	3.7	1.49	4.96	9.91	200
Alloy 1120	7/3.75	0.383	0.474	0.312	190	320	365	170	285	325	6.8	2.64	8.8	17.6	245
Alloy 1120	7/4.75	0.239	0.296	0.297	260	430	485	230	385	435	11	4.07	13.6	27.1	290
Alloy 1120	19/3.50	0.163	0.202	0.281	330	545	625	295	485	560	16.2	6.26	20.9	41.7	340
11 kV Alloy 6201	7/3.75	0.430	0.532	0.312	185	295	330	165	265	295	6.4	2.82	10.9	21.7	285
11 kV Alloy 6201	7/4.75	0.268	0.331	0.297	245	390	440	220	350	395	10.3	4.52	17.4	34.8	330
11 kV Alloy 6201	19/3.50	0.183	0.227	0.281	315	500	560	280	445	500	15.2	6.67	25.7	51.3	380
22 kV Alloy 6201	7/3.75	0.430	0.532	0.312	185	285	315	165	255	280	6.4	2.82	10.9	21.7	350
22 kV Alloy 6201	7/4.75	0.268	0.331	0.297	245	375	420	220	335	375	10.3	4.52	17.4	34.8	395
22 kV Alloy 6201	19/3.50	0.183	0.227	0.281	315	475	530	280	425	475	15.2	6.67	25.7	51.3	445
33 kV Alloy 6201	7/3.75	0.430	0.532	0.312	185	270	295	165	240	265	6.4	2.82	10.9	21.7	425
33 kV Alloy 6201	7/4.75	0.268	0.331	0.297	245	360	400	220	320	355	10.3	4.52	17.4	34.8	470
33 kV Alloy 6201	19/3.50	0.183	0.227	0.281	315	455	505	280	405	450	15.2	6.67	25.7	51.3	520
11 kV Alloy 1120	7/2.75	0.713	0.881	0.331	130	215	240	115	190	215	3.7	1.49	4.96	9.9	230
11 kV Alloy 1120	7/3.75	0.383	0.474	0.312	190	315	345	170	280	310	6.8	2.64	8.8	17.6	285
11 kV Alloy 1120	7/4.75	0.239	0.296	0.297	260	415	470	230	370	420	11	4.07	13.6	27.1	330
11 kV Alloy 1120	19/3.50	0.163	0.202	0.281	330	525	595	295	470	530	16.2	6.26	20.9	41.7	380
22 kV Alloy 1120	7/2.75	0.713	0.881	0.331	135	205	225	120	185	200	3.7	1.49	4.96	9.9	300
22 kV Alloy 1120	7/3.75	0.383	0.474	0.312	190	295	330	170	265	295	6.8	2.64	8.8	17.6	350
22 kV Alloy 1120	7/4.75	0.239	0.296	0.297	260	400	440	230	355	395	11	4.07	13.6	27.1	395
22 kV Alloy 1120	19/3.50	0.163	0.202	0.281	330	505	560	295	450	500	16.2	6.26	20.9	41.7	445
33 kV Alloy 1120	7/2.75	0.713	0.881	0.331	135	195	215	120	175	190	3.7	1.49	4.96	9.9	385
33 kV Alloy 1120	7/3.75	0.383	0.474	0.312	195	285	315	175	255	280	6.8	2.64	8.8	17.6	425
33 kV Alloy 1120	7/4.75	0.239	0.296	0.297	260	380	420	230	340	375	11	4.07	13.6	27.1	470
33 kV Alloy 1120	19/3.50	0.163	0.202	0.281	330	480	530	295	430	475	16.2	6.26	20.9	41.7	520

American Standard One Two Three Layer MV 5kv 15KV 25KV 35KV Overhead Covered Conductor.

Category	Size	AWG_Equiv	Stranding	Conductor_Diameter_mils	Cover_Thickness_mils	Conductor_Shield_mils	Inner_Layer_mils	Outer_Layer_mils	Cable_OD_mils	Rated_Strength_lbs	Weight_XLPE_lbs_1000ft	Weight_HD_Poly_lbs_1000ft	Allowable_Ampacity_Amps
One-Layer 5kV AAC Tree Wire	4		7		80			80	398	795	72	73	135
One-Layer 5kV AAC Tree Wire	2		7		80			80	448	1210	102	104	180
One-Layer 5kV AAC Tree Wire	1/0		19		80			80	532	1870	148	148	240
One-Layer 5kV AAC Tree Wire	2/0		7		80			80	578	2360	178	179	275
One-Layer 5kV AAC Tree Wire	3/0		19		80			80	616	2980	215	216	320
One-Layer 5kV AAC Tree Wire	4/0		19		80			80	672	3620	263	264	370
One-Layer 5kV AAC Tree Wire	250		37		80			80	716	4410	300	304	410
One-Layer 5kV AAC Tree Wire	266.8		19		80			80	754	4600	323	328	425
One-Layer 5kV AAC Tree Wire	300		37		80			80	771	4880	346	356	460
One-Layer 5kV AAC Tree Wire	336.4		37		80			80	807	5730	401	406	490
One-Layer 5kV AAC Tree Wire	350		37		80			80	821	6000	406	400	505
One-Layer 5kV AAC Tree Wire	477		37		80			80	931	7000	536	541	610
One-Layer 5kV AAC Tree Wire	500		37		80			80	950	8200	560	565	620
One-Layer 5kV ACSR Tree Wire	4		6/1		80			80	410	1770	84	86	135
One-Layer 5kV ACSR Tree Wire	2		6/1		80			80	476	2710	117	119	180
One-Layer 5kV ACSR Tree Wire	1/0		6/1		80			80	514	4160	166	168	235
One-Layer 5kV ACSR Tree Wire	2/0		6/1		80			80	558	5100	202	205	270
One-Layer 5kV ACSR Tree Wire	3/0		6/1		80			80	607	6430	247	250	315
One-Layer 5kV ACSR Tree Wire	4/0		6/1		80			80	663	7900	303	307	365
One-Layer 5kV ACSR Tree Wire	266.8		18/1		80			80	768	6600	373	375	415
One-Layer 5kV ACSR Tree Wire	266.8		26/7		80			80	768	10900	410	414	420
One-Layer 5kV ACSR Tree Wire	336.4		18/1		80			80	844	8250	458	463	480
One-Layer 5kV ACSR Tree Wire	336.4		26/7		80			80	860	13400	506	510	510
One-Layer 5kV ACSR Tree Wire	397.5		18/1		80			80	914	9500	534	539	535
One-Layer 5kV ACSR Tree Wire	397.5		26/7		80			80	940	10900	547	552	555
One-Layer 5kV ACSR Tree Wire	477		18/1		80			80	994	11200	631	637	610
One-Layer 5kV ACSR Tree Wire	477		26/7		80			80	1019	18500	707	713	630
One-Layer 15kV AAC Tree Wire	4		7		150			150	538	795	114	118	135
One-Layer 15kV AAC Tree Wire	2		7		150			150	588	1210	148	151	175
One-Layer 15kV AAC Tree Wire	1		19		150			150	622	1570	172	175	205
One-Layer 15kV AAC Tree Wire	1/0		19		150			150	672	2540	200	203	235
One-Layer 15kV AAC Tree Wire	2/0		7		150			150	718	2360	234	237	270
One-Layer 15kV AAC Tree Wire	3/0		19		150			150	756	2980	274	281	310
One-Layer 5kV AAC Tree Wire	4/0		19		150			150	812	3620	328	334	355
One-Layer 15kV AAC Tree Wire	266.8		19		150			150	894	4600	397	401	410
One-Layer 15kV AAC Tree Wire	300		37		150			150	911	4880	422	433	440
One-Layer 15kV AAC Tree Wire	336.4		37		150			150	947	5730	478	485	475
One-Layer 15kV AAC Tree Wire	350		37		150			150	961	6000	488	496	490
One-Layer 15kV AAC Tree Wire	477		37		150			150	1071	7000	625	633	585
One-Layer 15kV AAC Tree Wire	500		37		150			150	1090	8200	650	659	595
One-Layer 15kV ACSR Tree Wire	4		6/1		150			150	550	1770	129	140	135
One-Layer 15kV ACSR Tree Wire	2		6/1		150			150	616	2710	166	169	175
One-Layer 15kV ACSR Tree Wire	1		6/1		150			150	654	3420	201	202	205
One-Layer 15kV ACSR Tree Wire	1/0		6/1		150			150	698	4160	221	225	230
One-Layer 15kV ACSR Tree Wire	2/0		6/1		150			150	742	5100	260	263	265
One-Layer 15kV ACSR Tree Wire	3/0		6/1		150			150	792	6430	307	314	305
One-Layer 15kV ACSR Tree Wire	4/0		6/1		150			150	863	7900	369	376	350
One-Layer 15kV ACSR Tree Wire	266.8		18/1		150			150	909	6600	446	451	405
One-Layer 15kV ACSR Tree Wire	266.8		26/7		150			150	942	10900	482	492	420
One-Layer 15kV ACSR Tree Wire	336.4		18/1		150			150	984	8250	539	547	460
One-Layer 15kV ACSR Tree Wire	336.4		26/7		150			150	1020	13400	615	627	490
One-Layer 15kV ACSR Tree Wire	397.5		18/1		150			150	1053	9500	626	629	515
One-Layer 15kV ACSR Tree Wire	397.5		26/7		150			150	1081	15900	763	765	545
One-Layer 15kV ACSR Tree Wire	477		18/1		150			150	1134	11200	733	733	595
One-Layer 15kV ACSR Tree Wire	477		26/7		150			150	1159	18500	870	872	610
2-Layer 15kV ACSR Tree Wire	4		6/1	250		75	75		550	1707			136
2-Layer 15kV ACSR Tree Wire	2		6/1	316		75	75		616	2708			184
2-Layer 15kV ACSR Tree Wire	1/0		6/1	398		75	75		698	4161			238
2-Layer 15kV ACSR Tree Wire	2/0		6/1	447		75	75		747	5045			300
2-Layer 15kV ACSR Tree Wire	3/0		6/1	502		75	75		802	6269			362
2-Layer 15kV ACSR Tree Wire	4/0		6/1	563		75	75		863	7933			412
2-Layer 15kV ACSR Tree Wire	266.8		18/1	609		75	75		909	6536			462
2-Layer 15kV ACSR Tree Wire	266.8		26/7	642		75	75		942	10735			468
2-Layer 15kV ACSR Tree Wire	336.4		18/1	684		75	75		984	8246			536
2-Layer 15kV ACSR Tree Wire	336.4		26/7	720		75	75		1020	13395			555
2-Layer 15kV ACSR Tree Wire	336.4		30/7	741		75	75		1041	16435			621
2-Layer 15kV ACSR Tree Wire	397.5		18/1	743		75	75		1043	9443			611
2-Layer 15kV ACSR Tree Wire	397.5		24/7	772		75	75		1072	13870			660
2-Layer 15kV ACSR Tree Wire	397.5		26/7	783		75	75		1083	1545			645
2-Layer 15kV ACSR Tree Wire	477		24/7	846		75	75		1146	16340			715
2-Layer 15kV ACSR Tree Wire	477		26/7	858		75	75		1158	18525			762
2-Layer 15kV ACSR Tree Wire	477		30/7	883		75	75		1183	22610			854
2-Layer 15kV ACSR Tree Wire	556.5		18/1	879		75	75		1179	13015			813
2-Layer 15kV ACSR Tree Wire	556.5		24/7	914		75	75		1214	18810			878
2-Layer 15kV ACSR Tree Wire	556.5		26/7	927		75	75		1227	21470			878
2-Layer 15kV ACSR Tree Wire	636		18/1	940		75	75		1240	14915			912
2-Layer 15kV ACSR Tree Wire	636		24/7	977		75	75		1277	20600			998
2-Layer 15kV ACSR Tree Wire	636		26/7	990		75	75		1290	23640			993
2-Layer 15kV ACSR Tree Wire	795		26/7	1108		60	50		1328	29025			1334
2-Layer 15kV ACSR Tree Wire	795		45/7	1063		60	50		1283	20695			1251
2-Layer 15kV AAAC Tree Wire	48.69	4	7	250		75	75		550	1584			124
2-Layer 15kV AAAC Tree Wire	77.47	2	7	316		75	75		616	2520			165
2-Layer 15kV AAAC Tree Wire	123.3	1/0	7	398		75	75		698	4014			225
2-Layer 15kV AAAC Tree Wire	155.4	2/0	7	447		75	75		747	4851			265
2-Layer 15kV AAAC Tree Wire	195.7	3/0	7	502		75	75		802	6111			314
2-Layer 15kV AAAC Tree Wire	246.9	4/0	7	563		75	75		863	7704			376
2-Layer 15kV AAAC Tree Wire	312.8	266.8	19	642		75	75		942	9900			450
2-Layer 15kV AAAC Tree Wire	394.5	336.4	19	720		75	75		1020	11970			543
2-Layer 15kV AAAC Tree Wire	465.4	397.5	19	783		75	75		1083	14040			625
2-Layer 15kV AAAC Tree Wire	559.5	477	19	858		75	75		1158	16920			737
2-Layer 15kV AAAC Tree Wire	652.4	556.5	19	927		75	75		1227	19710			828
2-Layer 15kV AAAC Tree Wire	740.8	636	37	990		80	80		1310	21960			893
2-Layer 15kV AAC Tree Wire	1/0		7	336		75	75		636	1791			196
2-Layer 15kV AAC Tree Wire	2/0		7	376		75	75		676	2250			230
2-Layer 15kV AAC Tree Wire	3/0		7	423		75	75		723	2736			272
2-Layer 15kV AAC Tree Wire	4/0		7	475		75	75		775	3447			325
2-Layer 15kV AAC Tree Wire	266.8		19	537		75	75		837	4473			387
2-Layer 15kV AAC Tree Wire	336.4		19	603		75	75		903	5535			466
2-Layer 15kV AAC Tree Wire	397.5		19	659		75	75		959	6399			535
2-Layer 15kV AAC Tree Wire	477		19	722		75	75		1022	7524			623
2-Layer 15kV AAC Tree Wire	556.5		37	780		75	75		1080	8946			706
2-Layer 15kV AAC Tree Wire	636		37	835		75	75		1135	10260			784
3-Layer 15kV ACSR Tree Wire	4		6/1	250		15	75	75	580	1767
3-Layer 15kV ACSR Tree Wire	2		6/1	316		15	75	75	646	2708
3-Layer 15kV ACSR Tree Wire	1/0		6/1	398		15	75	75	728	4161
3-Layer 15kV ACSR Tree Wire	2/0		6/1	447		15	75	75	777	5045
3-Layer 15kV ACSR Tree Wire	3/0		6/1	502		15	75	75	832	6269
3-Layer 15kV ACSR Tree Wire	4/0		6/1	563		15	75	75	893	7933
3-Layer 15kV ACSR Tree Wire	266.8		18/1	609		15	75	75	939	6536
3-Layer 15kV ACSR Tree Wire	266.8		26/7	642		15	75	75	972	10735
3-Layer 15kV ACSR Tree Wire	336.4		18/1	684		15	75	75	1014	8246
3-Layer 15kV ACSR Tree Wire	336.4		26/7	720		15	75	75	1050	13395
3-Layer 15kV ACSR Tree Wire	336.4		30/7	741		15	75	75	1071	16435
3-Layer 15kV ACSR Tree Wire	397.5		18/1	743		15	75	75	1073	9443
3-Layer 15kV ACSR Tree Wire	397.5		24/7	772		15	75	75	1102	13870
3-Layer 15kV ACSR Tree Wire	397.5		26/7	783		15	75	75	1113	15450
3-Layer 15kV ACSR Tree Wire	477		24/7	846		15	75	75	1176	16340
3-Layer 15kV ACSR Tree Wire	477		26/7	858		15	75	75	1188	18525
3-Layer 15kV ACSR Tree Wire	477		30/7	883		15	75	75	1213	22610
3-Layer 15kV ACSR Tree Wire	556.5		18/1	879		20	75	75	1219	13015
3-Layer 15kV ACSR Tree Wire	556.5		24/7	914		20	75	75	1254	18810
3-Layer 15kV ACSR Tree Wire	556.5		26/7	927		20	75	75	1267	21470
3-Layer 15kV ACSR Tree Wire	636		18/1	940		20	75	75	1280	14915
3-Layer 15kV ACSR Tree Wire	636		26/7	990		20	75	75	1330	23640
3-Layer 15kV AAAC Tree Wire	48.69	4	7	250		15	75	75	580	1584			137
3-Layer 15kV AAAC Tree Wire	77.47	2	7	316		15	75	75	646	2520			178
3-Layer 15kV AAAC Tree Wire	123.3	1/0	7	398		15	75	75	728	4014			241
3-Layer 15kV AAAC Tree Wire	155.4	2/0	7	447		15	75	75	777	4851			283
3-Layer 15kV AAAC Tree Wire	195.7	3/0	7	502		15	75	75	832	6111			334
3-Layer 15kV AAAC Tree Wire	246.9	4/0	7	563		15	75	75	893	7704			397
3-Layer 15kV AAAC Tree Wire	312.8	266.8	19	642		15	75	75	972	9900			473
3-Layer 15kV AAAC Tree Wire	394.5	336.4	19	720		15	75	75	1050	11970			568
3-Layer 15kV AAAC Tree Wire	465.4	397.5	19	783		15	75	75	1113	14040			648
3-Layer 15kV AAAC Tree Wire	559.5	477	19	858		20	75	75	1168	16920			751
3-Layer 15kV AAAC Tree Wire	652.4	556.5	19	927		20	75	75	1237	19710			894
3-Layer 15kV AAAC Tree Wire	740.8	636	37	990		20	75	75	1300	21960			965
3-Layer 15kV AAC Tree Wire	1/0		7	336		15	75	75	666	1791
3-Layer 15kV AAC Tree Wire	2/0		7	376		15	75	75	706	2250
3-Layer 15kV AAC Tree Wire	3/0		7	423		15	75	75	753	2736
3-Layer 15kV AAC Tree Wire	4/0		7	475		15	75	75	805	3447
3-Layer 15kV AAC Tree Wire	266.8		19	537		15	75	75	867	4473
3-Layer 15kV AAC Tree Wire	336.4		19	603		15	75	75	933	5535
3-Layer 15kV AAC Tree Wire	397.5		19	659		15	75	75	989	6399
3-Layer 15kV AAC Tree Wire	477		19	722		15	75	75	1052	7524
3-Layer 15kV AAC Tree Wire	556.5		37	780		20	75	75	1110	8946
3-Layer 15kV AAC Tree Wire	636		37	835		20	75	75	1165	10260
3-Layer 15kV AAC Tree Wire	795		37	932		20	80	80	1292	12510
3-Layer 25kV ACSR Tree Wire	1/0		6/1	398		15	125	125	928	4161
3-Layer 25kV ACSR Tree Wire	2/0		6/1	447		15	125	125	977	5045
3-Layer 25kV ACSR Tree Wire	3/0		6/1	502		15	125	125	1032	6269
3-Layer 25kV ACSR Tree Wire	4/0		6/1	563		15	125	125	1093	7933
3-Layer 25kV ACSR Tree Wire	266.8		18/1	609		15	125	125	1139	6536
3-Layer 25kV ACSR Tree Wire	266.8		26/7	642		15	125	125	1172	10735
3-Layer 25kV ACSR Tree Wire	336.4		18/1	684		15	125	125	1214	8246
3-Layer 25kV ACSR Tree Wire	336.4		26/7	720		15	125	125	1250	13395
3-Layer 25kV ACSR Tree Wire	336.4		30/7	741		15	125	125	1271	16435
3-Layer 25kV ACSR Tree Wire	397.5		18/1	743		15	125	125	1273	9443
3-Layer 25kV ACSR Tree Wire	397.5		24/7	772		15	125	125	1302	13870
3-Layer 25kV ACSR Tree Wire	397.5		26/7	783		15	125	125	1313	15450
3-Layer 25kV ACSR Tree Wire	477		24/7	846		20	125	125	1386	16340
3-Layer 25kV ACSR Tree Wire	477		26/7	858		20	125	125	1398	18525
3-Layer 25kV ACSR Tree Wire	477		30/7	883		20	125	125	1423	22610
3-Layer 25kV ACSR Tree Wire	556.5		18/1	879		20	125	125	1419	13015
3-Layer 25kV ACSR Tree Wire	556.5		24/7	914		20	125	125	1454	18810
3-Layer 25kV ACSR Tree Wire	556.5		26/7	927		20	125	125	1467	21470
3-Layer 25kV AAAC Tree Wire	48.69	4	7	250		15	125	125	780	1584			225
3-Layer 25kV AAAC Tree Wire	77.47	2	7	316		15	125	125	846	2520			275
3-Layer 25kV AAAC Tree Wire	123.3	1/0	7	398		15	125	125	928	4014			348
3-Layer 25kV AAAC Tree Wire	155.4	2/0	7	447		15	125	125	977	4851			396
3-Layer 25kV AAAC Tree Wire	195.7	3/0	7	502		15	125	125	1032	6111			454
3-Layer 25kV AAAC Tree Wire	246.9	4/0	7	563		15	125	125	1093	7704			525
3-Layer 25kV AAAC Tree Wire	312.8	266.8	19	642		15	125	125	1172	9900			611
3-Layer 25kV AAAC Tree Wire	394.5	336.4	19	720		15	125	125	1251	11970			736
3-Layer 25kV AAAC Tree Wire	465.4	397.5	19	783		15	125	125	1313	14040			805
3-Layer 25kV AAAC Tree Wire	559.5	477	19	858		20	125	125	1398	16920			932
3-Layer 25kV AAAC Tree Wire	652.4	556.5	19	927		20	125	125	1467	19710			1044
3-Layer 25kV AAAC Tree Wire	740.8	636	37	990		20	125	125	1530	21960			1148
3-Layer 25kV AAAC Tree Wire	927.2	795	37	1108		20	125	125	1648	27450			1389
3-Layer 25kV AAC Tree Wire	1/0		7	336		15	125	125	866	1791			309
3-Layer 25kV AAC Tree Wire	2/0		7	376		15	125	125	906	2250			350
3-Layer 25kV AAC Tree Wire	3/0		7	423		15	125	125	963	2736			400
3-Layer 25kV AAC Tree Wire	4/0		7	475		15	125	125	1006	3447			460
3-Layer 25kV AAC Tree Wire	266.8		19	537		15	125	125	1067	4473			531
3-Layer 25kV AAC Tree Wire	336.4		19	603		15	125	125	1133	5535			621
3-Layer 25kV AAC Tree Wire	397.5		19	659		15	125	125	1189	6399			690
3-Layer 25kV AAC Tree Wire	477		19	722		20	125	125	1262	7524			806
3-Layer 25kV AAC Tree Wire	556.5		37	780		20	125	125	1320	8946			890
3-Layer 25kV AAC Tree Wire	636		37	835		20	125	125	1375	10260			995
3-Layer 25kV AAC Tree Wire	795		37	932		20	125	125	1472	12510			1101
3-Layer 35kV ACSR Tree Wire	1/0		6/1	398		15	175	125	1028	4161			448
3-Layer 35kV ACSR Tree Wire	2/0		6/1	447		15	175	125	1077	5045			509
3-Layer 35kV ACSR Tree Wire	4/0		6/1	563		15	175	125	1193	7933			673
3-Layer 35kV ACSR Tree Wire	266.8		18/1	609		15	175	125	1239	6536			684
3-Layer 35kV ACSR Tree Wire	266.8		26/7	642		15	175	125	1272	10735			770
3-Layer 35kV ACSR Tree Wire	336.4		18/1	684		15	175	125	1314	8246			794
3-Layer 35kV ACSR Tree Wire	336.4		26/7	720		15	175	125	1350	13395			901
3-Layer 35kV ACSR Tree Wire	336.4		30/7	741		15	175	125	1371	16435			1170
3-Layer 35kV ACSR Tree Wire	397.5		18/1	743		15	175	125	1373	9443			889
3-Layer 35kV ACSR Tree Wire	397.5		24/7	772		15	175	125	1402	13870			949
3-Layer 35kV ACSR Tree Wire	397.5		26/7	783		15	175	125	1413	15485			1013
3-Layer 35kV ACSR Tree Wire	477		24/7	846		20	175	125	1486	16340			1091
3-Layer 35kV ACSR Tree Wire	477		26/7	858		20	175	125	1498	18525			1168
3-Layer 35kV ACSR Tree Wire	477		30/7	885		20	175	125	1523	22610			1552
3-Layer 35kV ACSR Tree Wire	556.5		18/1	879		20	175	125	1519	13015			1138
3-Layer 35kV ACSR Tree Wire	556.5		24/7	914		20	175	125	1554	18810			1220
3-Layer 35kV ACSR Tree Wire	556.5		26/7	927		20	175	125	1597	21470			1309
3-Layer 35kV ACSR Tree Wire	636		18/1	940		20	175	125	1580	14915			1637
3-Layer 35kV ACSR Tree Wire	636		26/7	990		20	175	125	1630	23940			1626
3-Layer 35kV ACSR Tree Wire	795		26/7	1107		20	175	125	1747	29025			2146
3-Layer 35kV ACSR Tree Wire	795		45/7	1063		20	175	125	1703	20695			1892
3-Layer 35kV AAAC Tree Wire	48.69	4	7	250		15	175	125	880	1584			278
3-Layer 35kV AAAC Tree Wire	77.47	2	7	316		15	175	125	946	2520			333
3-Layer 35kV AAAC Tree Wire	123.3	1/0	7	398		15	175	125	1028	4014			411
3-Layer 35kV AAAC Tree Wire	155.4	2/0	7	447		15	175	125	1077	4851			462
3-Layer 35kV AAAC Tree Wire	195.7	3/0	7	502		15	175	125	1132	6111			523
3-Layer 35kV AAAC Tree Wire	246.9	4/0	7	563		15	175	125	1193	7704			598
3-Layer 35kV AAAC Tree Wire	312.8	266.8	19	642		15	175	125	1272	9900			689
3-Layer 35kV AAAC Tree Wire	394.5	336.4	19	720		15	175	125	1351	11970			799
3-Layer 35kV AAAC Tree Wire	465.4	397.5	19	783		15	175	125	1412	14040			892
3-Layer 35kV AAAC Tree Wire	559.5	477	19	858		20	175	125	1498	16920			1024
3-Layer 35kV AAAC Tree Wire	652.4	556.5	19	927		20	175	125	1567	19710			1141
3-Layer 35kV AAC Tree Wire	1/0		7	336		15	175	125	966	1791			368
3-Layer 35kV AAC Tree Wire	2/0		7	376		15	175	125	1006	2259			411
3-Layer 35kV AAC Tree Wire	3/0		7	423		15	175	125	1053	2736			464
3-Layer 35kV AAC Tree Wire	4/0		7	475		15	175	125	1105	3447			527
3-Layer 35kV AAC Tree Wire	266.8		19	537		15	175	125	1167	4473			603
3-Layer 35kV AAC Tree Wire	336.4		19	603		15	175	125	1233	5535			696
3-Layer 35kV AAC Tree Wire	397.5		19	659		15	175	125	1289	6399			777
3-Layer 35kV AAC Tree Wire	477		19	722		20	175	125	1362	7524			889
3-Layer 35kV AAC Tree Wire	556.5		37	780		20	175	125	1420	8946			987
3-Layer 35kV AAC Tree Wire	636		37	835		20	175	125	1475	10260			1085
3-Layer 35kV AAC Tree Wire	795		37	932		20	175	125	1572	12510			1278

America Standard Covered Line Wire ANSI ICEA S-70-547

Category	Code Name	Size (AWG or kcmil)	No. of wires	Insulation Thickness (mm)	Overall Diameter (mm)	Rated Strength (kg)	Nominal Weight Aluminum (kg/km)	Nominal Weight LDPE (kg/km)	Nominal Weight HDPE (kg/km)	Nominal Weight XLPE (kg/km)	Allowable Ampacity + A
AAC	Plum	6	7	0.762	6.198	255	36.61	50.66	51.27	51.27	100
AAC	Apricot	4	7	0.762	7.239	400	58.19	75.57	76.33	76.33	135
AAC	Peach	2	7	1.143	9.703	612	92.56	126.09	127.55	127.55	180
AAC	Nectarine	1	7	1.143	11.481	789	116.67	167.31	169.52	169.52	210
AAC	Quince	1/0	7	1.524	12.395	903	147.48	203.7	206.14	206.14	240
AAC	Haw	1/0	19	1.524	12.522	980	147.48	204.49	206.96	206.96	240
AAC	Orange	2/0	7	1.524	14.834	1139	186.02	257.9	261.02	261.02	280
AAC	Ironwood	2/0	19	1.524	13.691	1211	186.02	250.41	253.21	253.21	280
AAC	Fig	3/0	7	1.524	16.307	1377	233.64	315.53	319.08	319.08	320
AAC	Lemon	3/0	19	1.524	14.986	1501	233.64	306.53	309.7	309.7	320
AAC	Olive	4/0	7	1.524	16.307	1728	296.14	378.04	381.58	381.58	370
AAC	Pomegranate	4/0	19	1.524	16.459	1823	296.14	379.09	382.69	382.69	370
AAC	Sassalras	250	19	1.524	17.628	2043	348.68	439.88	443.84	443.84	420
AAC	Mulberry	266.8	19	1.524	17.653	2182	372.19	463.59	467.55	467.55	430
AAC	Basswood	300	19	1.524	18.999	2404	419.66	520.91	525.3	525.3	478
AAC	Anona	336.4	19	1.524	19.964	2697	469.51	578.04	582.75	582.75	495
AAC	Chinquapin	350	19	1.524	20.269	2790	488.12	598.98	603.79	603.79	525
AAC	Molles	397.5	19	2.032	22.454	3123	555.08	707.29	713.88	713.88	550
AAC	Sumac	450	37	2.032	23.673	3719	628	791.79	798.89	798.89	600
AAC	Huckleberry	477	37	2.032	24.257	3810	665.21	834.63	841.98	841.98	610
ACSR	Walnut	6	6-1	0.762	6.553	540	36.64	69.94	71.43	71.43	105
ACSR	Butternut	4	6-1	0.762	7.874	844	58.04	107.15	107.15	107.15	135
ACSR	Hickory	4	7-1	0.762	8.052	1070	58.04	120.54	122.03	122.03	135
ACSR	Pignut	2	6-1	1.143	10.312	1293	92.27	175.6	177.09	177.09	180
ACSR	Beech	2	7-1	1.143	10.643	1651	92.27	199.41	199.41	199.41	180
ACSR	Chestnut	1	6-1	1.143	11.303	1610	116.37	17.27	218.76	218.76	210
ACSR	Almond	1/0	6-1	1.524	13.157	1987	146.73	282.75	284.24	284.24	235
ACSR	Pecan	2/0	6-1	1.524	14.402	2404	184.98	348.23	349.72	349.72	290
ACSR	Filbert	3/0	6-1	1.524	15.799	3003	233.34	430.08	433.05	433.05	305
ACSR	Buckeye	4/0	6-1	1.524	17.348	3787	394.21	531.27	535.74	535.74	345
ACSR	Hackberry	266.8	1-18	1.524	18.517	3121	372.63	525.32	528.3	528.3	356
AAAC	Maple	6	7	0.762	6.553	503	42.41	59.53	61.01	61.01	78
AAAC	Hornbeam	4	7	0.762	7.874	798	67.56	89.29	90.78	90.78	145
AAAC	Linden	2	7	1.143	10.312	1270	107.44	147.33	147.33	147.33	190
AAAC	Oilnut	1/0	7	1.524	11.887	2023	170.99	238.11	247.03	247.03	250
AAAC	Waterash	2/0	7	1.524	14.402	2445	215.63	291.68	302.01	302.01	290
AAAC	Shellbark	3/0	7	1.524	15.799	3080	271.59	358.65	370.55	370.55	335
AAAC	Planetree	4/0	7	1.524	17.348	3883	342.57	443.47	456.86	456.86	385

British Standard BS6485 Covered Line Wire

Code Name	Nominal Area (mm2)	Calculated Area (mm2)	No. of Wires	Wire Diameter (mm)	Approx. Overall Dia. (mm)	Nominal Load (kN)	Max. D.C. Resistance at 20C (Ohm/km)	Alum. Weight (kg/km)	PVC Insulated Overall Diameter (mm)	PVC Insulated Total Weight (kg/km)	Packing Length (m)
Midge	22	23.33	7	2.06	6.2	3.99	1.227	64	8.4	106	3000
Aphis	25	26.44	3	3.35	7.2	4.11	1.081	73	9.2	133	3000
Gnat	25	26.8	7	2.21	6.6	4.59	1.066	73	8.8	116	3000
Weevil	30	31.6	3	3.66	7.9	4.86	0.9082	86	10.1	158	3000
Mosquito	35	37	7	2.59	7.8	6.03	0.7762	101	10.0	158	3000
Ladybird	40	42.8	7	2.79	8.4	6.87	0.6689	117	10.6	177	3000
Ant	50	52.83	7	3.1	9.3	8.28	0.5419	145	11.5	212	3000
Fly	60	63.55	7	3.4	10.2	9.9	0.4505	174	12.4	249	2500
Bluebottle	70	73.55	7	3.66	11.0	11.34	0.3881	202	13.2	285	2500
Earwig	75	78.5	7	3.78	11.4	11.94	0.3644	215	13.6	302	2000
Grasshopper	80	84.1	7	3.91	11.7	12.78	0.3406	230	13.9	319	2000
Clegg	90	95.6	7	4.17	12.5	14.53	0.2994	262	14.7	359	2000
Wasp	100	108	7	4.39	13.21	16.0	0.2702	290	15.4	393	3000
Beetle	100	106.6	19	2.67	13.4	17.42	0.2704	293	15.6	387	3000
Bee	125	132	7	4.9	14.7	19.94	0.2169	361	16.5	482	2500
Cricket	150	157.9	7	5.36	16.1	23.85	0.1813	432	18.3	587	2000
Hornet	150	157.6	19	3.25	16.3	27.7	0.1825	434	18.5	638	3000
Caterpillar	175	186	19	3.53	17.7	28.63	0.1547	512	19.9	646	2500
Chafer	200	213.2	19	3.78	18.9	32.4	0.1349	587	21.1	733	2000
Spider	225	236.9	19	3.99	20.0	36.01	0.1211	652	22.2	809	2000
Cockroach	250	265.7	19	4.22	21.1	40.4	0.1083	731	23.3	900	3000
Butterfly	300	322.7	19	4.65	23.3	48.7	0.08916	888	25.5	1082	3000
Moth	350	373.2	19	5.0	25.0	56.37	0.07711	1027	27.2	1241	2500
Drone	350	373.3	37	3.58	25.1	57.45	0.07741	1029	27.3	1222	2500
Locust	400	428.5	19	5.36	26.8	64.73	0.0671	1179	29	1416	2000
Centipede	400	415.2	37	3.78	26.5	63.1	0.06944	1145	28.7	1363	2000
Maybug	450	486.9	37	4.09	28.6	74.01	0.05931	1342	30.8	1573	2000
Scorpion	500	529.5	37	4.27	29.9	79.98	0.05441	1460	32.1	1706	1500
Cicada	600	628.6	37	4.65	32.6	94.95	0.04586	1733	34.5	2010	1500
Tarantula	750	794.8	37	5.23	36.6	120.1	0.03627	2191	38.5	2519	1000

DIN48201.5- BS6485 ALLALUMINIUM CONDUCTORS (AAC) TYPE 8 PVC INSULATION (AAC/PVC)

Nominal Area (mm2)	Calculated Area (mm2)	No. of Wires	Wire Diameter (mm)	Approx. Overall Dia. (mm)	Nominal Breaking Load (kN)	Max D.C. Resistance at 20C (Ohm/km)	Alum. Weight (kg/km)	PVC Insulated Overall Diameter (mm)	PVC Insulated Total Weight (kg/km)	Packing Length (m)
16	15.89	7	1.7	5.1	2.84	1.802	44	7.3	77	3000
25	24.25	7	2.1	6.3	4.17	1.181	67	8.5	108	3000

Table B.1-PVC-covered stranded hard-drawn copper conductors(Based on BS 7884)

Standard/Material	Nominal Cross-sectional area (mm2)	Stranding (No./mm)	Bare Conductor Overall Dia. (mm)	Max Resistance at 20C (Ohm/km)	Breaking Load (kN)	Covered Dia Type 8/U (mm)	Covered Dia Type 16 (mm)	Covered Mass Type 8/U (kg/km)	Covered Mass Type 16 (kg/km)
Table B.1 Copper (BS 7884)	14	7/1.60	4.80	1.308	5.744	6.8	8.4	160	190
Table B.1 Copper (BS 7884)	16	3/2.65	5.70	1.106	6.590	7.7	9.3	180	220
Table B.1 Copper (BS 7884)	32	3/3.75	8.06	0.5520	12.71	10.5	12.1	350	390
Table B.1 Copper (BS 7884)	35	7/2.50	7.50	0.5337	14.097	9.9	11.55	360	400
Table B.1 Copper (BS 7884)	70	7/3.55	10.65	0.2646	26.88	13.5	14.7	690	750
Table B.1 Copper (BS 7884)	100	7/4.30	12.90	0.1810	37.64	15.7	16.9	990	1060
Table B.2 Copper Alloy (BS 7884)	12	3/2.30	4.95	1.780	7.20	-	8.2	-	170
Table B.2 Copper Alloy (BS 7884)	22	7/2.00	6.00	1.011	12.94	-	9.6	-	270
Table B.2 Copper Alloy (BS 7884)	38	7/2.60	7.80	0.5983	21.69	-	11.8	-	430
Table B.2 Copper Alloy (BS 7884)	75	7/3.70	11.10	0.2954	40.23	-	15.1	-	810
Table B.2 Copper Alloy (BS 7884)	125	19/2.90	14.50	0.1784	68.75	-	18.9	-	1310
Table B.2 Copper Alloy (BS 7884)	150	19/3.20	16.00	0.1465	82.16	-	20.0	-	1570
Table B.3 Aluminum (BS 215-1)	22	7/2.06	6.18	1.227	3.99	8.7 (Type U)	-	100 (Type U)	-
Table B.3 Aluminum (BS 215-1)	50	7/3.10	9.30	0.5419	8.78	11.7 (Type U)	-	200 (Type U)	-
Table B.3 Aluminum (BS 215-1)	100	7/4.39	13.17	0.2702	16.00	16.0 (Type U)	-	360 (Type U)	-
Table B.3 Aluminum (BS 215-1)	200	19/3.76	18.80	0.1349	32.40	21.7 (Type U)	-	690 (Type U)	-
Table B.4 ACSR (BS 215-2)	25	Al:6/2.36 St:1/2.36	7.08	1.093	9.61	-	10.7	-	190
Table B.4 ACSR (BS 215-2)	50	Al:6/3.35 St:1/3.35	10.05	0.5426	18.35	-	14.1	-	330
Table B.4 ACSR (BS 215-2)	100	Al:6/4.72 St:7/1.57	14.15	0.2733	32.70	-	18.2	-	550
Table B.4 ACSR (BS 215-2)	150	Al:30/2.59 St:7/2.59	18.13	0.1828	69.20	-	22.2	-	920
Table B.4 ACSR (BS 215-2)	150	Al:18/3.35 St:1/3.35	16.75	0.1819	35.70	-	20.8	-	600
Table B.4 ACSR (BS 215-2)	175	Al:30/2.79 St:7/2.79	19.53	0.1576	79.00	-	23.6	-	1050
Table B.4 ACSR (BS 215-2)	175	Al:18/3.61 St:1/3.61	18.05	0.1563	41.10	-	22.1	-	780
Table B.4 ACSR (BS 215-2)	200	Al:30/3.00 St:7/3.00	21.00	0.1363	92.25	-	25.0	-	1190
Table B.4 ACSR (BS 215-2)	200	Al:18/3.86 St:1/3.86	19.30	0.1367	46.55	-	23.3	-	870
Table B.5 Alum Alloy (BS 3242)	25	7/2.34	7.02	1.094	8.44	-	10.6	-	170
Table B.5 Alum Alloy (BS 3242)	50	7/3.30	9.90	0.5498	16.80	-	13.9	-	280
Table B.5 Alum Alloy (BS 3242)	100	7/4.65	13.95	0.2769	33.30	-	18.0	-	470
Table B.5 Alum Alloy (BS 3242)	150	19/3.48	17.40	0.1930	50.65	-	21.4	-	680
Table B.5 Alum Alloy (BS 3242)	175	19/3.76	18.80	0.1658	59.10	-	22.8	-	780

Production Processes Of Earth cable

The JOCA cable factory is an intelligent and digital factory that integrates the entire production and inspection process. This smartens it up and digitizes it all at once. It removes errors and flaws inherent in products assembled by hand by staff, which also enhances the dependability of such goods greatly. On top of that it is equipped with full inspection and testing facilities including digital intelligent image recognition, laser detection among other detection technologies to guarantee quality of products delivered.

Packing For Shipment

To meet various transportation needs, there are many methods of packaging that can be used.

Have more questions?

Easily get started by finding the answers to commonly asked questions about our company and services.

Q: Primary Grid Application?

A: Overhead Distribution. Specifically for dense vegetation zones (Tree Wire) or narrow Right-of-Way (ROW) where bare conductors risk intermittent phase-to-ground faults.

Q: Metallurgy Options (Customizable)?

A: Available: Aluminum, AAAC, ACSR, Copper, AWAC, or ACAR. Selection basis: Local tensile strength and conductivity requirements.

Q: Is the covering touch-safe?

A: Negative. This is a covered conductor, not a shielded/insulated cable. Strict Protocol: Treat as energized/bare wire at all times during O&M.

Q: Material Specs (Standard)?

A: Aluminum 1350, Alloy 6201, or ACSR. (Special request: Copper/ACAR).

Q: Voltage Classification?

A: Standard: 15kV, 25kV, 35kV. Extended: Up to 46kV upon technical review.

Q: Inquiry & Technical Support?

A: Action: Click “Contact Us” or access the Seller Profile for specific project quotes and datasheet downloads.

Name	Basic Cookie
Provider	Owner of this website
Purpose	Saves the visitors preferences selected in the Cookie Box of Basic Cookie.
Cookie Name	wish-cookie
Cookie Expiry	1 Year

Accept	Google Ads
Name	Google Ads
Provider	Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland
Purpose	Cookie by Google used for conversion tracking of Google Ads.
Privacy Policy	https://policies.google.com/privacy?hl=en

Accept	Google Analytics
Name	Google Analytics
Provider	Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland
Purpose	Cookie by Google used for website analytics. Generates statistical data on how the visitor uses the website.
Privacy Policy	https://policies.google.com/privacy?hl=en
Cookie Name	_ga,_gat,_gid
Cookie Expiry	2 Months

Accept	Google Tag Manager
Name	Google Tag Manager
Provider	Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland
Purpose	Cookie by Google used to control advanced script and event handling.
Privacy Policy	https://policies.google.com/privacy?hl=en
Cookie Name	_ga,_gat,_gid
Cookie Expiry	2 Years

Accept	Facebook
Name	Facebook
Provider	Meta Platforms Ireland Limited, 4 Grand Canal Square, Dublin 2, Ireland
Purpose	Used to unblock Facebook content.
Privacy Policy	https://www.facebook.com/privacy/explanation
Host(s)	.facebook.com

Accept	OpenStreetMap
Name	OpenStreetMap
Provider	Openstreetmap Foundation, St John’s Innovation Centre, Cowley Road, Cambridge CB4 0WS, United Kingdom
Purpose	Used to unblock OpenStreetMap content.
Privacy Policy	https://wiki.osmfoundation.org/wiki/Privacy_Policy
Host(s)	.openstreetmap.org
Cookie Name	_osm_location, _osm_session, _osm_totp_token, _osm_welcome, _pk_id., _pk_ref., _pk_ses., qos_token
Cookie Expiry	1-10 Years

MV Aerial Cable / Tree Wire

Aluminum or Aluminum Alloy or ACSR Conductor, XLPE/HDPE Insulated

Product Description

Advantages
