TUV DC1500V EN 50618 H1Z2Z2-K European Standard Two Core Solar Cable
Insights on the TUV DC1500V EN 50618 H1Z2Z2-K Solar Cable from Chinese Manufacturers
- Applied on the Ground /Roof top/ Floating PV Power Systems
- TUV/UL/IEC/CE Ad8/CPR-Certified & Lifespan of 25 Years
- Suitable for Severe Indoor and Outdoor Environments after Electro Irradiation
- It Can Be Matched with All Major Types of Solar Connectors
- Within 200 km, delivery will be done in seven days.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description

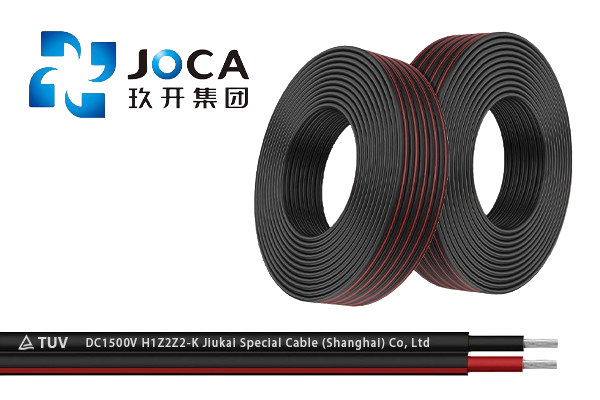

Solar Cable TUV DC1500V EN 50618 H1Z2Z2-K European Standard
Highly flexible cable design of H1Z2Z2-K solar is required for making connection between photovoltaic solar systems and it holds many international certificates from TUV, UL, IEC to CE. As per standards such as UL4703, IEC62930, EN50618, Ad8, and CPR, it finds application in different solar fields including large-scale stations and rooftop arrays. Such a versatile cable is made to meet the various demands of the solar industry especially harsh conditions like roofs, deserts, lakesides and mountains. By doing so, it guarantees long-term safety of the system with fewer operational costs and failure rates ensuring sustainable PV profitability. Increase efficiency and safety when installing your PVs.
-
Advantages
Advantages of TUV DC1500V EN 50618 H1Z2Z2-K European Standard Solar Cable: Benefits and Features
a. Electron-beam cross-linked compounds
b. UV, ozone and hydrolysis resistant
c. High temperature resistant, the materials do not melt or flow
d. Good cold flexibility
e. Very long service life > 25 years at 90 ℃
f. Compatible to all popular connectors
Specification Of H1Z2Z2-K Solar Cable
| Cable Construction | |
|---|---|
| Conductor | Class 5 Tinned copper, according to the EN 60228 and IEC 60228 |
| Insulation | Halogen-free electron-beam cross-linked Polyolefin copolymer (XLPO) |
| Outer Sheath | Halogen-free electron-beam cross-linked Polyolefin copolymer(XLPO), Flame Retardant Compound |
| Sheath color | Black/Red |
| Nominal Voltage | UO/U 600/1000V(AC) , 1500V(DC) |
| Test Voltage | AC 6500v, 50HZ, 10Min(20℃±0.5)or DC 15000v,10 Min (20℃±0.5) Without Broken |
| Temperature Rating | Working temperature -40℃~+90℃ ，Max conductor temperature 120℃ ，20000H |
| Service Life | Expected life span≥25 years |
| Bending Radius | 5D (D: Cable diameter) |
| Fire-resistant Performance | EN 60332-1-2 |
| Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2. |
| European CPR | Cca ,according to En 50575 |
| Water Performance | Ad8 |
| Weather Resistance/UV Resistance | EN 50289-4-17/ENISO4892 |
| Halogen Determination | EN 50525 |
| Certification | TUV/UL//IEC/CE/RoHS |
Dimensions/Parameters
| Construction (n x mm2) | Conductor Construction(n x mm) | Insulation Normal Thickness(mm) | Sheath Normal Thickness(mm) | Outer Diameter(mm) | Max DC Resistance of Conductor at 20℃ (Ω/KM) | Min Insulation Resistance at 90℃ (Ω/KM) | Current Carrying Capacity(A) |
|---|---|---|---|---|---|---|---|
| 2x 2.5 | 49x0.24X2 | 0.7 | 0.8 | 5.0x10.5 | 8.21 | 0.69 | 24 |
| 2x 4.0 | 56x0.28x2 | 0.77 | 0.8 | 5.55x11.6 | 5.09 | 0.58 | 33 |
| 2x 6.0 | 78x0.29x2 | 0.8 | 0.8 | 6.15x12.9 | 3.39 | 0.5 | 44 |
| 2x 10 | 77x0.39x2 | 0.73 | 0.8 | 7.4x15.4 | 1.95 | 0.42 | 57 |
| 2x 16 | 126x0.39x2 | 0.7 | 0.9 | 8.5x17.8 | 1.24 | 0.34 | 132 |
Certifications Of H1Z2Z2-K Solar Cable
-
Production Processes Of Photovoltaic Wire
The intelligent digital factory in the JOCA cable factory integrates the entire production and inspection process, making it smart and digital. It completely nullifies the flaws and faults of human-made manual assembly of the products and significantly enhances their dependability. Meanwhile, it is equipped with perfect inspection and testing equipment. It also uses laser detection and digital intelligent image detection, among others, to ensure quality shipped products.
Packing For Shipment
Multiple packaging methods, suitable for different transport conditions.
| Packing Method | Qty/pallet(pcs) | Meter/pallet (M) | G.W/pallet(KGS) | Pallet size (m) | Pallet/20GP | Meter/20GP |
|---|---|---|---|---|---|---|
| 100M/ROLL | 4mm2-176pcs | 4mm2-17600m | 4mm2-1144kgs | 1.12x1.12x1.12m | 20 | 4mm2-352000m |
| 6mm2-160pcs | 6mm2-16000m | 6mm2-1360kgs | 6mm2-320000m | |||
| 200M/ROLL | 4mm2-90pcs | 4mm2-18000m | 4mm2-1170kgs | 1.12x1.12x1.12m | 20 | 4mm2-360000m |
| 6mm2-81pcs | 6mm2-16200m | 6mm2-1377kgs | 6mm2-324000m | |||
| 100m/plastic drum | 4mm2-125pcs | 4mm2-12500m | 4mm2-850kgs | 1.12x1.12x1.12m | 20 | 4mm2-250000m |
| 6mm2-100pcs | 6mm2-10000m | 6mm2-900kgs | 6mm2-200000m | |||
| 500m/wood drum | 4mm2-27pcs | 4mm2-13500m | 4mm2-1197kgs | 1.12x1.12x1.12 | 20 | 4mm2-270000m |
| 6mm2-27pcs | 6mm2-13500m | 6mm2-930kgs | 6mm2-270000m | |||
| 1000M/wood drum | 4mm2-12pcs | 4mm2-12000m | 4mm2-830kgs | 1.12x1.12x1.12 | 20 | 4mm2-240000m |
| 6mm2-12pcs | 6mm2-12000m | 6mm2-1070kgs | 6mm2-240000m |
Have more questions?
Find answers to frequently asked questions about our company and services for a seamless beginning.
Q: What is the product description of TUV DC1500V EN 50618 H1Z2Z2-K European Standard Solar Cable?
A: The TUV DC1500V EN 50618 H1Z2Z2-K European Standard Solar Cable is a solar cable made for 1500V photovoltaic systems. It’s by the European standard EN 50618 and has TUV certification.
Q: What are the main features of the H1Z2Z2-K solar cable?
A: This brand is also highly demanded for its electric voltage rating of up to 1500 volts. Moreover, a TUV certificate guarantees safety dependability and compliance with EN 50618 European standards. This solar cable was designed specifically for use in solar energy applications.
Q: Is the TUV DC1500V EN 50618 H1Z2Z2-K European Standard Solar Cable suitable for solar installations?
A: Yes, indeed, it was developed specifically for this purpose, which makes it dependable for use in power-generating systems using natural sources such as sunlight where it is lost.
Q: What product groups does the H1Z2Z2-K solar cable belong to?
A: The H1Z2Z2-K solar cable can be classified into the product groups solar cables, photovoltaic cables, power cables, and 1500V-rated Cables.
Q: Does the H1Z2Z2-K solar cable meet UL standards?
A: Although TUV ordinarily certifies H1Z2Z2-K solar cable, UL certification may or may not have been obtained depending on a given product. Therefore, consult the supplier for more information concerning UL listing-related queries.
Q: What is the significance of the EN 50618 European standard for solar cables?
A: It also applies to PV cabling systems. In other words, it defines requirements for photovoltaic cable systems that help maintain safe conditions in renewable power sources like the sun. As to this question, just note that the name of this standard is mentioned for this product type.
