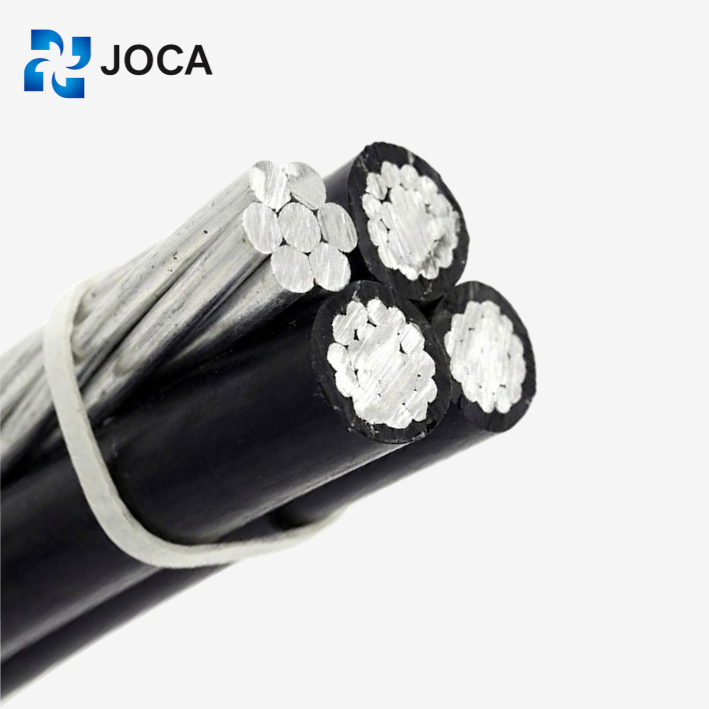

PE&XLPE Aerial Bundle Cables for Overhead Distribution Lines
PE & XLPE Aerial Bundle Cables Applications
Urban Distribution: Specifically, this cable safely powers city streets and commercial zones.
Rural Networks: In addition, the design suits long-span lines across uneven terrain.
Roadside Facilities: Moreover, it ensures reliable distribution along highways and public corridors.
Forested Regions: The robust insulation actively prevents faults caused by tree contact.
Grid Upgrades: Consequently, it efficiently upgrades old bare conductor lines to reduce power loss.
Coastal Areas: Finally, the durable jacket withstands salt spray and high humidity.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
PE&XLPE Aerial Bundle Cables : Product Description and Specifications
LV Aerial Bundle Cable series (0.6/1 kV – 1.2 kV) for overhead distribution. The assembly utilizes AAAC or Aluminum conductors helically stranded around a structural messenger. Insulation options include PE or XLPE, functioning as a primary mechanical barrier and dielectric shield. Manufacturing protocols strictly adhere to IEC 60502-1 and TNB standards to ensure grid reliability.
-
Advantages
PE&XLPE Aerial Bundle Cables : Benefits and Features
Environmental Endurance: Severe Climate Verified. Engineered to withstand extreme thermal cycling and environmental loads without degradation.
Flexibility Class: Stranded Copper Architecture. High-flex design optimizes bend radius for rapid, efficient routing.
Fire Behavior: Flame Retardant System. Insulation chemistry actively limits thermal propagation. Safety Result: Self-extinguishing properties.
UV Hardening: Solar Immunity. The outer sheath creates an impervious barrier against direct solar radiation, preventing long-term polymer breakdown.
Compliance: Global Certification. Verified adherence to CE and international Solar Energy standards.
Specification Of PE&XLPE Aerial Bundle Cables
| Standard | Description |
|---|---|
| IEC 60502-1 | Power Cables With Extruded Insulation And Their Accessories For Rated Voltages From 1 kV ( Um = 1.2 kV) Up To 30 kV ( Um = 36 kV). |
| TNB | Specification for Low Voltage Aerial Bundle Cable |
| AS/NZS 3560.1 | Electric cables – Cross-linked polyethylene insulated – Aerial bundled – For working voltage up to and including 0.6/1(1.2) kV |
| BS 7870-5 | Polymeric insulated aerial bundled conductors (ABC ) of rated voltage 0.6/1 kV for overhead distribution |
| DES/LV/ABC | Specification for Low Voltage Aerial Bundle Conductor (Aluminium ) |
| AS/NZS 3599.1 | Electric cables – Aerial bundled – Polymeric insulated – Voltages 6.35/11 (12) kV and 12.7/22 (24) kV |
| AS/NZS 3599.2 | Electric cables – Aerial bundled – Polymeric insulated – Voltages 6.35/11 (12) kV and 12.7/22 (24) kV |
Dimensions/Parameters
IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables without street lighting
| Parameter | Unit | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 | 240 mm2 |
|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 12 | 15 | 15 | 15 | 30 | 30 | |
| Nominal diameter of conductor | mm | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 | 18.4 |
| Nominal thickness of XLPE insulation | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Metallic screening approx. thickness of copper tape | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Nominal thickness of outer sheath | mm | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Nominal diameter over sheathing | mm | 23 | 24.6 | 26.3 | 27.8 | 29.2 | 30.9 | 33.3 |
| Max. dc resistance at 20°C | ohm/km | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 | 0.125 |
| Earth fault current capacity: -1 second (1 Core) | kA | 1.57 | 1.72 | 1.88 | 2.01 | 2.14 | 2.3 | 2.52 |
| Earth fault current capacity: -3 seconds (1 Core) | kA | 0.9 | 0.99 | 1.08 | 1.16 | 1.23 | 1.33 | 1.45 |
| Messenger: Nominal cross-sectional area | mm2 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Messenger: Stranding | No./mm | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 |
| Messenger: Minimum breaking load | kg | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 |
| Completed cable: Approx. overall diameter | mm | 55 | 59 | 62 | 65 | 67 | 71 | 75 |
| Completed cable: Approx. weight of cable | kg/km | 2540 | 2890 | 3300 | 3660 | 4040 | 4540 | 5290 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables with street lighting
| Parameter | Unit | 50 mm2 | 70 mm2 | 95 mm2 |
|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 50 | 70 | 95 |
| Number of cores | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 12 | 15 | |
| Nominal insulation thickness | mm | 1.5 | 1.5 | 1.7 |
| Diameter of insulated core | mm | 11.5 | 13.2 | 15.3 |
| Max. dc resistance at 20°C | ohm/km | 0.641 | 0.443 | 0.32 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 129 | 167 | 209 |
| Neutral conductor: Nominal cross-sectional area | mm2 | 50 | 70 | 95 |
| Minimum number of wires | 6 | 12 | 15 | |
| Nominal insulation thickness | mm | 1.5 | 1.5 | 1.7 |
| Diameter of insulated core | mm | 11.5 | 11.5 | 15.3 |
| Max. dc resistance at 20°C | ohm/km | 0.641 | 0.443 | 0.32 |
| Street lighting conductor: Nominal cross-sectional area | mm2 | 25 | 25 | 25 |
| Minimum number of wires | 6 | 6 | 6 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.3 |
| Diameter of insulated core | mm | 8.8 | 8.8 | 8.8 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 1.2 | 1.2 |
| Completed cable: Minimum breaking load | kN | 34.5 | 48.1 | 65.3 |
| Approx. overall diameter | mm | 29.8 | 33.6 | 38.2 |
| Approx. weight of cable | kg/km | 830 | 1100 | 1470 |
| Packing length | m/drum | 1000 | 1000 | 500 |
AL/XLPE INSULATED AERIAL BUNDLED CABLES AS/NZS 3560.1 0.6/1 (1.2) kV
| Parameter | Unit | 25 mm2 | 35 mm2 |
|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 25 | 35 |
| Number of cores | 3 | 3 | |
| Minimum number of wires | 6 | 6 | |
| Nominal insulation thickness | mm | 1.4 | 1.4 |
| Diameter of insulated core | mm | 8.9 | 9.9 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 0.868 |
| Minimum breaking load | kN | 3.5 | 4.9 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 84 | 104 |
| Neutral Conductor: Nominal cross-sectional area | mm2 | 25 | 35 |
| Minimum number of wires | 6 | 6 | |
| Nominal insulation thickness | mm | 1.4 | 1.4 |
| Diameter of insulated core | mm | 8.9 | 9.9 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 0.868 |
| Minimum breaking load | kN | 3.5 | 4.9 |
| Completed cable: Approx. overall diameter | mm | 21.5 | 23.9 |
| Approx. weight of cable | kg/km | 420 | 550 |
| Packing length | m/drum | 1000 | 1000 |
BS 7870-5 0.6/1 (1.2) kV Cables without street lighting
| Parameter | Unit | 25 mm2 | 35 mm2 | 50 mm2 | 70 mm2 | 95* mm2 | 120 mm2 | 150 mm2 | 185* mm2 |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 15 | 30 | 30 | |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2 |
| Diameter of insulated core | mm | 8.5 | 9.5 | 11.2 | 13 | 15.1 | 16.6 | 18.4 | 20.6 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 84 | 104 | 129 | 167 | 209 | 246 | 283 | 332 |
| Maximum voltage drop | mV/A/m | 2.54 | 1.84 | 1.36 | 0.95 | 0.69 | 0.55 | 0.46 | 0.37 |
| Messenger conductor: Nominal cross-sectional area | mm2 | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of insulated core | mm | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
| Max. dc resistance at 20°C | ohm/km | 1.312 | 1.312 | 0.943 | 0.693 | 0.469 | 0.469 | 0.349 | 0.273 |
| Calculated breaking load | kN | 6.4 | 6.4 | 8.9 | 12.1 | 18.0 | 18.0 | 24.2 | 30.8 |
| Street lighting conductor: Nominal cross-sectional area | mm2 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Nominal insulation thickness | mm | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Diameter of insulated core | mm | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 |
| Completed cable: Approx. overall diameter | mm | 23.2 | 25.6 | 30 | 34.9 | 40.6 | 44.1 | 49.2 | 54.9 |
| Approx. weight of cable | kg/km | 470 | 560 | 740 | 980 | 1330 | 1580 | 1940 | 2410 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 |
BS 7870-5 0.6/1 (1.2) kV Cables without street lighting Cables with street lighting
| Parameter | Unit | 120 mm2 | 185 mm2 |
|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 120 | 185 |
| Number of cores | 3 | 3 | |
| Minimum number of wires | 15 | 30 | |
| Nominal insulation thickness | mm | 1.7 | 2.2 |
| Diameter of insulated core | mm | 17 | 21 |
| Max. dc resistance at 20°C | ohm/km | 0.253 | 0.164 |
| Minimum breaking load | kN | 16.8 | 25.9 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 246 | 332 |
| Neutral conductor: Nominal cross-sectional area | mm2 | 120 | 185 |
| Minimum number of wires | 15 | 30 | |
| Nominal insulation thickness | mm | 1.7 | 2.2 |
| Diameter of insulated core | mm | 17 | 21 |
| Max. dc resistance at 20°C | ohm/km | 0.253 | 0.164 |
| Minimum breaking load | kN | 16.8 | 25.9 |
| Street lighting conductor: Nominal cross-sectional area | mm2 | 25 | 25 |
| Minimum number of wires | 6 | 6 | |
| Nominal insulation thickness | mm | 1.4 | 1.4 |
| Diameter of insulated core | mm | 8.9 | 8.9 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 1.2 |
| Completed cable: Approx. overall diameter | mm | 43.8 | 50.7 |
| Approx. weight of cable | kg/km | 1800 | 2700 |
| Packing length | m/drum | 500 | 500 |
IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables without street lighting
| Parameter | Unit | 25 mm2 (1c) | 35 mm2 (1c) | 50 mm2 (1c) | 70 mm2 (1c) | 95 mm2 (1c) | 25 mm2 (3c) | 35 mm2 (3c) | 50 mm2 (3c) | 70 mm2 (3c) | 95 mm2 (3c) | 120 mm2 (3c) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 25 | 35 | 50 | 70 | 95 | 25 | 35 | 50 | 70 | 95 | 120 |
| Number of cores | 1 | 1 | 1 | 1 | 1 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 6 | 6 | 6 | 12 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.7 |
| Diameter of insulated core | mm | 8.8 | 9.8 | 11.5 | 13.2 | 15.3 | 8.8 | 9.8 | 11.5 | 13.2 | 15.3 | 16.8 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 84 | 104 | 129 | 167 | 209 | 84 | 104 | 129 | 167 | 209 | 283 |
| Neutral conductor: Nominal cross-sectional area | mm2 | 25 | 35 | 50 | 70 | 95 | 25 | 35 | 50 | 70 | 95 | 120 |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 6 | 6 | 6 | 12 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.7 |
| Diameter of insulated core | mm | 8.8 | 9.8 | 11.5 | 13.2 | 15.3 | 8.8 | 9.8 | 11.5 | 13.2 | 15.3 | 16.8 |
| Max. dc resistance at 20°C | ohm/km | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 |
| Completed cable: Minimum breaking load | kN | 8.2 | 11.2 | 15.2 | 22 | 30.6 | 16.4 | 22.4 | 30.4 | 44 | 61.2 | 77.6 |
| Approx. overall diameter | mm | 17.6 | 19.6 | 23 | 26.4 | 30.6 | 21.2 | 23.7 | 27.8 | 31.9 | 36.9 | 40.6 |
| Approx. weight of cable | kg/km | 210 | 270 | 360 | 500 | 680 | 410 | 550 | 730 | 1000 | 1370 | 1690 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 500 | 1000 | 1000 | 1000 | 1000 | 500 | 500 |
IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables with street lighting
| Parameter | Unit | 16* mm2 (1c) | 16* mm2 (3c) | 25 mm2 | 35 mm2 | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 16 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 6 | 6 | 12 | 15 | 15 | 30 | 30 | |
| Nominal insulation thickness | mm | 1 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2 |
| Diameter of insulated core | mm | 6.8 | 6.8 | 8.5 | 9.5 | 11.2 | 13 | 15.1 | 16.6 | 18.4 | 20.6 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at still wind, ambient temp 30°C, conductor temp 75°C | A | 61 | 61 | 84 | 104 | 129 | 167 | 209 | 246 | 283 | 332 |
| Maximum voltage drop | mV/A/m | 4.67 | 4.05 | 2.54 | 1.84 | 1.36 | 0.95 | 0.69 | 0.55 | 0.46 | 0.37 |
| Messenger conductor: Nominal cross-sectional area | mm2 | 25 | 25 | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of insulated core | mm | 8.5 | 8.5 | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
| Max. dc resistance at 20°C | ohm/km | 1.312 | 1.312 | 1.312 | 1.312 | 0.943 | 0.693 | 0.469 | 0.469 | 0.349 | 0.273 |
| Calculated breaking load | kN | 6.4 | 6.4 | 6.4 | 6.4 | 8.9 | 12.1 | 18.0 | 18.0 | 24.2 | 30.8 |
| Completed cable: Approx. overall diameter | mm | 15.3 | 19 | 23.2 | 25.6 | 30 | 34.9 | 40.6 | 44.1 | 49.2 | 54.9 |
| Approx. weight of cable | kg/km | 160 | 290 | 400 | 500 | 680 | 920 | 1270 | 1510 | 1870 | 2340 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 |
6.35/11 (12) kV Specification: AL/XLPE/SCT/PVC Aerial Bundled Cables
| Parameter | Unit | 16 mm2 (1c) | 25 mm2 (1c) | 35 mm2 (1c) | 50 mm2 (1c) | 95 mm2 (1c) | 25 mm2 (2c) | 35 mm2 (2c) | 50 mm2 (2c) |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 16 | 25 | 35 | 50 | 95 | 25 | 35 | 50 |
| Number of cores | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Minimum number of wires | 6 | 6 | 6 | 6 | 15 | 6 | 6 | 6 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.3 | 1.5 | 1.7 | 1.3 | 1.3 | 1.5 |
| Diameter of insulated core | mm | 7.5 | 8.8 | 9.8 | 11.4 | 15.3 | 8.8 | 9.8 | 11.4 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.2 | 0.868 | 0.641 | 0.32 | 1.2 | 0.868 | 0.641 |
| Current rating for typical Australian installation conditions Conductor temp 80°C | A | 78 | 105 | 125 | 150 | 230 | 97 | 120 | 140 |
| Neutral conductor: Nominal cross-sectional area | mm2 | 16 | 25 | 35 | 50 | 95 | 25 | 35 | 50 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 15 | 6 | 6 | 6 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.3 | 1.5 | 1.7 | 1.3 | 1.3 | 1.5 |
| Diameter of insulated core | mm | 7.5 | 8.8 | 9.8 | 11.4 | 15.3 | 8.8 | 9.8 | 11.4 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.2 | 0.868 | 0.641 | 0.32 | 1.2 | 0.868 | 0.641 |
| Completed cable: Minimum breaking load | kN | 4.4 | 7 | 9.8 | 14.0 | 26.6 | 10.5 | 14.7 | 21 |
| Approx. overall diameter | mm | 15 | 17.6 | 19.6 | 22.8 | 30.6 | 19 | 21.1 | 24.6 |
| Approx. weight of cable | kg/km | 140 | 210 | 270 | 370 | 680 | 310 | 410 | 550 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 500 | 1000 | 1000 | 1000 |
| --- SECTION BREAK --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| Parameter (3 CORE VARIANTS) | Unit | 16 mm2 | 25 mm2 | 35 mm2 | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 |
| Phase conductor: Nominal cross-sectional area | mm2 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 6 | 12 | 15 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.7 | 1.7 |
| Diameter of insulated core | mm | 7.5 | 8.8 | 9.8 | 11.4 | 13.2 | 15.3 | 16.8 | 18.2 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 |
| Current rating for typical Australian installation conditions Conductor temp 80°C | A | 74 | 97 | 120 | 140 | 175 | 215 | 250 | 280 |
| Neutral conductor: Nominal cross-sectional area | mm2 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 12 | 15 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.3 | 1.3 | 1.3 | 1.5 | 1.5 | 1.7 | 1.7 | 1.7 |
| Diameter of insulated core | mm | 7.5 | 8.8 | 9.8 | 11.4 | 13.2 | 15.3 | 16.8 | 18.2 |
| Max. dc resistance at 20°C | ohm/km | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 |
| Completed cable: Minimum breaking load | kN | 8.8 | 14.0 | 19.6 | 28 | 39.2 | 53.2 | 67.2 | 84 |
| Approx. overall diameter | mm | 18.1 | 21.2 | 23.7 | 27.5 | 31.9 | 36.9 | 40.6 | 43.9 |
| Approx. weight of cable | kg/km | 290 | 410 | 550 | 740 | 1000 | 1370 | 1690 | 2020 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 |
IEC 60502 & TNB Standard: 12.7/22 (24) kV Cable Configuration
| Parameter | Unit | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 | 240 mm2 |
|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 12 | 15 | 15 | 15 | 30 | 30 | |
| Nominal diameter of conductor | mm | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 | 18.4 |
| Nominal thickness of XLPE insulation | mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Metallic screening approx. thickness of copper tape | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Nominal thickness of outer sheath | mm | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Nominal diameter over sheathing | mm | 32.2 | 33.8 | 35.5 | 37 | 38.4 | 40.1 | 42.5 |
| Max. dc resistance at 20°C | ohm/km | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 | 0.125 |
| Earth fault current capacity: -1 second (1 Core) | kA | 2.41 | 2.56 | 2.72 | 2.86 | 2.99 | 3.14 | 3.36 |
| Earth fault current capacity: -3 seconds (1 Core) | kA | 1.39 | 1.48 | 1.57 | 1.65 | 1.72 | 1.81 | 1.94 |
| Messenger: Nominal cross-sectional area | mm2 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Messenger: Stranding | No./mm | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 |
| Messenger: Minimum breaking load | kg | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 |
| Completed cable: Approx. overall diameter | mm | 73 | 76 | 79 | 82 | 84 | 87 | 91 |
| Completed cable: Approx. weight of cable | kg/km | 3980 | 4400 | 4880 | 5300 | 5740 | 6310 | 7160 |
| Packing length | m/drum | 500 | 500 | 500 | 250 | 250 | 250 | 250 |
High Voltage 19/33 (36) kV: Aerial Bundled Cable Technical Data
| Parameter | Unit | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 | 240 mm2 |
|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 12 | 15 | 15 | 15 | 30 | 30 | |
| Nominal diameter of conductor | mm | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 | 18.4 |
| Nominal thickness of XLPE insulation | mm | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Metallic screening approx. thickness of copper tape | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Nominal thickness of outer sheath | mm | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Nominal diameter over sheathing | mm | 27.2 | 28.8 | 30.5 | 32 | 33.4 | 35.1 | 37.5 |
| Max. dc resistance at 20°C | ohm/km | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 | 0.125 |
| Earth fault current capacity: -1 second (1 Core) | kA | 1.96 | 2.11 | 2.26 | 2.4 | 2.53 | 2.68 | 2.9 |
| Earth fault current capacity: -3 seconds (1 Core) | kA | 1.13 | 1.21 | 1.31 | 1.38 | 1.46 | 1.55 | 1.67 |
| Messenger: Nominal cross-sectional area | mm2 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Messenger: Stranding | No./mm | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 | 7/3.15 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 |
| Messenger: Minimum breaking load | kg | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 | 6270 |
| Completed cable: Approx. overall diameter | mm | 64 | 67 | 70 | 73 | 75 | 78 | 83 |
| Completed cable: Approx. weight of cable | kg/km | 3150 | 3540 | 3980 | 4360 | 4770 | 5300 | 6100 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 500 | 250 | 250 |
Light Duty Screen: AL/XLPE/SCW/HDPE Cable (6.35/11 kV)
| Parameter | Unit | 35 mm2 (Type A) | 35 mm2 (Type B) | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Minimum thickness of insulation screen | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Metallic screening: No. and diameter of copper wire | no./mm | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 |
| Nominal thickness of outer sheath | mm | 1.8 | 1.8 | 1.8 | 1.8 | 1.9 | 1.9 | 2 | 2 |
| Nominal diameter over sheathing | mm | 28.4 | 28.4 | 29.3 | 30.9 | 32.8 | 34.3 | 35.9 | 37.6 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temperature = 30°C | A | 170 | 170 | 205 | 260 | 315 | 360 | 410 | 470 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 150 | 150 | 185 | 230 | 280 | 320 | 365 | 415 |
| Earth fault current carrying capacity of metallic screen at -1 second | kA | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Messenger: Stranding (Galvanized steel wire) | No./mm | 7/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Completed cable: Approx. overall diameter | mm | 62.8 | 66.8 | 68.5 | 71.8 | 75.6 | 78.6 | 81.8 | 85.2 |
| Approx. weight of cable | kg/km | 2340 | 2640 | 2780 | 3100 | 3510 | 3850 | 4240 | 4710 |
| Packing length | m/drum | 500 | 500 | 500 | 250 | 250 | 250 | 250 | 250 |
Heavy Duty Screen Variant: 6.35/11 kV Aerial Cable
| Parameter | Unit | 35 mm2 | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Nominal thickness of cross-linked screen layer | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Nominal thickness of semi-conductive HDPE layer | mm | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 165 | 195 | 245 | 295 | 340 | 385 | 440 |
| Messenger (AAAC 1120): Stranding | No./mm | 7/5.0 | 7/5.0 | 7/5.0 | 7/5.0 | 19/3.65 | 19/3.65 | 19/3.65 |
| Messenger: Direction of the outermost layer | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | |
| Messenger: Overall diameter | mm | 14.3 | 14.3 | 14.3 | 14.3 | 17.3 | 17.3 | 17.3 |
| Completed cable: Approx. overall diameter | mm | 60.6 | 61.9 | 65.1 | 68.6 | 74.6 | 77.4 | 80.8 |
| Approx. weight of cable | kg/km | 1890 | 2000 | 2300 | 2670 | 3160 | 3500 | 3950 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 250 | 250 | 250 |
12.7/22 (24) kV Configuration: Light Duty Screen (AS/NZS 3599.1)
| Parameter | Unit | 35 mm2 (Type A) | 35 mm2 (Type B) | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Minimum thickness of insulation screen | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Metallic screening: No. and diameter of copper wire | no./mm | 40/0.85 | 40/0.85 | 23/1.35 | 32/1.35 | 38/1.35 | 38/1.35 | 38/1.35 | 38/1.35 |
| Nominal thickness of outer sheath | mm | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.9 |
| Nominal diameter over sheathing | mm | 24.2 | 24.2 | 26.1 | 27.7 | 29.4 | 30.9 | 32.3 | 34.2 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temperature = 30°C | A | 185 | 185 | 210 | 260 | 315 | 365 | 415 | 475 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 155 | 155 | 185 | 230 | 280 | 325 | 370 | 425 |
| Earth fault current carrying capacity of metallic screen at -1 second | kA | 3.3 | 3.3 | 4.8 | 6.8 | 8 | 8 | 8 | 8 |
| Messenger: Stranding (Galvanized steel wire) | No./mm | 7/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 |
| Messenger: Direction of the outermost layer | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | |
| Messenger: Overall diameter | mm | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Completed cable: Approx. overall diameter | mm | 54.4 | 58.4 | 62.1 | 65.4 | 68.8 | 71.8 | 74.6 | 78.4 |
| Approx. weight of cable | kg/km | 2150 | 2440 | 2880 | 3540 | 4130 | 4440 | 4770 | 5240 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 500 | 500 | 250 | 250 |
AS/NZS 3599.1 Standard: 12.7/22 kV Heavy Duty Screen Cable
| Parameter | Unit | 35 mm2 (Type A) | 35 mm2 (Type B) | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Minimum thickness of insulation screen | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Metallic screening: No. and diameter of copper wire | no./mm | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 | 24/0.85 |
| Nominal thickness of outer sheath | mm | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.9 |
| Nominal diameter over sheathing | mm | 24.2 | 24.2 | 25.1 | 26.7 | 28.4 | 29.9 | 31.3 | 33.2 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temperature = 30°C | A | 185 | 185 | 210 | 260 | 315 | 365 | 415 | 475 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 155 | 155 | 185 | 230 | 280 | 325 | 370 | 425 |
| Earth fault current carrying capacity of metallic screen at -1 second | kA | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Messenger: Stranding (Galvanized steel wire) | No./mm | 7/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Completed cable: Approx. overall diameter | mm | 54.4 | 58.4 | 60.1 | 63.4 | 66.8 | 69.8 | 72.6 | 76.4 |
| Approx. weight of cable | kg/km | 1890 | 2190 | 2320 | 2610 | 2960 | 3260 | 3590 | 4060 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 500 | 500 | 250 | 250 |
AERIAL BUNDLED CABLES AL/XLPE/HDPE AS/NZS 3599.2 6.35/11 (12) kV
| Parameter | Unit | 35 mm2 (Type A) | 35 mm2 (Type B) | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Minimum thickness of insulation screen | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Metallic screening: No. and diameter of copper wire | no./mm | 40/0.85 | 40/0.85 | 23/1.35 | 32/1.35 | 38/1.35 | 38/1.35 | 38/1.35 | 38/1.35 |
| Nominal thickness of outer sheath | mm | 1.8 | 1.8 | 1.8 | 1.8 | 1.9 | 1.9 | 2 | 2 |
| Nominal diameter over sheathing | mm | 28.4 | 28.4 | 30.3 | 31.9 | 33.8 | 35.3 | 36.9 | 38.6 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temperature = 30°C | A | 170 | 170 | 205 | 260 | 315 | 360 | 410 | 470 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 150 | 150 | 185 | 230 | 280 | 320 | 365 | 415 |
| Earth fault current carrying capacity of metallic screen at -1 second | kA | 3.3 | 3.3 | 4.8 | 6.8 | 8 | 8 | 8 | 8 |
| Messenger: Stranding (Galvanized steel wire) | No./mm | 7/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 | 19/2.0 |
| Messenger: Direction of the outermost layer | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | Right-hand (Z) | |
| Messenger: Overall diameter | mm | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Completed cable: Approx. overall diameter | mm | 62.8 | 66.8 | 70.5 | 73.8 | 77.6 | 80.6 | 83.8 | 87.2 |
| Approx. weight of cable | kg/km | 2600 | 2900 | 3350 | 4030 | 4680 | 5020 | 5410 | 5880 |
| Packing length | m/drum | 500 | 500 | 500 | 250 | 250 | 250 | 250 | 250 |
AERIAL BUNDLED CABLES AL/XLPE/HDPE AS/NZS 3599.2 12.7/22 (24) kV
| Parameter | Unit | 35 mm2 | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 150 mm2 | 185 mm2 |
|---|---|---|---|---|---|---|---|---|
| Phase conductor: Nominal cross-sectional area | mm2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 12 | 15 | 18 | 18 | 30 | |
| Nominal diameter of conductor | mm | 7 | 8.1 | 9.7 | 11.5 | 12.9 | 14.3 | 16.1 |
| Minimum thickness of conductor screen | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nominal thickness of XLPE insulation | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Nominal thickness of cross-linked screen layer | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Nominal thickness of semi-conductive HDPE layer | mm | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Max. dc resistance at 20°C | ohm/km | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Current rating at Ambient temp = 40°C, Solar = 1000W/m2, Wind = 1m/s | A | 165 | 200 | 245 | 300 | 345 | 390 | 450 |
| Messenger (AAAC 1120): Stranding | No./mm | 7/5.0 | 7/5.0 | 7/5.0 | 7/5.0 | 19/3.65 | 19/3.65 | 19/3.65 |
| Messenger: Direction of the outermost layer | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | Righthand (Z) | |
| Messenger: Overall diameter | mm | 14.3 | 14.3 | 14.3 | 14.3 | 17.3 | 17.3 | 17.3 |
| Completed cable: Approx. overall diameter | mm | 52.2 | 53.5 | 56.7 | 60.2 | 66.2 | 69 | 72.4 |
| Approx. weight of cable | kg/km | 1470 | 1580 | 1850 | 2180 | 2640 | 2960 | 3380 |
| Packing length | m/drum | 500 | 500 | 500 | 500 | 500 | 500 | 250 |
-
Production Processes Of Aerial Bundled Cable
To ensure superior quality, JOCA operates fully digitalized and automated production lines for aerial cables. Specifically, this comprehensive workflow covers conductor stranding, insulation covering, sheathing, and final quality inspection. Moreover, intelligent systems actively monitor each stage to ensure stable performance and consistent product quality. In addition, the factory utilizes advanced testing facilities, such as tensile testing, elongation testing, spark testing, and laser diameter control. Consequently, these rigorous measures guarantee that every delivered cable strictly meets international standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
We’ve compiled the most common questions regarding specifications, safety standards, and applications below. If you don't see what you're looking for, or have a specific custom requirement, just contact our engineering team directly.
Q: Compliance Standards?
A: Strict Adherence: IEC 60502-1 and TNB Specifications (Range: 0.6/1 kV – 1.2 kV).
Q: Conductor Composition?
A: Material: AAAC or Aluminum. Geometry: Helically stranded around a messenger wire (Configuration dependent).
Q: Typical Application Zones?
A: Deployment: Urban grids, residential feeders, rural pole lines, and narrow-corridor easements.
Q: Why XLPE Insulation?
A: Material Physics: Chosen for superior thermal resistance (90°C), mechanical toughness, and long-term aging immunity compared to PVC.
Q: Voltage Rating?
A: LV Class: 0.6/1 kV. (Verified for TNB requirements up to 1.2 kV).
Q: Coastal/Humid Environment?
A: Verified. PE/XLPE insulation offers inherent waterproofing and saline corrosion resistance.
Q: Messenger Wire Configuration?
A: Optional. (Material: AAAC). Functions as the primary mechanical support structure when integrated.
Q: Replacement for Bare Conductors?
A: Operational Gain. Replaces bare wire to drastically reduce electrical fault rates and lower O&M (Operations & Maintenance) costs.
