Understanding the NEMA 14-50 Outlet: Your Guide to EV Charging

There is a need to understand the infrastructure that facilitates efficient charging of electric vehicles (EVs), such as the NEMA 14-50R receptacle. The NEMA 14-50 outlet is one of the most common charging solutions and provides a sturdy and dependable option for home charging systems. This paper focuses on the NEMA 14-50 outlet, describing its structure, electrical details, installation prerequisites, and ways to make it safer. By providing insight into these aspects, we intend to provide readers with the necessary information to make rational decisions concerning EV charging, whether for personal or commercial use.

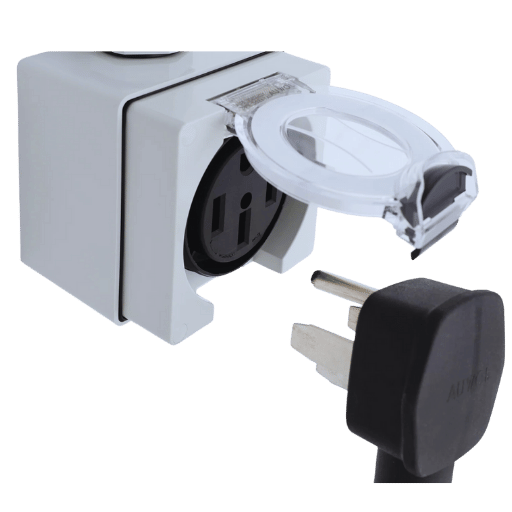

What is a NEMA 14-50 Outlet?

How does a NEMA 14-50 differ from other outlets?

Designated purposely for high-power uses, the NEMA 14-50 outlet is set to give 240 volts and a maximum of 50 amps, making it a good choice for home flex charging solutions, differentiating it from the normal household outlets like the NEMA 5-15 that normally gives about120 volts at most of 15 amperes. The device’s unique design includes four prongs comprising two hot wires, one neutral wire, and one ground wire, enabling greater electrical power capacity and efficiency. Hence, this structure allows for faster charge times than lower-rated outlets, thus providing an indispensable option to cater to electric-powered cars as well as other high-demand equipment.

What appliances are suitable for a NEMA 14-50 outlet?

The NEMA 14-50 outlet is built for high-power appliances, but mostly electric vehicles (EVs) that need a lot of charging. This receptacle also works with recreational vehicles (RVs), electric ovens, cooktops, and welders, among other high-demand appliances. It is most suitable for powering heavy-duty tools or machines because it can supply up to 240 volts at 50 amps, which is a large amount of electricity needed by any appliance that runs best on higher energy levels. To avoid overloading or damaging equipment, ensure the device is plugged into this socket complies with its electric requirements while using a NEMA 14-50 outlet.

What is the voltage and amperage of a NEMA 14-50 outlet?

The NEMA 14-50 socket can deliver a maximum of 50 amps and functions on a voltage of 240 volts. Thus, this specification well caters for even devices that draw high amounts of power and electric vehicle charging stations, ensuring efficient energy distribution.

How to Install a NEMA 14-50 Outlet?

What tools do I need to install a NEMA 14-50 outlet?

These are the tools you will need to install a NEMA 14-50 outlet:

1. Securing the outlet to the electrical box requires a screwdriver.
2. Insulation needs to be removed from wires, so a wire stripper is necessary.
3. Before proceeding with the outlet, ensure that the power is off by using a voltage tester.
4. Use a drill if new holes have to be made for mounting purposes.
5. Pliers will be needed for bending and securing wire connections together at their ends or other points along their length.
6. You should also have a level on hand in order to make sure everything stays straight when installing this type of socket.

Can I install a NEMA 14-50 outlet myself?

One can easily set up a NEMA 14-50 socket by him/herself as long as there is enough knowledge about electrical systems and the safety rules are obeyed. Homeowners with an electrical background can follow the steps required to connect their NEMA outlets, which include switching off electricity, fastening connections, and making sure that the grounding of the outlet is done correctly. However, homeowners who lack experience or have questions about any part of this process should contact or employ an accredited electrician because it will help them avoid violating local electrical codes and prevent them from getting hurt or damaging their property. In case of doubts, always prioritize safety and consider professional help.

What is the process for safely installing a NEMA 14-50 outlet?

To safely install a NEMA 14-50 outlet, here are some things you need to do:

1. Turn Off Power: Before starting, find the circuit breaker that powers the existing outlet or where you plan to install it and shut it off. Then use a voltage tester to confirm that the power is off.
2. Gather Materials: You will need a NEMA 14-50 outlet (of course), electrical box, wire (usually 6 gauge for 50 amps), and necessary connectors.
3. Install the Electrical Box: Mount the electrical box at the desired location if it is not already there. Make sure it is securely fastened and positioned correctly according to local code requirements.
4. Run the Wires: During outlet installation, feed two hot wires, one neutral wire, and one ground wire through the electrical box. Cut wires to appropriate lengths for connections.
5. Connect Wires to Outlet: Strip wire ends and connect them to corresponding terminals on the outlet – usually brass for hot wires, silver for neutral, and green for ground.
6. Secure Outlet: Once connections are made, push the outlet carefully back into the box so as not to pinch any wires & secure it with the screws provided.
7. Check Alignment & Levelness: Use a level to ensure that the outlet is straight then secure it fully into box.
8. Restore Power: After making sure all connections are tight, replace the cover plate over the plug areas of the new receptacle. Turn the power back on at the breaker panel. Test the installation using a volt meter near the socket opening (it should read zero volts).

Do Final Checks: Plug in compatible device into powered up socket; check if works fine or not; if yes then job done successfully!

Why Choose a NEMA 14-50 Outlet for EV Charging?

What are the benefits of using a NEMA 14-50 outlet for EV charging?

There are several advantages to using NEMA 14-50 outlet for charging EVs. First, it has a high output power of up to fifty amps, significantly reducing the charging time compared to normal household outlets. This feature, therefore, allows the users to recharge their EVs efficiently, especially for those with larger batteries. The NEMA 14-50 outlet is a widely accepted standard for many level 2 electric car chargers. Lastly, various locations can accommodate the installation flexibility of Nema 14-50 outlets, hence making it useful in both commercial and residential setups while giving convenience to EV owners who prefer accessible charging options.

How does a NEMA 14-50 outlet affect charging speed for electric vehicles?

The NEMA 14-50 outlet can significantly increase the charging speed of electric vehicles (EVs) since it is built to provide a 50 amp current. Several EVs are made to accommodate this higher amperage, especially those with larger batteries, which means that they can charge at around 7.2 kW or even more depending on the onboard charger of a vehicle. Compared to an ordinary 120-volt outlet that typically supplies about 1.4 kW, the NEMA 14-50 cuts charging times considerably so that most EVs can recover a few hours’ worth of driving range within several hours’ charge. Daily drivers and people who require fast turnaround for recharging, therefore, stand to benefit from using the NEMA 14-50 outlet, making it perfect for residential charging stations.

Is a NEMA 14-50 outlet compatible with all-electric vehicles?

Most electric vehicles (EVs) that are ready for Level 2 charging can be used with a NEMA 14-50 outlet. The majority of newer EVs come with the J1772 charging connector that is standard and appropriate for level 2 charging stations such as those using the NEMA 1450 outlets. Nevertheless, users must check their car specifications to confirm this because some old models or uncommon editions may contain different charging requirements. In general, the NEMA 14-50 outlet serves as a flexible and widely compatible charging solution in the EV market.

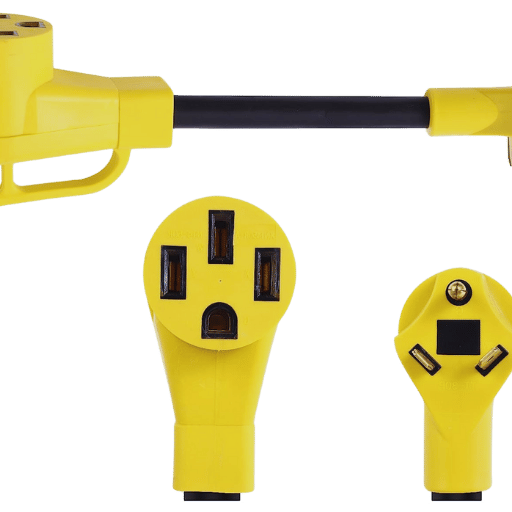

What are NEMA 14-50 Adapters and Accessories?

What types of NEMA 14-50 adapters are available?

To meet different charging needs and vehicle specifications, there are various kinds of NEMA 14-50 adapters. Some of the most popular ones are:

1. Adapter from NEMA 14-50 to J1772: This adapter enables electric vehicles with a J1772 charging port to connect with a NEMA 14-50 outlet, thus making Level 2 charging possible.
2. Adapter from NEMA 14-50 to Tesla Connector: This adapter is made for Teslas only; it links up a NEMA 14-50 outlet with Tesla’s proprietary charging port thereby allowing quicker charge times.
3. Portable Charging Cable With NEMA 14-50 Plug: Certain manufacturers provide portable EVSEs or Electric Vehicle Supply Equipment that have a cable which can be plugged into any regular wall socket having 120 volts AC or, even better, an electrical receptacle rated at 240VAC such as those found in homes wired for dryers etc., where it charges your car slowly but overnight so when you wake up everything is full again！You may also plug directly into dryer outlets if available near parking space or garage door opening using appropriate pigtail adapters bought separately beforehand (not recommended)。

These adapters and accessories boost flexibility by enabling owners of electric cars without dedicated chargers at home or workplaces fitted only with standard power points equipped with nema fourteens fifties to efficiently charge their vehicles.

Do I need a special charger for a NEMA 14-50 outlet?

Notably, a NEMA 14-50 outlet does not necessitate the user to have a special charger because most electric vehicles (EVs) are compatible with standard Level 2 charging stations that employ this type of outlet. All the same, for optimal charge efficiency, it is recommended that one purchases a Level 2 charging station or portable charger designated as NEMA 14-50 compatible. Furthermore, you must confirm that your vehicle’s onboard charging system can support the voltage and amperage available through a NEMA 14-50 outlet since EV models come with diverse charging capabilities.

How do I choose the right adapter for my EV?

When choosing an adapter for your electric vehicle (EV), several important factors must be considered, one of which is the type of NEMA outlet that you will be using.

1. Vehicle Compatibility: Ensure the adapter works with your particular EV model. Different manufacturers may follow different charging standards; for example, Tesla vehicles usually require a dedicated connector, while most non-Tesla EVs use the J1772 standard.
2. Charging Speed: Evaluate your charging requirements regarding how quickly you want your EV to recharge. Adapters can affect the charging rate, so choosing one that enables faster charging with the right power output is important.
3. Build Quality and Certification are crucial when selecting a plug-in EV charging solution for your home station. Go for adapters made by reputable manufacturers who meet industry standards. Look out for safety and reliability certifications like UL or ETL.

Considering these aspects will enable you to pick an adapter that matches your EV and charges it efficiently, as you expect.

What is the Importance of Weatherproofing for NEMA 14-50 Outlets?

How can I weatherproof a NEMA 14-50 outlet?

The following steps are essential to making a NEMA 14-50 outlet weatherproof and ensuring its durability and safety outdoors. When not in use, a weatherproof cover or an in-use receptacle cover can guard the outlet from moisture and debris. These lids should be installed according to local electrical codes and the manufacturer’s recommendations.

Secondly, applying silicone sealant around conduit entry points and ensuring proper sealing can prevent water from entering, achieving waterproofing. Check the tightness of the connection at the outlets to ensure there are no loose wires or corrosion, as exposure to weather elements can deteriorate.

Lastly, consider fixing a GFCI (Ground Fault Circuit Interrupter) breaker for more protection against moisture-related electrical dangers. Regular inspections of these waterproofing measures are critical for safety and long-lasting performance, especially during plug-in EV charging stations.

What are the risks of having a non-weatherproof outlet?

Non-weatherproof outlets are a considerable risk, especially outdoors or in areas with high humidity. Firstly, if they are exposed to water, there could be electrical shorts or failure, which may lead to the breakdown of the connected electrical devices. This interrupts their functionality, not to mention appliance spoilage. Second, whenever moisture interacts with any part of an electric system that can come into contact with any live wire, even around NEMA sockets, for example, there is a danger because wetness acts as a good conductor of electricity. Such situations become hazardous to people using them, mainly during rainy seasons when everything gets soaked. Last but not least, non-weatherproof receptacles rust easily due to their exposure to oxygen and moisture, which corrodes them, making such points weak and, hence, risky for use over time until complete collapse happens. One should always keep checking on these things frequently, coupled with finding ways to have covers that can withstand different weather conditions to be safe in terms of electricity usage.

Are there specific weatherproof power outlet boxes for NEMA 14-50?

Certainly, some weather-resistant power outlet boxes are tailored for NEMA 14-50 configurations, mostly meant for electric vehicle (EV) chargers and high-capacity appliances. Generally, these outlet boxes come with strong weatherproof containers that keep off rain, snow, and other things in the environment that can destroy them. Several makers use sealable covers for maximum moisture protection and security locking mechanisms. When choosing a NEMA 14-50 weatherproof power outlet box, it is essential to ensure that the box complies with local electrical codes and is suitable for outdoor use; hence, both safety and performance in various weather conditions will be guaranteed.

Common Issues with NEMA 14-50 Outlets

What should I do if my NEMA 14-50 outlet is not working?

In case your NEMA 14-50 outlet is not working, follow these steps to find out the problem and fix it:

1. Examine the Circuit Breaker: Begin by looking at your circuit breaker panel. If the breaker has tripped, this will usually result in an outlet that does not work. Reset any breakers that you can see have tripped, which are connected to the outlet.
2. Check The Outlet: Take a close look at all parts of the outlet to see if there is any visible damage or wear such as burn marks or melted plastic. If there is, it might need replacing.
3. Measure with Multimeter: Use multimeters to test voltage levels at different points along an electric circuit, such as outlets designed specifically for charging electric vehicles (EVs). No-voltage readings could imply problems with the power supply or wiring leading up to a NEMA 14-50R receptacle.
4. Think About Professional Assistance: If none of these methods work – meaning that either nothing seems wrong with anything around where electricity comes into homes and businesses through meters on poles outside walls near meter boxes inside basements etcetera — but still no lights come on when switches are flipped – then call an electrician licensed by state authorities who knows what they are doing.
5. Take Account of Load: Do not plug devices into a single receptacle with cumulative current ratings exceeding its maximum allowable continuous current rating. This could lead to overcurrent protective device (OCPD) operation due to overloading conditions, which may arise when too many appliances draw power simultaneously from one electrical point, such as those provided by residential-grade 120-volt alternating current (VAC).

By following these steps, one can easily identify the reasons behind non-functionality and decide whether professional intervention is necessary. In addition, regular checks and maintenance can be carried out to forestall any eventuality, thereby keeping this facility safe and sound throughout its life cycle.

How can I troubleshoot issues with my EV charging?

It’s possible to troubleshoot your EV charging systematically so that you can identify problems and fix them conclusively. Here are important measures to take into account:

1. Inspect the Charging Station: Check if the charging station is working and operational. Look out for lights that show its status, whether it is being used, has a fault or powered on.
2. Look at the Connection: Make sure that there is a secure connection between the vehicle and the charging plug. Remember to clean any dirt from the port and plug which may impede proper functioning.
3. Check Charging Port of Your Vehicle: Examine your vehicle’s charging port for indications of damage or foreign matter. In case there seems to be some damage, consult either your car’s manual or an expert for help.
4. Review Vehicle Settings: To prevent charging, such as scheduled charge time or notifications indicating issues, go through your EV’s menu items or apps. It will also show you when to do what when related with battery life.
5. Ascertain Power Supply: When using hardwired connections, it is especially important to establish if the outlet providing electricity to the charger functions properly; this can best be done by employing a multimeter to measure the correct voltage output.
6. Monitor Compatibility: There are different types of connectors as well as charging levels required by various models of electric vehicles.
7. Seek Technical Support: In case these tests fail, then reach out to technical support personnel representing an automaker of your automobile brand or those who have provided you with chargers for more diagnosis and assistance.

By observing these checks in a systematic manner, one can identify the reason behind a defective charging situation and finally deal with it accordingly.

When should I contact an electrician for my NEMA 14-50 outlet?

There are some situations where you should call an electrician about your NEMA 14-50 outlet.

1. Circuit Breaker Trips Frequently: While using this outlet, if the circuit breaker trips frequently, this could mean that there is a fault in wiring somewhere along with insufficient power supply or overloaded circuits.
2. Visible Damage: If there are any visible damages such as burnt marks around the area of this socket or frayed wires sticking out from it – immediate professional inspection should be done right away. This is so as not to expose anyone living near these appliances into danger caused by electricity leakage through faulty connections made during installation process etcetera …
3. Power Delivery Not Uniform: Fluctuations in power supply may be experienced when certain devices are connected through this plug-in port due to intermittent connectivity occurring between them thereby hinting that an underlying electrical issue exists somewhere within their paths…
4. Electrical Odor/Sparks: Whenever one smells burning like smell coming out whenever he/she plugs or unplugs his/her electronic gadget/devices onto/off this electric socket, then it means time has come for him/her to look for help from a qualified technician instantly since such signs indicate that there is a loose connection somewhere along the wires that can easily cause a fire outbreak if not rectified early enough.
5. Installing More Outlets Will Boost Home Charging Capacity Especially When It Includes NEMA 14-50R Receptacles For EVs.: It would also help if you considered engaging an electric engineer when expanding your current electrical systems as well as fixing up more sockets because this will ensure appropriate sharing of loads among various points and compliance with set standards.

Having an expert on standby in these scenarios guarantees both appliance protection and general electrical well-being.

Reference Sources

NEMA connector

Charging station

Electric vehicle

Frequently Asked Questions (FAQs)

Q: What is a NEMA 14-50 outlet?

A: A NEMA 14-50 outlet is a heavy-duty 240V receptacle that can be used for different applications, usually electric vehicle charging. It serves as the perfect match for EV chargers requiring a 50-amp circuit and is hence ideal for Tesla Model 3 charging.

Q: Why do I need a NEMA 14-50 receptacle for my EV charger?

A: This helps to fast-charge your electric vehicle (EV) by using a level 2 EV charger, unlike standard outlets, which allow slower charging. This will be essential for individuals who own EVs and would like their cars charged quickly when at home.

Q: Can I use my NEMA 14-50 outlet for other appliances?

A: Yes, the NEMA 14-50 receptacle can be used with several high-powered devices, such as welding machines, dryers, and recreational vehicles; however, confirm if its power requirements are compatible with the socket’s ratings.

Q: What is the difference between a NEMA 14-50 and a NEMA 6-50 outlet?

A: A four-pin plug type having two live pins, in comparison to a three-pin plug type with no neutral connection, differentiates these two outlets; yet both have an operating voltage of 240 volts AC and a current rating of fifty amperes.

Q: How do I install a NEMA 14-50 receptacle for home EV charging?

A: To wire this wall socket, connect it to a dedicated circuit breaker rated at fifty amperes. It is advisable to get the help of a professional electrician who knows about local regulations so that they can put it up properly without violating any rules.

Q: What are the advantages of employing a level 2 EV charger with a NEMA 14-50 outlet?

A: An electric vehicle’s charging time using a level 2 EV charger connected to a NEMA 14-50 outlet is much shorter than when using standard household 120V outlets; this makes it very practical and reduces an Electric Vehicle’s downtime.

Q: Do I need a GFCI breaker for my NEMA 14-50 installation?

A: GFCI breakers aren’t always required for NEMA 14-50 installations. However, they are recommended to be used where one wants to charge their electric vehicle outside and is concerned about water exposure to make charging safer.

Q: Can I use an adapter for my Tesla charging plug with a NEMA 14-50 outlet?

A: Yes, Tesla owners can use a plug-in adapter that connects their Tesla mobile chargers to a NEMA 14-50 receptacle, allowing them to charge their car more efficiently at home.

Q: What is the maximum amperage supported by a NEMA 14-50 outlet?

A: The receptacle can accommodate a maximum of fifty (50) amps, which means it can serve as a power source for high-wattage load applications such as EV chargers while providing enough power for electric vehicle charging activities and other heavy-duty demands.
