EMT is a viral material in the electrical industry, and it is known for its sturdiness, ability to resist corrosion, and lightweight. The objective of this manual is to give a complete understanding of EMT conduits, such as applications, advantages, and ways of installation. Thereafter, more technical insights would be available on industry standards, technical specifications, and practical considerations, enabling people to make an informed choice about their electrical projects involving EMTs. This guide will come in handy irrespective of whether you are a newbie or an experienced professional since it covers all the aspects concerning Electrical Metallic Tubing, including where to buy EMT conduit.
What is EMT Conduit and its Applications?
Definition of EMT and its Purpose
EMT (Electrical Metallic Tubing) is a rigid conduit made from galvanized steel or aluminum and designed to protect and route electrical wiring. It acts as a secure path for wires, shielding them from weather conditions or impact damage. EMT can be used indoors or outdoors, which makes it appropriate for different installation areas such as commercial buildings, factories, houses, etc. Furthermore, its light weight allows for easy handling, and its corrosion resistance ensures the longevity of electrical systems, too.
Common Uses of Electrical Metallic Tubing
These are some of the common uses for which EMT is used:
- Commercial Establishment: In constructing commercial buildings, it is very normal to use EMT to channel electrical wires. The simple design can fit well on walls and ceilings, making them meet electric codes quickly and improve esthetics.
- Industrial Application: In a commercial context, EMT shields electric connectors from severe environmental impacts like heavy machinery and other hazards. Its roughness allows its application in places involving high machine usage since it has to be durable.
- Household Wiring: Residentially, as for example when there is too much humidity or in garages and basements EMT is often preferred. It helps ensure safe and organized layout of an electrical system throughout a house hence contributing to safety as well as ease of maintenance during home electrical installations.
Such applications illustrate how significant this type of conduit is in furnishing solid and efficient solutions for various electrical demands.
Benefits of Using EMT for Electrical Installations
The use of electrical metallic tubing (EMT) in electrical installations has many benefits, which is why it is popular among industry professionals who want it to be easy.
- Durability and protection: EMT provides excellent protection for electrical conductors from physical damage, moisture, and corrosive materials. Its strong metal construction also makes it safer in places where they are likely to get hit, such as factories or outdoors.
- Cost-effectiveness: It is generally cheaper because it is lighter than other types of conduit. This reduces the cost of both materials and installation time. It can also save money on projects overall due to its efficiency in transport and handling.
- Ease of installation: EMT was designed with simplicity in mind so that compared with alternative conduits, there would be fewer fittings required during setup, which would, therefore, take less time. In addition, it is lightweight and, therefore, easily cut onsite for quick adjustments during installation.
- Aesthetic appeal: Clean lines and a metallic finish can make exposed commercial or residential electrical systems more attractive. People working in retail spaces or high-end residential designs know how vital this aspect might be.
- Compliance with codes: Various electrical codes and standards are met by EMTs, thus ensuring safe, reliable installations all the time. Electrical contractors have come to trust these results, hence making electricians always use this tool whenever they need one on their jobsite
This shows that these advantages are a must-have component of any modern-day electrician’s toolkit because they blend usefulness with beauty and safety while ensuring conformity.
How do you choose the right size for EMT Conduit?
Understanding Trade Sizes and Their Importance
When it comes to selecting the right size for EMT conduit, understanding trade sizes is crucial. Trade sizes are actually standardized measurements that correspond to the internal diameter of the conduit. This permits uniformity in installations. Normally, sizes of EMT conduit vary between 1/2 inch and 4 inches where each size serves particular purposes according to the number and type of conductors being installed.
For instance, a half-inch EMT would be appropriate for small wiring runs, while larger sizes like 2 or 3 inches can accommodate bigger electric loads as well as multiple conductors. In addition, proper sizing is important because electrical codes must be met, and such should allow for adequate protection and accessibility during maintenance operations. Moreover, using an appropriate size of conduit helps prevent overheating, thus promoting efficient electrical performance. It is advisable, therefore, to consult local building codes and standards bodies so as to guarantee compliance with safety requirements in electrical installation works.
How to Measure the Diameter of EMT?
To confirm accurate fitting and adherence with installation requirements, it is important to measure the diameter of an EMT (Electrical Metallic Tubing) conduit. Use a calibrated caliper or measuring tape for this purpose. Make sure that no obstructions or dirt are present on the EMT before you cut your steel electrical metallic tubing because they can interfere with correct measurement. Place your instrument at one side of the pipe and stretch it up to its other end, thus covering the widest point of the circular cross-section. Remember that taking the dimension perpendicular to the length of the tube is necessary so as not to make mistakes. Write down the recorded value in inches, and if need be, check against standard trade sizes to confirm the appropriate EMT size for your project.
Factors to Consider When Selecting EMT Size
When choosing the right size of Electrical Metallic Tubing (EMT), several important factors should be considered:
- Number of Conductors: This involves assessing the sum number of conductors that will occupy the EMT. Overfilling causes overheating and an increase in electrical resistance.
- Type of Conductors: For example, different conductors, such as THHN/THWN or NM cable, might have different fill capacities. Remember to consider the insulation type because it might affect the amount of space needed.
- Electrical Load: Consider the electrical load your system will experience. This will affect both conduit size and wire gauge.
- Installation Environment: The location where the EMT will be installed can influence what size you need. For instance, installations in wet or corrosive environments may call for more safeguards or larger conduits to contain insulation.
- Compliance with Codes: Local electrical codes specify minimum conduit sizes and fill requirements based on conductor type, number, and overall electrical load.
- Future Expansion Needs: Consider whether the electrical system could change over time. Bigger EMTs can accommodate more wires later on or facilitate upgrades without the need for total reinstallation.
By attentively analyzing these factors, specialists can ensure that their choice of EMT size will contribute to safety, conformity, and functionality in electrical installations.
What are the Types of EMT Fittings and Connectors?

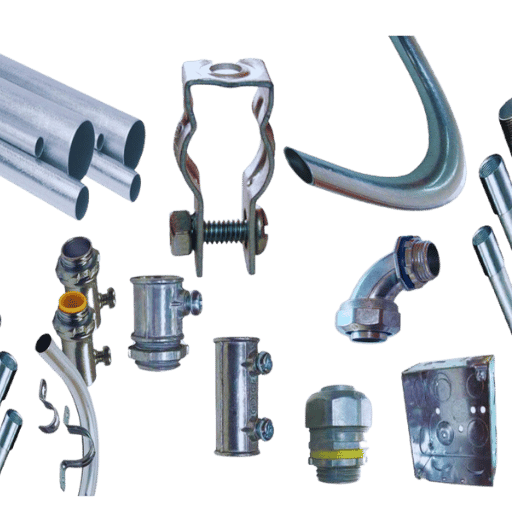

Common EMT Fittings Explained
Connecting and supporting the conduit system are vital tasks Electrical Metallic Tubing (EMT) fittings perform. Here are a few of the most common types:
- Couplings create a secure connection between two EMT lengths without taking up too much space. Standard couplings and set-screw couplings, which use screws to provide additional stability, are available.
- Elbows: Elbows make it possible to change the direction of a conduit run; they usually come in 90-degree or 45-degree angles. They also help conductors shift smoothly from one pipe to another, minimizing their exposure to potential damage.
- Connectors: Connectors are used for attaching EMT to electrical boxes or enclosures so that connections can be both safe and sound. They come in different models such as set-screw type and compression type connectors.
- End Caps: These are employed at the end of an EMT run to close it off; this prevents moisture or debris from entering the system while providing space for safety measures.
- Bushings: Bushings protect wires against sharp edges that may damage them at conduit openings. They also create a smooth surface for conductors to exit or enter any pipe.
- Straps: Straps serve as means through which EMT gets fastened onto walls or ceilings thereby holding it securely in place; good support prevents misalignment of conduits besides maintaining their overall integrity.
It is important to choose fittings properly if you want your electric system to work well and be safe. Therefore, when installing these components, one must ensure that all relevant codes and standards have been observed.
Choosing the Right Connector for Your EMT
To choose the right connector for your EMT installation, you must assess the work needs. Such factors include the kind of electrical box or packaging you are linking to and even environmental conditions the installation will be up against. For indoor uses, screw connectors provide a very strong connection, while compression connectors may be more suitable for outside areas due to their high moisture and corrosion resistance, respectively. Also, ensure that the connectors meet all electrical codes required and have a diameter compatible with your EMT. Safety and performance in an electric system will be greatly improved if quality and compliance are prioritized.
Installation Tips for EMT Fittings
- Measurement: To fit correctly and reduce wastage, the length of the EMT must be measured precisely.
- Cutting: For clean cuts which do not have burrs that can damage insulation, use a pipe cutter or a hacksaw.
- Deburring: In order to avoid wire damage during installation, always deburr cut ends with a reamer.
- Connector Tightening: Connectors should be fastened tightly to ensure a stable electrical connection, but they should not be over-torqued, as this could damage them.
- Alignment: When installing, make sure that EMT is levelled and properly aligned so that it retains its beauty and works well too.
- Grounding: According to electrical codes, metal conduits should be grounded appropriately for system safety and performance improvement.
- Inspection: Before completing the installation check all fittings and connections thoroughly for compliance and functionality.
How Does Galvanization Affect EMT Conduit?
Understanding Galvanized Steel and Its Benefits
Galvanized steel is a kind of steel that has been given a layer of zinc to increase its resistance to corrosion. By doing this, the metal’s durability is improved, rendering it fit for use in areas subject to moisture. Even if the coating is scratched, the zinc coating acts as a sacrificial anode so that the underlying steel does not rust until after the zinc has oxidized. Galvanized steel also offers added strength and lesser maintenance needs than non-alvanised ones. It is therefore preferred as an electrical metallic tubing (EMT), which can be used in various industrial and commercial applications for electrical installations since it provides safety and reliability for many years.
Corrosion Resistance in EMT Conduit
Many applications prefer electrical metallic tubing (EMT) because it has corrosion resistance built into it. It is made from galvanized steel instead of using galvanized rigid conduit. The zinc coating acts as a barrier that prevents moisture from coming into contact with the metal and causing rust or other forms of deterioration. This feature is especially important for electrical systems installed in industrial locations or outside environments continuously exposed to wetness. Regularly checking on and taking care of these pipes also increases their lifespan so that they can keep working reliably over long periods of use.
When to Use Coated EMT vs. Galvanized EMT
It is advisable to use EMT with a coating in areas with high humidity or where there might be chemicals to give extra protection against substances that corrode. On the other hand, galvanized EMT is appropriate for typical indoor environments and slightly humid areas wherein maximum corrosion resistance is not a big concern. Moreover, coated EMT may be preferred for applications requiring a higher level of insulation or aesthetics, while galvanized EMT suffices for regularity, leading to durability and cost-effectiveness. The choice should depend on environmental factors and the particular project requirements.
What are the Key Differences Between EMT and Other Types of Conduit?
Comparing EMT with Rigid and Flexible Metal Conduit
Electrical metallic tubing (EMT), rigid metal conduit (RMC), and flexible metal conduit (FMC) are each designed for different applications. EMT is lightweight, easy to install, and provides a neat appearance, which makes it suitable for indoor use where there is no need for excessive protection against moisture. Thicker steel walls give RMC more mechanical protection than any other conduit; therefore, it is commonly employed outdoors or in heavy-duty locations that may involve hazards like physical impact. Although this type of pipe requires more labor due to its weight and rigidity, it compensates for these disadvantages with durability.
As opposed to its counterparts, FMC is built with flexibility in mind. This feature comes into play when dealing with electric installations that require the ability to handle movement or vibration within their vicinity better than any other such system. It can be bent easily at any angle during installation while less physically protective than either EMT or RMC. Furthermore, while both EMT and RMC need fittings to ensure tight connections between pipes themselves or between pipe ends and equipment, they serve butted up against one another directly; FMC requires only locks on joints instead of fitting devices such as connectors or couplings used by many other types of conduits. Therefore, choice among these three should consider factors like environmental conditions, structural needs, and logistics during installation, thus ensuring appropriate selection, which will guarantee safety and efficiency.
EMT vs. PVC: Pros and Cons
There are several advantages and disadvantages of electrical metallic tubing (EMT) and polyvinyl chloride (PVC) conduits that must be considered, particularly in terms of electrical safety and ease of installation. One key feature of EMT is its strength and durability, which makes it an ideal choice for applications requiring mechanical protection. It is also non-flammable and can be easily painted or left natural to provide flexibility in appearance. On the other hand, being prone to corrosion under conditions of humidity or wetness can act as a disadvantage that may necessitate additional preventive measures in such regions.
Conversely, PVC conduits are lightweight, corrosion-resistant, and usually cheaper than EMT. Since it acts as an insulator, PVC is suitable for underground installations where moisture can be problematic. Apart from this, its lightweight construction eases installation using simple joining methods like solvent welding, thereby saving both time and labor costs. However, areas with high temperatures or likely physical impacts can’t use PVC since it may warp or become brittle over time. In conclusion, deciding whether to use EMT or PVC should be based on specific project requirements, environmental conditions, and long-term performance considerations.
Choosing Between Steel and Aluminum EMT
When I have to select between aluminum and steel EMT (Electrical Metallic Tubing), the decision depends on strength, weight, and environmental resistance. For instance, Steel EMT is stronger and more durable than any other type, making it suitable for heavy-duty applications and environments that need mechanical solid protection. Nevertheless, its weight can make installations difficult or increase labor costs. Conversely, aluminum EMT is significantly lighter than steel while also being corrosion-resistant, making this kind of conduit perfect for outdoor use where humidity levels are high too. Additionally, it is easier to handle, so you may save on installation expenses, mainly if 10ft lengths of EMT conduits are used. In conclusion, therefore, what guides me in selecting between these two materials is considering my project’s specific needs, such as structural requirements and environmental conditions around the area of installation, among others, which may necessitate long-term maintenance, thus ensuring safety through optimum performance by using appropriate conduit material for the job at hand.
How to Properly Install EMT Conduit?
Step-by-Step Guide to EMT Installation
- Collect Tools and Materials Ensure that you possess all the tools you require, including a hacksaw, conduit bender, tape measure, level, and appropriate connectors for steel electrical metallic tubing.
- Measure and Cut EMT: Use a tape measure to calculate the necessary length of the tube. Hacksaw the tube while ensuring that it is cut straight.
- Conduit Bending: You should utilize a conduit bender if bends need to be made to achieve desired angles as specified by the supplier for accurate bending.
- Install Supports: Mount conduit hangers or straps that meet local electrical codes at intervals sufficient to support EMT adequately.
- Connect Joints: Connect parts of EMT using specific connectors. Securing all connections tightly together and ensuring they are right prevents movement.
- Grounding the Conduit: Ensure the required bonding between the EMT and grounding conductor is carried out to enable adequate grounding.
- Final Inspection: Check all supports and connections and correct alignment of conduits before finishing installation to ensure compliance with electrical standards and codes.
Best Practices for Bending EMT Conduit
Following the best practices while bending the EMT conduit ensures accuracy and reduces damage. First, it is essential to use a good quality conduit bender of an appropriate size for the EMT in use, as this will enable easy and precise bending. In addition, calculate the bend allowance before making any bends so that there is enough length on the conduit and avoid misalignment during installation. Moreover, pressure should be applied throughout the process so as not to cause kinks or sharp corners, which might weaken the strength of the pipe. Finally, visually inspect each bend and see if it meets the required standards and local codes for professional, safe installations.
Tools Required for EMT Installation
Several tools are necessary to ensure a successful EMT installation. Firstly, having a bender of high-quality EMT conduits is essential that does not damage the conduit but makes accurate bends. When you need to cut an EMT, you will need either a hack saw or pipe cutter, which are available. For example, by using a measuring tape, one can take precise measurements for the cut and bent. People must have conduit hangers or straps to fasten their conduit and appropriate connectors such as couplings or connectors for joining sections of EMT. You also need a screwdriver and possibly a drill to fix the supports in place and secure the conduit. With these tools within reach, one would be able to manage an effective process of professionally installing an electrical system.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What does EMT stand for, and how is it used?
A: Electrical metallic tubing (EMT) is a type of electrical conduit made of coated steel used to house electrical wires. It is easy to handle and, therefore, mostly employed in commercial or industrial building projects for electrical wire protection and routing.
Q: How can I quickly know the right EMT tube for my project?
A: To quickly know the right EMT tube, check outside diameter (OD) specifications listed by manufacturers. The common sizes range from 1/2 to 4 inches and should be consistent with what your electrical products specify.
Q: What differentiates EMT from galvanized rigid conduit?
A: EMT offers easier installation and lighter weight compared to galvanized rigid conduit. It has been designed for indoor use only, where physical protection for wires may be required. Galvanized rigid conduit, on the other hand, is heavy-duty and suitable for outdoor installations.
Q: Can an EMT conduit be used with threaded fittings?
A: Absolutely correct! However, it should be noted that when you work with EMT, you will typically find it employs slip fittings rather than threaded ones. In case you decide to use threaded fittings, ensure that you have all the necessary tools and accessories to make a secured connection.
Q: What lengths are available in which I can get these types of tubes of conduits?
A: Standard lengths include 10ft or more apart from specific customer needs offered by suppliers such as Wheatland Tube or other companies providing custom options.
Q: Does EMT conduit come in different colors?
A: Of course, EMT conduit is often available in a range of colors known as color EMT and this can be helpful for easy identification and aesthetic concern in building projects.
Q: Can I use the EMT conduit outside?
A: However, while primarily designed for indoor applications, it can be used outdoors if properly guarded against the elements and installed with fittings made for outdoor use. In heavier-duty outdoor applications, galvanized rigid conduit may be preferred.
Q: How do I get my EMT conduit delivered on time for my project?
A: To ensure timely delivery of your EMT conduit, you can find suppliers who offer next-day delivery. You may check with your local electrical supply stores or manufacturers like Wheatland, who usually provide a list of available options.
Q: What are the materials used to make EMT conduit?
A: The main material used in making EMT conduits is coated steel, which makes it durable, rustproof, and corrosion-resistant; therefore, it is a reliable choice when it comes to electric stuff. It allows the tube to withstand various environmental conditions while giving protection around electric wires.
Q: What are the advantages of using EMT conduits in electrical installations?
A: Some of the benefits of using emt conduits include easy installation, durability, resistance to impact, and lightweight design. It effectively protects wire from physical damage and environmental factors thereby making it a preferred choice for many building projects.
