Everything You Need to Know About Low Voltage Landscape Wire

Low-voltage landscape wire is crucial in contemporary outdoor lighting and irrigation systems since it ensures safe and effective power distribution. The objective of this piece is to give a general view of low-voltage landscape wire by discussing the different types, uses, installation tips, and maintenance considerations involved. Whether you are a homeowner who wants to spruce up their compound or a professional landscaper in need of dependable solutions, understanding low voltage landscape wire intricacies shall provide you with the necessary knowledge for making informed choices about your projects. This manual highlights why one should choose the correct wiring material and follow recommended methods during installation and usage through detailed descriptions alongside technical insights.

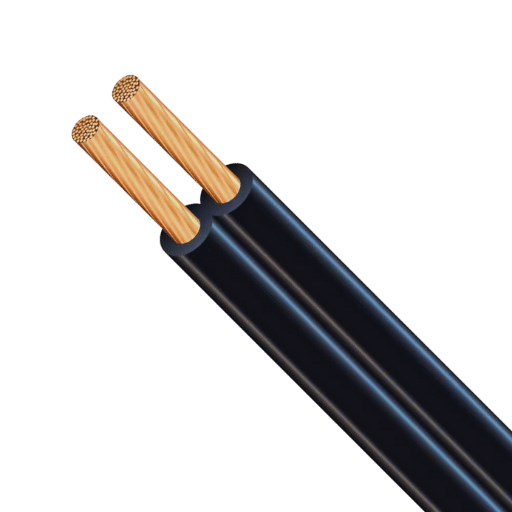

What is Low Voltage Landscape Wire?

Understanding Low Voltage Landscape Wire

Mainly built to operate at voltages under 30 volts, low-voltage landscape wire usually ranges between 12 and 24 volts. This decreases the voltage level, hence improving safety and making it ideal for outdoor purposes where wet conditions are prevalent. Several gauge sizes are used in the production of wires with most of them being from 8 to 18 AWG (American Wire Gauge), where smaller numbers represent thicker wires that can carry more current over longer distances. The main areas of use are landscape lighting, water features as well and irrigation systems, which require efficient distribution of power. For this reason, insulation materials for these wires should be sturdy enough, like PVC or polyethylene, so that they cannot be affected by different environmental conditions, including moisture and exposure to sunlight or UV light.

Benefits of Using Low Voltage Wire

There are many benefits to using low-voltage landscape wire which can be described as both practical and economical. One of the biggest benefits is safety improvement; operating at less than 30 volts greatly reduces the possibility of getting an electrical shock, and this feature makes such systems perfect for residential areas. According to the National Electric Code (NEC), installations under 30 volts are exempted from many elaborate rules that apply to higher voltage systems, thereby simplifying compliance.

The other advantage associated with low-voltage systems is their energy-saving capability. They consume less power, hence lowering electricity bills for homeowners and businesses alike. Research has shown that LED landscape lighting powered by low-voltage wire can save up to 80% in energy consumption compared to traditional incandescent lights. Additionally, it is highly adaptable during installation, where wires can easily be routed around landscaping features without extensive trenching or use of heavy machinery, which not only saves time but also minimizes disturbance on existing landscapes.

Maintenance-wise, it requires less effort for one to maintain a low-voltage system. This is because the insulation materials used, like PVC or cross-linked polyethylene, are durable and resistant to moisture, UV rays as well as temperature changes, thus increasing the wire life span plus the overall durability of the whole system itself. As a result, this leads to lower replacement costs together with extended service life, thereby making low-voltage landscape wire cost-effective in the long run, too.

Common Applications for Low Voltage Landscape Lighting

Low-voltage landscape lighting is very common and has many uses in residential as well as commercial areas. Some of them include:

1. Pathway and Walkway Lighting: Illuminating paths helps to ensure safety by guiding people’s feet while also creating a warm environment for guests.
2. Emphasizing Garden and Plant Features: Putting the spotlight on unique plants or other garden elements can make night landscapes look more beautiful.
3. Deck and Patio Illumination: These lights are perfect for lighting up outdoor living spaces such as decks and patios which allows their use till late hours of the night besides being safe.
4. Highlighting Architectural Beauty: This involves drawing attention to different architectural details on buildings thereby improving their general outlooks.
5. Water Feature Lighting: By placing lights strategically around water bodies like ponds or fountains one can achieve magical reflections thus turning these features into main attractions during the night time.

Not only do these applications improve usability and safety but they also enhance beauty thus making low voltage landscape lighting an indispensable part of contemporary landscaping design.

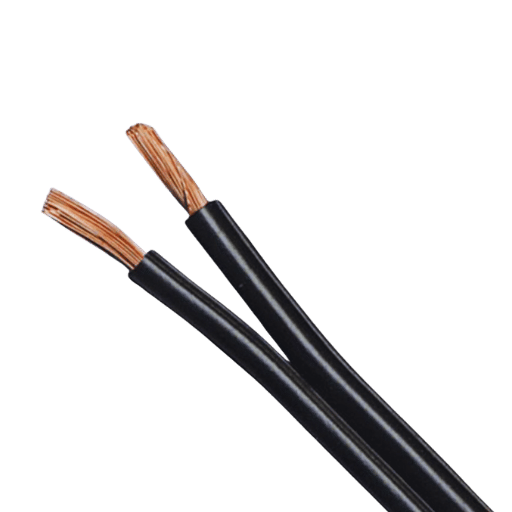

How to Choose the Right Wire Gauge for Landscape Lighting

Differentiating Wire Gauges

To make sure the voltage is delivered properly and to avoid any power loss over a distance, it is important that you choose the right wire gauge for low-voltage landscape lighting. The thickness of wire gauges is determined by American Wire Gauge (AWG) standards, where smaller numbers represent thicker wires. Here are several factors you should consider when comparing wire gauges:

1. Distance: The length of the run plays a big role in which size wire should be used. For runs up to 100 feet, typically a 12 AWG wire will do. However, if your run exceeds 100 feet but does not exceed 150ft then I would recommend using a 10 AWG wire this helps minimize voltage drops.
2. Power Load: You must take into account all of the fixtures’ wattage being connected to one specific wire or cable within your system. A single 12 AWG can handle about 150 watts within 100 ft long cable on average while; conversely speaking if you have loads higher than that like having multiple or a single load with about 300 watts then you should use a 10 AWG so as to achieve efficiency.
3. Voltage Drop: This is particularly important for low-voltage systems. Generally, it’s recommended that you keep the drop less than or equal to ten percent of total volts i.e., at most lower than one point two volts in twelve volt systems . Thicker wires (lower gauges) help mitigate this problem.
4. Environmental Factors: Ambient temperature can affect landscape wiring performance just as soil condition and moisture content, too, among other things that come into contact with these types of cables outside. Therefore, if your area experiences very hot/cold temperatures frequently throughout the year such as Alaska, where there is extreme coldness during certain seasons, while others may face drought conditions more often, like Arizona – then it would be wise enough if we considered using heavier-duty cables here for enhanced resilience & reliability likewise other areas could benefit from this as well.

By considering all of these points, one can be able to optimize the performance of their low voltage landscape lighting systems by choosing the right wire gauge.

Why Wire Gauge Matters in Landscape Lighting

Landscape lighting depends on the wire gauge because of many reasons. Primarily, it ensures that all bulbs receive enough energy which is directly related to the quality of lightening and power saving capability. If one uses wires with a lower rating than required, there would be more power resistance, thus causing voltage drop and dimmer lights. Another reason is that the right thickness prevents overheating, hence lowering the chances of electrical faults or fires. Also, considering wire size in terms of length and load helps maintain peak efficiency over time, thereby making such systems dependable when it comes to improving outdoor areas.

Calculating the Appropriate Wire Gauge

To assess an appropriate wire gauge for landscape lighting, some important variables like the total wattage of the fixtures, distance from the power source to the fixture and acceptable voltage drop should be considered.

1. Calculation of loads: Initially, compute all the fixtures’ total wattage. Thus, this is a potential way to calculate the required amperage using the formula: Amperage (A) = Total Wattage (W) / Voltage (V).
2. Distance Factor: Measure up to how far one has to go from where power is coming from to reach another light source. As a result of longer distances that make resistance high, bigger wire gauges are needed in order to sustain voltage levels accordingly.
3. Voltage Drop Evaluation: Usually, it is advised that voltage drop should be maintained under 10% in case of landscaping lighting. The formula to calculate voltage drop is; Voltage Drop (V) = Amperage (A) x Distance (ft) x 0.002. After determining an acceptable drop rate, consult a table with wire sizes and determine which one suits your case best.
4. Wire Gauge Selection: Find out what wire size would be good enough for your calculated Amperes and length through American Wire Gauge Standards. For example; A typical 12V lighting system powered by 100 watts with a run of 50 feet would most likely require #12 AWG wire so as not lose much voltage on the line and ensure safety.

If you follow these steps correctly then you will be able to accurately calculate and select the right wire gauge for your landscape lighting system thus ensuring dependable performance and durability.

Installation Tips for Direct Burial Landscape Wire

Steps for Safe Direct Burial

1. Confirm Local Regulations: Confirm local codes and rules on direct burial wire installations for compliance.
2. Choose the Right Wire: Select a wire that is specific to direct burial, such as UF (underground feeder) cable or its equivalent, making sure it meets the required voltage and amperage ratings.
3. Dig a Ditch: Ensure you dig a trench deep enough, usually about 24 inches deep for direct burial installations, in order to prevent physical damage.
4. Wire Preparation: The wire should be uncoiled and straightened out so as not to have kinks on them that will cause installation damages.
5. Place the Wire: Place the wire into the trench ensuring it remains flat without any sharp bends while keeping away from sharp objects or materials.
6. Soil Covering: Rigorously backfill the trench making sure that no sharp rocks or rubbish can harm the cable integrity with complete coverage of wires.
7. Mark Location: This allows putting warning tapes or markers over the buried electrical wire which will alert future excavators against accidental cable cuts leading to damage.

Using Direct Burial Landscape Lighting Cable

It’s crucial to use only direct burial landscape lighting cables, which are specifically designed for underground usage and usually marked as UF (Underground Feeder) cables. This kind of cabling can endure the type of environmental conditions found in buried setups by resisting moisture and soil acidity. Make sure that you have chosen a wire that matches both voltage and amperage requirements for your outdoor lighting system. Additionally, it is important to install these wires correctly so they last long enough while still providing good service; this involves digging deep enough trenches, among other things, like careful laying down of wires themselves, etcetera then thorough backfilling after everything has been done, well. Always follow local electrical codes when installing anything related to electricity because safety should come first before anything else.

Waterproofing and UV Protection Measures

Necessary steps for waterproofing and preventing UV damage are required to make the direct burial landscape lighting cable durable. The first thing you should know is that it is good to use cables rated for direct burying since they have moisture-resistant properties; usually, these kinds of wires come with a polyethylene covering which guards against water penetration. Another way to enhance this can be by applying sealants or moisture barriers at points where different parts meet so as not to allow any water through.

For protection from ultraviolet rays, ensure that only those wires made up of materials able to withstand them are used because if left exposed under sunlight for long periods they may wear off ordinary insulations.Conduits should also be installed where cables pass above ground level since, apart from shielding against physical harm, they provide additional defense against UV radiation, too. It is important to always check on such installations frequently in order to detect signs indicating wearing out or even breakages, which could otherwise compromise safety, thus leading to necessary actions like repair or replacement without delay, hence keeping everything working properly.

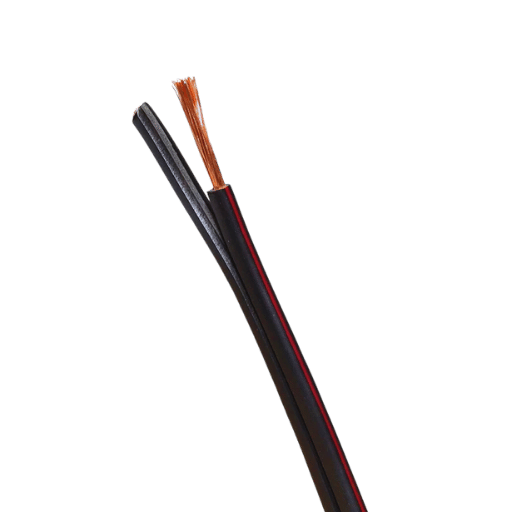

Understanding UL-Listed Landscape Lighting Wire

What Does UL Listing Mean?

UL Listing is the safety certification provided by Underwriters Laboratories (UL), a global organization that conducts safety tests on products. This mark means that the product in question, be it landscape lighting wire or anything else, has been put through its paces and meets certain performance and reliability benchmarks that are necessary for safe usage. In order to get this badge, a device must undergo stringent examination meant to identify any dangers such as fire or electric shock and also verify whether materials used during its manufacture as well as construction techniques employed are up-to-date with commonly accepted practices within those industries involved; thus assuring customers and users alike about their products’ safety when applied correctly.

Importance of Using UL-Listed Wire

For safety, meeting rules, and increasing the reliability of a system as a whole, it is important to use UL-Listed wires in landscape lighting installations. Electrical failures are among the top causes that trigger fire outbreaks in residential buildings; they account for about 13% of all home structure fires, according to the National Fire Protection Association (NFPA). Such risks can be greatly reduced by this type of wiring which has strong insulation and resistance against environmental conditions.

Moreover, continuous testing and inspections done on UL-listed products ensure that they remain up to standard throughout their usage lifespan. This fact was backed up by research carried out by UL, which found out that items with UL marks are less likely to cause electrical faults than those without them. Professional installers should, therefore, use such wires not only to improve customer loyalty but also to meet local electric codes and insurance requirements, hence protecting investments made on landscape lighting systems.

How to Identify UL-Listed Wire

Knowing how to identify UL-Listed wire is important because it guarantees that a person is following safety standards and regulations. The following are some of the markers:

1. UL Mark: The most straightforward way of verifying the UL listing of a wire is by inspecting whether there is any sign on its insulation or packaging. This usually comprises of the letters “UL” enclosed in a circle with a control number beneath.
2. Product Documentation: Go through all specifications and related documents given by manufacturers; they should clearly indicate whether wires are UL listed or not plus their types and where they can be used which is important for any landscape lighting project.
3. Manufacturer’s Website: Look up official websites belonging to companies who have produced these goods. Trustworthy ones will not only mention that their products are recognized as being safe according to this organization but also give details about certifications awarded along with other industry standards met during manufacturing processes. If still unsure about an item’s authenticity, try contacting customer services directly so that you can confirm its status yourself.

By using these identification methods one can be sure that whatever electrical job they need the wire for meets necessary safety requirements as well as performance standards.

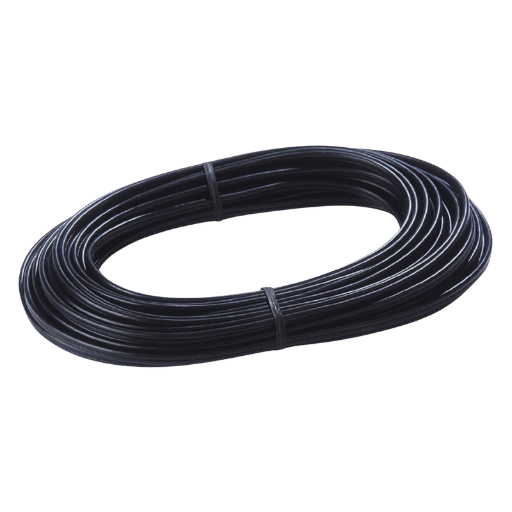

Top Customer Reviews for Low Voltage Landscape Wire

Best-Rated Low Voltage Landscape Lighting Wire

Below are a few top-rated choices you might consider while deciding on a low-voltage landscape lighting wire:

1. Southwire 18/2 Low Voltage Landscape Lighting Wire: This has been highly favored due to its toughness and malleability and can be used in different areas.
2. Augee 12 AWG Low Voltage Wire: It is full of copper with high percentage content which makes it resistant to corrosion, so it is ideal for outdoor settings.
3. UltraPro 16/2 Low Voltage Wire: Easy installation and compatibility with most low voltage systems.
4. iSunnao 14 AWG Low Voltage Wire: The one that I use is recommended for its high conductivity, as well as the ability to handle huge electrical loads properly.
5. Allocacoc 18 AWG Low Voltage Cable: Has gained popularity because it is cheap yet still works well.

These are proven to be reliable and efficient landscape lighting alternatives.

Customer Recommendations for Direct Burial Wire

Landscape lighting requires well-performing and durable direct burial wires that can withstand harsh environmental conditions. Here are some options to consider:

1. Southwire 12 AWG Direct Burial Wire: This wire has a strong protective jacket against moisture and soil chemicals, which makes it ideal for underground installation.
2. Acuva 10 AWG Direct Burial Wire: This type of wire is known because of its higher gauges and good conductivity; thus, it can handle larger loads while maintaining optimal performance.
3. Lite Rise 14 AWG Low Voltage Direct Burial Wire: With a robust construction, this wire is ideal for wet or damp environments, ensuring reliable operation for landscape lighting systems.
4. Hyperlite 8 AWG Direct Burial Wire: It’s features high conductivity plus exceptional corrosion resistance, hence most suitable for outdoor long term use.
5. Titan 16 AWG Direct Burial Cable: Most users choose Titan for its affordability as well as having the right gauge for most residential landscape lighting applications.

Therefore, choosing one of these recommended options would ensure that your direct burial wire would work properly when installed outdoors, conforming to safety regulations and providing lasting reliability.

Comparing Pure Copper Wire vs. Copper-Clad Wire

When assessing pure copper wire versus copper clad wire, you need to consider factors like conductance, cost, and fitness for use.

1. Conductivity: Pure copper wire has a better electrical conductivity than any other metal – it can achieve around 100% IACS (International Annealed Copper Standard). However, copper coated steel or “copper clad” wires offer lower conductivities of about 40-60% IACS. For this reason alone pure coppers are preferred in places where they have to be used as conductors with minimum resistance.
2. Cost: Copper wires that are coated with steel (copper clad) tend to be cheaper than those made entirely out of pure copper which makes them very attractive especially when working on tight budgets during projects. But long term costs should also be considered against possible performance problems because reduced conductivity may result into energy losses or even higher heat generation.
3. Suitability for Use: Pure copper cables are commonly chosen for applications requiring high reliability such as direct burial installations for landscape lighting or heavy load electrical systems. On the other hand, low voltage temporary uses where performance is not critical due to budget constraints favoring top-tier equipment would find better alternatives in terms of copper clad wires.

In conclusion, while each one has its own benefits over the other – whether it is better to use solid core cable made from only refined metals like coppers or multi-strand cables having cores consisting of part steel surrounded by an outer layer made from pure metallic coppers will depend mostly on what kind(s)) if any specific requirement(s) needs to be met, including but not limited to levels of required conductivity and financial position.

Reference Sources

Wire

Electrical wiring

Electrical cable

Frequently Asked Questions (FAQs)

Q: What is low voltage outdoor landscape wire used for?

A: Low voltage outdoor landscape wire is designed to be used in connecting various outdoor lighting fixtures such as path lights and accent lighting to a low voltage transformer, thus ensuring safe and efficient power supply.

Q: What are the benefits of using low-voltage landscape wire outdoors?

A: Some of the benefits include; it being safe because of lower voltages involved, easy installation since the wires are flexible enough to bend around trees or other obstacles easily without breaking and cost effective as compared to high voltage alternatives. It also allows for direct burial without any special conduit required.

Q: Why should I use a wire connector in my outdoor lighting system?

A: A wire connector is important because it helps create reliable connections between cables which prevents water from getting into them thereby reducing cases of corrosion that may weaken the overall structure of your landscape wire outside lightings cable.

Q: Can I use any type of wire connector on my low-voltage outdoor lighting systems?

A: No, not all connectors can be used with these systems. You need specialized nuts or connectors designed specifically for use outdoors; they must also match the gauge size (thickness) of your wires e.g. Wirefy connectors should work well here.

Q: Which conductor material is commonly found within low-voltage landscape wire outdoors?

A: Copper conductors are mainly employed due to their high conductivity levels as well as flexibility which makes them easy to deal with during installation process while still being durable enough for different weather conditions encountered outside.

Q: How important is the gauge wire when selecting a low-voltage landscape wire outdoors?

A: The gauge wire establishes the amount of current flow possible without significant voltagedrop. For longer runs, a lower gauge number (thicker wire), such as 10 gauge, is recommended to ensure efficient power delivery.

Q: What does outdoor direct burial mean in the context of low-voltage landscape wire?

A: Outdoor direct burial refers to putting landscape wire in the ground directly without using protective conduits. Outdoor direct burial electrical wiring can withstand soil moisture and other environmental factors.

Q: How do I connect multiple fixtures to a single low-voltage transformer using 2-conductor low-voltage wire?

A: You may have two-conductor low voltage line running from the transformer to each luminaire, with branch connectors for individual units. Make sure that all your fixtures’ total wattage does not go over what the transformer can handle.

Q: What does “wire is flexible and easy” mean when describing a low-voltage landscape wire outdoors?

A: It means that it can be easily bent and routed around any obstacles on your property makingthe installation process faster and easier.

Q: Is it necessary to use wire outdoor lighting cable ul listed for outdoor landscape lighting?

A: Yes, you should; it ensures that your cable meets safety standards as well as being suitable for outdoors giving you peace of mind knowing it will perform dependably.
