Comprehensive Guide to Choosing the Right Service Entrance Cable

The next and the most sensible flaw in developing the electrical installation is the choice of service entrance cable. The service entrance cable primarily connects the whole electrical installation of the building to the supply. The guide is designed to discuss the existing types of service entrance cables, their characteristics, and the determinants of the most appropriate cable for such use. It will also deal with relevant industry standards and practices and include such vital issues as environmental considerations, load considerations, and installation techniques. In the end, one can expect that the readers of this article will know how to choose service entrance cables that suit their purpose and are by all regulations.

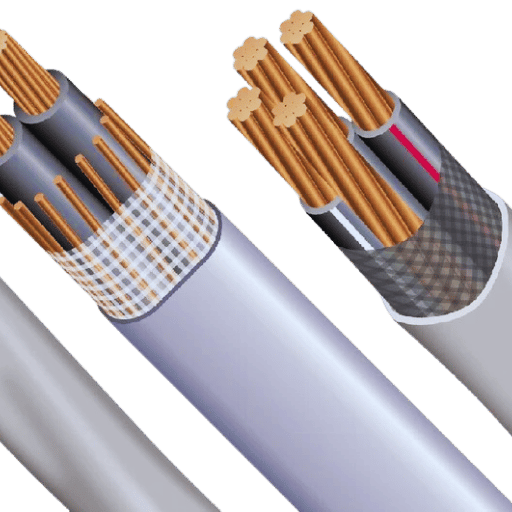

What is a Service Entrance Cable and Why is it Important?

Understanding Service Entrance Cable

A service entrance cable (SEC) is categorized as a cable in the system for establishing an electrical connection from the utility source to the organization’s main panel, which is extremely important. This is critical since such cables are designed to operate at high voltage and high current. Care should be taken that the service entrance cable can bear the encasing conditions such as wetting, heat, and chemicals. Also, it’s usually made of several insulated conductors to avoid electric shock hazards. The use of the correct type of SEC is important to ensure the proper functioning of electrical systems and also conform to some codes of practice for construction.

Types of Service Entrance Cables

Service entrance cables can be divided into different categories based on construction and application area. Some of the most common types are:

1. Service Entrance Type (Type SE): This type comes in two forms: Type SE-U, which is for underground, and Type SE-R, which is regular. Type SE cable can be used in aboveground and underground applications and has a heavy PVC outer covering that protects the inner layers from water and impact.
2. Type USE (Underground Service Entrance): Type USE cables are intended for in-ground use and are designed for direct burial. They are moisture-resistant and rated for wet locations; hence, they suit utility service conductor jackets and service conduits.
3. Non-Metallic Sheathed Cable (Type NM): Although this type of cable is primarily used for interior wiring, some NM cables are also rated as service entrance cables and can be used for residential purposes. They are lightweight and easy to install but do not withstand direct external weathering.
4. Metal Clad Cable (Type MC): This type has a metal cover for higher impact resistance and is commonly used in commercial and industrial settings where toughness matters.

Indeed, although they are all categorized as service entrance cables, unique factors influence each type with respect to its use in installations, environmental aspects, or load characteristics.

Importance of Choosing the Right Service Entrance Cable

Choosing the right service entrance cables for safety, reliability, and compliance with the electrical codes is important. The type of cable used is essential for the functionality of the electrical system and, in particular, its load-carrying capacity, weather resistance, and longevity. Inappropriate installation of reinforced overhead distribution service entrance cables could subject the cables to excessive heating, resulting in breakdowns and costly re-work and rupturing of the wires. All local building codes must also be complied with to avoid legal complications and make safe code installations. Professionals can minimize risks and improve the life of electrical systems by dipping into the parameters of the climatic zone of installation, the climatic action against the electrical loads, and the electrical codes.

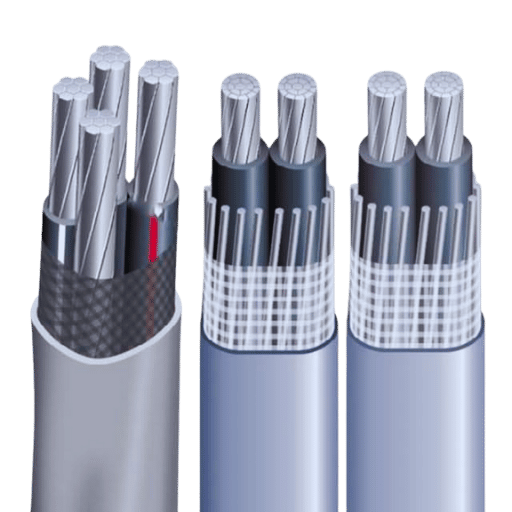

How to Choose the Right Wire Gauge for Your Service Entrance Cable?

Factors That Influence Wire Gauge Selection

Selecting the appropriate wire gauge for the service entrance cable requires an analysis of specific vital considerations to make it both efficient and safe:

1. Electrical Load: Chief among them is the load to be catered for by the cable. Greater electrical loads call for thicker wires to prevent overheating and safely transmit the electricity. In America, for instance, the American Wire Gauge is often employed, and generally, the smaller the figures, the thicker the wire is, and this is the one that has more current passing through it.
2. Distance: The distance between the load and the power source also determines the wire gauge selection. Increasing the distances or long runs raises resistance, causing a voltage drop, which affects device performance. In this case, the opposite is true; a thicker wire gauge should be used for long distances to curtail losses.
3. Ambient Temperature: When selecting a wire gauge, the temperature inside the environment where the wire will be used is also significant. Hotter temperatures may reduce the wire’s ampacity. Professional services must include the key features of temperature derating, as the National Electrical Code (NEC) states that these ampacity ratings should be adjusted.
4. How Installation Influences Wire Size: This refers to how the wire is handled, i.e., if it’s through a conduit, if it is exposed, or if it is buried. The way conduits affect heat dissipation is a common practice, while in the open air, alternative means have to be used owing to different heat dissipation traits of air. This brings us to our next point.
5. Adherence to Standards: When determining wire size, it is critical to obey the electricity guidelines that local, state, and national jurisdictions prescribe. These rules prescribe the minimum acceptable wire sizes depending on load analysis, installation techniques, and safety regulations, enhancing the regulatory requirement and reducing the chances of electrical failures.
6. Possible Follow-Up Work: Projection of electrical requirements in the future can play a role in determining wire sizes. Unless electrical connections are avoided during the first wiring work, it would be efficient to assume additional loads in the future and use a more powerful wire in the first place rather than rewiring later, which causes a lot of pressure.

After comprehensively analyzing these considerations, the professionals can pick the correct wire gauge to guarantee the electrical installation’s safety, efficiency, and durability.

Common Wire Gauges for Service Entrance Cables

When choosing service entrance cables, it is essential to appreciate different wire sizes and their uses. The National Electrical Code (NEC) has a standard wire gauge for different load demands.

1. #6 AWG (American Wire Gauge): Residential service entrance wires do not go higher than this ‘6’ wire, whose rated maximum load does not exceed 60 amperes. It is ideal for an ordinary house or a small structure that does not utilize a lot of power.
2. #4 AWG: Encompassingly used because service entrance wires of up to 100 amperes are mainly in this size wire; #4 AWG is favorable in normal residential work where the load is adequate without compromising installation procedures.
3. #2 AWG: For bigger houses or commercial uses, #2 AWG will be sufficient for a load-carrying capability of 125 amps. This makes provision for heavier electrical systems. This is more common nowadays in new wiring installations that demand high amperes.
4. 1/0 AWG and Larger: For service entrances with stuffer wires rated above 150 amperes, the larger wire sizes, 1/0 AWG and above, become inevitable. Such cables are generally found on larger estates or commercial buildings and provide an effective and safe electrical service.

One of the most critical components in keeping people safe and complying with electrical code is the wire gauge used for service entrance cables, thus reducing the risk of overloading. The NEC and other local regulations should always be referred to when cables are being designed and wire gauges selected.

Wire Gauge and Max Amps: What You Need to Know

Properly comprehending wire gauge and ampacity is needed to ensure that electrical installations are safe and efficient. About the review of the current primary sources, here are valuable observations:

1. Ampacity Summary: Each wire gauge is rated for a certain ampacity. This signifies the least electric current passed through a conductor or device without undergoing physical or progressive damage. For example, wire #14 is limited to a current of 15 amps, #12 has a limit of 20 amps, and #10 can supply as much as 30 amps in normal conditions.
2. Interacting Conditions: Several interacting conditions of a wire have been identified, including the number of conductors in one bundle, type of insulation, temperature, and installation practices (in conduit, raceways, or open air). Conductors in embedded conduits will have reduced currents because of cooling limitations.
3. Federal Regulations: The National Electrical Code (NEC) also provides some information about the general ampacity of different electrical wires, which electricians can use to guide their wire choice. Following these guidelines is critical, and local regulations should be enforced to ensure installations are safe and compliant.

To sum up, the wire size and its current rating must be accurately established for the functionality and safety of electrical systems. Always seek to use authoritative materials on the issue and make your own interpretation of the proper PVC material for your installation.

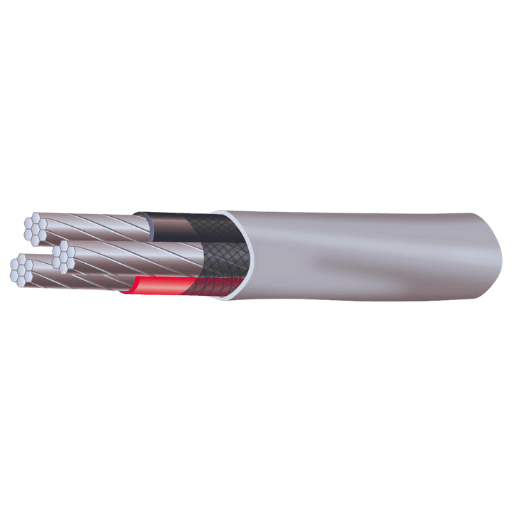

What are the Different Types of Service Entrance Cables?

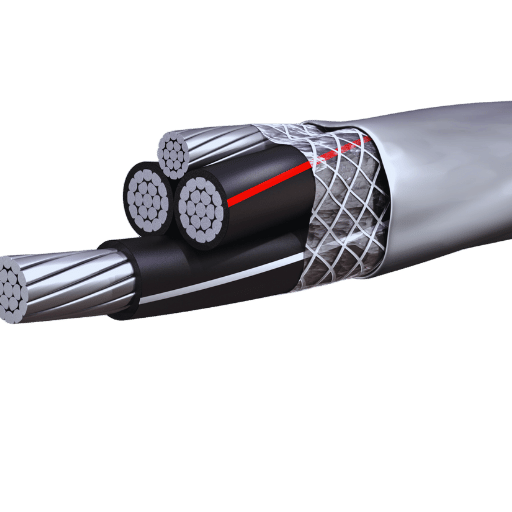

SEU Cable vs. SER Cable

Service Entrance (SE) Cables play an important role in connecting the utility service to the building’s distribution system. These can be SEU(Service Entrance Underground) or SER(Service Entrance Ripple).

1. SEU Cable: These cables are made for the overhead service entrance and consist of a number of insulated conductors covered in moisture-resistant covers. In light of these facts, they are usually two conductive wires surrounded by insulation and a ground wire. Their amp structure allows these cables to be directly buried or found above ground, thus assuring services in different weather situations.
2. SER Cable: However, the SER cable is more appropriate for this purpose and is mainly applied in residential buildings, although it is meant for overhead service. This cable type comprises several insulated wires protected with a sleeve and a very thick ground wire. It is primarily for use in vertically confined spaces without kinking or routing, and installation is free without hindrance by structures.

In short, both SEU and SER cables are generally used to supply power service, but the mode of construction and the physical environment in which the cable will be used vary, hence the determination based on the installation needs.

Copper or Aluminum: Which is Better?

When discussing copper and aluminum for electrical service entrance cables, some considerations need to be made regarding conductivity, costs, weight, and resistance to corrosion.

1. Conductivity: Copper’s electric conductivity is much higher than that of aluminum, roughly 60% better. This means that for the same electrical current, a copper cable can be much thinner than an aluminum cable, thus requiring less installation area and reducing any potentially excessive thermal loss during usage.
2. Cost and weight: Aluminum cables are less costly; thus, the nonmetal conductor is more adopted, especially in areas that have brought large electrical installments. They are also lighter, thus making it easier to transport and handle during installation. Yet, while good copper conductors might be initially quite costly, the durability and serviceability of the products in question are more than covered within reasonable periods to justify the cost of good copper wire.
3. Corrosion: While it is rare for copper to corrode, aluminum corrosion and subsequent loss of conductivity are common. This feature would also affect the efficiency and frequency of maintenance of the installation, affecting the completion of work; thus, copper is well suited in such conditions.

To summarize, a decision on whether to scope for copper cable conductors or aluminum cables will depend mainly on the project’s specific demands, including weather climate, cost, and expected service life. In situations warranting high reliability and efficacy, for instance, in water and effluent treatment plants, copper is likely to describe wiring owing to its prohibitive upfront costs. On the other hand, aluminum is expected to be more applicable for non-critical impact cost, saving, and lightweight applications.

Identifying the Right Cable for Your Application

When choosing the right cable for your application, it is important to consider several key factors that will be affected by environmental, performance, and financial needs.

1. Application Requirements: Defining the application in regard to current rating, voltage levels, and conditions such as moisture, temperature, or corrosion is among the most important. In high-performance applications where reliability is a major concern, copper is preferred, while low-performance applications can take advantage of the cheaper aluminum material.
2. Compliance Standards: Confirm that the selected cable complies with the relevant safety requirements at both national and local levels appropriate for a given industry. This checking includes a comparison against the National Electrical Code and other applicable installation and material performance criteria.
3. Future Considerations: When selecting a cable, future growth and electrical loads must be taken into account. A slightly oversized cable could eliminate the cost of future rewiring, thus allowing for the anticipated spikes in electrical load or other technology changes to be made without incident.

In this manner, through careful consideration of these issues, one is able to choose the right cable for proper use within the technical limits and, at the same time, economically.

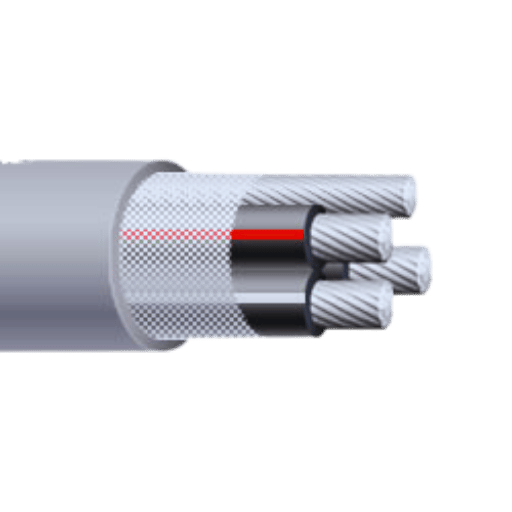

Can You Use Aluminum Conductors for Service Entrance Cables?

Advantages of Aluminum Conductors

Various factors make service entrance cables particularly acceptable, and one of those factors is the aluminum conductors. The first one is that they are less in weight than copper conductors, which reduces the total installation weight and makes it easier to handle and install. This reduction in weight can be exciting in structures where loads are critical. The second one is that aluminum is usually cheaper than copper, reducing the initial cost but still providing sufficient electrical conductivity. There has been further development in modern aluminum alloys, giving them high strength and conductivity, which allows them to operate satisfactorily in different uses, including service entrances. In addition, aluminum does not rust when coated, which may increase resistance in some environments, increasing the working life of the cable in various conditions. In general, the reduced weight of the materials, economic efficiency, and new advances in the properties of materials make aluminum conductors a good candidate for service entrance applications.

Safety Concerns with Aluminum Conductors

However, aluminum conductors have several advantages and present some safety challenges when deployed on service entrance cables. One such challenge is the oxidation of aluminum, which can lead to bad electrical joints and, in turn, heating. As soon as oxidation occurs to aluminum, it wraps itself in a layer, which is an insulator and is an obstruction to the free flow of electricity, thus enhancing arcing. To deal with this situation, good installation practices and application of anti-oxidation materials are very important, a case in point service entrance strengthened cables.

Another issue is the possibility of thermal expansion. Aluminum expands and contracts more than copper with rise and fall in temperature. This property can generate stress at points of connection, such that if these connections are not properly made, they may work loose as a result of movement. To avoid such problems, it is important to use connectors that conform to the rating for aluminum conductors.

Equally important, installers should keep in mind the relevance of torque specifications. Connections may fail when the specified torque is deficient or when the torque specified is too high such that the conductor is compromised. For this reason, it is the requirement of safety and performance that installation practices laid down by the manufacturers and requirements of service codes should be adhered to.

To sum up, even though aluminum conductors meet the requirements for service entrance, some preventive action must be taken regarding oxidation, thermal expansion, and installation methods to improve safety and efficiency.

How to Properly Install Aluminum Conductors

Properly installing aluminum conductors is essential to avoid most hazards and maximize efficiency in electrical work. The following are some of the precise steps derived from expert resources.

1. Preparation and Inspection: Before commencing the installation procedure, thoroughly examine the aluminum conductors to eliminate any defects that can compromise integrity. Clean all connections to be fitted and ensure they are devoid of chemical oxidation.
2. Use of Anti-Oxidation Compounds: At the junctions, use anti-oxidation compounds, which prevent oxidation resulting in non-conductive covers. These are meant in optimum amounts to maximize the skin effect and thus minimize the oxide layer’s buildup, which deteriorates the connections with time.
3. Correct Connection Techniques: Use only connectors marked for aluminum conductors and tools as per manufacturers’ recommendations. Where the recommended action is using a tool for making connections, that should be the preferred approach; besides, avoid introducing copper where aluminum has already been used due to the possibility of galvanic action.
4. Torque Specifications: When securing connections, ensure that the torque specifications are respected. When fitting connectors to a conductor, a torque wrench must be used, and the right amount of pressure must be applied, for both lack and excessive torque can fail the connection or damage the conductor.
5. Thermal Control: Investigate aluminum’s thermal expansion properties. Make sure the joints allow expansion and contraction without distortion. This may require the utilization of connectors specialized for movement purposes.

The practices defined below can considerably increase the integrity and durability of aluminum conductor installations and thus minimize the hazards of oxidation and thermal expansion stresses.

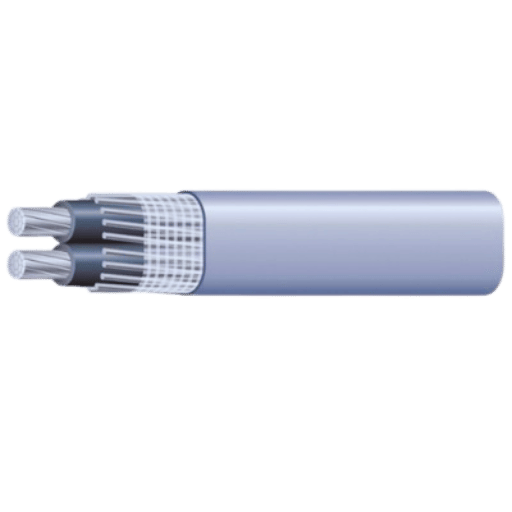

Where Can I Buy High-Quality Service Entrance Cables?

Top Retailers for Service Entrance Cables

1. Home Depot: Home Depot also offers a wide range of service entrance cables of different sizes and materials appropriate for residential and commercial use. The company’s website provides specifications, customer feedback, and installation recommendations necessary for cable selection.
2. Lowe’s: Another major retailer that sells service entrance cables to consumers is Lowe’s. They include products by recognized brands, which are assessed in price and decided whether they will be sold online or in stores. Likewise, on their online platform, well-written installation instructions are available.
3. Wire &Cable Your Way: This niche retailer specializes in selling quality service entrance cables at reasonable prices. They provide a very detailed catalog, including specs of various electrical cables. They also have custom and bulk pricing, which is ideal for builders and big installations.

Online vs. In-Store Purchases

While weighing the option of purchasing service entrance cables either in a physical store or via the Internet, one consideration is whether to patronize the Internet platform but opt for the purchase in-store.

1. Online Purchases: It is very easy to shop and get a wide range of items. Customers can even look at the prices and specifications for different retailers, such as gas pipes, Home Depot, Lowes, and wire and cable your way. It is also common for most online stores to give customers feedback and installation instructions so they can make informed selections. Although they are helpful, problems with transit duration and other inconveniences are likely to be noticed.
2. In-Store Purchases: Customers who wish to buy in-store can view the cables in person, which confirms the quality and requirements of the specific cables for purchase. On most occasions, employees of retail stores like Home Depot and Lowe’s are knowledgeable, so they are always available to respond to queries and recommend products and techniques for installation. Though there may be fewer choices in the store compared to online purchases, there is a benefit in gaining products on hand without any delays, especially for urgent ventures.

In summary, the two forms of purchase, either online or in a shop, result from different factors such as how quickly a product is needed, how well a customer knows the product, and whether the customer prefers virtual web interaction or real-person interaction.

Cost Considerations and How to Get the Best Deals

When seeking out the best offers on service entrance cables, it is necessary to assess several factors, such as price, quality, and trusted suppliers. The following hints can be helpful for a consumer in decision-making:

1. Home Depot: Home Depot is always very price-friendly when it comes to electrical products. They usually have some sales or bulk purchase discounts for those ranges. The business rewards its members, allowing them to redeem points for added savings in the future, which makes it appealing to such contractors.
2. Lowe’s: Like Home Depot, Lowe’s takes a keen interest in its customers by providing price matching and special offers. It has a proper materials area for use in projects, which allows users to get cheap alternatives regarding their electricity needs. This is further enhanced by a leave facility for its marketing messages, which is rewarding in terms of discounts and promotional codes.
3. Wire & Cable Your Way: This retailer sells only wires and cables. They offer discount quantities, which helps cut expenses for bigger projects. Their web-based tool includes a thorough product comparison feature that is useful for limiting the search to particular cable types, thereby optimizing costs.

In conclusion, however, shoppers for service entrance cables are encouraged to scour all these retailers for price variations, use online coupons, and make bulk purchases to get maximum returns.
