Charge Your Electric Car with an EV Solar Charger & Solar Panels at Home

Embracing new energy solutions is of utmost importance for eco-friendly households, and utilizing solar energy to charge your electric vehicle (EV) is an example of this change. With the installation of EV solar charger along with a solar panel system, reduction of electricity bills, gaining independence in energy production, and achieving a lower carbon footprint becomes possible. This article will inform you about the benefits of devising a combined solar and EV charging infrastructure, describe how these systems interact, and provide guidance on the main factors to consider when designing an EV charger workstation that meets optimum charging efficiency to protect the environment. This extensive manual will help EV owners and property investors focused on alternative energy comprehend how to use solar energy for their electric vehicle.

What is a Solar EV Charger?

Understanding Solar Power for EV Charging

In the case of electric vehicles (EVs), solar power charging utilizes solar energy creating an economical and eco-friendly process to charge EVs. A solar panel connected to a home or premises captures sunlight and converts it into electrical energy. The electric energy is able to directly charge the EV through the use of an inverter or can be stored in a battery for future utilization. With integrated solar power, homeowners would need less grid supplied electricity while simultaneously charging at a lower cost and less carbon emission, thereby building more sustainable energy ecosystem.

The Role of Solar Panels in Charging Systems

Solar panels remain a primary component in sustainable charging systems as they serve as the renewable electricity source required to charge the electric vehicles (EVs). They obtain solar energy and convert it to electric energy, which can be used to power EV chargers. This eliminates dependency on the grid electricity and reduces the energy cost as well as the environmental damages. The combination of solar panels and EV chargers greatly reduces the carbon emissions. This method promotes energy conservation while achieving great practicality to mitigate the adverse effects of climate change.

How EV Chargers Works Using Solar Energy

An EV charger is powered by solar energy in a simple process that starts with the solar panels capturing the sunlight which is later converted into direct current (DC) electricity through the utilization of photovoltaic cells. The direct current (DC) electricity is then sent through an inverter which changes it into an alternating current (AC) electricity which can be used immediately to power the EV chargers. Depending on the configuration, the energy produced can either directly be fed into the charging station or be stored in batteries for later use to make certain that energy is accessible even during daytime or in the night time when it is cloudy.

The efficiency levels brought about by recent improvements in technology are on average from 22-24% which makes modern solar panels more useful in powering EV chargers. For instance, a conventional electric vehicle like a Tesla Model 3 which takes around 50 kWh to fully recharge, could easily be sustained by an average 10 kW solar system providing around 40-50 kWh during the day. Not only will this technology aid in somewhat eliminating the use of nonrenewable sources of energy but it is also economical.

Along with that, these systems also integrate smart energy management systems, making it possible to track energy generation and usage in real time. Some systems make it possible for energy to be transferred in both directions so that excess solar energy that is captured and stored can be returned to the grid, which assists in better management of the generated energy. These modernizations help integrate the solar EV charging technologies within residential and commercial buildings, promoting an environmentally friendly and sustainable ecosystem.

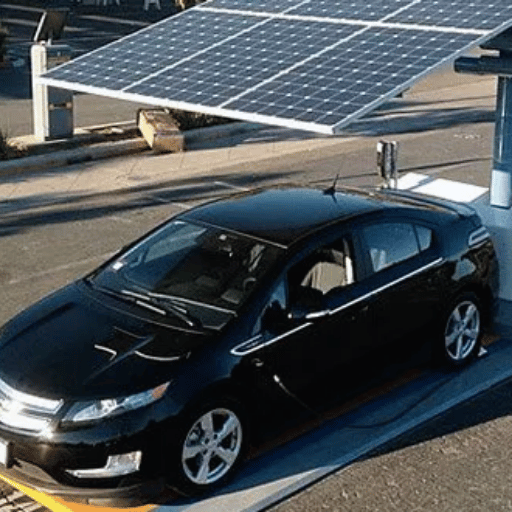

How Solar Powers your EV

Turning Solar Power into Useable Electricity

Solar energy can charge electric vehicles (EVs) via the use of solar panels, an inverter, and an EV charger. The solar panels first absorb sunlight and turn it into direct current (DC) electricity. The DC electricity is sent to an inverter which converts to the required alternating current (AC) electricity used by most chargers. Lastly, the charging station delivers the AC electricity to the EV, recharging the battery. This method efficiently recharges EVs while simultaneously helping reduce dependence on fossil fuels and carbon emissions.

Advantages of Integrating Solar Photovoltaic Systems with EV chargers

The integration of solar photovoltaic (PV) systems with EV chargers have many benefits. It helps to directly power EVs with renewable energy, reducing the need for fossil fuels and lowering greenhouse gas emissions. They also reduce the cost of electricity as the solar energy can be utilized during peak sunlight hours. The integration helps achieve energy self-sufficiency, improves stability of the grid, and meets goals set for sustainability. By incorporating solar PV with EV charging stations, users are able to help create more cleaner and reusiable energy sources.

Effect of Grid Connectivity on EV Charging

The charging infrastructure for electric vehicles (EV) is highly interconnected with the electrical grid efficiency and scope. Charging stations systematically improve in quality along with the supporting grid infrastructure, especially in the metropolitan regions where EV adoption is higher. Recent survey reports indicate that the electric vehicle market developments are expected to expand more than 23% annually over the next seven years starting in 2023. This growth creates considerable demand for infrastructure to avoid grid overload and enable dependable charging experiences.

Smart grid technology and vehicle-to-grid (V2G) system integration are critical in effetively controlling energy flows. Off peak demand charging shifts is an effective method implemented by smart grids to enhance their demand response capabilities and reduce stress on the existing power network. In addition, V2G-capable EVs help provision grid electricity demand and provide standby power which helps stabilize the grid. Some pilot studies have shown that V2G systems are able to support the grid during peak loading and outages while reducing total electric expenses for EV owners.

In addition, grid interconnectivity makes it easier to add renewable resources, enabling EV charging stations to utilize cleaner solar and wind energy. This aids in the decarbonization of transport, which emits nearly 24% of carbon dioxide globally. Importantly, Countries with more sophisticated grid systems have seen drastic carbon emission reduction with the increased adoption of electric vehicles and renewable energy use.

Continued investment in modern grid infrastructure and advanced connectivity solutions is crucial in accommodating the rapid transition to electric mobility without compromising on energy security and sustainability objectives.

What Advantages Comes With Using a Solar EV Charger?

Lowering Carbon Footprint with Solar EV Charging

The use of solar EV chargers can lower carbon emissions significantly. Unlike traditional EV chargers that depend on electricity from the grid, these chargers use solar energy, and thus do not require electricity generated from fossil fuel. This method reduces the damage to the environment from traditional charging practices, and at the same time, increases energy self-sufficiency. By using solar panels alongside EV chargers, consumers develop an energy loop that not only helps decarbonization, but also fosters a cleaner energy future to work towards.

Reduced Expenses from Solar Power

The adoption of renewable energy, like solar energy, comes with a reduction in future expenditures. Generating electricity from solar panels allows users to cut down, if not completely get rid of, their dependence on grid power, leading to lower monthly bills for electricity. Current estimates mark an average save of $1500 a year for an American family, depending on where they live, how much energy they consume, and the rates charged by their local utility. The total save over the life of the solar panel system, which usually lasts 25 to 30 years, ranges from $20,000 to $50,000.

Additionally, renewable energy options come with additional government perks like federal tax credits, rebates, and net metering – all of which help minimize the initial investment as well as the cost of maintaining the business. For example, the US federal solar tax credit reduces installation expenses by thirty percent.  Renewables also offer an affordable solution to the ever-increasing global utility rates as they serve as a buffer against uncertain shifts in the energy market. Businesses are not left out as deploying renewables on a large scale translates to a drastic reduction of operational cost, resulting in savings from increased energy efficiency.

Investing in renewables gives great returns, and equally reduces one’s dependence on nonrenewable resources, the cost of living, and prepares financially both people and institutions for the unforeseen future.

Why Off-Grid Charging Solutions are Beneficial

The benefits of an off-grid solution include the following:

1. Autonomous Energy Use: The systems can function off the power grid which is useful for autonomously located sites where power supply is needed.
2. Cost Effective: Renewable energy included such as wind and solar can be utilized and thus relying less on fossil fuels lowers combative energy prices with off-grid solutions.
3. Enviromnental Boon: Those and other reasons result in low carbon emission and other clean energy sources make them more sustainable.
4. Dependability: Inline with the previous point, off grid charging provides power at time of instability with the grid or lack of it completely.
5. Flexibility: These systems can be catered to fit the desired energy requirements fow which these systems britgh and are boundless for individuals and commercial use.

Which Tools Are Required to Install an Electric Vehicle Charger at Home?

Considerations for Selecting the Most Ideal Solar Panels for the EV Charger at Home

Your choice of solar panels that come with the home EV charger should factor in their effectiveness, compatibility, and overall quality. Seek out panels that have a robust efficiency rating, which means they make use of the maximum solar energy possible. Warranty coverage is equally essential, so take note of the expected lifetime of the panels. Make sure that the solar panels are within the electrical system’s scope of acceptance for the home, as well as for the EV charger’s specifications. The quality and safety compliance solar panels receive from UL or IEC certifications is a vital indicator. Make sure that the renewables industry panels are got from reputable manufacturers.

The Required Inverter’s Installation

Your inverter is arguably the most important device in your solar power systems because it converts the electricity generated by the solar panels from DC to AC. Identify an inverter that works with the voltage and power of your solar panel system. Generally, there are three types of inverters: string, micro, and hybrid inverters. Hybrid inverters are often preferred for EV charging because they are more easily integrated with battery storage systems, which improves overall energy management. Make sure the inverter has solid certifications, such as UL or CE, for trustable safety and performance. It is advisable to seek professional help for the setup of the inverter so as to properly utilize the functionality of the system and follow the regulations around the area.

Comprehending the Necessity of Installing the EV Charger

First, check if your home can accommodate the charger’s power demands. Each Level 2 EV charger uses a 240-volt circuit which may require an upgrade to your electrical panel. Local building codes and safety regulations also dictate that the installation should be done by a qualified electrician. Make sure to purchase a charger that works with your vehicle and has a safety certification, such as UL, for safe use. Lastly, touch base with your local electricity supplier. They may have some rebates or incentives that can reduce the cost of the installation.

How to Install a Solar EV Charger at Home?

Steps for Charger Comes Along with Solar Panel Installation

1. Assess your Electrical Infrastructure. Check that the electrical panel within your home is capable of supporting a Level 2 EV charger. If not, seek the services of an electrician because your panel may require an upgrade.
2. Determine the Charger Position. Pick a location that is unobstructed but still complies with the charger’s level and is able to exhaust fumes appropriately.
3. Obtain the Right Charger. With regard to your EV, chose a solar compatible, level 2 charger that meets safety recommendations like UL. Look for chargers that have features enabling built-in solar components.
4. Select an Electrician Expert in the Field. Employ an expert installer to place the home charger. The installer needs to comply with local regulations about wiring and charging the EV to ensure safety while using the vehicle.
5. Include the Solar Panels (If Not Already Accounted For). If you do not utilize solar energy, a qualified solar installer can mount additional panels on your house. These panels should be connected for optimal power to be channeled to the EV charger.
6. Perform System Diagnostics. Upon completing the installation, confirm that the solar powered Opti-Red charger is functioning to your specifications and expectations. Verifying operational parameters ensures efficient energy transfer from you solar system to the vehicle.
7. Incentives and Rebates Review. For solar or EV charging rebates, get in touch contact your utility company or state energy office to help lower expenses.

Choosing an Installer

It can be difficult to find an installer who will charge and panel the solar system safely, efficiently, and within the legal parameters of the region. First, check what licenses the installer possesses for their state or area as it pertains to electric and solar installations. It is possible to obtain credentials from the state licensing board or other professional registries like NABCEP for solar practitioners.

Check the installers experience and past work as well. Most qualified installers have portfolios or customer reviews which should make assessing their skill easier. Look out for companies that provide warranties on equipment and labor, as these companies are more likely to offer quality service.

Pricing and detailed quotes are another vital factor. Request multiple quotes that detail some materials and labor, and possible hidden fees like permits. Take caution with quotes that seem excessively low, as those values often come from a place of poor service and under quality materials.

Lastly, take a look at industry reviews and rating sites, such as HomeAdvisor, SolarReviews, or Better Business Bureau (BBB), to find a top-rated expert. Installers with a good reputation often have some awards, certifications, or other forms of recognition which further proves their credibility. With all these considerations, thorough research enables you to choose an installer with confidence that he is qualified for the work.

Effective Planning for Home Energy Requirements

Optimizing energy consumption for efficiency and cost reduction is what home energy management encompasses. To begin, an energy audit should be performed followed by the installation of energy-efficient products to help control high usage. Implement smart appliances or renewable energy systems like solar panels to decrease dependency on the grid. To manage and track energy usage, check those monitoring tools that offer real-time data. Dependable sources, such as the U.S. Department of Energy, provide great recommendations alongside certified products from ENERGY STAR that help guide decision making.

What Solar Energy Does an EV Need?

Estimating the Kwh Consumption

Computation of kilowatt hours (kWh) solar energy needed for an electric vehicle (EV) starts with determining the energy consumption of the vehicle. This particular measure is usually expressed in kWh per mile and can be located in the EV’s details. And then, estimate your daily mileage and multiply it by the vehicle’s kWh per mile to get the daily energy requirements.

For instance, assuming an EV average use of 0.3 kWh per mile and assuming the daily driving distance is 30 miles, then the daily energy consumption is 9 kWh, which can be easily served with your solar energy system. In order to enhance the amount of solar energy generated, make sure that the system efficiency losses (usually 15-20%) and sunlight hours locally measured in sun hours per day, are factored in. These factors can also be applied to determine the daily kWh requirement solar system size. Accuracy in sizing requires that one consult with a solar energy expert.

Establishing How Many Solar Panels You’ll Need

To figure out how many solar panels would be needed for your electric vehicle (EV) battery, start by estimating the total kWhs your solar power system will need per day from EV charging. Solar panels also have their own energy rating, which is measured in watts, and usually, residential solar panels range between 300 to 400 watts.

Next, calculate how much energy one solar panel can generate in a day. To find this, multiply the wattage of the solar panel with your geographic area’s average peak sun hours and the product needs to be divided by 1000 to switch it into kWh. For instance, a solar panel with a rating of 350 watts and located in a place with 5 peak sun hours will hypothetically produce 1.75 kWhs per day [(350 watts x 5 hours) / 1000 = 1.75 kWh].

Now take into account efficiency losses and divide your EV’s daily energy needs by the estimated daily output of one panel. Panels need to be optimized, which normally means approximately 12 panels will need to be used. If your EV requires 10 kWhs daily and each solar panel generously produces 1.75 kWhs, you’re set to boost efficiency and use an estimated 6 panels ( 10 kWh / 1.75 kWh = 5.71 kWh rounded up to 6).

You also need to factor in system inefficiencies, such as shading, dirt on the panels, and inverter losses, as well as seasonal changes in the amount of frosted sunlight, as these may alter the energy produced for charging the EV. If a margin needs to be set, it might be reasonable to go with the range of 10 to 20% of the calculated panel count value. Getting in touch with solar installation experts can further fine-tune such estimations as per your requirements and location. This helps assure that the solar system will consistently energize an electric vehicle throughout the year.

Elements Influencing Charge Rate

Charging speed of electric vehicles, or EVs, is also taken to be influenced by a number of factors. From what I understand, these comprise the charging station’s power output, the onboard charger’s power rating of the electric vehicle, and the state of charge of the vehicle’s battery, which are essential for the good management of solar charging. Even simple things such as weather conditions, like very high or low temperatures, can affect how efficiently the battery performs and need to be considered in slowing the EV to a full charge. Moreover, the type of plug and receptacle and how well they match with the electric vehicle can make a huge difference. These factors should be considered to properly assess and improve the charging process for a particular vehicle and configuration.

Frequently Asked Questions (FAQ)

Q: In what ways could I charge an electric vehicle at home with solar panels?

A: If you want to charge your electric vehicle using solar panels, you will first need to install a home solar energy system, then have an EV charger. This configuration makes it possible for you to utilize solar electricity to power your electric car, which decreases the dependence on the grid as well as the expense of charging.

Q: What are the advantages of charging an electric car using a solar panel?

A: Utilizing solar panels to recharge an electric vehicle provides multiple benefits, such as cost-effective electricity, reduced carbon emissions, and greater energy sovereignty. In addition, excess solar energy can stored or sent back to the grid, allowing the possibility of receiving credits from utility companies.

Q: How many solar panels do I need to charge my electric vehicle?

A: The number of solar panels required to charge an electric vehicle varies from case to case. Apart from your car’s battery capacity and daily driving distance, it is helpful to know that charging an electric vehicle is possible with an average of 6-12 solar panels. However, for long range travel, using a mix of solar powered charging and grid charging may be necessary.

Q: Are portable solar panels capable of charging an electric vehicle?

A: Electric vehicles (EV’s) can be charged using portable solar panels; however, the power supplied is usually insufficient for rapid or complete charging. With portable solar panels, charging a battery becomes more of a maintenance task. The most effective method for charging at home is to install solar panels on the roof and use an EV charger, as these two work well together.

Q: Which type of EV charger is compatible with solar panels?

A: Solar panels are compatible with both Level 1 and Level 2 chargers, although Level 2 chargers are superior and provide quicker charging. Also, some smart EV chargers are capable of preprogramming various charging times in relation to the amount of solar energy produced, so solar power can be fully utilized.

Q: Can solar energy completely charge an electric car?

A: It is certainly possible to charge an EV while only using solar energy; although, it depends on the amount of solar energy available and how you choose to spend it. A large portion of electric vehicle (EV) users relies on a mixture of solar energy and the grid, especially for reliable charging during cloudy periods of the day or nighttime when there is a lack of solar power.

Q: In what ways can I benefit financially from using solar panels to charge my electric vehicle?

A: Using solar panels to charge your electric vehicle can lead to substantial savings. While investing in a home solar power system can be costly, its long-term benefits include almost free solar electricity to power your house and charge your EV. The savings will vary based on local electricity costs, solar energy produced, and the efficiency of your EV.

Q: Is there anything different that needs to be thought of while installing EV chargers with solar power integrated into a house?

A: While charging an EV with a home solar system, a variety of factors must be considered such as smart charger communication with the solar system for maximum efficiency, placement of the charger, the size of the solar array, and plans to upgrade the electrical panel.

Reference Sources

1. Pursuance of a passive filter for a multi-coil EV charger employing a solar connected system to enhance power quality

• Authors: Manoj Saini et al.
• Publication Date: September 1, 2024
• Summary: This paper analyzes the use of a passive filter for a multi-coil charger connected to a solar energy system to help improve the power quality for Electric Vehicles (EVs). The study notes the problems associated with high-frequency switching’s distortion harmonics, especially in EV wireless charging systems. A model was designed in MATLAB to test the system, and results showed improvements in power quality along with the use of clean energy in developing EV charging stations.
• Key Findings: The implementation of a passive filter can improve power quality problems caused by multi-coil wireless power transfer systems, thus increasing the functionality of solar powered EV chargers.(Saini et al., 2024).

2. Wireless Electric Vehicle Chargers Using Solar Energy

• Authors: Mr. K. Trinadh Babu, Mr. Nodagala Madhu
• Publication Date: March 17, 2024
• Summary: Integrating the wireless charging system with renewable energy sources, this paper describes the unique solar-powered wireless EV charger. It has a solar panel, a receiver installed in the EV, and a wireless charger. It aims to shift the dependence from grid power and lower the carbon footprint while providing safety measures like overcharge protection and efficient real time monitoring.
• Key Findings: This system marks a notable decrease in carbon emissions and use of conventional energy sources which enhance renewable energy use for EV charging.(Babu & Madhu, 2024).

3. Cost Optimization of EV Charging Station Integrated with Solar PV

• Authors: Prabhat Srivastava et al.
• Publication Date: June 21, 2024
• Summary: This research concentrates on solar Photovoltaic (PV) mobile charging stations integrated with battery power banks or rapid charging devices. The goal of this study is to reduce the expenditure for charging stations without compromising quality from the standpoint of electric vehicle users. The results demonstrate that, during high-demand periods, the operational costs for solar-enabled charging stations are significantly less than traditional charging stations.
• Key Findings: Blending solar PV in electric vehicle charging not only improves the system’s reliability but also lowers charging expenses, hence, accelerating the adoption of electric vehicles.(Srivastava et al., 2024, pp. 1–6).

4. High Performance Solar Powered EV Charger

• Authors: Abhinav Kumar Singh, D. Raveendhra
• Publication Date: July 31, 2024
• Summary: The aim of this work is to analyze the development of a solar photovoltaic (PV) array intended for autonomous operation, designed to power electric vehicle (EV) chargers. This system can function independently, utilizing solar energy while being able to interconnect to the grid if required. A home or grid-supplied charger has been built to provide constant power to residential loads or EV charging.
• Key Findings: The system showcases accomplished energy management. It guarantees an uninterrupted power supply while decreasing reliance on grid electricity, thereby fostering sustainable energy practices.(Singh & Raveendhra, 2024, pp. 1–7).

5. Characterisation and optimisation of energy storage installations for low voltage networks and EV chargers

• Authors: George Hilton
• Publication Date: February 1, 2019
• Summary: This thesis investigates energy storage systems in high-rate electric vehicle chargers with particular attention to their interfacing with solar energy power plants. It considers a model for estimating power requirements at high-rate chargers and studies the preferred configuration for such systems under different forecasted conditions.
• Key Findings: The research closes on the note of how effective energy storage can be for balancing supply and load for high-rate chargers that are powered by renewable energy, with solar integration standing out regarding the EV charging infrastructure.(Hilton, 2019).
