Understanding Speaker Cables: The Ultimate Guide to Choosing the Right Cable for Your Audio Setup

In the music industry, choosing a speaker cable is very important. It greatly affects the quality of sound produced by an audio system as it influences clarity, fullness, and faithfulness to the original sound, among other things. This article will look into different types of these cables, what to look for in them, and how you can choose one that will work best for your needs in listening or recording music. After reading this piece, people should know enough about this topic so they can make good decisions about their own set, which will enable them to have great listening experiences with any genre of music they may want to listen to.

What Is a Speaker Cable and How Does It Work?

What materials are used in speaker cables?

The principal components of a speaker cable consist of conductive materials, such as copper or aluminium. Copper is used because it conducts better and offers less resistance thus ensuring that the signal is transmitted at its best. Moreover, different insulation materials like PVC and Teflon can be used in making these cables to provide protection for the conducting centre from external factors which could interfere with signals causing them to fail eventually but not right away.

How does speaker cable affect sound quality?

The sound output of an audio system is directly affected by the quality of the speaker cable. Several factors come into play here:

1. Resistance: This is how much heat is lost through electrical energy while being transmitted by a speaker cable. A good conductor should have low resistance so that it can allow more power to flow through without wastage. For instance, a 16-gauge wire has an approximate resistance of 4.0 ohms per 1000 feet, while that of a 14-gauge wire is around 2.5 ohms for the same length, thereby enabling higher amounts of power to be delivered to speakers.
2. Capacitance and Inductance: These two are not as important as resistance when it comes to affecting sound quality but they still do so somehow; capacitance can cause signal smearing if it’s too high while inductance might delay high-frequency response when increased e.g., cables with high inductive reactance will result in changed tonal balance thus affecting midrange and treble clarity most severely.
3. Cable Length: The length also matters since longer wires have greater inherent resistances which translates into larger losses of energy – hence sound degradation too.Just to keep things simple, try to use shorter cable runs whenever possible especially within home environments where distances rarely exceed 25 feet between amplifier & speaker connectors.
4. Shielding: Shielded cables are designed to block out external interferences like EMI or RFI, which would otherwise corrupt signals passing through them. Any place having lots of electronic noise requires such measures.
5. Connector Quality: Always insist on using top-quality connectors at all connection points along a cable run, or else poor ones may introduce significant resistances, leading to substantial signal drops.

So, in short, there are some aspects/variables associated with choosing/installing speaker cables that affect perceived audio fidelity – these include;resistance,capacitance (and)inductance,lengths(shielding),connector types.

Are there different types of speaker wires?

Yes, various types of speaker cables are available, each designed for different audio performance needs. Below are the most commonly used ones:

1. Copper Wire: Highly conductive copper wires are widely used in many audio applications. They come in different thicknesses or gauges with thicker wires having lower resistance and higher efficiency.
2. OFC (Oxygen-Free Copper): OFC is a premium type of copper wire where the oxygen content is reduced during manufacture to minimize corrosion and increase overall conductivity. This wire is preferred for high-end sound systems as it allows for cleaner transmission over longer distances.
3. Stranded vs Solid Wire: Stranded wire consists of several small strands of copper that make it more flexible and easier to handle, especially when bends need to be precise during installation. On the other hand, solid wire is made up of a single thick strand of copper which may provide better connection hence often used for fixed installations.
4. Twisted Pair Wire: A twisted pair cable consists of two insulated wires twisted together, which helps reduce electromagnetic interference. Such an arrangement preserves audio quality in environments with lots of electronic noise.
5. Speaker Cable Ratings: Speaker wires can also be rated according to their gauge, insulation material, and application (e.g., indoor vs outdoor). It is common to refer to the American Wire Gauge (AWG) standard, whereby lower numbers represent thicker wires suitable for high-power audio systems.

Proper selection of speaker wire types is crucial if one wants to achieve optimum sound quality and performance from their audio setup.

How to Choose the Right Cable for Your Audio System?

What is the significance of cable gauge in audio systems?

In audio systems, cable gauge is highly important because it affects resistance, signal loss and sound quality overall. A thick wire (low gauge number) has less resistance, hence allowing more power to be transferred efficiently, especially over long distances. The decreased resistivity also ensures the fidelity of sound remains intact without any degradation in the signal. On the other hand, small wires (higher numbered gauges) may add higher resistances that can lower the quality of sounds produced while at the same time producing more heat. Therefore, one should select the right gauges, like 16awg, so as to achieve the best results with any audio setup.

How to determine the right length of speaker wire?

An important aspect of fixing speakers’ wires is ensuring neat installation and efficient signal transmission. The following systematic guidelines show how to determine the length required.

1. Measure Distance: Start by measuring the distance from where you want to place the speakers back to your audio receiver/amplifier. You can use tape measure or a measuring wheel for accuracy.
2. Account for Routing: Allow for any routing inconsistencies by putting in extra length around them. For instance, if the wire will go along walls, through conduits and around furniture, it might be necessary to add between 10-20% more length for these variations.
3. Consider Connection Points: Take into account connection points like cable length required to reach terminal or binding posts as well as whether clips or ties are used on the wire.
4. Future Modifications: It is advisable to plan for future adjustments that may require you add some extra inches of wire. This way, one can avoid replacement of cables which may interrupt with other things because the sound system requires adjustment hence taking more time than planned.
5. Standard Practices: As a general rule, 16 – 50 foot lengths are common in standard home installations. Longer runs higher than fifty feet may necessitate using thicker gauge wire so as to effectively manage voltage drop.

By accurately measuring and allowing for such factors, you can decide on an appropriate speaker cable length thereby achieving not only optimal audio but also an aesthetically pleasing arrangement.

Is pure copper better for speaker cables?

Audio professionals generally agree that pure copper is the best material for speaker cables. This is because it has very low resistance due to its excellent conductivity. Websites like Blue Jeans Cable also point out that using pure copper wire reduces losses and improves transmission, which are necessary in maintaining audio fidelity. Additionally, Copper aluminum may be lighter and cheaper than pure copper, but according to Crutchfield, it does not conduct as well; therefore, it may not deliver good sound over longer distances. Furthermore, High-purity copper wires mentioned on Audioholics can help prevent oxidation, thus enhancing long-term performance and reliability too, so it’s a good idea to invest in them, especially if you are an audiophile or serious about your music listening experience.

What Are the Best Speaker Cable Brands to Consider?

What is Monster speaker cables’ reputation?

For years, monster speaker cables have been regarded as a top-end option for consumers which is often associated with its high cost and use of advanced technology. Established in 1979, the company was one of the first audio cable manufacturers that emphasized on quality and performance. Reviews by CNET and other sources state that they are very durable and provide sound clarity without much noise interference.

Monster products usually contain oxygen-free copper conductors among other features such as advanced shielding techniques and unique connector designs that reduce signal loss greatly. A good example is their “Z-Series” cables which have better noise rejection capabilities leading to improved signal integrity hence higher ratings from customers.

Additionally, market statistics reveal that monsters dominate premium cable markets, thereby demonstrating high levels of customer satisfaction; however, this may not always be true for everyone. According to feedback posted on Amazon, some people feel like they pay too much because there are alternatives with equal quality but cheaper prices. Therefore, although considered dependable and efficient by many users who say so based on personal experience, potential buyers must evaluate whether these will satisfy their individual audio requirements vis-a-vis the finances available.

Are Mogami Gold Speaker Cables worth the investment?

The audio industry knows the Mogami Gold Speaker Cables for their top-notch quality and performance. These wires are built using oxygen-free copper conductors and have advanced shielding, which helps them to reduce signal loss as well as interference, thus producing high-fidelity sound. This makes people in professional or audiophile circles see it as an investment worth making, especially when dealing with expensive setups where signal integrity is everything. What’s more, these products from Mogami are known for being long-lasting; hence, users can always rely on them for a long period of time without having any issues with reliability. Nevertheless, one should take into consideration his or her own specific audio requirements along with available funds while thinking about buying this brand since, like other things related to music, different individuals may have different opinions on what constitutes good value for money.

Comparing Stagemaster and Pig Hog speaker cables

Many factors have to be considered when comparing Stagemaster and Pig Hog speaker cables. These include the build quality, performance, and price point of each cable. In terms of construction, sturdiness and dependability are its strong points, which is why many musicians prefer to use them for stage shows. They usually come with higher shielding that can eliminate interference even in tough environments therefore making it a best buy for audiophiles who mean business.

On the other hand, Pig Hog cables are known for their strength and unique design; extra-thick rubberized jackets that provide great durability are part of what makes them different from other brands in the market. Additionally, there’s also a lifetime warranty offered by Pig Hog, which attracts those users looking at their audio gear as long-term investments. Both brands meet industry standards when it comes to performance, but some users have noted that pig hog cables slightly improve signal clarity in professional settings.

Ultimately whether one chooses either stagemaster or pig hog cable largely depends on what someone wants vis-à-vis budgetary considerations as well as specific use scenarios envisaged by an individual player. For this reason both these companies represent good options for anybody shopping around for decent speaker wires, however prospective buyers need to assess personal requirements so as not make blind choices.

How to Properly Install Speaker Wire?

What tools are needed for speaker cable installation?

To install speaker cables, you need specialized tools that will guarantee a tidy, efficient and safe setup. Below are some must-have tools and their functions:

1. A wire stripper is needed to prepare your speaker cable 100 for installation: This tool is essential in removing insulation from both ends of the speaker wire without damaging the copper strands within. Get a wire stripper with adjustable gauge settings for different sizes of wires.
2. Screwdriver: You may require either a flathead or Phillips screwdriver when connecting speakers’ terminals with amplifier’s terminals using these cables. Use the right size so as not to strip screws off.
3. Cable Cutter: A good quality cable cutter is crucial in cutting this kind of wires into desired lengths; it should give clean cuts that prevent fraying especially on 16awg wire.
4. Crimping Tool: If you are using connectors such as banana plugs or spade terminals then crimping tool becomes necessary since it helps attach these connectors firmly onto one end of each speaker wire thereby ensuring stable connection capable of handling audio signals’ demands.
5. Multimeter: After installing them, multimeter can be very handy when checking continuity to make sure everything is working okay with your new connections; besides also detecting any faults along the way during wiring process.
6. Electrical Tape / Heat Shrink Tubing – These materials serve as insulators and protectors for any exposed wire after stripping thus preventing short circuits and safeguarding joints against wear-tear effects respectively.
7. Cable Management Supplies are essential for organizing your speaker cable 100 and ensuring a tidy setup: Though not mandatory during actual cable installation, items like cable ties and sleeves can help keep things well-arranged while at the same time securing all those loose ends in place for an attractive finish across various setups.

With these tools at hand, one can successfully complete a speaker cable installation leading to better sound quality.

Steps for connecting banana plugs to speaker wire

1. Get the speaker wire ready: Start by cutting the cable using a cord cutter to your preferred length. Next, you strip about 1/2 inch of insulation off each end of the wire using wire strippers so that the copper conductor is exposed.
2. Insert Wire into Banana Plug: Take a banana plug and put one end of an exposed copper wire into its opening, making sure there’s full contact between internal connector and this part of a conductor.
3. Secure Connection: Depending on crimp design, use a crimping tool to secure tightly down around the inside edge where it comes out again, thus creating a strong joint capable of not losing audio signal connection while handling.
4. Cover Connection: If a screw terminal is present on banana plugs, then tighten screws down until they grip firmly onto speaker cable wires, keeping them safe against slipping away, which may lead to a reduction in transmission quality.
5. Check Connection: Use a multimeter after attaching all necessary banana plugs onto the speakers’ cables to confirm continuity by testing for direct current resistance short circuit detection. The latter should be done before permanent installation takes place in order to avoid any inconvenience later when the system becomes inaccessible due to some parts being hidden away underground or behind walls.

Best practices for hiding and organizing speaker wires

If optimal audio performance is to be achieved without compromising on the beauty of the environment, it is important to hide and organize speaker wires. Below are some best practices for doing so:

1. Cable Management Clips: Use adhesive cable clips that can be fixed along walls or baseboards; they will help you fasten and run speaker wires neatly. Cables should not touch the floor because this makes space untidy and easy to stumble over.
2. Run Wires through Walls: To make your installation look clean, try running the speaker wires through walls. In order to stay safe and achieve professional finish, ensure that you utilize in-wall rated speaker wire together with wall plates.
3. Organize with Cable Sleeves: You can use cable sleeves, which are designed for bundling several speaker wires together, thereby giving them an organized appearance. Go for flexible sleeves that can accommodate different sizes of cables, as this will allow you to make future adjustments if need be.
4. Label Wires: It would also be advisable to label both ends of each wire for easier identification during setup or when troubleshooting problems arises later on. This makes maintenance work easy while at the same time promoting efficient connections.
5. Utilize Furniture to Conceal Wires: Take advantage of furniture arrangement so as not to show any visible parts of the cords. Speakers could be placed strategically behind pieces of furniture or else cover up cables using decorative items like plants.

By following these guidelines, one can achieve professional cleanliness functionality in their sound system setup.

Can Speaker Cable Affect the Performance of Your Home Theater?

How does gauge wire affect home theater sound?

The gauge of speaker wire used in a home theater system has a huge effect on the quality of sound produced. When resistance is low, as in the case of thicker wire with lower gauge numbers, more power can flow through, and this can enhance clarity in audio, especially over long distances. Conversely, if resistance increases–as would be the case with thinner wires having higher gauges–then there may be some loss or decline in sound quality, particularly at higher power levels. To ensure minimal degradation occurs along an audio signal path it is advisable to employ 16-gauge conductors for runs up to 50 feet and 14-gauge for longer runs.

Do expensive speaker cables make a difference in home audio?

Discussion on the efficiency of expensive speaker cables typically revolves around their alleged noticeable variations in sound quality from ordinary or cheap cables. According to them, such wires are made using better materials and more advanced techniques for signal transmission enhancement but it appears this is not always true if we look at facts.

Many studies have shown that among most domestic listening environments there can be virtually no distinctions between different kinds of loudspeaker cables. An experiment organized by AES (Audio Engineering Society) discovered that subjects could not consistently tell whether they were hearing through high-end or regular wire during blind tests. Generally, what affects audio performance has to do with the speakers themselves, amplifiers used, room acoustics settings done, plus other factors related to overall setup rather than anything intrinsic within a cable.

Nevertheless, it is important to think about situations where expensive cables might make sense. Over longer distances or in areas with lots of EMF noise, for example, HF signals may get worse easily and thus require better protection against interference provided by superior shielding found on higher priced wiresets.. In spite of the fact that they appeal more towards audiophiles who want utmost fidelity still, costly loudspeakers will not bring out any significant difference in sound quality for an average listener until good speakers are bought alongside proper system calibration, which improves home audio performance greatly as opposed to using expensive speaker cables alone.

Review: Top speaker cables for home theater setups

According to expert reviews and user feedback on popular audio and electronics websites, the following three options are consistently ranked as some of the best speaker cables for a home theater system:

1. Mogami W3104: The Mogami W3104 is widely recognized for its excellent sound quality and superior construction. It uses oxygen-free copper conductors and has a tough outer jacket, which makes it suitable for both professional and domestic use. It is robust in design and hence can withstand heavy use; flexibility allows the cables to be used in tight spaces.
2. Blue Jeans Cable 12AWG: This cable is known for being one of the most reliable and affordable choices available today. With a 12 AWG gauge size that reduces resistance over long distances, this product boasts high-quality materials throughout its build. Blue Jeans Cable also prides itself on transparency regarding its manufacturing processes.
3. AudioQuest Rocket 88: Designed specifically with audiophiles in mind, the Rocket 88 utilizes a unique twisted pair configuration that dramatically lowers noise interference while preserving signal integrity during transmission thus resulting in crystal clear sound quality.. It can be used for home theaters or music listening systems alike because it performs well in both categories. Audiophiles love this cable because of such characteristics; moreover, premium materials were used during production so pricing isn’t an issue here either!

So these are not only the highest-rated, but they also represent different price/performance ratios that will suit any consumer’s needs, depending on what they want out of their speakers!

Frequently Asked Questions About Speaker Wires

What is the ideal gauge speaker wire for different audio applications?

The types of speaker wire to use in an audio system depend on the distance and power requirements in a given audio application:

• For distances up to 50 feet: Most home audio setups will generally be fine using 16 AWG.
• 50-100 feet: Minimized resistance and signal integrity maintained through 14 AWG are suggested.
• For distances over 100 feet, consider using a heavy-duty braided speaker wire cable for enhanced performance. The best gauge for this would be 12 AWG since it still minimizes the chances of losing signals, especially in high-powered systems.

Professionally or high-performance, however, it’s crucial that you pick a gauge that meets your exact power capacity and mileage needs.

How to troubleshoot common speaker cable issues?

Identifying and fixing problems with speaker cables need one to follow a logical procedure. Below are a few steps that can be used:

1. Check Connections: It is important to make sure all connections are tight. If terminals are loose or corroded, you may experience bad audio quality or no sound at all.
2. Inspect the Cable: Look for any physical damage on or along your cable. You should replace the cable if you find any worn-out parts because they can affect conductivity.
3. Test Continuity: You can use a multimeter to check whether there is continuity in the cable or not. In case there is none, it means that somewhere along its length there is a cut which requires replacement of another one.
4. Find Out Sources Of Interfering Signals: Shift electronic gadgets close by that might cause interference. Also ensure that power cords do not run parallel with cables since this will result into noise being introduced into your system.
5. Exchange Cables: When all else fails substitute an apparently faulty cable with another known good cable to see if it’s actually the culprit of these issues or some other component within the audio setup.

Through these actions, it becomes possible for someone to quickly identify common faults associated with speaker wires, hence making necessary corrections, thereby improving sound output quality.

Are there any safety concerns with speaker cables?

When dealing with speaker cables, there are many safety measures that should be taken into consideration in order to protect both the equipment’s integrity and user’s safety. To begin with, it is important to use cable having an appropriate gauge because failure to do so may result into fire outbreaks through overheating of undersized cables. Additionally, overloading the wires with too much power can also be dangerous since it might cause insulation breakdown or even melting.

Moreover, good insulation plays a vital role in preventing short circuits as well as interference which not only degrades audio quality but also poses electric shock risks. For this reason, one should always go for those wires that have excellent insulating materials, particularly when used in places where they will be exposed to moisture or extreme temperatures. Finally, all connections must be tight so that loose connections do not create arcs that can damage connected devices; furthermore, loose connections themselves are risky since they can easily destroy equipment by arcing across them. Users, therefore, need to follow these precautions if they want their sound systems operated safely.

Reference Sources

Speaker wire

Wire

American wire gauge

Frequently Asked Questions (FAQs)

Q: How does a 14-gauge speaker cable differ from a 16-gauge speaker cable?

A: The prime difference between 14 and 16 gauge speaker cables is the thickness. A 14 gauge cable is thicker than a 16 gauge one, hence can carry more current and give better sound quality at longer distances. For short runs, you can use the 16 gauge but for long runs or higher power systems , it is advisable to go for the 14 gauge.

Q: What length should I not exceed with a 16-gauge speaker cable to avoid losing sound quality?

A: Normally, you want to keep your runs under fifty feet if using a sixteen-gauge speaker wire so that you don’t hear any audible differences in quality. Above this distance, it would be better to use thicker wiring like fourteen gauge speaker wires.

Q: Why are gold-plated banana connectors worth considering?

A: Gold plated banana connectors offer improved conductivity as well as decreased signal loss when compared with standard ones. They also have resistance to corrosion thus maintain connection properties longer. This is especially useful for audiophiles who want their music always to retain its original high quality.

Q: What are some reasons why I might want premium heavy-duty braided speaker wire?

A: One of the main features of premium heavy duty braided speaker wire is its durability and flexibility which allows it not tangle easily or break. It also provides superior electromagnetic interference shielding which improves total audio output.

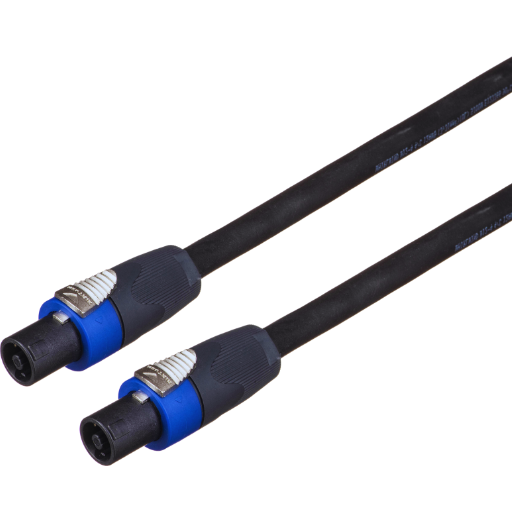

Q: What is the speakon-to-speakon connector, and where do we use it?

A: Speakon-to-Speakon connector refers to an audio jack mostly used in professional audio setups; they are ideal for connecting high-quality cables between speakers. It offers security through a locking mechanism that makes it suitable for high-power scenarios such as amplifiers and big speakers being involved.

Q: Can I get away with using a 100 ft speaker cable without losing sound quality?

A: However, depending on the gauge of the cable, like if it is a 16 gauge, you may experience some loss of sound quality when using an extended speaker cable such as a 100ft one. For such long distances, thicker cables, such as 12 gauge or 14 gauge, are recommended to maintain optimal sound quality.

Q: What is meant by direct burial speaker cable?

A: Direct Burial Speaker Cable refers to wiring that can be buried in the ground without conduit. It is built tough for its intended use, which explains why it’s so popular for outdoor audio installations where there are no wire-hiding options or expensive outdoor speakers.

Q: How do I make sure that my speaker cables have the correct polarity?

A: To check for correct polarity on your amp and speakers just ensure that the positive (red) and negative (black) terminals are matched properly. Incorrectly wired speakers can lead to phase issues and bad sound quality. Many speaker cables also come with insulation markings or stripes indicating their polarity.

Q: Why should I choose copper speaker wire?

A: Copper Speaker Wire has very good conductivity, which makes it excellent for transmitting audio signals effectively. Most audiophiles and professional installers prefer this material because of its balance between performance and cost especially taking into account free shipping availability.

Q: Are all 14 gauge pure copper speaker cables equal?

A: The difference may lie in the manufacturing process, purity of copper and other features like insulation as well as shielding despite similar electrical properties in all 14 gauge pure copper speaker cables. Always look out for known brands’ products and read reviews to ensure that you do not end up buying fake ones.
