Unlocking the Power of Solar: Essential Guide to Solar Cable and Accessories

Unlocking the Power of Solar: Essential Guide to Solar Cable and Accessories
Unlocking the Power of Solar: Essential Guide to Solar Cable and Accessories
Facebook
Twitter
Reddit
LinkedIn

Because the call for renewable energy is still increasing, solar power has become the most suitable answer among others in terms of sustainability and efficiency. There are different parts of using solar energy that makes sure everything works properly and safely. The aim of this manual is to give an extensive explanation on important components with emphasis laid on solar cables and accessories. With knowledge about these parts, one can be able to design, set up and keep up a solar powered system. We shall look at types of solar cables; their specifications as well as different accessories meant for ensuring best performance possible. This guide is necessary for any person who wants to tap into all available solar energy whether they are do-it-yourself enthusiasts or professional installers.

Choosing the Right Solar Cable for Your Photovoltaic System

Choosing the Right Solar Cable for Your Photovoltaic System

Determining the Best Gauge and Type for Maximum Efficiency

Choosing the correct gauge and type of solar cable is an important step in maximizing the efficiency and safety of your photovoltaic system. The thickness or gauge of a cable should be selected on the basis of current (amperage) it needs to carry as well as the total distance from solar panels to an inverter. Thicker cables (lower gauge numbers) can handle higher currents and reduce voltage drop over long distances, which ensures that power is delivered at maximum capacity. PV wire is a commonly used type that has robust insulation suitable for outdoor use and resistance against UV radiation while USE-2 wire is frequently employed in residential systems due to its compatibility with other components and cost-effectiveness. Properly sizing these wires prevents energy losses and malfunctions thus improving overall performance reliability of solar energy systems.

Understanding UL Listing & 600V Rating in Solar Cables

The UL listing is an important certification that shows a solar cable has been tested thoroughly to meet specific safety standards. This certification guarantees that this cable can withstand environmental factors such as heat, coldness dampness encountered during installation under sun rays etc., not forgetting electrical pressures experienced within these setups. Installers who choose UL-listed cables can therefore trust their quality performance durability which saves on meeting regulations while cutting down liability risks.

The 600 volts rating shows how much continuous voltage can flow through a particular solar panel’s wiring without causing any problems like short circuits fires etc., it matches with most common output voltages produced by many solar power generating systems today. Insulation materials used along these lines must be strong enough so they do not allow electricity escape hence creating faults shorts or other hazards when handling such high potentials.

Technical Parameters:

  • Maximum Voltage: 600V
  • Insulation Material: Typically cross-linked polyethylene (XLPE) or equivalent having excellent thermal properties also able prevent damage from ultra violet rays.
  • Temperature Rating: Usually between -40°C to 90°C depending on insulation used.
  • Flame Retardance: Must meet standards set for more protection against flames.

Ensuring that your solar cables meet these technical parameters is important because they determine how efficient safe and long-lasting your photovoltaic system will be. It therefore gives you peace of mind knowing that all this investment in solar energy has been protected while remaining useful for many years to come.

PV Wire vs Solar Cable – What’s Different?

Comparing PV wire with solar cable requires one to know each type’s unique features applications so as not make any mistakes during installation when selecting them for specific areas within a given setup designed towards harnessing sun power.

PV Wire:

  • Voltage Rating: Usually up to 1000V or 2000V hence can be utilized where higher voltages are involved.
  • Insulation: Made from cross linked polyethylene (XLPE) among other materials which provide good thermal resistance against moisture UV rays etc.
  • Temperature Rating: Works well from -40°C to 90°C without losing its efficiency.
  • Flame Retardance: Complies with strict requirements on fire safety measures taken during manufacture installation use etc., such as being self-extinguishing after removing direct flame source
  • Durability: Designed endure harsh conditions like exposure sunlight ozone weather etc., altogether making it strong enough withstand different environmental factors encountered in photovoltaic module interconnections wiring array systems.
  • Usage: It is mainly used when connecting one panel to another or connecting several panels together to form an array that produces the desired amount of electricity required by a user at a given time.

Solar Cable:

  • Voltage Rating: Maximum voltage rating usually does not exceed 600V thus suitable for most installations where lower voltage levels prevail
  • Insulation: Often employs cross linked polyethylene (XLPE) or similar materials offering excellent thermal properties exposure against UV light etc., damages
  • Temperature Rating: Specifically designed to operate within range of -40°C up until ninety degrees centigrade
  • Flame Retardance: Should meet relevant flame retardant standards to ensure safety precautions are met.
  • Durability: Also built withstand environmental stresses though generally offers less voltage capacity compared to PV wire.
  • Use: It is frequently employed in the connection of solar panels with volt inverters, charge controllers and other important components found in low-voltage systems.

In a nutshell, PV wire and solar cable are both provided with strong insulation materials, temperature ratings as well as resistance to flames but they only vary in terms of voltage rating and areas where each is best suited for use. PV wire can be used in higher voltage installations due to its ability to flexibly connect photovoltaic modules while still being durable; on the other hand, solar cables are designed for safe connections between different parts of a solar power system operating at lower voltages.

Connecting Your Solar Panels: A Guide to Solar PV Connectors and Terminals

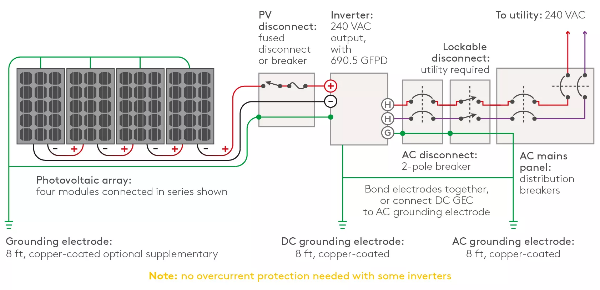

Connecting Your Solar Panels: A Guide to Solar PV Connectors and Terminals
Connecting Your Solar Panels: A Guide to Solar PV Connectors and Terminals
images source: https://www.essentracomponents.com/

How to Choose the Right Connector for Your Solar Cable

What do I look for when selecting a connector for my solar cable? To make sure they will work together smoothly, I concentrate on several things which are listed below: compatibility, efficiency and safety assurance. First off, the type of cable needs to be identified – whether it’s a PV wire or solar cable – because they have different voltage ratings and usage specifications. The next step is current rating consideration in terms of system voltage; this ensures that connectors won’t get heated up due to overloading them with too much electric power. So also I ensure compliance with industry standards by using MC4 connectors widely known for their reliability as well safety requirements. In addition to these features, environmental resistance can be checked through UV resistance and waterproof ability tests which should enable them withstand various weather conditions.Finally among other things ease installation factor coupled with secure locking mechanism against accidental disconnection would make me prefer one connector over another.The above criteria allow me choose appropriate connecting devices suitable in my solar energy generation system.

The Significance of Terminals in Securing Solar Panel Connections

To secure connections between panels terminals are used which act as stable points where electrical conductors can be attached firmly.Terminals offer a low-resistance path for electrical current thus minimizing power loss within any given photovoltaic (PV) array thereby increasing its efficiency greatly.A properly crimped terminal prevents loose connection that may result into arcing along with overheating hence causing fire outbreaks.Moreover corrosion protection properties coupled with environmental resistance provided by terminals tend to increase durability while enhancing reliability levels in any given renewable energy generation system.By ensuring strong connections through proper use of terminals one contributes significantly towards overall performance as well safety aspects associated with these systems.

DIY Tips: Crimping and Fastening Solar PV Cables & Connectors

When crimping down on some solar PV cables & connectors there’re certain steps you ought to follow if at all you need a reliable connection. Here are its brief tips:

  • Selecting Tools: You’ll require high-quality crimping tools designed for specific types of connectors used in solar panels. Ensure that your tool can apply the right amount of force without damaging the connectors.
  • Preparing Cables: Carefully strip off insulation from the ends of cables without cutting or breaking any strands; the recommended stripping length is usually between 5mm and 7 mm, depending on the connector type.
  • Crimping Process: Insert the stripped part into the connector barrel, then compress using the appropriate crimper; ensure tightness so that the cable doesn’t move inside it. A well-crimped joint should have the industry minimum pull-out strength (e.g., MC4 connectors—50N).
  • Inspection: Look at crimped area visually checking for gaps, uneven compression etc., if available use gauge to check correctness.
  • Environmental Protection: Use heat shrink tubing with an adhesive liner where necessary, or use connectors that already have built-in waterproof sealing against moisture attack during outdoor installation activities.
  • Fastening Technique: Affix U.V resistant zip ties round cables once they’ve been routed firmly secure them place this ensures that no mechanical stress is exerted onto these wires .
  • Standards Compliance: Adhere to relevant electrical safety standards such as NEC or IEC when carrying out installations

Follow these instructions and see if everything fits to have dependable and long-lasting connections in your solar power system, which will improve its overall performance and lifespan.

Maximizing Solar Power with the Correct Cable Accessories

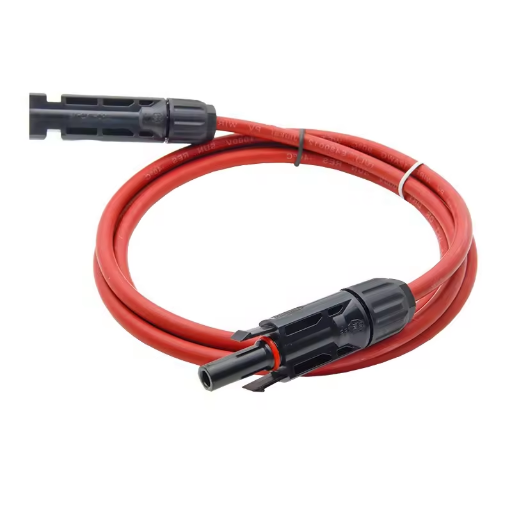

Maximizing Solar Power with the Correct Cable Accessories

Tips to Select the Right Accessories for Efficient Power Transmission

To have efficient power transmission in solar systems, it is important to choose the correct cable accessories. Below are some of the best considerations according to top sources:

  • Type and Size of Cables: Use cables made specifically for solar installations which are often PV-rated cables. Ensure that you comply with current-carrying capacity requirements when choosing cable sizes; undersized cables can cause power loss and overheating.
  • Connectors and Junction Boxes: Employ durable connectors like MC4 connectors known for their secure connections over time. Junction boxes rated adequately will help organize connections besides giving extra protection against weather elements.
  • Protection Devices: Incorporate fuses and surge protectors as protection devices into the system. These help in preventing equipment damage and efficiency reduction through guarding against overcurrent conditions and transient voltage spikes.

Performance and safety of your solar power system can be greatly improved by choosing these components wisely.

Heat Shrink vs Crimp: Solar Cable Management Best Practices

Heat shrink tubing and crimp connectors are two widely used methods when it comes to cable management in solar power systems, each having its own benefits based on application & technical requirements.

Heat Shrink Tubing

This type provides insulation, protection, as well as strain relief for cable connections – particularly useful in environments exposed to moisture, dust or mechanical stress among others. Some key points include:

  • Material: Heat shrink tubing is commonly made from polyolefin which offers good thermal stability plus resistance against environmental factors.
  • Shrink Ratio: Various shrink ratios exist such as 2:1, 3:1 & 4:1 indicating how much diameter reduction should occur when heated (shrunk).
  • Operating Temperature Range: Most heat shrink operates within -55°C to 135°C effectively.
  • Dielectric Strength: It determines ability of this material to insulate electrical connections usually measured in volts per millimeter (V/mm).

Crimp Connectors

These ensure reliable termination of cables by mechanically deforming connector onto wire. To make a good crimp:

  • Tool Quality: Use proper crimping tools designed for specific connector type so as to achieve secure & gas tight connection.
  • Connector Type: Go for photovoltaic rated connectors e.g., MC4 which have strong and long-lasting connections.
  • Crimping Force: There should be enough force applied during crimping process such that stable electrical bond is created without damaging the wire itself.
  • Inspection: Carry out post-crimp inspection involving both visual and pull testing aimed at verifying connection integrity.

Best Practice Recommendations

  • Application Suitability: Heat shrink tubing is ideal when it comes to environmental protection coupled with strain relief while crimp connectors are better suited for reliable electrical terminations.
  • Technical Justification: If high dielectric strength plus environmental protection are required then heat shrink should be chosen; on the other hand, if strong mechanical/electrical connection points especially at junctions need to be realized then go for crimps.

By understanding your solar power system’s specific needs and selecting between heat shrink or crimp methods based on these considerations, you can optimize cable management thereby improving performance and durability.

Navigating the World of Solar Cable Connectors and Accessories

When working with solar cable connectors and accessories, it is important to prioritize functionality as well as reliability. For example, we have to choose the right connectors and tools for making connections that can be trusted over time. The main reasons why MC4 connectors are highly recommended for use in photovoltaic systems include their strong weatherproof design which guards against moisture penetration among other things and compatibility with nearly all types of solar panels.

Similarly, it is imperative that one invests in good quality crimping tools designed specifically for these types of connectors so as to achieve an air tight electrical joint. Additionally, using heat shrink tubing provides extra protection from environmental factors such as heat or cold while acting as a stress relief device too. By carrying out visual inspections plus mechanical pull tests on post-crimp connections termination integrity can be determined thereby enhancing overall reliability of the whole system.

To sum up everything; you should know what your power needs are when dealing with solar energy systems then select either crimping method or heat shrinking based on technical requirements which will enable better management cables leading into improved performance along with durability.

Calculating the Cost: Price Considerations for Solar Cables and Accessories

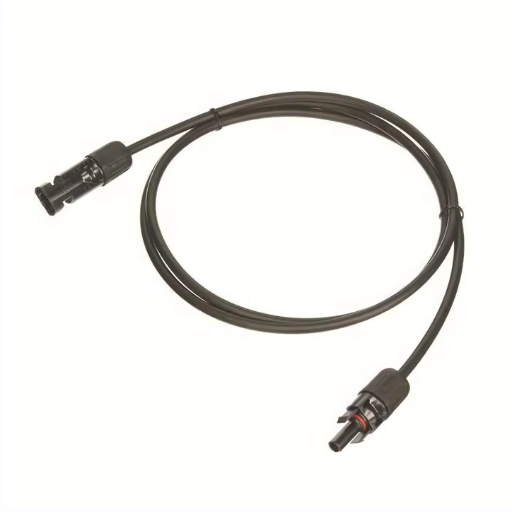

Calculating the Cost: Price Considerations for Solar Cables and Accessories

How to Calculate Solar Cable Costs for Your Project

To calculate the cost of solar cables for your project, you need to know what factors affect their prices. Start by knowing which cables are required in terms of type and numbers for your particular setup that include both DC and AC cabling. The length of cable needed will directly impact the cost since longer lengths are more expensive than shorter ones. Also, price is influenced by quality as well as specifications such as insulation rating, temperature tolerance or UV resistance among others.

Secondly consider connectors’ costs together with junction boxes’ prices plus any other accessory necessary to complete an installation. For example; robust junction boxes might be costly at first but they contribute towards long term reliability and reduced maintenance costs while MC4 connectors are known for their high quality standards.

In labor charges do not forget to include those incurred during installation process because this ensures proper connections are made while adhering safety measures however it varies depending on region where work is done and complexity involved in doing so.

Finally think about extra expenses like shipping fee , taxes imposed by different countries or even possible permits required under local rules/regulations . By considering all these elements one can come up with a more accurate estimate on total solar cable cost for a given project.

Guide To Shopping For Solar Cables And Accessories

Here are some tips that will help you when shopping around for solar cables and accessories:

  • 1) Compare Suppliers – Go online visit different sellers compare their prices against each other. Some common sites include Amazon Home Depot among others who may also have specialized equipment meant specifically for use in generating electricity through sunlight thus leading competitiveness pricing wise .You can also consider whether there are bulk discounts offered if purchasing large quantities.
  • 2) Quality Certification – always make sure whatever cable or accessory used has been certified according to industry standards e.g UL listings which not only ensures safety but saves money over time since one doesn’t have to keep on replacing faulty items.
  • 3) Sales And Promotions – Always be on the lookout for sales periods such as Black Friday, Cyber Monday or even end of season clearance where significant price cuts may be made by sellers dealing with solar equipment. You can also sign up to receive newsletters from different suppliers so that you are aware when they have exclusive promotions which may come with discounted codes provided through emails.
  • 4) Total Cost Including Shipping – When comparing prices don’t just look at the cost of buying it also consider if there will be any additional charges like shipping especially if ordering from overseas. Some sellers offer free delivery for orders above certain amount so this should factor in too during decision making process .

In summary, by following these tips one is able to get good quality solar cables and other related accessories needed for installation purposes at affordable prices.

Understanding Factors That Affect Prices: AWG Lengths And Types Of Solar Cables

When considering what factors affect pricing for solar cables three major ones should never be ignored; American Wire Gauge (AWG), length required as well as different types available in market.

  • American Wire Gauge: This refers to how thick or thin a wire is i.e its diameter size .The rule here is simple; lower AWG numbers mean larger diameters which can handle more current hence expensive because they use lots of conductive material while higher ones are less expensive due to less usage of it.
  • Length: The overall cost of a cable is directly proportional to its length. Longer cables require more materials and manufacturing efforts, making them expensive. Therefore, when planning your solar installation, ensure you measure the necessary cable length correctly to avoid unnecessary costs.
  • Types of Solar Cables: There are different types of solar cables which include single core or twin-core among others. These cables also have various insulations designed for durability and resistance against harsh weather conditions. For example, UV resistant or fire retardant cables are generally more expensive due to safety measures taken during their production process as well as the fact that they can last longer.
  • Knowing these essentials – AWG (American Wire Gauge), Length and Types – will enable you to make well-founded purchases decisions which are both cost-effective and appropriate for your specific solar power system needs.

Solar Cable Specifications: What to Look for Before You Buy

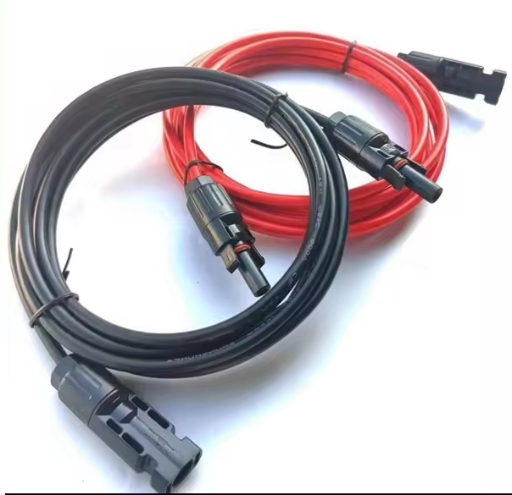

Solar Cable Specifications: What to Look for Before You Buy

Decoding Cable Specifications: AWG, UL Rating, and 600V Significance

  • AWG (American Wire Gauge): As stated before, AWG is a standardized gauging system for wire that shows the diameter of the conductive material. When selecting solar cables, it is important to remember that the lower the AWG number is then this means thicker wires are being used which can carry more current making them ideal for high power applications.
  • UL Rating: The UL (Underwriters Laboratories) rating indicates whether or not a cable complies with safety standards as well as performance ones. Solar cables with UL certification have undergone rigorous testing so that they meet strict quality requirements, thus ensuring reliability and safe use in solar installations.
  • 600V Significance: The 600V marking on a solar cable indicates its ability to withstand up to 600 volts of electricity without any problems. This rating determines whether or not this particular wire will be suitable for residential or commercial solar systems because it must be able to handle higher voltage levels typically found in such installations without degrading or breaking down.

These specifications – AWG, UL rating, and 600V significance – should be taken into account when choosing your solar cables since they will help you fulfill both technical requirements of your system and safety standards too.

The Importance of UV Resistance and Direct Burial Ratings in Solar PV Wires

  • UV Resistance: Since solar PV wires are frequently exposed to sunlight over extended periods, they need good UV resistance properties that will protect their integrity against ultraviolet radiation damage. This means if non-resistant wires are left out under direct sunlight for long hours then eventually their insulation material will start deteriorating due to exposure to UV light causing cracking which leads to loss of its insulating abilities thereby creating dangerous conditions. On top of keeping physical features unchanged throughout time even after being exposed continuously under these conditions while still providing reliable electricity transmission within photovoltaic installations.
  • Direct Burial Ratings: Direct burial rated cables are those designed to be installed underground without requiring additional conduit protection. They can withstand various environmental factors such as moisture, soil acidity, compression among others. When a wire has direct burial rating it implies that the insulation around it is strong enough so as not to degrade easily even when exposed directly into earth thus ensuring long-term performance and safety of any solar PV system. Choosing appropriate wires having this particular rating reduces installation costs plus lowers maintenance needs hence contributing towards overall efficiency together with dependability of solar energy setup.

Why the Jacket Type and Insulation Matter in Solar Cabling

  • Jacket Type: The jacket type acts like an outermost shield against mechanical, chemical, and natural impacts that may affect a solar cable. It protects inner conductors from being damaged mechanically or exposed to harsh weather conditions such as abrasion due to windblown particles hitting them repeatedly over time under extreme temperatures or any other environmental factor which could weaken their strength. The choice of jacketing material used should therefore match with where it will be installed so that its life span can be extended besides reliability enhancement; for instance jackets made out of cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) possess excellent resistance against UV rays hence capable of surviving outdoor situations involving moisture content variations caused by rainfall followed by dry spells accompanied by temperature changes.
  • Insulation: This part ensures there is no electrical leakage between conductors thereby preventing short circuits from happening while still maintaining integrity within these cables themselves electrically speaking too. For this reason thermal stability combined with good dielectric properties becomes necessary for insulation materials used around wires connecting solar panels since they have to handle high voltages generated by them under different weather conditions where quality matters most. One should therefore go for ethylene propylene rubber (EPR) or XLPE made insulations due to their effectiveness in transmitting energy safely over long distances without losing much power through heat dissipation apart from being long lasting. Proper insulation also helps in adequately isolating conductors so as to minimize risks associated with electrical faults or fire outbreaks thereby enhancing safety levels within photovoltaic systems

Installation Tips for Solar Cables: Ensuring Safety and Efficiency

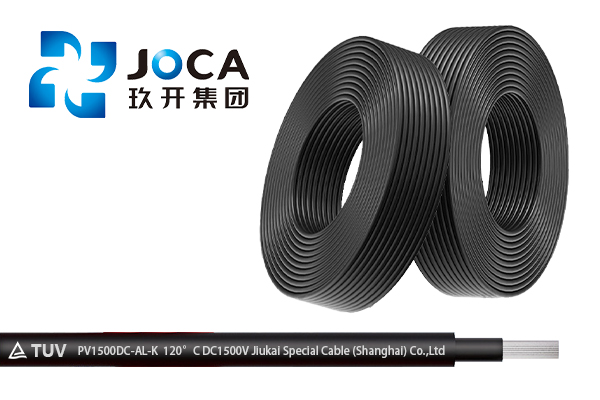

Installation Tips for Solar Cables: Ensuring Safety and Efficiency

Solar PV Cables: The Best Way to Install and Route Them

  • Right-sizing the Cable: Using a cable with an appropriate size is necessary to minimize power wastage and prevent overheating. The size of the cable depends on the voltage, current, and distance between the solar panels and inverter. For instance, residential solar PV systems may require cables ranging from 2.5 mm² to 10 mm² based on these values. Accurate calculations are necessary for meeting National Electrical Code (NEC) requirements as well as local regulations.
  • Connectors of High Quality: Reliability and efficiency can be improved within a system by using high-quality connectors such as MC4 types. These connectors ought to have high levels of protection against environmental conditions (e.g., dust-proof rating IP67) and should withstand voltage/current ratings specified by the solar system.
  • Correct Cable Fixing: Fastening UV-resistant cable ties or clamps around cables prevents them from hanging losely or coming into contact with sharp edges which could lead to mechanical stress or abrasion over time . NEC recommends that they should be supported not more than 4.5 feet apart (1.4 meters).
  • Space Apart & Ventilate Well: Overcrowding cables together may cause them to overheat therefore reducing their efficiency due to this fact enough space should be left between each other so as heat dissipation takes place accordingly . Especially in congested areas having many solar arrays close next each other proper ventilation around wires is required for maintaining optimum operating temperatures .
  • Routing Appropriately: Establishing paths where wires are exposed less or protected most against damage; will ensure safety during installation process . This means routing away from areas experiencing mechanical stresses, extreme temperatures or direct sun rays if possible.Underground conduits can also be used but may increase cost.
  • Inspect Regularly & Perform Maintenance Duties : Carry out regular inspection exercises coupled with maintenance practices aimed at keeping both conductors plus connecting elements in good shape. Keep an eye for signs such as insulation wear, connector corrosion or loose contacts and act promptly by replacing affected parts if need be so as not to compromise system performance.

The implementation of these tips greatly improves safety while at the same time increasing efficiency levels thus making solar PV installation more reliable.

Essential Tools Required For Installing Solar Cables

  • Wire Stripper: A tool used mainly for removing insulations without damaging conductive cores within cables.
  • Cable Cutter : Used when cutting cables should be done cleanly and smoothly leaving no frayed ends behind .
  • Crimping Tool: Essential for creating strong electrical connections between cables through connectors which are resistant against both wear tear as well corrosion over time .
  • Multimeter : Used to measure voltage,current,resistance hence can verify whether all electrical parameters have been setup correctly besides ensuring that overall connection is properly made.
  • Measuring Tape : Accurate measurements are needed so as to achieve correct lengths spacings of wires thereby avoiding slackness or excessive tension along cable routes.
  • Cable Tie / Clamp : These are necessary for binding together different sections of a wire thus preventing sagging and facilitating proper management of cables .
  • Conduit /Raceway : Offers protection especially where mechanical stress may be experienced by a particular part or portion of the wire due its exposure under certain environmental elements .
  • Heat Shrink Tubing: Provides extra insulation at connection points while enhancing their mechanical strengths against moisture dust particles.
  • Wrong Cable Choice: When selecting cables, it is important to choose the correct type and size. This can result in inefficiencies as well as increasing the risk of failure. Make sure your cords are rated for a particular voltage and current required by your system.
  • Unsuitable Cable Routing: The way you plan to run wires may lead to excessive bending or stress on them due to poor routing design. Take note that this damages cables faster than any other mistake we have discussed here thus far. Ensure that such situations are avoided by planning carefully where these lines should go so that recommended bending radii can still be maintained without exceeding them at sharp corners which would otherwise break these conductors altogether.
  • Lack Of Proper Shielding: Failure To Protect From Uv Rays Moisture And External Factors Like Physical Impact Can Cause Wear And Tear On Wires Before Their Time Is Up Too. Use suitable channels or ducts that will act as shields against all forms of potential damage from outside the wire e.g., rainwater (moisture), sunlight (UV) among others.
  • Weak Joint Construction: Poor Quality Crimp Joints Often Create Resistance Which Leads To Losses In Power Or Even Short Circuit Conditions Where Insulation Breaks Down Completely Resulting In Fires If Overlooked Over Long Periods Of Time While Conductivity Will Be Severely Affected As Corrosion Takes Its Toll On These Connections Too So regularly inspect joints for strength against corrosion while ensuring proper crimping techniques are used during installation.
  • Testing Insufficiency: Not Testing Enough Could Mean More Faulty Connections Than Expected; Multimeters Must Be Employed For Verification Purposes Since They Show Whether An Electrical Connection Exists Between Two Points Along A Circuit As Well Highlight Any Abnormalities Identified During Measurements Such Open Circuits Shorts Etc Until You Are Sure Everything Has Been Tested Thoroughly

Reference sources

1. Renewable Energy World – The Importance of Proper Solar Cables and Connectors

Source Type: Online Article
Summary: This article from Renewable Energy World delves into the critical role proper solar cables and connectors play in maintaining the efficiency and safety of solar power systems. It discusses different types of cables and connectors, their specifications, and best practices for installation and maintenance. This source is highly credible due to its detailed analysis and coverage of industry standards, making it valuable for both newcomers and seasoned professionals in the solar energy field.

2. IEEE Xplore – Performance Assessment of Solar Cable Designs and Materials

Source Type: Academic Journal
Summary: Published in IEEE Xplore, this scholarly article provides an in-depth performance assessment of various solar cable designs and materials. The study examines the durability, conductivity, and overall efficiency of different cable types used in solar installations. This source is particularly relevant for researchers and technical experts seeking empirical data and scientific analysis on solar cable performance.

3. Solar Cable and Connector Solutions by Phoenix Contact

Source Type: Manufacturer Website
Summary: Phoenix Contact offers a comprehensive overview of their solar cable and connector solutions. This resource includes product specifications, application guides, and case studies demonstrating the effectiveness of their products in various solar energy projects. The detailed technical information and practical insights provided make it an invaluable resource for installers and engineers looking for reliable solar accessories.

These sources span various media formats and provide a balanced and thorough understanding of solar cables and accessories, making them excellent references for readers interested in enhancing their knowledge and application of solar technologies.

Frequently Asked Questions (FAQs)

Frequently Asked Questions (FAQs)

Q: What should I consider when choosing solar power cables?

A: When selecting cables for solar power, it is important to note that they must be resistant to UV (sunlight) rays. They should also pass a test for flame resistance and be suitable in both wet or dry conditions. If the cables are going to be buried underground without any conduit, then they need to be rated for direct burial. Opt for flexible stranded copper conductor wires which are easy to install. The other thing is that these wires must work with both grounded as well as ungrounded systems thereby making them usable across different configurations of solar installations.

Q: What does red indicate about electrical wiring used with solar energy?

A: In electrical wiring, including those used in solar panel installation, red is commonly employed to show positive polarity. This identification ensures proper connection between various parts of the system hence enhancing safety measures put in place during installation of such devices. They make these particular types of cables resistant to sunlight and use them mainly so as to distinguish easily between positive and negative lines, thus reducing the chances of electrical accidents while ensuring strong connections throughout the whole system.

Q: How quickly can you connect or disconnect a solar cable connector?

A: Amphenol’s line of solar cable connectors allows users fast, secure coupling without any special tool requirements, which means one can connect or disconnect them rapidly. This greatly reduces time spent installing them and provides for easy maintenance, hence being efficient for use in Photovoltaic systems, where this feature may save a significant amount of hours during the setup process.

Q: What size wire gauge is typically used in PV panel installs?

A: The 10-gauge photovoltaic wire or larger is usually recommended due to its ability to balance size vs current capacity required to be safe enough without generating excess heat but still providing adequate amounts needed by most residential setups. Commercial establishments too can benefit from these; therefore, you must know specific needs before settling on particular type.

Q: Can you describe the significance of solar panels connectors in a solar system?

A: Solar panels’ connectors are very important as they ensure the secure connection of solar panels both with each other and with the inverter or controller of the system, thus enabling efficient transfer of energy. These connectors should be extremely strong so that they can withstand all forms of environmental abuse, including UV exposure, rain, and temperature changes, among others. They should also have tight-fitting connections, minimizing resistance and preventing power loss.

Q: Are there cables for solar panels and accessories for residential as well as commercial applications available?

A: Yes, there are different types of cables meant for solar panels together with their accessories which suit various applications including those found in homes or offices. These elements come in varying sizes, ratings and features depending on specific needs required by different set ups ranging from small rooftops installations to large scale ground mounted arrays commonly referred to as solar farms. It is important to choose right size and type of cable plus accessory if needed so that your system may function efficiently over its lifetime.

Q: How do these resist environmental abuse?

A: There are many ways through which they resist it, which include being able to withstand bad weather conditions such as hot sun or heavy storms, etcetera. For instance, Some have been made highly resistant to ultraviolet rays while still others are flame test compliant plus rated direct burial on top of being wet dry conditions rated too. All these features enable them to survive under extreme climatic variations like high temperatures, rainfalls, or even contact with soils without compromising safety standards.

Q: What is the role played by cables & accessories used in photovoltaic systems ?

A: Cables and their corresponding accessories form an integral part of any PV system since this ensures electricity flows safely from panel to inverter and then into the home/ electrical grid. These components can handle unique conditions associated with the generation of electricity sun, light resistance requirement, and ability to cope with varying power levels, which are necessary for harnessing solar energy. Without good quality cables and accessories, the performance efficiency may not be achieved as expected, leading to loss of power and failure in operation of a solar plant.
