H03VV-F
300/300V PVC Insulated Flexible Cable

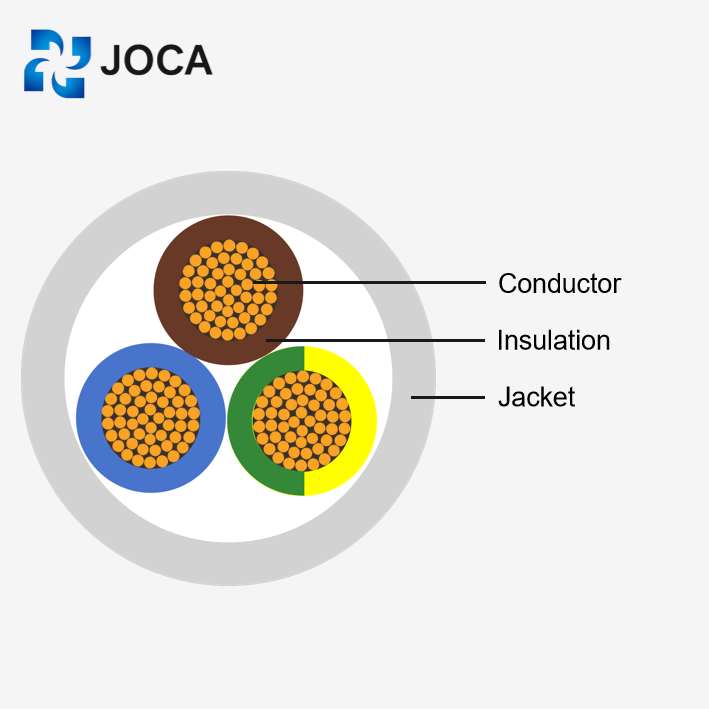

Conductor: Stranded bare copper or tinned copper (in accordance with VDE 0281 Part 5, HD21.5S3, IEC 227-5).
Insulation: PVC / TM2 PVC (in accordance with DIN VDE 0281).
Jacket Material: PVC / TM2 PVC.
Color Identification: In accordance with HD 402 Standard.
Rated Voltage: 300/300V
Test Voltage: 2000V (in accordance with DIN VDE 0281 Part 2, HD21.2)
Temperature Range:
Fixed Installation: -20°C to +70°C
Movable Installation: -5°C to +70°C
Minimum Bending Radius:
Fixed Installation: 5 × D (Cable Outer Diameter)
Movable Installation: 8 × D (Cable Outer Diameter)
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
H03VV-F : Product Description and Specifications
Designated as Type H03VV-F (Light PVC Sheathed Cord), this specification features Class 5 Fine Stranded Copper conductors rated for 300/300V. Engineered for applications with low mechanical stress, such as portable domestic appliances, light office equipment, and luminaires. Compliance conforms to DIN VDE 0281-5 and IEC 60227-5.Designated as Type H03VV-F (Light PVC Sheathed Cord), this specification features Class 5 Fine Stranded Copper conductors rated for 300/300V. Engineered for applications with low mechanical stress, such as portable domestic appliances, light office equipment, and luminaires. Compliance conforms to DIN VDE 0281-5 and IEC 60227-5.
-
Advantages
H03VV-F : Benefits and Features
Key Features: Super fine conductor design ensures flexibility for small bending angles; durable against certain external mechanical forces.
Flame Retardant: Complies with CEI 20-35 (EN60332-1).
Approvals: RoHS, CE.
Reference Standards: <HAR> HD21.5, VDE 0281, CEI 20-20/5, CEI 20-52, CE Low Voltage Directive (73/23/EEC & 93/68/EEC).
Dimensions/Parameters
| Model | Specification | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| H03VV-F | 2x0.5 | 5.0 | 37.88 |
| H03VV-F | 3x0.5 | 5.3 | 44.76 |
| H03VV-F | 4x0.5 | 5.8 | 53.83 |
| H03VV-F | 2x0.75 | 5.4 | 46.22 |
| H03VV-F | 3x0.75 | 5.7 | 55.43 |
| H03VV-F | 4x0.75 | 6.3 | 67.23 |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Permitted Applications?
A: Light Duty Indoor Use.
Scope: Portable domestic appliances with low mechanical stress.
Examples: Desk lamps (Luminaires), radios, shavers, office machines.
Restriction: Not suitable for outdoor use, heating appliances, or industrial power tools.
Q: Voltage Rating?
A: 300/300V.
Rated Voltage: 300/300V (Light Duty).
Test Voltage: 2000V (DIN VDE 0281-2).
Q: Standards & Compliance?
A: Harmonized (HAR).
Spec: DIN VDE 0281-5 / IEC 60227-5.
Compounds: PVC Insulation (TI 2) and Sheath (TM 2).
Compliance: CE LVD 2014/35/EU & RoHS.
Q:Temperature Limits?
A: PVC Standard.
Fixed: -20°C to +70°C.
Flexing: -5°C to +70°C.
Max Conductor Temp: +70°C.
Q: H03VV-F (Light) vs. H05VV-F (Medium)?
A: Mechanical Stress & OD.
H03VV-F (300/300V): Light Stress. Thinner insulation/sheath. Smaller Outer Diameter for aesthetics (e.g., lamps). Limited to max 0.75mm².
H05VV-F (300/500V): Medium Stress. Thicker walls. More robust. Suitable for washing machines and refrigerators.
Q: Available Sizes?
A: Small Gauge Only.
Range: 0.5mm² and 0.75mm².
Cores: 2, 3, or 4 cores.
Note: Sizes ≥ 1.0mm² are not covered by the H03 standard (must be H05).
Q:Bending Radius?
A: High Flexibility.
Fixed: 5 x OD.
Flexing: 8 x OD.
Q : Materials?
A: VDE Compliant.
Conductor: Class 5 Stranded Copper (Bare/Tinned).
Sheath: Flexible PVC Compound TM 2 (Soft handling).
