H03VVH2-F
300/300V Flexible Flat PVC Power Cable

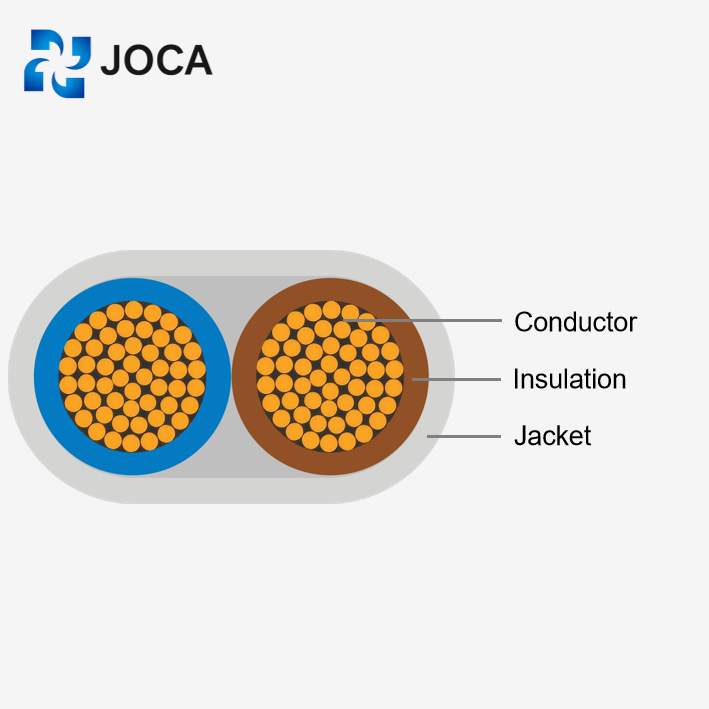

Conductor: Stranded bare copper or tinned copper (in accordance with VDE 0281 Part 5, HD21.5S3, IEC 227-5).
Insulation: PVC / TI2 PVC (in accordance with DIN VDE 0281).
Color Identification: In accordance with HD 402 Standard.
Jacket Material: PVC / TM2 PVC.
Rated Voltage: 300/300V
Test Voltage: 2000V (in accordance with DIN VDE 0281 Part 2 HD21.2)
Min. Bending Radius:
Fixed Installation: 5 × D (Cable OD)
Movable Installation: 8 × D (Cable OD)
Temperature Range:
Fixed Installation: -20℃ to +70℃
Movable Installation: -5℃ to +70℃
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
H03VVH2-F: Product Description and Specifications

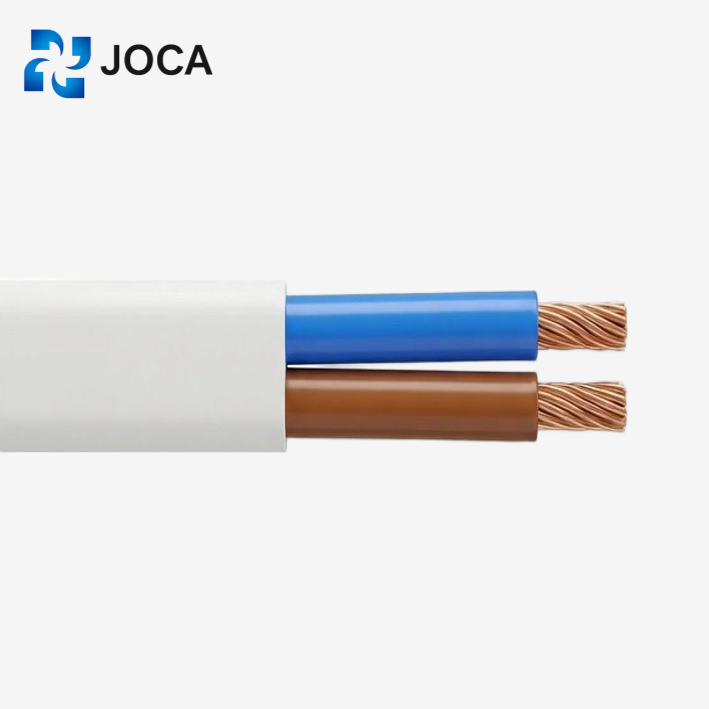

Designated as Type H03VVH2-F (Flat PVC Sheathed Cord), this specification features Class 5 Fine Stranded Copper conductors arranged in a parallel flat configuration. Rated for 300/300V, the low-profile assembly is engineered for light-duty portable appliances where cable routing space is restricted (e.g., passing through narrow feed-throughs in luminaires). Compliance conforms to DIN VDE 0281-5 and IEC 60227-5.
-
Advantages
H03VVH2-F : Benefits and Features
Flat / Oval Profile Features a parallel core configuration with a reduced height dimension. Ideal for routing under carpets, behind furniture, or through narrow entry slots in lighting fixtures.
Light Mechanical Duty Designed strictly for low mechanical stress applications (radios, clocks, shavers). (Note: Not suitable for heating appliances or outdoor use).
300/300V Rating Specified for light domestic voltage loads (Small Appliances).
Class 5 Flexibility Fine stranded copper structure ensures high flexibility for handheld devices and movable cords.
Dimensions/Parameters
| Model | Specification | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| H03VVH2-F | 2x0.5 | 3.4*5.6 | 29.01 |
| H03VVH2-F | 2x0.75 | 3.6*6.0 | 35.65 |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Permitted Applications?
A: Light Duty Indoor Use (Flat).
Scope: Portable domestic appliances with low mechanical stress.
Examples: Luminaires (Table lamps), radios, shavers, clocks.
Feature: Oval/Flat profile allows routing through narrow feed-throughs in lighting fixtures.
Restriction: Not suitable for heating appliances, outdoor use, or industrial power tools.
Q: Voltage Rating?
A: 300/300V.
Rated Voltage: 300/300V (Light Duty).
Test Voltage: 2000V (DIN VDE 0281-2). (Note: Limited to small cross-sections, typically 0.5mm² and 0.75mm²).
Q:Why use H03VVH2-F (Flat) instead of Round?
A: Space Saving.
Profile: Parallel flat (oval) configuration. Reduces the overall height dimension.
Benefit: Ideal for routing under carpets, behind furniture, or entering narrow connector slots where round cables are too bulky.
Q:Temperature Limits?
A: PVC Standard.
Fixed: -20°C to +70°C.
Flexing: -5°C to +70°C.
Max Conductor Temp: +70°C.
Q:Insulation & Sheath Material?
A: VDE Compounds.
Insulation: PVC Type TI 2.
Sheath: PVC Type TM 2.
Standard: Compliant with DIN VDE 0281-1.
Q: Standards & Certification?
A: Harmonized (HAR).
Spec: DIN VDE 0281-5 / HD 21.5 S3 / IEC 60227-5.
Compliance: CE (LVD 2014/35/EU) & RoHS 3.
Q: Minimum Bending Radius?
A: Flat Cable Spec.
Fixed: 5 x Thickness (Minor Axis).
Flexing: 8 x Thickness (Minor Axis).
Q : Outdoor Suitability?
A: No. Standard PVC sheath is Non-UV resistant. Exposure to sunlight causes embrittlement. Strictly for dry indoor environments.
