H05V-K
300/500V Flexible PVC Insulated Single Core Cable

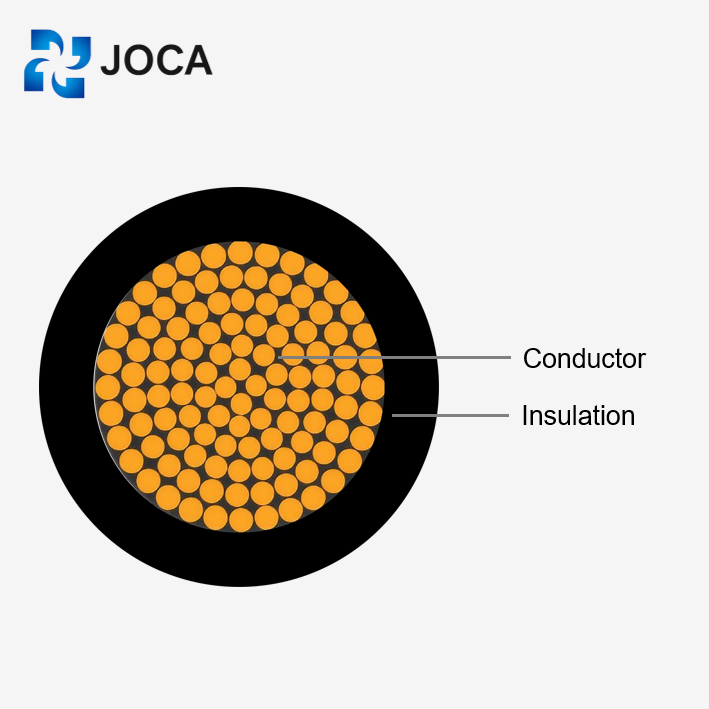

Conductor: Stranded bare copper or tinned copper in accordance with IEC 60228, VDE 0295 class 5 standard.
Insulation: PVC/TI1 in accordance with DIN VDE 0281 Part 1, HD21.1.
Color Identification: In accordance with HD 402 Standard.
Application Standard: HD 21.3 S3, VDE-0281 Part-3, CE Low Voltage Directive, 73/23/EEC and 93/68/EEC.
- Rated Voltage: 300/500v
- Test Voltage: 2000V,in accordance with DIN VDE 0281Part 2 HD21.2
- Min.bending Radius
- Fixed Installation: 12D( Cable OD)
- Movable Instalation: 16D(Cable OD)
- Temperature Range
- Fixed Installation: -20°C To +70°C
- Movable Installation: -5°C To +70°C
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
H05V-K : Product Description and Specifications
Designated as Type H05V-K (Harmonized Flexible Cord), this specification features a Class 5 Fine Stranded Copper conductor insulated with PVC (Type TI 1). The flexible construction facilitates installation in confined spaces with tight bending radii, such as telecommunication distribution frames and signal relay cabinets. Compliance conforms to DIN VDE 0281-3 and HD 21.3, rated for 300/500V.
-
Advantages
H05V-K: Benefits and Features
High Flexibility: The Class 5 stranded conductor allows for easy bending and installation in complex layouts.
Global Compliance: Fully complies with EU standards, ensuring safety and performance.
Certified Quality: RoHS and CE certified for environmental safety and market access.
Durable Insulation: High-quality PVC/TI1 insulation provides resistance to varying operating temperatures.
Dimensions/Parameters
| Model | Specification (mm²) | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| H05V-K | 0.5 | 2.1 | 8.5 |
| H05V-K | 0.75 | 2.3 | 11.2 |
| H05V-K | 1.0 | 2.4 | 13.6 |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Applications?
A: Internal Switchgear Wiring.
Scope: Wiring of control panels, distribution boards, and instrument assemblies.
Feature: Ideal for bridging hinged doors or vibrating components due to high flexibility.
Telecom: Suitable for signal patching in telecommunication frames.
Q: Voltage Rating (H05V-K)?
A: 300/500V.
Test Voltage: 2000V AC (5 mins).
Note: For higher voltage requirements (450/750V), specify H07V-K.
Q:Conductor Flexibility?
A: Class 5 Fine Stranded.
Standard: IEC 60228 / VDE 0295 Class 5.
Advantage: Facilitates routing in tight trunking and allows termination with bootlace ferrules (cord end terminals).
Q:Temperature Limits?
A: Operational Range.
Fixed Installation: -30°C to +70°C.
Flexing (Installation): -5°C to +70°C.
Short Circuit: Max +160°C (up to 5 sec).
Q: Standards & Compliance?
A: Harmonized (HAR).
Specification: DIN VDE 0281-3 / HD 21.3 S3.
Material: RoHS 3 (EU 2015/863) & REACH compliant.
Marking: CE Certified (LVD 2014/35/EU).
Q: What is the maximum operating temperature for this cable?
Minimum Bending Radius? (原: What is the minimum bending radius…) A: DIN VDE 0298-3 Spec:
Fixed Installation: 12D( Cable OD)
Movable Instalation: 16D(Cable OD)
Q: Insulation Material?
A: PVC Type TI 1.
Grade: Thermoplastic PVC compound TI 1 according to EN 50363-3.
Properties: Self-extinguishing and flame retardant (IEC 60332-1-2).
Q : Earthing / Grounding Use?
A: Protective Earth (PE).
Color Code: Green/Yellow (GNYE).
Compliance: Strictly follows HD 308 S2 for protective conductor identification.
