H05V-U
CE Certified 300/500V Solid Copper PVC Installation Wire
Conductor: Solid single core, bare or tinned copper (Class 1, IEC 60228, VDE 0295).
Insulation: PVC/TI1 (DIN VDE 0281 Part 1, HD21.1).
Rated Voltage: 300/500V.
Test Voltage: 2000V.
Temperature Range: Fixed installation -20°C to +70°C.
- Min.bending RadiusFixed Installation: 12D(Cable OD)
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
H05V-U: Product Description and Specifications
Designated as Type H05V-U (Harmonized Code), this specification features a Class 1 Solid Copper conductor insulated with PVC. The rigid single-core construction offers excellent form retention, simplifying wire management within compact switchgear and control panels. Compliance conforms to DIN VDE 0281-3 and IEC 60227, rated for 300/500V fixed protected installations.
-
Advantages
H05V-U : Benefits and Features

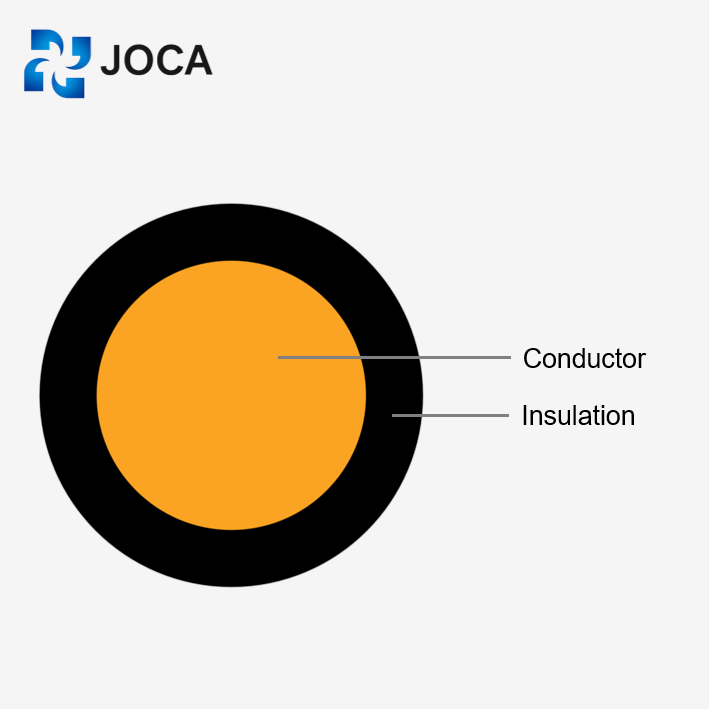

Class 1 Solid Conductor Single solid annealed copper wire (IEC 60228 Class 1). The rigid structure offers superior form retention, keeping wiring neat and straight inside distribution boards without sagging.
PVC Type TI 1 Insulation Insulated with PVC Compound Type TI 1 (according to EN 50363-3). Formulated for easy stripping and direct insertion into push-in terminals (Wago-style) without ferrules.
Harmonized Compliance Manufactured to DIN VDE 0281-3 and HD 21.3 standards. CE marked under the current Low Voltage Directive 2014/35/EU and RoHS compliant.
Fixed Installation Rating Rated for continuous operation at 70°C. Suitable for static, protected installation in lighting fixtures and control gear (300/500V).
Dimensions/Parameters
| Model | Nominal Cross Section (mm²) | Approx. Outer Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| H05V-U | 0.5 | 2.0 | 8.4 |
| H05V-U | 0.75 | 2.2 | 11.0 |
| H05V-U | 1.0 | 2.3 | 13.6 |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Applications?
A: Internal Equipment Wiring.
Scope: Fixed protected installation inside lighting fixtures, switchgear, and control gear.
Method: Surface mounted or embedded conduits.
Q: H05V-U (Solid) vs. H05V-K (Flexible)?
A: Conductor Class & Rigidity.
H05V-U: Class 1 Solid Copper. Rigid. Best for “Push-in” terminals and precise form retention in cabinets.
H05V-K: Class 5 Stranded Copper. Flexible. Best for vibration environments or tight corners.
Q: Meaning of "U" designation?
A: Solid Conductor. Under the CENELEC HD 361 harmonized code:
-U: Solid conductor (Class 1).
-R: Stranded rigid conductor (Class 2).
-K: Fine stranded flexible conductor (Class 5).
Q: Minimum Bending Radius?
A: Fixed Installation:
Standard: 12D
Q: Outdoor Suitability?
A: No. Standard PVC insulation is not UV-stabilized. Exposure leads to embrittlement. Indoor/Conduit use only.
Q: Voltage Rating & Size Limitation?
A: 300/500V.
Applicable Sizes: Typically 0.5mm² / 0.75mm² / 1.0mm².
Note: For sizes ≥ 1.5mm² (450/750V), please select H07V-U.
Q: Temperature Limits?
A: Operational Range.
Fixed installation: -20°C to +70°C.
Installation (Laying): +5°C to +70°C.
Q : Certification (CE/RoHS)?
A: EU Compliant.
LVD: Complies with Directive 2014/35/EU (Low Voltage).
RoHS: Complies with Directive 2011/65/EU.
Standard: DIN VDE 0281-3 / HD 21.3.
