H05VV-F
300/500V Flexible PVC Multi-core Power Cable
Rated Voltage: 300/500V

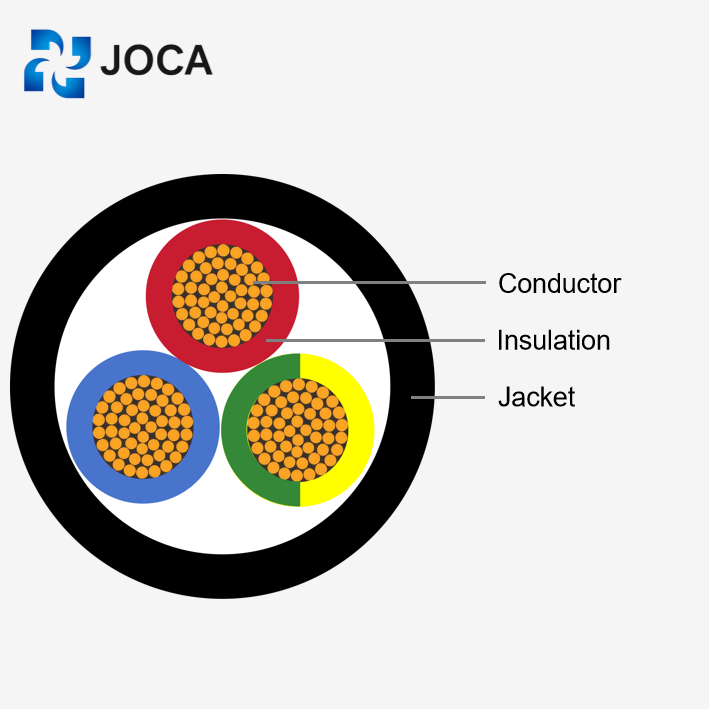

Conductor: Stranded bare copper or tinned copper (Class 5 flexible)
Insulation & Jacket: PVC (Polyvinyl Chloride)
Temperature Range: -20°C to +70°C (Fixed installation); -5°C to +70°C (Movable)
Standards: VDE 0281, IEC 227-5, HD21.5
- Test Voltage: 2000V (HD21.2 in accordance with DIN VDE 0281 Part 2)
- Min. Bending Radius
Fixed: 5 × D (Cable OD)
Movable: 8 × D (Cable OD)
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
H05VV-F : Product Description and Specifications
Designated as Type H05VV-F (Medium PVC Sheathed Cord), this specification features Class 5 Fine Stranded Copper conductors rated for 300/500V. Engineered for applications with medium mechanical stress, typically found in household appliances (e.g., washing machines, refrigerators) and office equipment. Compliance conforms to DIN VDE 0281-5 and IEC 60227-5
-
Advantages
H05VV-F : Benefits and Features
Features: Ultrafine conductor, soft, small bending angle Able to bear external mechanical forces In accordance with EU coordination standard
Conformity Approval: RoHS CE
Dimensions/Parameters
| Model | Specification | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| H05VV-F | 2×0.75 | 6.2 | 57.37 |
| H05VV-F | 3×0.75 | 6.6 | 67.67 |
| H05VV-F | 4×0.75 | 7.2 | 81.23 |
| H05VV-F | 5×0.75 | 8.0 | 102.43 |
| H05VV-F | 2×1.0 | 6.4 | 65.16 |
| H05VV-F | 3×1.0 | 6.8 | 77.62 |
| H05VV-F | 4×1.0 | 7.6 | 98.72 |
| H05VV-F | 5×1.0 | 8.3 | 118.34 |
| H05VV-F | 2×1.5 | 7.4 | 86.83 |
| H05VV-F | 3×1.5 | 8.0 | 108.22 |
| H05VV-F | 4×1.5 | 9.0 | 137.28 |
| H05VV-F | 5×1.5 | 10.0 | 169.56 |
| H05VV-F | 2×2.5 | 9.0 | 132.38 |
| H05VV-F | 3×2.5 | 9.7 | 164.77 |
| H05VV-F | 4×2.5 | 10.6 | 202.93 |
| H05VV-F | 5×2.5 | 11.9 | 251.02 |
| H05VV-F | 2×4.0 | 10.4 | 180.68 |
| H05VV-F | 3×4.0 | 11.2 | 226.99 |
| H05VV-F | 4×4.0 | 12.3 | 281.88 |
| H05VV-F | 5×4.0 | 13.9 | 354.65 |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Product Designation?
A: Harmonized Code (HAR).
H05: 300/500V (Mains Voltage).
V: PVC Insulation.
V: PVC Sheath.
-F: Flexible Copper Class 5.
Q: Permitted Applications?
A: Medium Mechanical Stress.
Scope: Household appliances (Washing machines, Refrigerators, Spin dryers).
Environment: Suitable for damp interiors (kitchens/bathrooms).
Restriction: Not suitable for outdoor use or industrial automation (drag chains).
Q: H05VV-F (Medium) vs. H03VV-F (Light)?
A: Mechanical Stress & OD.
H05VV-F: Medium Duty (300/500V). Thicker sheath. Resistant to abrasion from appliance movement.
H03VV-F: Light Duty (300/300V). Thin profile. Only for stationary light appliances (Lamps/Radios).
Q:Outdoor Suitability?
A: No. Standard PVC sheath is Non-UV resistant. Exposure to direct sunlight causes embrittlement. Strictly for indoor use.
Q: Temperature Limits?
A: VDE 0281 Spec.
Fixed: -20°C to +70°C.
Flexing: -5°C to +70°C.
Short Circuit: +160°C (Max 5s).
Q: Conductor Material?
A: Class 5 Annealed Copper.
Standard: IEC 60228 Class 5.
Options: Plain Copper (Standard) or Tinned Copper (Corrosion resistant).
Q: Bending Radius?
A: Standard Flexibility.
Fixed: 5 x OD.
Flexing: 8 x OD. (Note: Compliant with DIN VDE 0298-3).
Q :Standards & Compliance?
A: EU Harmonized.
Spec: DIN VDE 0281-5 / IEC 60227-5.
Marking: CE (LVD 2014/35/EU).
Material: RoHS 3 Compliant.
