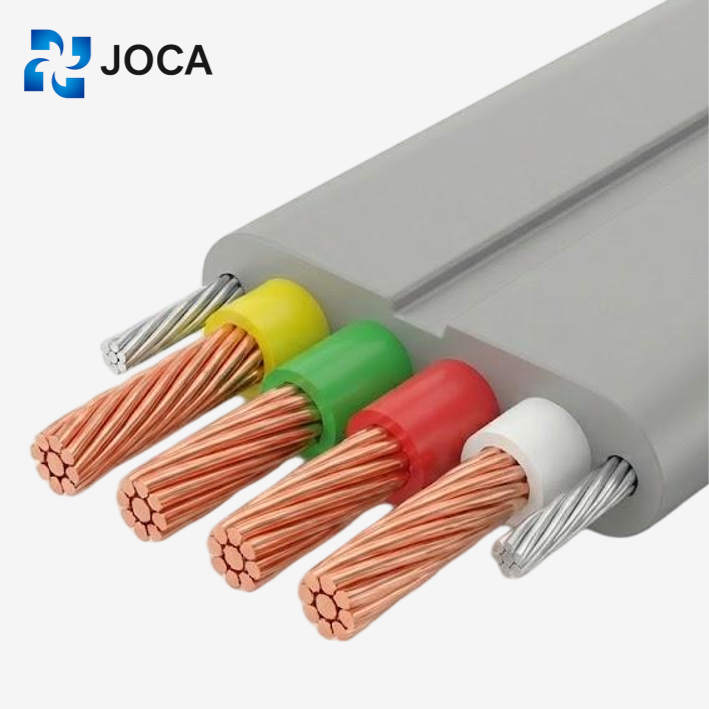

TVVBG Flat PVC Sheath Reinforced elevator cable
PVC Insulated Flexible Suspension Cable with Steel Rope Core
Conductor: Meets GB 3956 Class 5 standard.
Insulation: PVC/D type.
Reinforcement: Steel rope core (meets YB/T 5196 standard).
Sheath: PVC/ST5 (Black or Gray RAL7001).
Standards: GB/T 5023.6, IEC 60227-6, EN 50214.
Rated Voltage: 300/500V (for conductor cross-section <= 1mm²).
Temperature Range: -15°C to +70°C.
Min. Bending Radius: 6 times the cable’s smaller side.
Test Voltage:
300/500V (thickness <= 0.6mm): 1500V / Finished product: 2000V.
450/750V (thickness > 0.6mm): 2500V / Finished product: 2500V.
Safety Tests: Passed Static Torsion (GB/T 5023.2) and Flame Retardant (GB/T 18380) tests.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
TVVBG : Product Description and Specifications
Designated as Type TVVBG (Steel-Reinforced Flat Cable), this specification integrates dual galvanized steel strain relief members positioned laterally parallel to the cores. Engineered for high-rise vertical suspension, the reinforced design enables unsupported hanging lengths up to 80m at speeds of 4 m/s, preventing conductor elongation under tensile load.
-
Advantages
TVVBG : Benefits and Features
Integrated Steel Strain Relief Features dual galvanized steel wire ropes embedded within the sheath. Absorbs tensile stress to prevent copper conductor elongation (stretching) during rapid acceleration.
80m Suspension Height Reinforced construction allows for unsupported vertical suspension up to 80 meters, significantly exceeding the 35m limit of non-reinforced cables.
High-Speed Stability (4 m/s) Aerodynamic flat profile combined with high tensile strength enables stable operation at travel speeds up to 4 m/s without vibration or “whipping”.
Flat Anti-Torsion Design Parallel configuration prevents torsional twisting (corkscrewing) in the elevator shaft, ensuring smooth stacking in the cable trough.
Dimensions/Parameters
| Number and nom.cross-section of conductors (mm²) | Average max. OD (mm) | Cable approximate weight (kg/km) | Core Lining |
|---|---|---|---|
| 3×0.75 | 15.0±1×4.6±0.2 | 111.5 | Linear |
| 3×1.0 | 16.5±1×4.8±0.2 | 162 | Linear |
| 4×0.75 | 19.2±1×4.6±0.2 | 158 | Linear |
| 4×1.0 | 20±1×4.8±0.2 | 195.6 | Linear |
| 5×0.75 | 22.6±1×4.6±0.2 | 184 | Linear |
| 5×1.0 | 23.6±1×4.8±0.2 | 224 | Linear |
| 6×0.75 | 23.9±1×4.6±0.2 | 198 | Linear |
| 6×1.0 | 25.1±1×4.8±0.2 | 243 | Linear |
| 9×0.75 | 32±1×4.6±0.2 | 264 | Linear |
| 9×1.0 | 33.8±1×4.8±0.2 | 330 | Linear |
| 12×0.75 | 39±1×4.6±0.2 | 324 | Linear |
| 12×1.0 | 41.4±1×4.8±0.2 | 413 | Linear |
| 16×0.75 | 50.1±1×4.6±0.2 | 418 | Linear |
| 16×1.0 | 53.3±1×4.8±0.2 | 530 | Linear |
| 18×0.75 | 55.8±1×4.6±0.2 | 462.4 | Linear |
| 18×1.0 | 59.4±1×4.8±0.2 | 593.6 | Linear |
| 20×0.75 | 60.5±1×4.6±0.2 | 504 | Linear |
| 20×1.0 | 64.5±1×4.8±0.2 | 645.1 | Linear |
| 24×0.75 | 70.9±1×4.6±0.2 | 590.3 | Linear |
| 24×1.0 | 75.7±1×4.8±0.2 | 758.5 | Linear |
| 24×0.75 | 34.1±1×9.45±0.2 | 566.3 | Circular |
| 24×1.0 | 46.9±1×10.5±0.2 | 877.5 | Circular |
| 30×0.75 | 47±1×7.8±0.2 | 750 | Circular |
| 30×1.0 | 57±1×9.8±0.2 | 1034 | Circular |
| 36×0.75 | 51±1×8.4±0.2 | 878.1 | Circular |
| 36×1.0 | 61.6±1×10.6±0.2 | 1210.4 | Circular |
| 40×0.75 | 58±1×7.8±0.2 | 934 | Circular |
| 40×1.0 | 70.8±1×9.8±0.2 | 1289.6 | Circular |
| 42×0.75 | 57±1×8.4±0.2 | 1018 | Circular |
| 42×1.0 | 70.3±1×10.5±0.2 | 1288.2 | Circular |
| 48×0.75 | 64±1×8.4±0.2 | 1125 | Circular |
| 48×1.0 | 77.9±1×10.5±0.2 | 1555.7 | Circular |
| 60×0.75 | 76.5±1.5×8.6±0.2 | 1320.6 | Circular |
| 60×1.0 | 93.2±1×10.5±0.2 | 1861.2 | Circular |
| 36×0.75+1×1.5 | 52.2±1×9.2±0.2 | 923.7 | Circular |
| 42×0.75+1×1.5 | 57±1×10.5±0.2 | 1135 | Circular |
| 60×0.75+1×1.5 | 79±1×9.2±0.2 | 1429.2 | Circular |
-
Production Processes Of Elevator Cable
Our production relies on state-of-the-art manufacturing equipment to ensure exceptional flex-life and dynamic performance. The process integrates precision fine copper stranding with advanced flexible compound extrusion for maximum bendability. During the critical cabling stage, we implement specialized anti-twist core arrangement and steel-member integration for high-rise applications. Throughout production, strict quality controls—including online spark testing and continuous tension monitoring—are applied to every meter. This rigorous workflow guarantees our traveling cables meet stringent EN, IEC, and GB standards for safe vertical transport.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application?
A: High-Rise Suspension.
Scope: Vertical suspension for elevators, lifters, and gantry cranes.
Feature: The defining feature is the Integrated Steel Rope Core, designed to support the cable’s own weight in high-rise installations.
Q: Speed & Length Limits?
A: 4 m/s & 80m.
Speed: Rated for moving speeds up to 4 m/s (High Speed).
Suspension: Supports a free-hanging length of up to 80 meters (unsupported).
Q:Structure: What does "G" stand for?
A: Steel Reinforcement (Gang).
Definition: The “G” indicates Galvanized Steel Wire Ropes (Standard YB/T 5196) embedded laterally.
Function: Unlike standard flat cables, these strain relief members absorb tensile stress, preventing conductor elongation or breakage during vertical acceleration.
Q:Core Configuration (Lining)?
A: Parallel vs. Flower Pattern.
Parallel (Linear): Cores laid side-by-side. Best for low core counts (3-24 cores) to maintain a thin profile.
Flower Pattern (Twisted): Cores twisted in groups (Meihua). Standard for high core counts (24-60 cores) to reduce width and ensure structural stability.
Q: Voltage & Temperature?
A: 300/500V & Cold Flex.
Voltage: 300/500V (≤ 1.0mm²).
Temp: -15°C to +70°C.
Cold Test: Sheath passes standard cold impact/bending tests at -15°C without cracking.
Q: Is Shielding Available?
A: EMC Protection Option.
Standard: TVVBG is unshielded.
Option: TVVBPG (Shielded Version) features Tinned Copper Braiding to protect sensitive control signals from electromagnetic interference (EMI).
Q: Standards & Testing?
A: Triple Compliance.
Standards: GB/T 5023.6, IEC 60227-6, and EN 50214.
Tests: Passed GB/T 18380 (Flame Retardant) and Static Torsion Tests (Anti-Twist).
Q : Core Identification?
A: GB/T 5023 Standard.
≤ 5 Cores: Color Coded (GB/T 5023.1).
> 5 Cores: Black with White Numbering for easy circuit tracing.
