TVVBPG

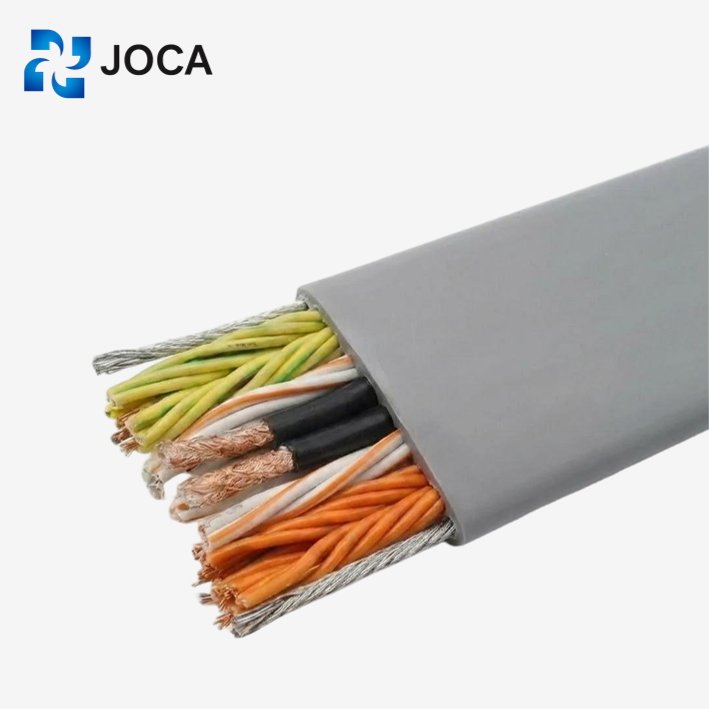

Shielded Elevator Traveling Cable with Steel Rope Reinforcement
Conductor: Flexible stranded copper conductor, Class 5 (according to GB/T 3956 standard).
Insulation: Special PVC compound (Type PVC/D).
Shielding: Braided screen made of bare or tinned (electroplated) copper wire.
Reinforcement (Strain Relief): Dual steel wire ropes (according to YB/T 5196 standard).
Outer Sheath: Special cold-resistant PVC compound (Type ST5).
Sheath Color: Black or Gray (RAL 7001).
Reference Standards: GB/T 5023.6 / IEC 60227-6, EN 50214.
Rated Voltage: 300/500V
Max. Travel Speed: 4 m/s
Max. Hanging Length: 80 m
Insulation/Sheath: Special PVC (Type PVC/D and PVC/ST5)
Minimum Bending Radius: 6 x cable thickness (smaller side)
Core Identification: Color coded (<= 5 cores) or Number coded (> 5 cores)
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
TVVBPG: Product Description and Specifications
Designated as Type TVVBPG (Shielded & Reinforced), this premium specification integrates Dual Galvanized Steel Strain Relief Members with a High-Density Tinned Copper Braid Shield. Engineered for mid-to-high-rise installations, it simultaneously prevents conductor elongation under vertical load and ensures signal integrity in EMI-critical environments (e.g., shafts with heavy VFD noise).
-
Advantages
TVVBPG : Benefits and Features
Reinforced Suspension (YB/T 5196) Integrated Dual Galvanized Steel Ropes (compliant with YB/T 5196) absorb tensile loads, allowing for unsupported free-hanging lengths up to 80m without conductor elongation.
EMC High-Density Shielding Features a Tinned Copper Braid (>85% optical coverage) to block EMI from VFDs (Inverters). Ensures signal integrity for CCTV and data in electrically noisy shafts.
Cold & Flame Resistant Specialized PVC/ST5 compound remains flexible at -15°C (Cold Impact Test passed) and meets IEC 60332-1 / GB/T 18380 flame retardant standards.
High Flex Life Class 5 fine stranded copper combined with a flat anti-torsion profile withstands constant bending cycles and prevents “corkscrewing” in high-speed applications.
Dimensions/Parameters
| Number and Nom. Cross-Section (mm2) | Average Max. OD (mm) | Approx. Weight (kg/km) | Core Lining |
|---|---|---|---|
| 24x0.75 | 53.3 x 9.0 | 1024 | Circular (Flower Pattern) |
| 30x0.75 | 61.3 x 8.3 | 1119 | Circular (Flower Pattern) |
| 36x0.75 | 65.0 x 9.0 | 1252 | Circular (Flower Pattern) |
| 40x0.75 | 72.4 x 8.3 | 1298 | Circular (Flower Pattern) |
| 42x0.75 | 72.2 x 9.0 | 1392 | Circular (Flower Pattern) |
| 48x0.75 | 78.3 x 9.0 | 1499 | Circular (Flower Pattern) |
| 54x0.75 | 84.5 x 9.0 | 1606 | Circular (Flower Pattern) |
| 60x0.75 | 90.6 x 9.0 | 1714 | Circular (Flower Pattern) |
| 66x0.75 | 96.8 x 9.0 | 1821 | Circular (Flower Pattern) |
| 24x0.75 + 2x2Px0.75 | 51+/-1 x 8.45+/-0.2 | 760.0 | Circular (Flower Pattern) |
| 30x0.75 + 2x2Px0.75 | 52.0+/-1 x 8.6+/-0.2 | 862.9 | Circular (Flower Pattern) |
| 36x0.75 + 2x2Px0.75 | 61+/-1 x 8.45+/-0.2 | 998.8 | Circular (Flower Pattern) |
| 56x0.75 + 2x2Px0.75 | 80+/-1 x 8.9+/-0.2 | 1108 | Circular (Flower Pattern) |
| 36x1.0 + 2x2Px0.75 | 70+/-1 x 9.5+/-0.2 | 1180 | Circular (Flower Pattern) |
-
Production Processes Of Electrical Cable
Our production relies on state-of-the-art manufacturing equipment to ensure superior cable performance. The process integrates precision copper drawing and annealing with advanced insulation extrusion technology for uniform thickness. Throughout production, strict quality control measures—including online spark testing and automated diameter monitoring—are applied to every meter. This rigorous workflow guarantees that our electrical cables meet stringent IEC and GB standards for residential and industrial use.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Difference between TVVBPG and Standard TVVB?
A: The Ultimate Upgrade.
TVVB: Standard unshielded, no reinforcement.
TVVBPG: Adds “P” (Shielding) and “G” (Steel Reinforcement).
Benefit: It combines the tensile strength of steel ropes (for high-rise) with the EMC protection of copper braiding (for anti-interference). The “All-in-One” solution for complex elevators.
Q: Speed & Suspension Limits?
A: High Performance Specs.
Speed: Rated for high-speed lifts up to 4 m/s.
Suspension: Integrated steel ropes allow for an unsupported free-hanging length of up to 80 meters.
Q: Why is Shielding Critical?
A: VFD Noise Immunity.
Material: Tinned Copper Braid (>85% coverage).
Function: Blocks Electromagnetic Interference (EMI) from VFDs (Inverters). Crucial for ensuring artifact-free CCTV images and error-free data transmission in electrically noisy shafts.
Q:International Standards?
A: Triple Compliance.
Standards: GB/T 5023.6, IEC 60227-6, and EN 50214.
Safety: Meets global safety requirements for lift and hoistway installations.
Q: Operating Temperature?
A: Cold Environment Ready.
Range: -15°C to +70°C.
Tech: Uses PVC/ST5 (Cold-Resistant Compound) to maintain flexibility and prevent cracking in unheated shafts (Cold Impact Test passed at -15°C).
Q: Installation Bending Radius?
A: 6 x Thickness.
Rule: Minimum bending radius ≥ 6 x Cable Thickness (Minor Axis).
Advice: Ensure the cable creates a natural loop. Do not force sharp bends, as this may damage the internal shielding braid.
Q: Core Identification?
A: GB/T 5023 Standard.
≤ 5 Cores: Color Coded (GB/T 5023.1).
> 5 Cores: Black with White Numbering + Green/Yellow Ground (GB/T 5023.1).
Q : Non-Elevator Applications?
A: Industrial Suspension.
Scope: Ideal for Gantry Cranes and Festoon Systems (Trailing) where high tensile strength is needed.
Restriction: Not recommended for Reeling Drums (due to flat profile limitations). Suitable for linear trailing motion only.
