UTP CAT5e 2-Steel Elevator Cable

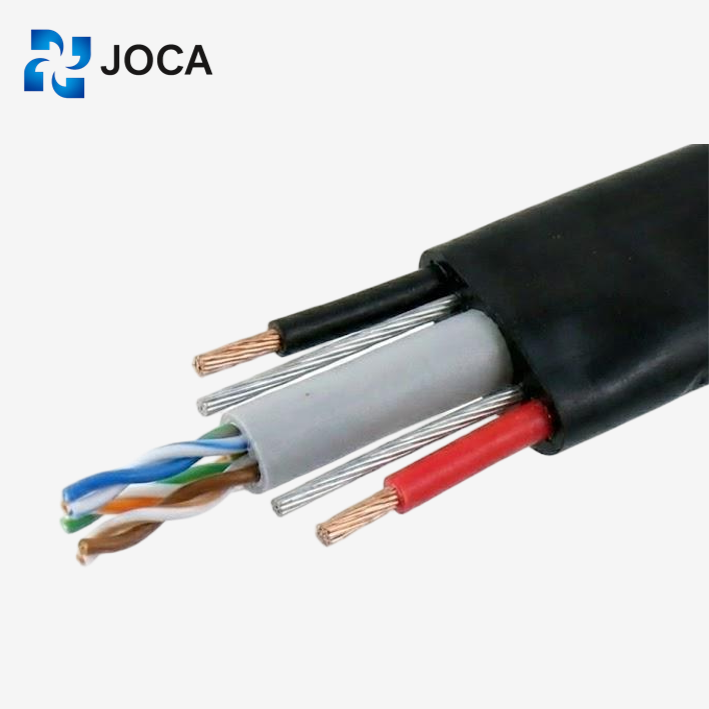

Flat Elevator CCTV Traveling Cable with Steel Wire & CAT5e (Composite Lift Cable)
Conductor: Fine stranded bare copper, complying with GB/IEC Class 5 or Class 6 standards for high flexibility.
Data Core: Category 5e Unshielded Twisted Pair (UTP) for stable network signal transmission.
Power Cores: 2 × 0.75mm² flexible cores for power supply.
Suspension Member: Two parallel steel wires (2G) integrated into the sheath to bear tensile load and prevent cable elongation.
Insulation & Sheath: Special soft PVC compound (ST5) designed for elevator dynamics; resistant to bending, oil, and abrasion.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
UTP CAT5e 2-Steel Elevator Cable : Product Description and Specifications
This composite flat elevator cable combines UTP Cat5e data transmission with 2×0.75mm² power cores in a single, space-saving profile. Reinforced with dual steel wires for high tensile strength, it ensures reliable connectivity for IP cameras and multimedia screens in moving cabins. The specialized PVC sheath provides excellent flexibility and durability in temperatures from -15°C to +70°C.
-
Advantages
UTP CAT5e 2-Steel Elevator Cable : Benefits and Features
Composite Core: UTP Cat5e (Data) + 2×0.75mm² (Power).
Load Bearing: Dual steel wire reinforcement for vertical suspension.
Geometry: Flat shape for smooth travel and reduced bending stress.
Material: Special PVC flexible at -15°C; Oil and Flame resistant.
Application: Ideal for Elevator IP CCTV, Multimedia Displays, and Card Readers.
Dimensions/Parameters
| Parameter | Value |
|---|---|
| Reinforced core | Steel rope, meet YB/T5196 |
| Video Core | bare copper and CCS conductor, low interference 75 Ω coaxial video cable |
| Network cable | bare copper wire flexible conductor, Category5, 5e, Category6, Category7 network cable, unshielded or shielded network cable. |
| Application Standard | Enterprise Standard |
| Rated voltage | Nominal conductor cross section 1mm2 or 1mm2 less cable: 300/500 v |
| Test voltage | rated voltage 300/500V, insulation thickness ≤ 0.6 mm:1500v, Finished cable test voltage: 2000 v |
| Bending radius | Cable laying installation allowed bending radius should not less than 6 times of the cable's smaller side. |
| Temperature range | - 15 to + 70 °C |
| Flame retardant test | Pass GB/T 18380 test |
-
Production Processes Of Elevator Cable
Our production relies on state-of-the-art manufacturing equipment to ensure exceptional flex-life and dynamic performance. The process integrates precision fine copper stranding with advanced flexible compound extrusion for maximum bendability. During the critical cabling stage, we implement specialized anti-twist core arrangement and steel-member integration for high-rise applications. Throughout production, strict quality controls—including online spark testing and continuous tension monitoring—are applied to every meter. This rigorous workflow guarantees our traveling cables meet stringent EN, IEC, and GB standards for safe vertical transport.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Main Application of UTP CAT5e 2-Steel Elevator Cable
A: IP CCTV & Multimedia Solution.
Hybrid Design: Combines Cat5e Data (for Internet/Video) + 2×0.75 Power (for Cameras/Screens) + Dual Steel Ropes (for Suspension).
Benefit: A “One-Cable Solution” for installing IP Cameras or Digital Signage in elevators, eliminating the need to run separate power and network cables.
Q: Max Travel Height & Speed?
A: High-Speed Rated (4 m/s).
Speed: Rated for speeds up to 4 m/s. (Critical Update: Reduced from 10 m/s to the industry standard limit for composite flat cables).
Suspension: Steel reinforcement allows for a free-hanging length of up to 80 meters.
Q:Reinforcement Structure?
A: Dual Steel Suspension.
Code “2-steel”: Indicates Dual Galvanized Steel Wire Ropes embedded laterally.
Function: They bear the tensile load, protecting the fragile Cat5e twisted pairs from stretching or breaking during vertical movement.
Q:Exact Dimensions?
A: Precision Flat Profile.
Size: Approx. 7.6 mm x 18.1 mm.
Tolerance: Thickness ±0.3mm / Width ±0.6mm.
Design: Optimized to fit standard elevator cable clamps and troughs.
Q: Harsh Environment Durability?
A: Oil & Cold Resistant (ST5).
Sheath: ST5 Special PVC.
Range: -15°C to +70°C.
Features: Resistant to elevator shaft grease, moisture, and low-temperature cracking.
Q: Minimum Bending Radius?
A: 6 x Thickness.
Spec: Radius ≥ 6 x 7.6mm (approx. 46mm).
Importance: Respecting this radius is critical to prevent “kinking” the Cat5e pairs, which causes packet loss or video lag.
Q: Shielding Configuration?
A: Standard UTP (Unshielded).
Standard: Uses UTP Cat5e (Unshielded Twisted Pair) for cost-efficiency.
Option: For environments with heavy VFD interference, please request our SFTP model (Shielded Foil Twisted Pair) to ensure stable data transmission.
Q : Compliance & Safety?
A: Data & Safety Compliance.
Data: Cat5e transmission meets TIA/EIA-568-B.
Cable: Conductors meet GB/T 3956 Class 5/6 (Super Flexible).
Safety: Flame retardant according to GB/T 18380.
