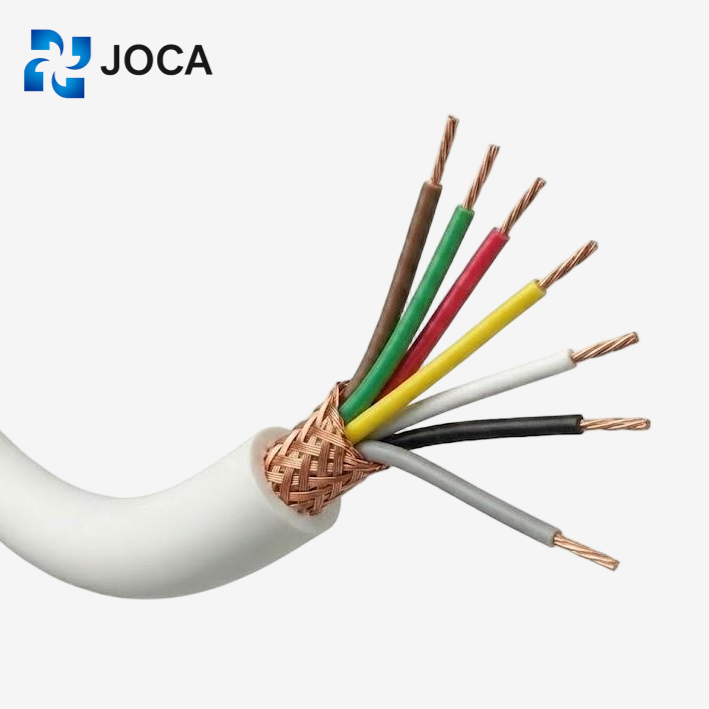

600 CY.P Shielded Flexible Drag Chain Cable
Reliable Flexible Connection: 2 Million Cycles with EMC Protection
Conductor: Fine oxygen-free copper wire, multi-stranded conductor.
Standards: Compliant with DIN VDE 0295 and IEC 60228 Class 5 standards.
Insulation: PVC compound.
Core Identification: Color differentiation or Numbered (Customizable upon request).
Shielding: Braided oxygen-free copper wire.
Outer Jacket (Sheath): Special customized high-strength elastomer compound (PVC based).
Jacket Color: Black, Gray, Orange.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
600 CY.P: Product Description and Specifications
The 600 CY.P is a shielded flexible cable designed for drag chains and automation. Featuring copper braiding for EMC protection and a durable PVC jacket, it offers a service life of over 2 million cycles. Ideal for machine tools, servo drives, and control systems in light oil environments.
-
Advantages
600 CY.P: Benefits and Features
Industrial Machinery: Suitable for mechanical manufacturing, machine tools, and automation production line mobile units.
Automation: Ideal for mechanical automation installation engineering, servo drives, and measurement & control systems.
Environment: Designed for use in light oil pollution environments.
EMC Compliance: Features copper wire shielding compliant with EMC requirements to prevent electromagnetic interference.
Dimensions/Parameters
| Model | No. of Cores x Cross Section (mm²) | Approx. Outer Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| 600 CY.P | 2×0.12 | 4.1 | 21 |
| 600 CY.P | 3×0.12 | 4.3 | 25 |
| 600 CY.P | 4×0.12 | 4.5 | 29 |
| 600 CY.P | 5×0.12 | 5.2 | 34 |
| 600 CY.P | 6×0.12 | 5.5 | 39 |
| 600 CY.P | 7×0.12 | 5.5 | 39 |
| 600 CY.P | 8×0.12 | 6.1 | 45 |
| 600 CY.P | 9×0.12 | 6.6 | 50 |
| 600 CY.P | 10×0.12 | 6.8 | 55 |
| 600 CY.P | 12×0.12 | 7.1 | 60 |
| 600 CY.P | 14×0.12 | 7.5 | 73 |
| 600 CY.P | 16×0.12 | 7.8 | 81 |
| 600 CY.P | 2×0.2 | 4.4 | 28 |
| 600 CY.P | 3×0.2 | 4.5 | 33 |
| 600 CY.P | 4×0.2 | 4.9 | 37 |
| 600 CY.P | 5×0.2 | 5.5 | 43 |
| 600 CY.P | 6×0.2 | 5.9 | 49 |
| 600 CY.P | 7×0.2 | 5.9 | 49 |
| 600 CY.P | 8×0.2 | 6.5 | 59 |
| 600 CY.P | 9×0.2 | 7.1 | 66 |
| 600 CY.P | 10×0.2 | 7.3 | 74 |
| 600 CY.P | 12×0.2 | 7.7 | 83 |
| 600 CY.P | 14×0.2 | 8 | 99 |
| 600 CY.P | 16×0.2 | 8.3 | 110 |
| 600 CY.P | 2×0.3 | 5 | 36 |
| 600 CY.P | 3×0.3 | 5.3 | 41 |
| 600 CY.P | 4×0.3 | 5.8 | 49 |
| 600 CY.P | 5×0.3 | 6.3 | 57 |
| 600 CY.P | 6×0.3 | 6.8 | 65 |
| 600 CY.P | 7×0.3 | 6.8 | 65 |
| 600 CY.P | 8×0.3 | 7.5 | 80 |
| 600 CY.P | 9×0.3 | 8.1 | 96 |
| 600 CY.P | 10×0.3 | 8.5 | 105 |
| 600 CY.P | 12×0.3 | 8.8 | 120 |
| 600 CY.P | 14×0.3 | 9.3 | 135 |
| 600 CY.P | 16×0.3 | 9.7 | 149 |
| 600 CY.P | 2×0.4 | 5.2 | 40 |
| 600 CY.P | 3×0.4 | 5.5 | 46 |
| 600 CY.P | 4×0.4 | 6.3 | 54 |
| 600 CY.P | 5×0.4 | 6.6 | 62 |
| 600 CY.P | 6×0.4 | 7.2 | 75 |
| 600 CY.P | 7×0.4 | 7.2 | 82 |
| 600 CY.P | 8×0.4 | 7.9 | 91 |
| 600 CY.P | 9×0.4 | 8.6 | 110 |
| 600 CY.P | 10×0.4 | 9 | 123 |
| 600 CY.P | 12×0.4 | 9.4 | 137 |
| 600 CY.P | 14×0.4 | 9.8 | 153 |
| 600 CY.P | 16×0.4 | 10.3 | 171 |
| 600 CY.P | 2×0.5 | 5.5 | 44 |
| 600 CY.P | 3×0.5 | 5.7 | 52 |
| 600 CY.P | 4×0.5 | 6.7 | 70 |
| 600 CY.P | 5×0.5 | 7 | 79 |
| 600 CY.P | 6×0.5 | 7.6 | 91 |
| 600 CY.P | 7×0.5 | 7.6 | 97 |
| 600 CY.P | 8×0.5 | 8.3 | 110 |
| 600 CY.P | 9×0.5 | 9.1 | 123 |
| 600 CY.P | 10×0.5 | 9.7 | 138 |
| 600 CY.P | 12×0.5 | 10.3 | 156 |
| 600 CY.P | 14×0.5 | 10.8 | 187 |
| 600 CY.P | 16×0.5 | 11.3 | 211 |
| 600 CY.P | 2×0.75 | 6.6 | 57 |
| 600 CY.P | 3×0.75 | 7 | 75 |
| 600 CY.P | 4×0.75 | 7.6 | 99 |
| 600 CY.P | 5×0.75 | 8.3 | 115 |
| 600 CY.P | 6×0.75 | 8.9 | 134 |
| 600 CY.P | 7×0.75 | 8.9 | 146 |
| 600 CY.P | 8×0.75 | 9.8 | 165 |
| 600 CY.P | 9×0.75 | 10.7 | 186 |
| 600 CY.P | 10×0.75 | 11.4 | 213 |
| 600 CY.P | 12×0.75 | 12.1 | 244 |
| 600 CY.P | 14×0.75 | 12.8 | 287 |
| 600 CY.P | 16×0.75 | 13.6 | 325 |
| 600 CY.P | 2×1.0 | 7 | 62 |
| 600 CY.P | 3×1.0 | 7.4 | 85 |
| 600 CY.P | 4×1.0 | 8.3 | 110 |
| 600 CY.P | 5×1.0 | 8.8 | 125 |
| 600 CY.P | 6×1.0 | 9.7 | 149 |
| 600 CY.P | 7×1.0 | 9.7 | 161 |
| 600 CY.P | 8×1.0 | 10.8 | 182 |
| 600 CY.P | 9×1.0 | 11.8 | 204 |
| 600 CY.P | 10×1.0 | 12.3 | 222 |
| 600 CY.P | 12×1.0 | 12.9 | 254 |
| 600 CY.P | 14×1.0 | 13.6 | 307 |
| 600 CY.P | 16×1.0 | 14.3 | 348 |
| 600 CY.P | 2×1.5 | 7.8 | 84 |
| 600 CY.P | 3×1.5 | 8.6 | 107 |
| 600 CY.P | 4×1.5 | 9.6 | 139 |
| 600 CY.P | 5×1.5 | 10.5 | 165 |
| 600 CY.P | 6×1.5 | 11.3 | 193 |
| 600 CY.P | 7×1.5 | 11.3 | 210 |
| 600 CY.P | 8×1.5 | 12.5 | 237 |
| 600 CY.P | 9×1.5 | 13.5 | 266 |
| 600 CY.P | 10×1.5 | 14.6 | 297 |
| 600 CY.P | 2×2.5 | 9.5 | 126 |
| 600 CY.P | 3×2.5 | 10.3 | 164 |
| 600 CY.P | 4×2.5 | 11.3 | 202 |
| 600 CY.P | 5×2.5 | 12.3 | 243 |
| 600 CY.P | 6×2.5 | 13.4 | 284 |
| 600 CY.P | 7×2.5 | 13.4 | 312 |
| 600 CY.P | 8×2.5 | 14.6 | 361 |
| 600 CY.P | 9×2.5 | 16.1 | 419 |
| 600 CY.P | 10×2.5 | 17.3 | 458 |
| 600 CY.P | 2×4.0 | 10.8 | 209 |
| 600 CY.P | 3×4.0 | 11.5 | 265 |
| 600 CY.P | 4×4.0 | 12.8 | 327 |
| 600 CY.P | 5×4.0 | 14.3 | 387 |
| 600 CY.P | 2×6.0 | 12.1 | 255 |
| 600 CY.P | 3×6.0 | 13 | 339 |
| 600 CY.P | 4×6.0 | 14.3 | 454 |
| 600 CY.P | 5×6.0 | 16.2 | 544 |
-
Production Processes Of Flexible Cable
To ensure superior flexibility and durability, JOCA manufactures high-performance flexible cables using advanced precision extrusion and cabling technology. Specifically, this automated workflow integrates fine copper stranding, precise insulation extrusion, and optimized core bundling to reduce internal stress. In addition, the line applies specialized PVC or TPE insulation and a robust, abrasion-resistant outer sheath to withstand continuous motion and oil environments. Moreover, our quality control team actively conducts drag chain bending cycles and oil resistance tests on every batch. Consequently, this rigorous process guarantees that our cables strictly meet DIN VDE and IEC standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application of 600 CY.P?
A: Standard Duty Shielded Control.
Positioning: A cost-effective shielded flexible cable designed for Automated Manufacturing.
Application: Ideal for Machine Tools, Assembly Lines, and Standard Drag Chains (low-to-medium stress).
Function: Acts as a power and control supply where EMI protection and basic flexibility are required.
Q:EMI Protection Capabilities?
A: Interference Immunity.
Structure: Features a high-coverage Oxygen-Free Copper Braid.
Benefit: Effectively blocks Electromagnetic Interference (EMI) from motors and drives, ensuring signal stability in complex industrial environments (e.g., adjacent to VFDs).
Q: Service Life (Bending Cycles)?
A: 2 Million+ Cycles.
Rating: Engineered for a service life of ≥ 2 Million Bending Cycles under verified test conditions.
Fit: Perfectly sized for standard automation equipment that operates intermittently or at moderate speeds, offering excellent ROI (Return on Investment).
Q:Oil Resistance (PVC)?
A: Light Oil Resistance.
Material: Special PVC Elastomer jacket.
Performance: Resistant to light oil mists and occasional splashes of machine coolants.
Note: For environments with heavy, continuous oil immersion (e.g., inside CNC machining centers), we recommend upgrading to our 960 PUR Series.
Q: Minimum Bending Radius?
A: Installation Guidelines.
Mobile (Drag Chain): 10 x OD (Outer Diameter).
Fixed: 8 x OD.
Advice: Maintaining the 10x radius is critical for PVC cables to prevent jacket fatigue during motion.
Q: Maximum Travel Speed?
A: 1.5 m/s (Standard Speed).
Capability: Supports travel speeds up to 1.5 m/s.
Suitability: Sufficient for most packaging machines, woodworking machinery, and conveyor systems. (For high-speed robotics >3m/s, please refer to our 900 Series).
Q: Operating Temperature?
A: Indoor Environment.
Mobile: -5°C to +70°C.
Fixed: -20°C to +80°C.
Limit: Designed primarily for indoor usage. PVC stiffness increases below -5°C, so avoid flexing in freezing conditions.
Q : International Standards?
A: Standard Compliance.
Conductor: Fine stranded oxygen-free copper acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5.
EMC: Shielding structure meets electromagnetic compatibility requirements for industrial machinery.
