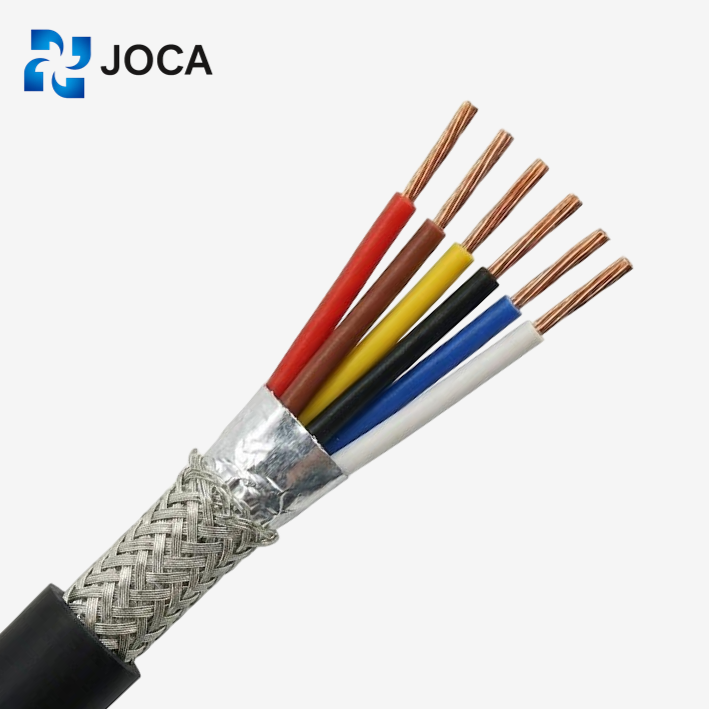

900 CY.P High-Flex Shielded Drag Chain Cable
Oil-resistant and EMC-compliant control cable designed for dynamic automation systems and servo drives.
Conductor: Fine stranded oxygen-free copper wire
Conductor Standard: Acc. to DIN VDE 0295 and IEC 60228, Class 6
Insulation: High-strength PVC compound
Core Identification: Color-coded or Numbered (Customizable)
Shielding: Tinned copper wire braid (High coverage for EMC compliance)
Outer Sheath: Special high-strength elastomer compound (NBR)
Sheath Color: Black, Gray, Orange
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
900 CY.P : Product Description and Specifications
The 900 CY.P is a high-flexibility shielded control cable designed for dynamic automation and drag chain systems. Featuring an oil-resistant elastomer jacket (NBR) and tinned copper braiding for EMC protection, it is engineered to withstand over 8 million bending cycles. This cable is the ideal solution for servo drives and machine tools requiring reliable transmission under continuous motion and moderate mechanical stress.
-
Advantages
900 CY.P : Benefits and Features
EMC Compliance: Excellent electromagnetic shielding effectiveness.
Oil Resistance: Suitable for environments with moderate oil pollution.
Flexibility: Designed for medium load movement and drag chain applications.
Technical Data
| Parameter | Specification |
|---|---|
| Nominal Voltage | 300/300V, 300/500V, 450/750V |
| Test Voltage | 1500V / 2000V / 2500V |
| Minimum Bending Radius (Fixed installation) | 6 x Cable Diameter |
| Minimum Bending Radius (Mobile installation) | 8 x Cable Diameter |
| Temperature Range (Fixed installation) | -30°C to +105°C |
| Temperature Range (Mobile installation) | -10°C to +90°C |
| Maximum Speed | <= 5 m/s |
| Service Life | >= 8 million cycles |
Dimensions/Parameters
| Model | Cores x Cross Section (mm²) | Approx. Outer Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| 900CY.P | 2x0.14 | 4.3 | 26 |
| 900CY.P | 3x0.14 | 4.5 | 28 |
| 900CY.P | 4x0.14 | 5 | 35 |
| 900CY.P | 5x0.14 | 5.3 | 39 |
| 900CY.P | 6x0.14 | 5.6 | 44 |
| 900CY.P | 7x0.14 | 6.2 | 53 |
| 900CY.P | 8x0.14 | 6.5 | 60 |
| 900CY.P | 9x0.14 | 6.9 | 65 |
| 900CY.P | 10x0.14 | 7.3 | 75 |
| 900CY.P | 12x0.14 | 8 | 85 |
| 900CY.P | 14x0.14 | 8.5 | 100 |
| 900CY.P | 16x0.14 | 8.9 | 107 |
| 900CY.P | 2x0.2 | 4.5 | 28 |
| 900CY.P | 3x0.2 | 4.9 | 34 |
| 900CY.P | 4x0.2 | 5.2 | 38 |
| 900CY.P | 5x0.2 | 5.5 | 43 |
| 900CY.P | 6x0.2 | 6.6 | 53 |
| 900CY.P | 7x0.2 | 7.1 | 60 |
| 900CY.P | 8x0.2 | 7.8 | 68 |
| 900CY.P | 9x0.2 | 8.5 | 79 |
| 900CY.P | 10x0.2 | 8.9 | 88 |
| 900CY.P | 12x0.2 | 9.9 | 101 |
| 900CY.P | 14x0.2 | 10.9 | 119 |
| 900CY.P | 16x0.2 | 11.0 | 120 |
| 900CY.P | 2x0.25 | 5.2 | 32 |
| 900CY.P | 3x0.25 | 5.5 | 36 |
| 900CY.P | 4x0.25 | 5.9 | 42 |
| 900CY.P | 5x0.25 | 6.4 | 50 |
| 900CY.P | 6x0.25 | 6.9 | 58 |
| 900CY.P | 7x0.25 | 7.4 | 66 |
| 900CY.P | 8x0.25 | 8.1 | 78 |
| 900CY.P | 9x0.25 | 8.8 | 87 |
| 900CY.P | 10x0.25 | 8.2 | 98 |
| 900CY.P | 12x0.25 | 9 | 112 |
| 900CY.P | 14x0.25 | 9.7 | 140 |
| 900CY.P | 16x0.25 | 10 | 143 |
| 900CY.P | 2x0.3 | 5 | 34 |
| 900CY.P | 3x0.3 | 5.2 | 38 |
| 900CY.P | 4x0.3 | 5.5 | 45 |
| 900CY.P | 5x0.3 | 6.1 | 54 |
| 900CY.P | 6x0.3 | 6.5 | 62 |
| 900CY.P | 7x0.3 | 6.9 | 71 |
| 900CY.P | 8x0.3 | 7.5 | 84 |
| 900CY.P | 9x0.3 | 8 | 94 |
| 900CY.P | 10x0.3 | 8.6 | 109 |
| 900CY.P | 12x0.3 | 9.3 | 121 |
| 900CY.P | 14x0.3 | 10 | 150 |
| 900CY.P | 16x0.3 | 10.4 | 156 |
| 900CY.P | 2x0.34 | 5 | 35 |
| 900CY.P | 3x0.34 | 5.2 | 39 |
| 900CY.P | 4x0.34 | 5.5 | 46 |
| 900CY.P | 5x0.34 | 6.1 | 56 |
| 900CY.P | 6x0.34 | 6.5 | 64 |
| 900CY.P | 7x0.34 | 6.9 | 74 |
| 900CY.P | 8x0.34 | 7.5 | 87 |
| 900CY.P | 9x0.34 | 8 | 97 |
| 900CY.P | 10x0.34 | 8.6 | 113 |
| 900CY.P | 12x0.34 | 9.3 | 125 |
| 900CY.P | 14x0.34 | 10 | 155 |
| 900CY.P | 16x0.34 | 10.4 | 162 |
| 900CY.P | 2x0.4 | 5.6 | 42 |
| 900CY.P | 3x0.4 | 5.8 | 48 |
| 900CY.P | 4x0.4 | 6.4 | 59 |
| 900CY.P | 5x0.4 | 6.9 | 68 |
| 900CY.P | 6x0.4 | 7.4 | 80 |
| 900CY.P | 7x0.4 | 8.1 | 95 |
| 900CY.P | 8x0.4 | 8.6 | 107 |
| 900CY.P | 9x0.4 | 9.2 | 120 |
| 900CY.P | 10x0.4 | 10 | 139 |
| 900CY.P | 12x0.4 | 11 | 164 |
| 900CY.P | 14x0.4 | 11.9 | 200 |
| 900CY.P | 16x0.4 | 12.3 | 205 |
| 900CY.P | 2x0.5 | 6.3 | 53 |
| 900CY.P | 3x0.5 | 6.6 | 62 |
| 900CY.P | 4x0.5 | 7.1 | 75 |
| 900CY.P | 5x0.5 | 7.9 | 88 |
| 900CY.P | 6x0.5 | 8.4 | 102 |
| 900CY.P | 7x0.5 | 9.3 | 123 |
| 900CY.P | 8x0.5 | 9.9 | 138 |
| 900CY.P | 9x0.5 | 10.5 | 156 |
| 900CY.P | 10x0.5 | 11.7 | 185 |
| 900CY.P | 12x0.5 | 13.0 | 206 |
| 900CY.P | 14x0.5 | 14.0 | 248 |
| 900CY.P | 16x0.5 | 14.3 | 264 |
| 900CY.P | 2x0.75 | 6.7 | 63 |
| 900CY.P | 3x0.75 | 7.1 | 74 |
| 900CY.P | 4x0.75 | 7.7 | 94 |
| 900CY.P | 5x0.75 | 8.4 | 106 |
| 900CY.P | 6x0.75 | 9.1 | 129 |
| 900CY.P | 7x0.75 | 9.9 | 149 |
| 900CY.P | 8x0.75 | 10.9 | 179 |
| 900CY.P | 9x0.75 | 12.0 | 202 |
| 900CY.P | 10x0.75 | 12.7 | 232 |
| 900CY.P | 12x0.75 | 14.1 | 267 |
| 900CY.P | 14x0.75 | 15.3 | 316 |
| 900CY.P | 16x0.75 | 15.7 | 333 |
| 900CY.P | 2x1.0 | 7.2 | 76 |
| 900CY.P | 3x1.0 | 7.6 | 96 |
| 900CY.P | 4x1.0 | 8.3 | 116 |
| 900CY.P | 5x1.0 | 9.0 | 136 |
| 900CY.P | 6x1.0 | 9.8 | 159 |
| 900CY.P | 7x1.0 | 10.6 | 193 |
| 900CY.P | 8x1.0 | 11.8 | 220 |
| 900CY.P | 9x1.0 | 13.0 | 255 |
| 900CY.P | 10x1.0 | 13.6 | 293 |
| 900CY.P | 2x1.5 | 8.3 | 102 |
| 900CY.P | 3x1.5 | 8.8 | 129 |
| 900CY.P | 4x1.5 | 9.7 | 158 |
| 900CY.P | 5x1.5 | 10.6 | 189 |
| 900CY.P | 6x1.5 | 11.7 | 228 |
| 900CY.P | 7x1.5 | 12.6 | 264 |
| 900CY.P | 8x1.5 | 13.9 | 309 |
| 900CY.P | 9x1.5 | 15.3 | 358 |
| 900CY.P | 10x1.5 | 16.3 | 410 |
| 900CY.P | 2x2.5 | 10.2 | 167 |
| 900CY.P | 3x2.5 | 10.8 | 204 |
| 900CY.P | 4x2.5 | 12.0 | 251 |
| 900CY.P | 5x2.5 | 13.2 | 299 |
| 900CY.P | 6x2.5 | 14.4 | 362 |
| 900CY.P | 7x2.5 | 15.7 | 430 |
| 900CY.P | 8x2.5 | 17.4 | 512 |
| 900CY.P | 9x2.5 | 19.3 | 591 |
| 900CY.P | 10x2.5 | 20.4 | 678 |
| 900CY.P | 2x4.0 | 12.1 | 218 |
| 900CY.P | 3x4.0 | 12.9 | 266 |
| 900CY.P | 4x4.0 | 14.2 | 342 |
| 900CY.P | 5x4.0 | 15.7 | 403 |
| 900CY.P | 6x4.0 | 17.2 | 486 |
-
Production Processes Of Flexible Cable
To ensure superior flexibility and durability, JOCA manufactures high-performance flexible cables using advanced precision extrusion and cabling technology. Specifically, this automated workflow integrates fine copper stranding, precise insulation extrusion, and optimized core bundling to reduce internal stress. In addition, the line applies specialized PVC or TPE insulation and a robust, abrasion-resistant outer sheath to withstand continuous motion and oil environments. Moreover, our quality control team actively conducts drag chain bending cycles and oil resistance tests on every batch. Consequently, this rigorous process guarantees that our cables strictly meet DIN VDE and IEC standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application (Why choose 900 CY.P)?
A: High-Flex Servo & CNC.
Core Upgrade: A shielded drag chain cable featuring Class 6 Extra-Fine Conductors.
Target: Designed for Dynamic Automation where standard Class 5 cables might suffer from copper fatigue.
Application: Ideal for High-Speed Servo Drives, CNC Machine Tools, and pick-and-place units requiring superior flexibility and oil resistance.
Q: Service Life (Bending Cycles)?
A: ≥ 8 Million Heavy-Duty Cycles.
Rating: Tested to withstand over 8 Million Cycles in drag chains.
Reliability: Thanks to the Class 6 Copper, the internal conductors are highly resistant to breakage even under constant stress, ensuring a safety margin well beyond the rated lifespan.
Q: Oil Resistance (NBR)?
A: Enhanced NBR Oil Resistance.
Material: Outer jacket made of a Special High-Strength Elastomer (NBR-based compound).
Benefit: NBR (Nitrile) provides excellent resistance to oils, hydraulic fluids, and coolants, significantly outperforming standard PVC in greasy machining environments.
Feel: The elastomer jacket also gives the cable a softer, more rubber-like flexibility.
Q:EMI Protection?
A: Stable Signal Transmission.
Shield: Features a Tinned Copper Braid with high optical coverage.
Function: Meets strict EMC (Electromagnetic Compatibility) standards. It effectively contains the electrical noise from power cores and blocks external interference, essential for precision servo motor control.
Q: Minimum Bending Radius?
A: Installation Guidelines.
Mobile (Drag Chain): 8 x D (Cable Diameter).
Fixed: 6 x D.
Note: The flexibility of the Class 6 conductor and NBR jacket allows for smooth movement even in relatively tight installation spaces.
Q: Maximum Movement Speed?
A: 5 m/s (High Dynamic).
Capability: Supports travel speeds up to 5 m/s.
Fit: Perfectly matched for modern, high-efficiency automation lines and fast-moving gantry loaders.
Q: Operating Temperature?
A: Wide Industrial Range.
Mobile: -10°C to +90°C.
Fixed: -30°C to +105°C.
High Temp: The +90°C mobile rating allows it to operate near hot motors or hydraulic units where standard PVC (usually +70°C) might soften.
Q : Conductor Type (Class 6)?
A: The “Class 6” Advantage.
Spec: DIN VDE 0295 Class 6 / IEC 60228 Class 6.
Definition: Extra-Fine Stranded Oxygen-Free Copper.
Why it matters: Unlike Class 5 (Fine), Class 6 uses thinner strands (e.g., 0.08mm or 0.10mm). This maximizes fatigue resistance, preventing internal wire breakage during rapid, continuous bending.
