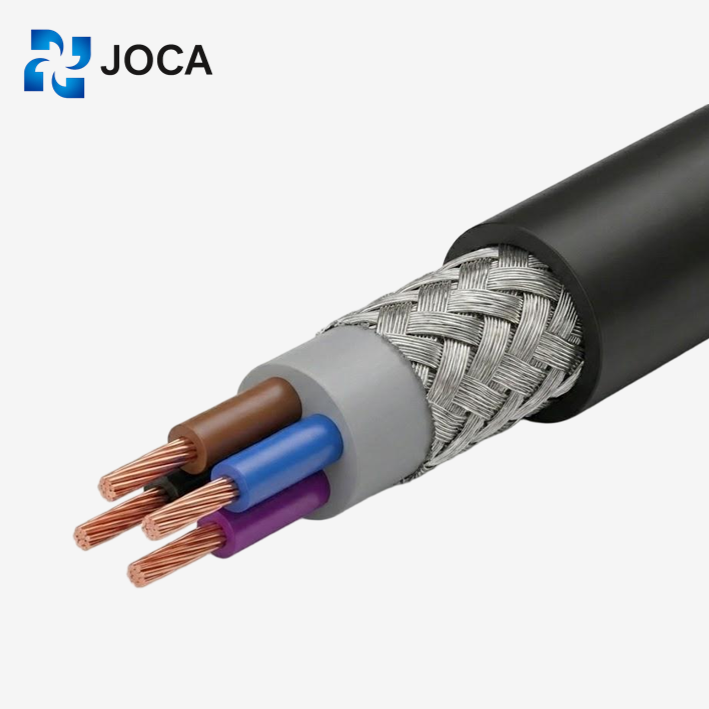

910 CY.P Double Sheath Shielded High-Flex Drag Chain Cable

A: Stability at High Speed.

• Design: Features an Inner Pressure Jacket that locks the twisted cores in place, plus a robust Outer Jacket.

• Function: This structure eliminates internal friction and prevents the “Corkscrew Effect” (cable twisting/deformation).

• Result: Essential for High-Speed Applications (>5 m/s) where single-sheath cables would destabilize and fail.

A: Excellent Industrial Oil Resistance.

• Material: Outer sheath made of Special NBR (Nitrile Butadiene Rubber) Compound.

• Performance: Superior resistance to industrial oils, grease, and cooling fluids commonly found in CNC machining.

• Note: While excellent for oil, NBR is designed for Indoor Use. (For extreme mechanical abrasion or cutting, consider our PUR series).

A: Protection for Precision Control.

• Structure: High-density Tinned Copper Braid placed between the inner and outer sheaths.

• Benefit: Ensures EMC Compliance by blocking noise from VFDs and Servo Motors.

• Design Note: The inner jacket prevents the shield from grinding against the core insulation during rapid movement, ensuring long-term electrical safety.

A: Standard High-Flex Specs.

• Mobile (Drag Chain): 8 x D (Cable Diameter).

• Fixed: 6 x D.

• Advice: Maintaining this radius is crucial. Although the cable is flexible, a tighter radius (e.g., <8xD) at 8 m/s speeds generates excessive heat and mechanical stress.

A: Indoor Application Only.

• Limitation: The NBR jacket offers excellent oil resistance but has Limited UV Resistance.

• Warning: Direct exposure to sunlight will cause the NBR jacket to age and crack prematurely.

• Alternative: For outdoor drag chains, please strictly specify our PUR Series (which is naturally UV stable) or Black UV-Resistant PVC.

 A: Engineered for Speed (8 m/s).

• Standard Cable: Designed for occasional flexing or slow motion.

• 910 CY.P: Specifically engineered for Continuous High-Speed Motion up to 8 m/s.

• Tech: Uses Class 6 Extra-Fine Copper + Double Sheath Stabilization to handle the high g-forces and rapid acceleration of modern linear motors and fast handling systems.

A: Tailored to Your Standard.

• Stock: Black cores with white numbers (Standard Industrial).

• Custom: We offer DIN 47100 Color Coding (for data/sensor feedback) or custom jacket colors (e.g., Orange for Servo Power) to match your OEM branding requirements.
