N2XS(F)2Y/NA2XS(F)2Y
3.3kV-45kV XLPE Insulation with water blocking and PE Jacket power cable

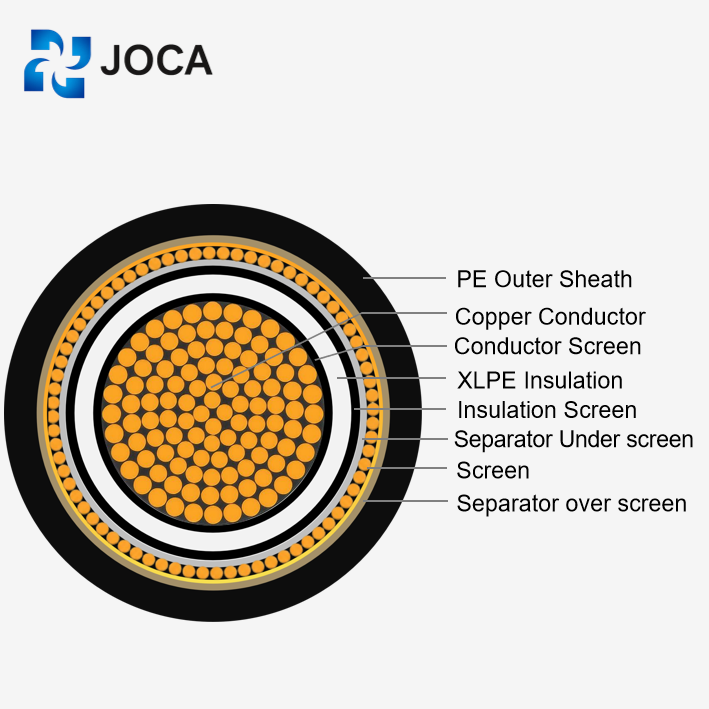

- Conductor : Copper conductor, bare, stranded (class 2)
- Inner conductive layer : Extruded semi-conductive material
- Insulation : XLPE(cross-linked polyethylene)
- Outer conductive layer : Extruded semi-conductive material
- Separator under screen : Longitudinally waterproof, conductive wrapping
- Screen : Copper wires with helix copper tape
- Separator over screen : Longitudinally waterproof wrapping
- Outer sheath : PE (polyethylene), black
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
N2XS(F)2Y/NA2XS(F)2Y : Product Description and Specifications
Need to run Medium Voltage (up to 45kV) through wet soil? The N2XS(F)2Y series is built exactly for that. Unlike standard cables, this uses a hard PE sheath and (F) longitudinal water-blocking tapes. Here’s the logic: if the jacket gets nicked and water gets in, the tapes swell up and stop the moisture from traveling down the cable. It’s the industrial standard for direct burial. You can specify Copper (N2XS) for max load or Aluminum (NA2XS) to save budget.
-
Advantages
N2XS(F)2Y/NA2XS(F)2Y : Benefits and Features
Real Thermal Headroom: We use XLPE insulation, not PVC. That means it runs comfortably at 90°C and keeps dielectric losses strictly low.
Intelligent Water Blocking (F): The “F” stands for longitudinal watertightness. We wrap swellable tapes around the core. If the jacket is breached, these tapes expand instantly to stop water dead in its tracks.
Rock-Hard PE Sheath: Why PE? Because it’s tough. It resists tearing on sharp trench rocks and ignores UV radiation way better than soft PVC.
Fault Protection: The Copper Wire Screen isn’t just for show—it provides the critical low-impedance path to ground your system needs during a fault.
No-Nonsense Service: Need to check the quality? We offer fast sampling. Need a weird length or custom color? Just ask.
Dimensions/Parameters
| No of cores and cross section (mm²) | Insulation thickness (approx. mm) | Sheath thickness (approx. mm) | Outer diameter (approx. mm) | Current carrying capacity in ground (A) | Current carrying capacity in air (A) | Copper index (approx. kg/km) | Weight (approx. kg/km) |
|---|---|---|---|---|---|---|---|
| 1 x 35 rm/16 | 3.4 | 2.5 | 24 | 187 | 197 | 518 | 820 |
| 1 x 50 rm/16 | 3.4 | 2.5 | 26 | 220 | 236 | 662 | 1150 |
| 1 x 70 rm/16 | 3.4 | 2.5 | 28 | 268 | 294 | 854 | 1400 |
| 1 x 95 rm/16 | 3.4 | 2.5 | 29 | 320 | 358 | 1094 | 1650 |
| 1 x 120 rm/16 | 3.4 | 2.5 | 30 | 363 | 413 | 1334 | 1900 |
| 1 x 150 rm/25 | 3.4 | 2.5 | 32 | 405 | 468 | 1723 | 2300 |
| 1 x 185 rm/25 | 3.4 | 2.5 | 34 | 456 | 535 | 2059 | 2650 |
| 1 x 240 rm/25 | 3.4 | 2.5 | 36 | 526 | 631 | 2587 | 3250 |
| 1 x 300 rm/25 | 3.4 | 2.5 | 39 | 591 | 722 | 3163 | 3850 |
| 1 x 400 rm/35 | 3.4 | 2.5 | 43 | 662 | 827 | 4234 | 4800 |
| 1 x 500 rm/35 | 3.4 | 2.5 | 45 | 949 | 744 | 5194 | 5900 |
| No of cores and cross section (mm²) | Insulation thickness (approx. mm) | Sheath thickness (approx. mm) | Outer diameter (approx. mm) | Current carrying capacity in ground (A) | Current carrying capacity in air (A) | Copper index (approx. kg/km) | Weight (approx. kg/km) |
|---|---|---|---|---|---|---|---|
| 1 x 35 rm/16 | 5.5 | 2.5 | 28 | 189 | 200 | 518 | 1300 |
| 1 x 50 rm/16 | 5.5 | 2.5 | 29 | 222 | 239 | 662 | 1350 |
| 1 x 70 rm/16 | 5.5 | 2.5 | 31 | 271 | 297 | 854 | 1600 |
| 1 x 95 rm/16 | 5.5 | 2.5 | 32 | 323 | 361 | 1094 | 1900 |
| 1 x 120 rm/16 | 5.5 | 2.5 | 34 | 367 | 416 | 1334 | 2150 |
| 1 x 150 rm/25 | 5.5 | 2.5 | 35 | 409 | 470 | 1723 | 2500 |
| 1 x 185 rm/25 | 5.5 | 2.5 | 37 | 461 | 538 | 2059 | 2900 |
| 1 x 240 rm/25 | 5.5 | 2.5 | 39 | 532 | 634 | 2587 | 3500 |
| 1 x 300 rm/25 | 5.5 | 2.5 | 41 | 599 | 724 | 3163 | 4150 |
| 1 x 400 rm/35 | 5.5 | 2.5 | 44 | 671 | 829 | 4234 | 5100 |
| 1 x 500 rm/35 | 5.5 | 2.5 | 47 | 754 | 953 | 5194 | 6200 |
| 1 x 630 rm/35 | 5.5 | 2.5 | 51 | 844 | 1089 | 6442 | 7365 |
| No of cores and cross section (mm²) | Insulation thickness (approx. mm) | Sheath thickness (approx. mm) | Outer diameter (approx. mm) | Current carrying capacity in ground (A) | Current carrying capacity in air (A) | Copper index (approx. kg/km) | Weight (approx. kg/km) |
|---|---|---|---|---|---|---|---|
| 1 x 50 rm/16 | 8.0 | 2.5 | 35 | 225 | 241 | 662 | 1650 |
| 1 x 70 rm/16 | 8.0 | 2.5 | 36 | 274 | 299 | 854 | 1900 |
| 1 x 95 rm/16 | 8.0 | 2.5 | 38 | 327 | 363 | 1094 | 2150 |
| 1 x 120 rm/16 | 8.0 | 2.5 | 39 | 371 | 418 | 1334 | 2450 |
| 1 x 150 rm/25 | 8.0 | 2.5 | 40 | 414 | 472 | 1723 | 2750 |
| 1 x 185 rm/25 | 8.0 | 2.5 | 42 | 466 | 539 | 2059 | 3150 |
| 1 x 240 rm/25 | 8.0 | 2.5 | 44 | 539 | 635 | 2587 | 3800 |
| 1 x 300 rm/25 | 8.0 | 2.5 | 46 | 606 | 725 | 3163 | 4400 |
| 1 x 400 rm/35 | 8.0 | 2.5 | 49 | 680 | 831 | 4234 | 5450 |
| 1 x 500 rm/35 | 8.0 | 2.6 | 53 | 765 | 953 | 5194 | 6550 |
-
