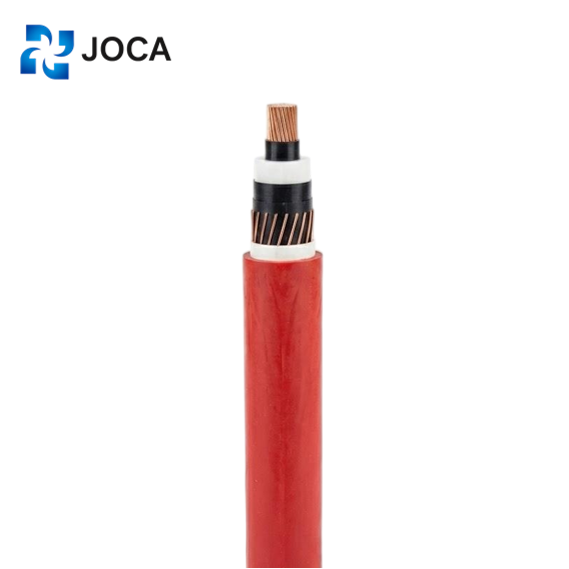

N2XSY
XLPE Insulated Copper Wire Screen PVC Sheathed Power Cable

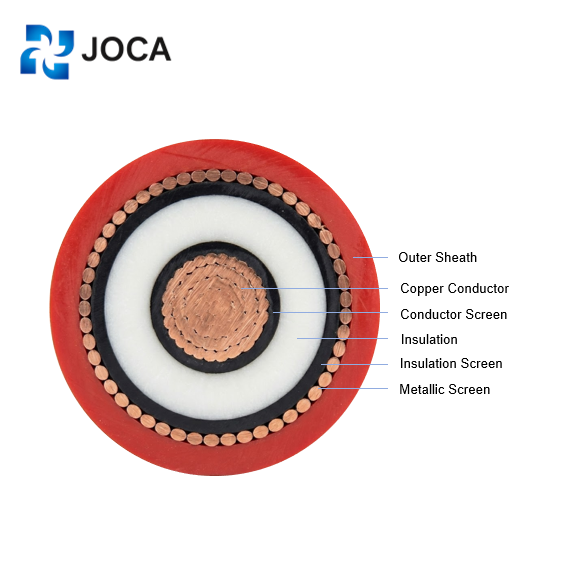

Conductor
- Solid or stranded copper
- Single-core or multi-core
Insulation
- XLPE (Cross-linked Polyethylene)
Insulation Screen
- Semi-conductive layer
Copper Wire Screen
- Copper wire shield (CWS)
Filler
- Polypropylene filler with binding tape
Inner Sheath
- PVC
Outer Sheath
- PVC flame-retardant sheath
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
N2XSY Cable : Product Description and Specifications
The N2XSY Cable serves as a high-performance medium-voltage solution. Specifically, it features a copper conductor, XLPE insulation, a copper wire screen, and a durable PVC outer sheath.
In addition, this design provides excellent mechanical strength and thermal resistance. Therefore, you can safely install it in indoor, outdoor, and underground power distribution systems. Finally, its reliable electrical properties make it an ideal choice for demanding infrastructure projects.
-
Advantages
N2XSY Cable for Power Cable: Benefits and Features
Indoor and outdoor power distribution
Underground installations and cable ducts
Cable trays, tunnels, and industrial plants
Local substations and switching stations
Environments where there is no risk of severe mechanical damage
Specification Of N2XSY Cable
| Parameter | Value / Description |
|---|---|
| General Usage | Cable n2xsy is used for electricity supply in low-voltage installation systems. |
| Installation Environment | They are suitable for installation indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants, where there is no risk of mechanical damage. |
| Conductor | Solid or stranded copper (1C, 2C, 3C, 4C, 5C, or Multi-core) |
| Insulation | Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) |
| Filler | Polypropylene filament with lapped binding tape |
| Binder | Binding tape |
| Inner Sheath | Polyvinyl chloride (PVC) |
| Sheath | Polyvinyl chloride (PVC) |
| Characteristics Voltage Rating | (UO/U) 600/1000V |
| Testing Voltage | 4000V |
| Fixed Temperature | -5°C to +70°C |
| Flexed Temperature | -30°C to +70°C |
| Short Circuited Temperature | +250°C |
| Insulation Resistance | 20 MΩx km |
| Rated voltage | 6/10KV, 12/20KV, 18/30KV |
| Test voltage | 6/10kV up to 15 kV, 12/20kV up to 30 kV, 18/30kV up to 45 kV |
| Minimum bending radius | 15 x cable OD |
| Temperature range | -5°C to +50°C |
| Flame retardant properties | PVC self-extinguishing and flame retardant |
Dimensions/Parameters
| Wire Gage | NO.X Cross Section Area(mm²) | Insulation Thickness(mm) | Jacket Thickness(mm) | Nominal Outside Diameter(mm) | Nominal Cable Weight(kg/km) |
|---|---|---|---|---|---|
| 16 | 1x1.5 | 0.7 | 1.8 | 9.7 | 114 |
| 14 | 1x2.5 | 0.7 | 1.8 | 10.2 | 135 |
| 12 | 1x4 | 0.7 | 1.8 | 10.8 | 170 |
| 10 | 1x6 | 0.7 | 1.8 | 11.3 | 214 |
| 8 | 1x10 | 0.7 | 1.8 | 12.4 | 304 |
| 6 | 1x16 | 0.7 | 1.8 | 13.8 | 431 |
| 4 | 1x25 | 0.9 | 1.8 | 15.5 | 548 |
| 2 | 1x35 | 0.9 | 1.8 | 16.6 | 650 |
| 1 | 1x50 | 1 | 1.8 | 18.8 | 892 |
| 2/0 | 1x70 | 1.1 | 1.8 | 21.0 | 1207 |
| 3/0 | 1x95 | 1.1 | 1.8 | 23.5 | 1600 |
| 4/0 | 1x120 | 1.2 | 1.8 | 26.0 | 2045 |
| 300mcm | 1x150 | 1.4 | 1.8 | 28.0 | 2320 |
| 350mcm | 1x185 | 1.6 | 1.8 | 30.5 | 2942 |
| 500mcm | 1x240 | 1.7 | 1.9 | 34.0 | 3761 |
| 750mcm | 1x300 | 1.8 | 2.1 | 37.0 | 4591 |
| - | 1x400 | 2 | 2 | 41.5 | 5830 |
| - | 1x500 | 2.2 | 2.3 | 46.0 | 7450 |
| - | 1x630 | 2.4 | 2.5 | 52.0 | 9561 |
| - | 1x800 | 0.7 | 1.8 | 58.0 | 12290 |
Certifications Of N2XSY Cable
-
Production Processes Of Power Cable
The JOCA cable factory is an intelligent and digital factory that integrates the entire production and inspection process. This smartens it up and digitizes it all at once. It removes errors and flaws inherent in products assembled by hand by staff, which also enhances the dependability of such goods greatly. On top of that it is equipped with full inspection and testing facilities including digital intelligent image recognition, laser detection among other detection technologies to guarantee quality of products delivered.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Where is N2XSY cable typically used?
A: It is used in medium-voltage power networks for indoor, outdoor, underground, or industrial installations.
Q: Does N2XSY cable support underground installation?
A: Yes. Its PVC sheath and copper shielding provide good moisture and corrosion resistance.
Q: What is the purpose of the copper wire screen?
A: It reduces electromagnetic interference, improves system stability, and enhances fault detection.
Q: What is the maximum conductor operating temperature of N2XSY cable?
A: The normal operating temperature is +90°C, and the short-circuit temperature can reach +250°C (maximum 5 seconds).
Q:Is N2XSY cable suitable for installation in cable trays and tunnels?
A: Yes. The cable is designed for fixed installations and performs well in trays, tunnels, and ducts.
Q: Does N2XSY provide electromagnetic shielding?
A: Yes. The copper wire screen (CWS) provides effective electromagnetic interference (EMI) suppression.
Q: Can the cable be used in wet or humid environments?
A: Yes. The XLPE insulation and PVC sheath provide good moisture resistance for damp or underground environments.
