980 CY.TP

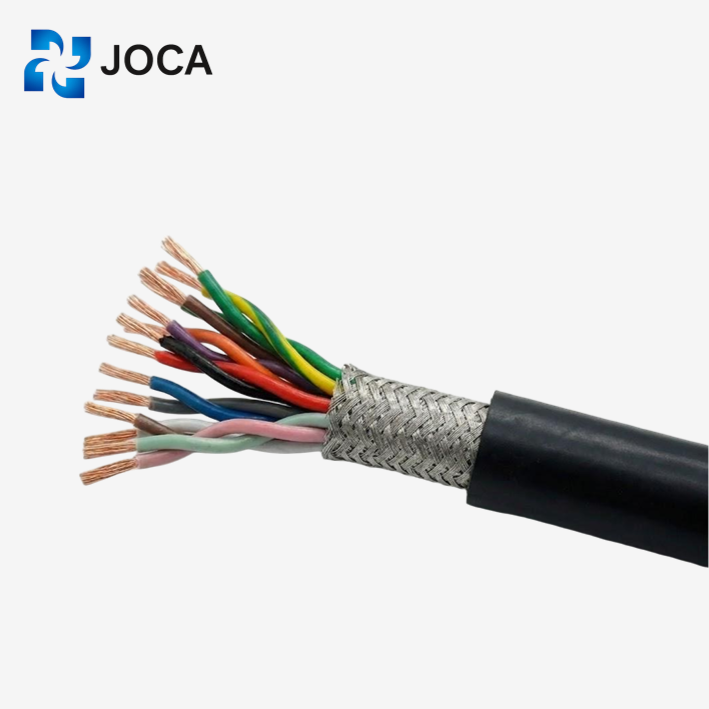

Double Shielded PUR Robot Cable with TPE Insulation
Conductor: Fine oxygen-free copper wire, multi-stranded conductor, in accordance with DIN VDE 0295 and IEC 60228 class 6
Insulation: Thermoplastic Elastomer (TPE)
Core Identification: Color coded or numbered (Customizable upon request)
Stranding: Cores twisted in pairs
Shielding: Tinned copper wire braid
Outer Sheath: Polyurethane (PUR)
Sheath Color: Black, Gray, Orange
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
980 CY.TP : Product Description and Specifications
The 980 CY. TP is a High-Performance Double-Shielded Robot Cable engineered for precision signal transmission in 6-axis robotic arms. Featuring a Twisted Pair (TP) construction for crosstalk cancellation and a high-density tinned copper braid, it guarantees superior EMC compliance. Insulated with low-capacitance TPE and protected by an oil-resistant PUR jacket, it withstands continuous 3D torsion (±90°) and vibration in harsh, electrically noisy industrial environments.
-
Advantages
980 CY.TP : Benefits and Features
Torsion Resistant: Specifically designed for robotic arms and multi-axis machinery with a torsion angle of ±90°.
EMC Compliant: High-coverage copper shielding ensures interference-free signal and power transmission.
Oil & Chemical Resistant: PUR sheath withstands exposure to industrial oils, hydrolysis, and microbes.
High Durability: Excellent resistance to mechanical wear, vibration, and scratching in high-speed mobile applications.
Dimensions/Parameters
| Model | No. of Cores x Nominal Cross-Section (mm2) | Approx. OD (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| 980 CY.TP | 2x2x0.14 | 6.1 | 44 |
| 980 CY.TP | 3x2x0.14 | 6.6 | 54 |
| 980 CY.TP | 4x2x0.14 | 7 | 66 |
| 980 CY.TP | 5x2x0.14 | 7.7 | 75 |
| 980 CY.TP | 6x2x0.14 | 8.3 | 88 |
| 980 CY.TP | 7x2x0.14 | 9 | 92 |
| 980 CY.TP | 2x2x0.2 | 6.6 | 51 |
| 980 CY.TP | 3x2x0.2 | 6.9 | 65 |
| 980 CY.TP | 4x2x0.2 | 7.6 | 80 |
| 980 CY.TP | 5x2x0.2 | 8.2 | 92 |
| 980 CY.TP | 6x2x0.2 | 8.9 | 108 |
| 980 CY.TP | 7x2x0.2 | 9.5 | 113 |
| 980 CY.TP | 2x2x0.25 | 6.8 | 66 |
| 980 CY.TP | 3x2x0.25 | 7.4 | 82 |
| 980 CY.TP | 4x2x0.25 | 7.9 | 104 |
| 980 CY.TP | 5x2x0.25 | 8.7 | 120 |
| 980 CY.TP | 6x2x0.25 | 9.3 | 141 |
| 980 CY.TP | 7x2x0.25 | 9.9 | 148 |
| 980 CY.TP | 2x2x0.3 | 7 | 70 |
| 980 CY.TP | 3x2x0.3 | 7.5 | 88 |
| 980 CY.TP | 4x2x0.3 | 8.1 | 111 |
| 980 CY.TP | 5x2x0.3 | 8.7 | 129 |
| 980 CY.TP | 6x2x0.3 | 9.5 | 152 |
| 980 CY.TP | 7x2x0.3 | 10 | 160 |
| 980 CY.TP | 2x2x0.34 | 7 | 77 |
| 980 CY.TP | 3x2x0.34 | 7.5 | 98 |
| 980 CY.TP | 4x2x0.34 | 8.1 | 120 |
| 980 CY.TP | 5x2x0.34 | 8.7 | 140 |
| 980 CY.TP | 6x2x0.34 | 9.5 | 165 |
| 980 CY.TP | 7x2x0.34 | 10 | 175 |
| 980 CY.TP | 2x2x0.4 | 8 | 78 |
| 980 CY.TP | 3x2x0.4 | 8.7 | 100 |
-
Production Processes Of Robot cable
To ensure superior flexibility, JOCA manufactures high-performance robot cables using advanced short-pitch cabling and extrusion technology. Specifically, this automated workflow integrates extra-fine copper stranding (Class 6), anti-torsion core assembly, and pressure extrusion. In addition, the line applies mechanically tough insulation and a robust PUR (Polyurethane) outer sheath to resist abrasion and oil. Moreover, our quality control team actively conducts multi-million cycle drag chain and bending tests on every batch. Consequently, this rigorous process guarantees that our cables strictly meet international standards for dynamic automation systems.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application of 980 CY. TP?
A: Precision Signal Torsion.
Specifics: A Twisted Pair (TP) robot cable designed for 6-Axis Robotic Arms.
Target: Specifically engineered for transmitting sensitive data, encoder, and feedback signals where crosstalk cancellation is required alongside high mechanical torsion capabilities.
Q: Oil & Chemical Resistance?
A: Industrial Armor (PUR).
Material: Matte Polyurethane (PUR) sheath.
Immunity: Highly resistant to mineral oils, coolants (cutting fluids), and hydraulic fluids.
Surface: The low-adhesion surface prevents the cable from sticking to itself during complex 3D movements.
Q: EMI Protection & "TP" Structure?
A: Double Signal Defense.
“CY” Shield: A Tinned Copper Braid (High Coverage) blocks external electromagnetic interference (EMI) from motors/drives.
“TP” (Twisted Pair): Internal conductors are twisted in pairs to cancel out Crosstalk (internal interference). This ensures error-free transmission for sensitive sensors.
Q:Maximum Torsion Angle?
A: ±90° Dynamic Twist.
Spec: Withstands torsional twisting of ±90° per 1 meter.
Testing: Verified at frequencies of 60 cycles per minute in our fatigue lab, simulating years of continuous robotic operation.
Q: Operating Temperature?
A: Extreme Environment Ready.
Mobile (Drag Chain): -40°C to +90°C.
Fixed: -50°C to +105°C.
Benefit: Ideal for Cold Storage Automation and outdoor gantry systems without risk of sheath cracking.
Q: Minimum Bending Radius?
A: Compact Design.
Mobile: 6 X D (Cable Diameter).
Fixed: 4 x D.
Advantage: Allows for installation in tight robotic wrist joints and compact drag chains.
Q: Conductor Type?
A: Class 6 Extra-Fine Copper.
Standard: DIN VDE 0295 Class 6 / IEC 60228 Class 6.
Why it matters: Uses extra-fine oxygen-free copper strands. This maximizes fatigue resistance, preventing core breakage during rapid acceleration and twisting.
Q : Rated Voltages?
A: Signal & Power Options.
Signal Pairs: Typically 300V (DIN 47100 color code).
Power Cores: Up to 600V.
Note: Please refer to the specific datasheet as voltage ratings depend on the cross-section size.
