UL1569
300V PVC Hook-Up Wire for Internal Wiring of Electronic & Electrical Equipment
Internal wiring of electronic appliances
Wiring for small motors, fans, pumps, and household equipment
Power supply units, LED drivers, automatic control devices
Wiring inside electronic instruments and general low-voltage circuits
Suitable for installations requiring flexibility and moderate mechanical protection
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
UL1569 : Product Description and Specifications
Think of UL1569 as the high-temperature upgrade to the standard UL1007. While both share a 300V rating, UL1569 is engineered to withstand continuously higher operating temperatures up to 105°C.
This “thermal headroom” makes it the specific choice for LED drivers, small motor windings, and compact power supplies—places where internal heat builds up quickly. The PVC insulation is formulated to remain flexible during tight assembly routing while passing strict UL758 and UL1581 flame tests. It ensures your wiring won’t melt or degrade inside high-density electronic housings.
-
Advantages
UL1569 : Benefits and Features
Heat Resistant (105°C): Handles the internal heat of LEDs and Motors far better than standard 80°C wires.
Compact Routing: The insulation is thin and pliable, allowing easy bending inside cramped transformer cases or appliance housings.
Soldering Safe: The PVC resists shrinking back (“pull back”) during soldering, keeping connections clean and insulated.
Voltage Stable: Reliable 300V performance for all low-voltage logic and power control circuits.
Certified Safety: Fully listed under UL AWM Style 1569, ensuring acceptance for global electronic exports.
Specification Of UL1569
| Category | Item | Content |
|---|---|---|
| UL1569 Application Scope | Main Usage | Mainly used for internal wiring of electronic and electrical equipment; suitable for generators, turbines, switchboards, electrical panels, electronic circuits, and general applications. |
| UL1569 Application Scope | Application Standards | UL758, UL1581 |

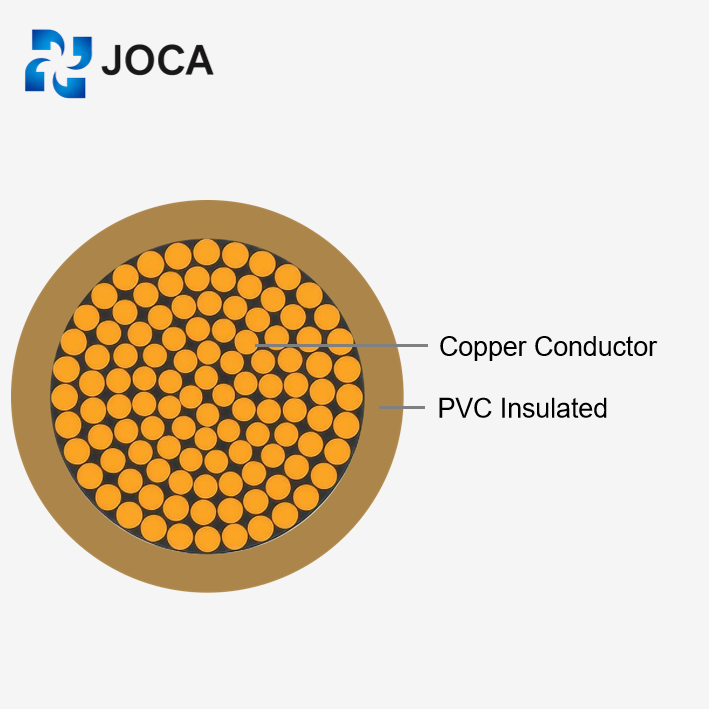

| UL1569 Cable Structure | Conductor | Uses 30~2AWG solid or stranded bare copper or tinned copper wire |
| UL1569 Cable Structure | Insulation | Polyvinyl Chloride (PVC) Compound |
| UL1569 Cable Structure | Core Color | Any color |
| UL1569 Technical Parameters | Rated Voltage | 300V |
| UL1569 Technical Parameters | Test Voltage | 2000V |
| UL1569 Technical Parameters | Rated Temperature | 80°C, 90°C, 105°C |
| UL1569 Technical Parameters | Flammability Test | Passes UL VW-1 and CSA FT1 vertical flame tests |
Dimensions/Parameters
| Model | Specification | Approx. Outer Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| UL1569 | 30AWG | 1.1 | 1.8 |
| UL1569 | 28AWG | 1.1 | 2.1 |
| UL1569 | 26AWG | 1.2 | 2.9 |
| UL1569 | 25AWG | 1.3 | 3.1 |
| UL1569 | 24AWG | 1.4 | 3.8 |
| UL1569 | 23AWG | 1.4 | 4.3 |
| UL1569 | 22AWG | 1.5 | 5.2 |
| UL1569 | 21AWG | 1.6 | 5.8 |
| UL1569 | 20AWG | 1.7 | 7.2 |
| UL1569 | 19AWG | 1.8 | 8.7 |
| UL1569 | 18AWG | 1.9 | 10.4 |
| UL1569 | 17AWG | 2.1 | 12.4 |
| UL1569 | 16AWG | 2.3 | 15 |
| UL1569 | 15AWG | 2.4 | 19 |
| UL1569 | 14AWG | 2.6 | 23.3 |
| UL1569 | 13AWG | 2.9 | 28.7 |
| UL1569 | 12AWG | 3.1 | 34.9 |
| UL1569 | 11AWG | 3.4 | 43.5 |
| UL1569 | 10AWG | 3.9 | 55.1 |
| UL1569 | 9AWG | 5 | 77.4 |
| UL1569 | 8AWG | 5.5 | 94.9 |
| UL1569 | 7AWG | 6 | 115.7 |
| UL1569 | 6AWG | 6.6 | 145.6 |
| UL1569 | 5AWG | 7.3 | 180.2 |
| UL1569 | 4AWG | 8 | 222.9 |
| UL1569 | 3AWG | 8.9 | 277.8 |
| UL1569 | 2AWG | 9.9 | 345.1 |
Certifications Of UL Cable
-
Production Processes Of UL cable
JOCA produces UL wires using a fully automated workflow. The cycle synchronizes copper drawing and stranding with precise PVC or XLPE extrusion. Instead of waiting for post-production checks, we employ continuous inline monitoring—using laser diameter gauges and spark testers to catch defects instantly. For multi-core variants, the line handles cabling, shielding, and jacketing to exact specifications. Before shipping, every batch faces final electrical and mechanical inspections to verify full compliance with UL standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: UL1007 vs. UL1569: What’s the real difference?
A: Temperature. Both are rated for 300V, but UL1569 is the High-Temp Upgrade.
UL1007: Max 80°C. Standard for general electronics.
UL1569: Max 105°C. Essential for devices that get hot, like motors or power supplies.
Q: Is it safe for small motors and fans?
A: Yes. This is its core application. Because it withstands 105°C, it handles the heat generated by motor windings and compact appliance housings without the insulation melting or becoming brittle.
Q: Can I use it for mains power (110V/220V)?
A: Yes. It is rated 300V, which covers standard household and light commercial mains voltage. Warning: For heavy industrial power lines (480V+), you must upgrade to UL1015 (600V).
Q: Will it work with my stripping machine?
A: Absolutely. The PVC compound is formulated to be “Machine Friendly.” It cuts cleanly and strips off at high speeds without stretching or sticking to the blades, minimizing downtime on your automated crimping lines.
Q: Is it fire safe?
A: VW-1 Rated. It passes the strict Vertical Wire Flame Test. This means if a component shorts out and ignites, the insulation self-extinguishes and won’t spread the fire to the rest of the device.
Q: Should I choose Bare or Tinned Copper?
A: We suggest Tinned Copper.
Bare: Cheaper, but oxidizes (turns black) over time.
Tinned: Resists corrosion and is much faster to solder. If you are hand-soldering connections, Tinned is worth the extra penny.
Q: Is it good for LED Drivers?
A: Perfect fit. LED drivers are often compact and generate heat. UL1569’s thin profile allows for easy routing in tight cases, while the 105°C rating ensures safety despite the thermal buildup.
