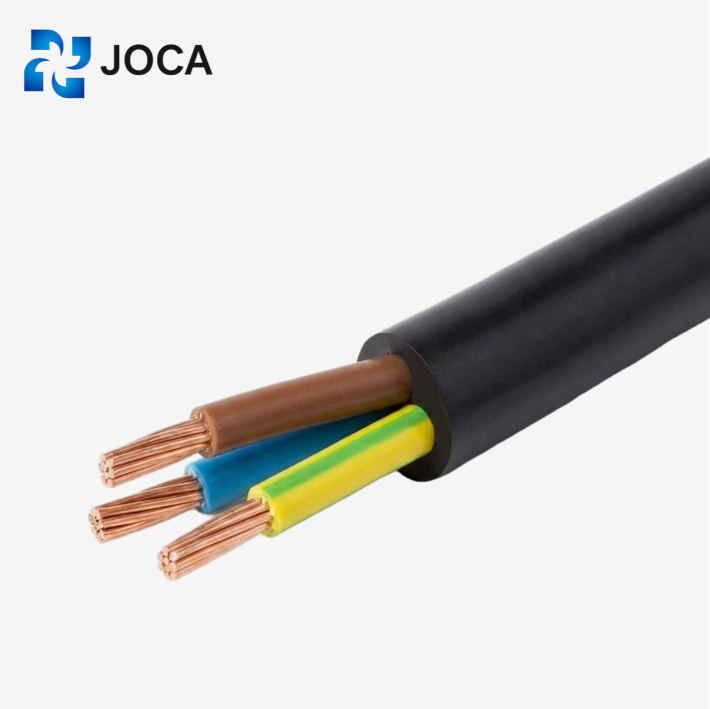

UL2586
105°C PVC INSULATED WIRE | ELECTRONIC & CONTROL CABLE
- Internal wiring of electronic devices and home appliances
- Power supply connections and low-voltage control circuits
- Office automation equipment
- Industrial control cabinets
- Equipment requiring flexible movement without mechanical tension
- Shielded version used in:
- EMI-sensitive environments
- Signal transmission systems
- Audio, communication and sensor wiring
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
UL2586 : Product Description and Specifications
Upgrade your internal wiring to 600V reliability. Unlike standard 300V options, UL2586 handles higher voltage loads while maintaining a compact profile. Rated for 105°C, it withstands the heat buildup inside industrial control units and office automation devices without insulating failure.
Installation is stress-free. The PVC jacket is formulated for flexibility, allowing easy routing through tight chassis corners. For electrically noisy environments, choose the Shielded Version. Its aluminum foil layer actively blocks EMI interference, ensuring stable signal transmission. Fully compliant with UL758 and UL1581, this wire meets the strict safety standards required for global export.
-
Advantages
UL2586 : Benefits and Features
Voltage Upgrade: Rated for 600V. Handles higher power loads than standard 300V hook-up wires.
Thermal Rating: 105°C. Withstands internal heat buildup in industrial controllers and office automation (OA) devices.
Routing: Flexible PVC design. Routes easily through tight spaces without mechanical stress or kinking.
EMI Defense: Optional Shielded Version available. Blocks signal interference in electrically noisy environments.
Compliance: Fully meets UL758 & UL1581 standards. Reliable for global export.
Specification Of UL2586
| Parameter | UL2586 Value | Shielded UL2586 Value |
|---|---|---|
| Rated Voltage | 600V or 1000V | 600V or 1000V |
| Test Voltage | 3000V | 3000V |
| Temperature Range (Fixed) | -20°C-105°C | -20°C-105°C |
| Temperature Range (Mobile) | -5°C-105°C | -5°C-105°C |
| Bending Radius (Fixed) | 6xD | 4xD |
| Bending Radius (Mobile) | 8xD | 8xD |
| Flame Test | Passes UL VW-1 and CSA FT1 vertical flame test | Passes UL VW-1 and CSA FT1 vertical flame test |
Dimensions/Parameters
| Model | Specification | Approx. Outer Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| UL2586 | 2x20AWG | 6.6 | 58.2 |
| UL2586 | 3x20AWG | 6.9 | 68.1 |
| UL2586 | 4x20AWG | 7.6 | 82.8 |
| UL2586 | 5x20AWG | 8.3 | 97.8 |
| UL2586 | 6x20AWG | 9.4 | 121.4 |
| UL2586 | 7x20AWG | 9.4 | 130.6 |
| UL2586 | 8x20AWG | 10.4 | 152.6 |
| UL2586 | 9x20AWG | 11.4 | 171.9 |
| UL2586 | 10x20AWG | 12.3 | 199.6 |
| UL2586 | 11x20AWG | 12.7 | 212.3 |
| UL2586 | 12x20AWG | 12.7 | 218.7 |
| UL2586 | 13x20AWG | 13.5 | 244.5 |
| UL2586 | 14x20AWG | 13.5 | 251.1 |
| UL2586 | 15x20AWG | 14.2 | 273.6 |
| UL2586 | 16x20AWG | 14.2 | 280.4 |
| UL2586 | 17x20AWG | 15.2 | 308.7 |
| UL2586 | 18x20AWG | 15.2 | 315.5 |
| UL2586 | 19x20AWG | 15.2 | 324.7 |
| UL2586 | 2x18AWG | 7.0 | 70.4 |
| UL2586 | 3x18AWG | 7.5 | 83.5 |
| UL2586 | 4x18AWG | 8.2 | 102.1 |
| UL2586 | 5x18AWG | 9.3 | 129.9 |
| UL2586 | 6x18AWG | 10.4 | 153.3 |
| UL2586 | 7x18AWG | 10.4 | 167.2 |
| UL2586 | 8x18AWG | 11.2 | 189.3 |
| UL2586 | 9x18AWG | 12.5 | 219.5 |
| UL2586 | 10x18AWG | 13.5 | 253.2 |
| UL2586 | 11x18AWG | 13.9 | 270.0 |
| UL2586 | 12x18AWG | 13.9 | 279.0 |
| UL2586 | 13x18AWG | 14.8 | 310.8 |
| UL2586 | 14x18AWG | 14.8 | 320.2 |
| UL2586 | 15x18AWG | 15.6 | 348.5 |
| UL2586 | 16x18AWG | 15.6 | 358.0 |
| UL2586 | 17x18AWG | 16.6 | 392.2 |
| UL2586 | 18x18AWG | 16.6 | 401.9 |
| UL2586 | 19x18AWG | 16.6 | 414.8 |
| UL2586 | 2x16AWG | 7.7 | 88.5 |
| UL2586 | 3x16AWG | 8.1 | 106.8 |
| UL2586 | 4x16AWG | 9.3 | 139.9 |
| UL2586 | 5x16AWG | 10.4 | 171.4 |
| UL2586 | 6x16AWG | 11.3 | 198.4 |
| UL2586 | 7x16AWG | 11.3 | 216.4 |
| UL2586 | 8x16AWG | 12.4 | 250.9 |
| UL2586 | 9x16AWG | 13.8 | 290.0 |
| UL2586 | 10x16AWG | 14.9 | 332.6 |
| UL2586 | 11x16AWG | 15.4 | 358.9 |
| UL2586 | 12x16AWG | 15.4 | 369.4 |
| UL2586 | 13x16AWG | 16.4 | 412.9 |
| UL2586 | 14x16AWG | 16.4 | 423.8 |
| UL2586 | 15x16AWG | 17.3 | 460.6 |
| UL2586 | 16x16AWG | 17.3 | 474.7 |
| UL2586 | 17x16AWG | 18.4 | 518.6 |
| UL2586 | 18x16AWG | 18.4 | 532.7 |
| UL2586 | 19x16AWG | 18.4 | 550.8 |
| UL2586 | 2x14AWG | 8.5 | 114.9 |
| UL2586 | 3x14AWG | 9.4 | 149.5 |
| UL2586 | 4x14AWG | 10.5 | 189.1 |
| UL2586 | 5x14AWG | 11.5 | 225.9 |
| UL2586 | 6x14AWG | 12.7 | 267.9 |
| UL2586 | 7x14AWG | 12.7 | 294.7 |
| UL2586 | 8x14AWG | 13.9 | 340.0 |
| UL2586 | 9x14AWG | 15.5 | 391.3 |
| UL2586 | 10x14AWG | 16.7 | 446.8 |
| UL2586 | 11x14AWG | 17.2 | 483.8 |
| UL2586 | 12x14AWG | 17.2 | 500.9 |
| UL2586 | 13x14AWG | 18.3 | 557.1 |
| UL2586 | 14x14AWG | 18.3 | 574.8 |
| UL2586 | 15x14AWG | 19.5 | 633.2 |
| UL2586 | 16x14AWG | 19.5 | 654.2 |
| UL2586 | 17x14AWG | 20.7 | 711.4 |
| UL2586 | 18x14AWG | 20.7 | 732.4 |
| UL2586 | 19x14AWG | 20.7 | 759.2 |
| UL2586 | 2x12AWG | 9.8 | 160.6 |
| UL2586 | 3x12AWG | 10.6 | 203.5 |
| UL2586 | 4x12AWG | 11.8 | 257.2 |
| UL2586 | 5x12AWG | 12.9 | 308.3 |
| UL2586 | 6x12AWG | 14.3 | 365.3 |
| UL2586 | 7x12AWG | 14.3 | 404.9 |
| UL2586 | 8x12AWG | 15.7 | 465.3 |
| UL2586 | 9x12AWG | 17.6 | 541.6 |
| UL2586 | 10x12AWG | 18.8 | 607.2 |
| UL2586 | 11x12AWG | 19.6 | 668.3 |
| UL2586 | 12x12AWG | 19.6 | 695.3 |
| UL2586 | 13x12AWG | 20.8 | 769.8 |
| UL2586 | 14x12AWG | 20.8 | 797.5 |
| UL2586 | 15x12AWG | 22.1 | 874.7 |
| UL2586 | 16x12AWG | 22.1 | 905.8 |
| UL2586 | 17x12AWG | 23.5 | 982.1 |
| UL2586 | 18x12AWG | 23.5 | 1013.2 |
| UL2586 | 19x12AWG | 23.5 | 1052.8 |
| UL2586 | 2x10AWG | 11.5 | 229.8 |
| UL2586 | 3x10AWG | 12.4 | 292.3 |
| UL2586 | 4x10AWG | 13.8 | 370.1 |
| UL2586 | 5x10AWG | 15.3 | 451.3 |
| UL2586 | 6x10AWG | 16.9 | 533.9 |
| UL2586 | 7x10AWG | 16.9 | 593.8 |
| UL2586 | 8x10AWG | 18.5 | 679.8 |
| UL2586 | 9x10AWG | 20.8 | 786.4 |
| UL2586 | 10x10AWG | 22.4 | 892.0 |
| UL2586 | 11x10AWG | 23.1 | 970.0 |
| UL2586 | 12x10AWG | 23.1 | 1012.8 |
| UL2586 | 13x10AWG | 24.5 | 1117.6 |
| UL2586 | 14x10AWG | 24.5 | 1161.4 |
| UL2586 | 15x10AWG | 26.0 | 1270.3 |
| UL2586 | 16x10AWG | 26.0 | 1317.7 |
| UL2586 | 17x10AWG | 27.8 | 1438.4 |
| UL2586 | 18x10AWG | 27.8 | 1485.9 |
| UL2586 | 19x10AWG | 27.8 | 1545.8 |
| Model | Specification | Approx. Outer Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| UL2586 | 2x20AWG | 6.6 | 58.2 |
| UL2586 | 3x20AWG | 6.9 | 68.1 |
| UL2586 | 4x20AWG | 7.6 | 82.8 |
| UL2586 | 5x20AWG | 8.3 | 97.8 |
| UL2586 | 6x20AWG | 9.4 | 121.4 |
| UL2586 | 7x20AWG | 9.4 | 130.6 |
| UL2586 | 8x20AWG | 10.4 | 152.6 |
| UL2586 | 9x20AWG | 11.4 | 171.9 |
| UL2586 | 10x20AWG | 12.3 | 199.6 |
| UL2586 | 11x20AWG | 12.7 | 212.3 |
| UL2586 | 12x20AWG | 12.7 | 218.7 |
| UL2586 | 13x20AWG | 13.5 | 244.5 |
| UL2586 | 14x20AWG | 13.5 | 251.1 |
| UL2586 | 15x20AWG | 14.2 | 273.6 |
| UL2586 | 16x20AWG | 14.2 | 280.4 |
| UL2586 | 17x20AWG | 15.2 | 308.7 |
| UL2586 | 18x20AWG | 15.2 | 315.5 |
| UL2586 | 19x20AWG | 15.2 | 324.7 |
| UL2586 | 2x18AWG | 7.0 | 70.4 |
| UL2586 | 3x18AWG | 7.5 | 83.5 |
| UL2586 | 4x18AWG | 8.2 | 102.1 |
| UL2586 | 5x18AWG | 9.3 | 129.9 |
| UL2586 | 6x18AWG | 10.4 | 153.3 |
| UL2586 | 7x18AWG | 10.4 | 167.2 |
| UL2586 | 8x18AWG | 11.2 | 189.3 |
| UL2586 | 9x18AWG | 12.5 | 219.5 |
| UL2586 | 10x18AWG | 13.5 | 253.2 |
| UL2586 | 11x18AWG | 13.9 | 270.0 |
| UL2586 | 12x18AWG | 13.9 | 279.0 |
| UL2586 | 13x18AWG | 14.8 | 310.8 |
| UL2586 | 14x18AWG | 14.8 | 320.2 |
| UL2586 | 15x18AWG | 15.6 | 348.5 |
| UL2586 | 16x18AWG | 15.6 | 358.0 |
| UL2586 | 17x18AWG | 16.6 | 392.2 |
| UL2586 | 18x18AWG | 16.6 | 401.9 |
| UL2586 | 19x18AWG | 16.6 | 414.8 |
| UL2586 | 2x16AWG | 7.7 | 88.5 |
| UL2586 | 3x16AWG | 8.1 | 106.8 |
| UL2586 | 4x16AWG | 9.3 | 139.9 |
| UL2586 | 5x16AWG | 10.4 | 171.4 |
| UL2586 | 6x16AWG | 11.3 | 198.4 |
| UL2586 | 7x16AWG | 11.3 | 216.4 |
| UL2586 | 8x16AWG | 12.4 | 250.9 |
| UL2586 | 9x16AWG | 13.8 | 290.0 |
| UL2586 | 10x16AWG | 14.9 | 332.6 |
| UL2586 | 11x16AWG | 15.4 | 358.9 |
| UL2586 | 12x16AWG | 15.4 | 369.4 |
| UL2586 | 13x16AWG | 16.4 | 412.9 |
| UL2586 | 14x16AWG | 16.4 | 423.8 |
| UL2586 | 15x16AWG | 17.3 | 460.6 |
| UL2586 | 16x16AWG | 17.3 | 474.7 |
| UL2586 | 17x16AWG | 18.4 | 518.6 |
| UL2586 | 18x16AWG | 18.4 | 532.7 |
| UL2586 | 19x16AWG | 18.4 | 550.8 |
| UL2586 | 2x14AWG | 8.5 | 114.9 |
| UL2586 | 3x14AWG | 9.4 | 149.5 |
| UL2586 | 4x14AWG | 10.5 | 189.1 |
| UL2586 | 5x14AWG | 11.5 | 225.9 |
| UL2586 | 6x14AWG | 12.7 | 267.9 |
| UL2586 | 7x14AWG | 12.7 | 294.7 |
| UL2586 | 8x14AWG | 13.9 | 340.0 |
| UL2586 | 9x14AWG | 15.5 | 391.3 |
| UL2586 | 10x14AWG | 16.7 | 446.8 |
| UL2586 | 11x14AWG | 17.2 | 483.8 |
| UL2586 | 12x14AWG | 17.2 | 500.9 |
| UL2586 | 13x14AWG | 18.3 | 557.1 |
| UL2586 | 14x14AWG | 18.3 | 574.8 |
| UL2586 | 15x14AWG | 19.5 | 633.2 |
| UL2586 | 16x14AWG | 19.5 | 654.2 |
| UL2586 | 17x14AWG | 20.7 | 711.4 |
| UL2586 | 18x14AWG | 20.7 | 732.4 |
| UL2586 | 19x14AWG | 20.7 | 759.2 |
| UL2586 | 2x12AWG | 9.8 | 160.6 |
| UL2586 | 3x12AWG | 10.6 | 203.5 |
| UL2586 | 4x12AWG | 11.8 | 257.2 |
| UL2586 | 5x12AWG | 12.9 | 308.3 |
| UL2586 | 6x12AWG | 14.3 | 365.3 |
| UL2586 | 7x12AWG | 14.3 | 404.9 |
| UL2586 | 8x12AWG | 15.7 | 465.3 |
| UL2586 | 9x12AWG | 17.6 | 541.6 |
| UL2586 | 10x12AWG | 18.8 | 607.2 |
| UL2586 | 11x12AWG | 19.6 | 668.3 |
| UL2586 | 12x12AWG | 19.6 | 695.3 |
| UL2586 | 13x12AWG | 20.8 | 769.8 |
| UL2586 | 14x12AWG | 20.8 | 797.5 |
| UL2586 | 15x12AWG | 22.1 | 874.7 |
| UL2586 | 16x12AWG | 22.1 | 905.8 |
| UL2586 | 17x12AWG | 23.5 | 982.1 |
| UL2586 | 18x12AWG | 23.5 | 1013.2 |
| UL2586 | 19x12AWG | 23.5 | 1052.8 |
| UL2586 | 2x10AWG | 11.5 | 229.8 |
| UL2586 | 3x10AWG | 12.4 | 292.3 |
| UL2586 | 4x10AWG | 13.8 | 370.1 |
| UL2586 | 5x10AWG | 15.3 | 451.3 |
| UL2586 | 6x10AWG | 16.9 | 533.9 |
| UL2586 | 7x10AWG | 16.9 | 593.8 |
| UL2586 | 8x10AWG | 18.5 | 679.8 |
| UL2586 | 9x10AWG | 20.8 | 786.4 |
| UL2586 | 10x10AWG | 22.4 | 892.0 |
| UL2586 | 11x10AWG | 23.1 | 970.0 |
| UL2586 | 12x10AWG | 23.1 | 1012.8 |
| UL2586 | 13x10AWG | 24.5 | 1117.6 |
| UL2586 | 14x10AWG | 24.5 | 1161.4 |
| UL2586 | 15x10AWG | 26.0 | 1270.3 |
| UL2586 | 16x10AWG | 26.0 | 1317.7 |
| UL2586 | 17x10AWG | 27.8 | 1438.4 |
| UL2586 | 18x10AWG | 27.8 | 1485.9 |
| UL2586 | 19x10AWG | 27.8 | 1545.8 |
Certifications Of UL2586
-
Production Processes Of UL cable
JOCA produces UL wires using a fully automated workflow. The cycle synchronizes copper drawing and stranding with precise PVC or XLPE extrusion. Instead of waiting for post-production checks, we employ continuous inline monitoring—using laser diameter gauges and spark testers to catch defects instantly. For multi-core variants, the line handles cabling, shielding, and jacketing to exact specifications. Before shipping, every batch faces final electrical and mechanical inspections to verify full compliance with UL standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Main advantage over standard wire?
A: Voltage Rating. Standard hook-up wire is 300V. UL2586 is rated for 600V (or up to 1000V). It offers double the safety margin for high-power internal wiring.
Q: Recommended applications?
A: High-Load Devices. Ideal for industrial control panels, inverters, and heavy-duty office printers where voltage loads exceed standard 300V limits.
Q: Temperature limits?
A: -20°C to 105°C. Handles the heat buildup inside sealed power supplies without insulation failure.
Q: Power or Signal?
A: Both.
Large Gauge: Use for internal power distribution.
Small Gauge: Use for high-voltage logic controls.
Q: Conductor material?
A: Stranded Tinned Copper. We recommend Tinned over Bare copper. It resists corrosion and solders faster, preventing “cold solder” joints.
Q: Is shielding available?
A: Yes. Optional Aluminum Foil or Braid. Mandatory if your wiring runs near transformers or motors to block EMI noise.
Q: Is it stiff or flexible?
A: Flexible PVC. Designed for “Stress-Free” routing. It bends around tight corners in compact chassis without putting mechanical strain on the connectors.
Q: Custom colors and packaging?
A: Yes. We customize Jacket Color, AWG, and Spool Size. Contact us directly for OEM/ODM specifications.
