N2XSEY/NA2XSEY
3.6KV-35KV Multi XLPE Insulation and PVC Jacket power cable
額定電壓: 3.6/6kV to 26/35kV

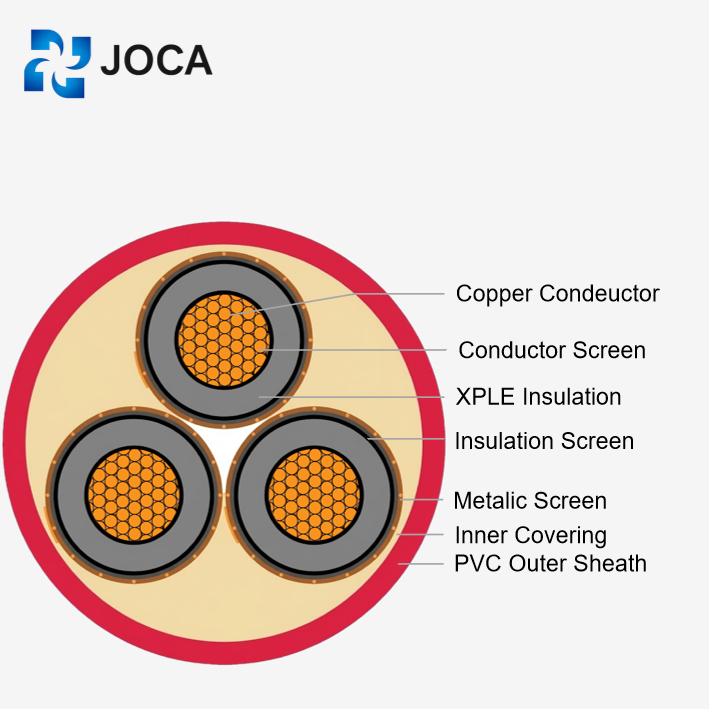

指揮: Stranded Compacted Copper (N2XSEY) or Aluminium (NA2XSEY) – Class 2
Conductor Screen: Extruded Semi-conductive Compound
絕緣: 交聯聚乙烯 (XLPE)
Insulation Screen: Extruded Semi-conductive Compound
Metallic Screen: Copper Tape or Copper Wire Screen
Bedding / Inner Covering: PVC or PP Filler
外護套: PVC (Polyvinyl Chloride), Red or Black
Max. Operating Temperature: 90°C
- 使用客製化解決方案進行快速樣品處理
- 高品質材料
- 經濟實惠的價格選擇
- 全球交付
- 為了更好地保護數據,請確保所有上傳都是安全的
平均至少節省 30%
-
產品說明
N2XSEY/NA2XSEY : Product Description and Specifications
的 N2XSY (Copper) 和 NA2XSY (Aluminum) series are your go-to cables for the Medium Voltage (MV) grid—anything from 3.6kV up to 35kV. Here’s the critical part: Since it’s MV, we wrap the XLPE insulation 與a Copper Wire Screen. This isn’t optional—it manages the electric field stress and handles fault currents to keep the system safe. Your choice: Need standard protection? Stick with the 聚氯乙烯 sheath. Running it in wet ground? Upgrade to PE (Polyethylene) to seal out moisture completely.
-
優點
N2XSEY/NA2XSEY : Benefits and Features
6/10kV Ready: Built strictly to VDE and IEC standards. No guessing.
Copper or Aluminum: Your call. Go 銅 for performance or 鋁 to save the budget.
Real Screening: Copper wire screen + semi-con layers. Essential for managing electric field stress (so it doesn’t fail).
XLPE Insulation: Tough stuff. Survives 250°C short circuit spikes without melting.
Install Anywhere: Underground, ducts, or outdoors. The PVC/PE sheath takes the beating.
安全第一: The copper screen ensures you have solid earthing protection.
尺寸/參數
| 橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | Copper core cableweight (kg/km) | Aluminum core cableweight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 2.5 | 0.12 | 2.1 | 34.7 | 1521 | 1049 |
| 35 | 緊湊的圓形 | 7.2 | 2.5 | 0.12 | 2.2 | 37.5 | 1891 | 1230 |
| 50 | 緊湊的圓形 | 8.4 | 2.5 | 0.12 | 2.3 | 40.2 | 2402 | 1458 |
| 70 | 緊湊的圓形 | 10.0 | 2.5 | 0.12 | 2.4 | 43.9 | 3082 | 1760 |
| 95 | 緊湊的圓形 | 11.7 | 2.5 | 0.12 | 2.5 | 47.8 | 3914 | 2121 |
| 120 | 緊湊的圓形 | 13.1 | 2.5 | 0.12 | 2.6 | 51.1 | 4722 | 2456 |
| 150 | 緊湊的圓形 | 14.6 | 2.5 | 0.12 | 2.7 | 54.5 | 5676 | 2844 |
| 185 | 緊湊的圓形 | 16.3 | 2.5 | 0.12 | 2.8 | 58.4 | 6786 | 3293 |
| 240 | 緊湊的圓形 | 18.5 | 2.6 | 0.12 | 3.0 | 63.9 | 8535 | 4004 |
| 300 | 緊湊的圓形 | 20.7 | 2.8 | 0.12 | 3.2 | 70.3 | 10512 | 4849 |
| 400 | 緊湊的圓形 | 23.8 | 3.0 | 0.12 | 3.5 | 78.4 | 13664 | 6113 |
| 500 | 緊湊的圓形 | 26.6 | 3.2 | 0.12 | 3.7 | 87.0 | 16918 | 7479 |
| 橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | Copper core cableweight (kg/km) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 3.4 | 0.12 | 2.2 | 38.9 | 1728 | 1256 |
| 35 | 緊湊的圓形 | 7.2 | 3.4 | 0.12 | 2.3 | 41.6 | 2111 | 1451 |
| 50 | 緊湊的圓形 | 8.4 | 3.4 | 0.12 | 2.4 | 44.4 | 2636 | 1692 |
| 70 | 緊湊的圓形 | 10.0 | 3.4 | 0.12 | 2.5 | 48.1 | 3336 | 2015 |
| 95 | 緊湊的圓形 | 11.7 | 3.4 | 0.12 | 2.7 | 52.0 | 4185 | 2392 |
| 120 | 緊湊的圓形 | 13.1 | 3.4 | 0.12 | 2.8 | 55.2 | 5009 | 2743 |
| 150 | 緊湊的圓形 | 14.6 | 3.4 | 0.12 | 2.9 | 58.7 | 5979 | 3148 |
| 185 | 緊湊的圓形 | 16.3 | 3.4 | 0.12 | 3.0 | 62.5 | 7109 | 3616 |
| 240 | 緊湊的圓形 | 18.5 | 3.4 | 0.12 | 3.1 | 67.6 | 8845 | 4314 |
| 300 | 緊湊的圓形 | 20.7 | 3.4 | 0.12 | 3.3 | 73.1 | 10764 | 5101 |
| 400 | 緊湊的圓形 | 23.8 | 3.4 | 0.12 | 3.5 | 80.2 | 13848 | 6297 |
| 500 | 緊湊的圓形 | 26.6 | 3.4 | 0.12 | 3.7 | 87.9 | 17019 | 7580 |
| 橫截面積(mm2) | 結構 | Outer diameter (mm) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | Copper core cableweight (kg/km) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 4.5 | 0.12 | 2.4 | 43.9 | 2008 | 1536 |
| 35 | 緊湊的圓形 | 7.2 | 4.5 | 0.12 | 2.5 | 46.7 | 2411 | 1750 |
| 50 | 緊湊的圓形 | 8.4 | 4.5 | 0.12 | 2.6 | 49.5 | 2953 | 2009 |
| 70 | 緊湊的圓形 | 10.0 | 4.5 | 0.12 | 2.7 | 53.2 | 3672 | 2351 |
| 95 | 緊湊的圓形 | 11.7 | 4.5 | 0.12 | 2.8 | 57.1 | 4544 | 2751 |
| 120 | 緊湊的圓形 | 13.1 | 4.5 | 0.12 | 2.9 | 60.3 | 5387 | 3122 |
| 150 | 緊湊的圓形 | 14.6 | 4.5 | 0.12 | 3.0 | 63.7 | 6378 | 3546 |
| 185 | 緊湊的圓形 | 16.3 | 4.5 | 0.12 | 3.1 | 67.6 | 7531 | 4038 |
| 240 | 緊湊的圓形 | 18.5 | 4.5 | 0.12 | 3.3 | 72.7 | 9297 | 4767 |
| 300 | 緊湊的圓形 | 20.7 | 4.5 | 0.12 | 3.5 | 78.2 | 11249 | 5586 |
| 400 | 緊湊的圓形 | 23.8 | 4.5 | 0.12 | 3.7 | 85.3 | 14376 | 6825 |
| 500 | 緊湊的圓形 | 26.6 | 4.5 | 0.12 | 3.9 | 93.0 | 17592 | 8153 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|
| 35 | 緊湊的圓形 | 7.2 | 5.5 | 0.12 | 2.6 | 51.3 | 2708 | 2047 |
| 50 | 緊湊的圓形 | 8.4 | 5.5 | 0.12 | 2.7 | 54.1 | 3264 | 2320 |
| 70 | 緊湊的圓形 | 10.0 | 5.5 | 0.12 | 2.8 | 57.8 | 4004 | 2682 |
| 95 | 緊湊的圓形 | 11.7 | 5.5 | 0.12 | 3.0 | 61.7 | 4897 | 3103 |
| 120 | 緊湊的圓形 | 13.1 | 5.5 | 0.12 | 3.1 | 64.9 | 5757 | 3492 |
| 150 | 緊湊的圓形 | 14.6 | 5.5 | 0.12 | 3.2 | 68.3 | 6767 | 3935 |
| 185 | 緊湊的圓形 | 16.3 | 5.5 | 0.12 | 3.3 | 72.2 | 7941 | 4448 |
| 240 | 緊湊的圓形 | 18.5 | 5.5 | 0.12 | 3.5 | 77.3 | 9735 | 5204 |
| 300 | 緊湊的圓形 | 20.7 | 5.5 | 0.12 | 3.6 | 82.8 | 11716 | 6053 |
| 400 | 緊湊的圓形 | 23.8 | 5.5 | 0.12 | 3.8 | 89.9 | 14882 | 7331 |
| 500 | 緊湊的圓形 | 26.6 | 5.5 | 0.12 | 4.0 | 97.6 | 18140 | 8701 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|
| 50 | 緊湊的圓形 | 8.4 | 8.0 | 0.12 | 3.1 | 65.6 | 4154 | 3210 |
| 70 | 緊湊的圓形 | 10.0 | 8.0 | 0.12 | 3.2 | 69.3 | 4942 | 3621 |
| 95 | 緊湊的圓形 | 11.7 | 8.0 | 0.12 | 3.3 | 73.2 | 5889 | 4095 |
| 120 | 緊湊的圓形 | 13.1 | 8.0 | 0.12 | 3.5 | 76.4 | 6793 | 4527 |
| 150 | 緊湊的圓形 | 14.6 | 8.0 | 0.12 | 3.6 | 79.9 | 7849 | 5018 |
| 185 | 緊湊的圓形 | 16.3 | 8.0 | 0.12 | 3.7 | 83.8 | 9075 | 5583 |
| 240 | 緊湊的圓形 | 18.5 | 8.0 | 0.12 | 3.8 | 88.8 | 10939 | 6408 |
| 300 | 緊湊的圓形 | 20.7 | 8.0 | 0.12 | 4.0 | 94.3 | 12994 | 7330 |
| 400 | 緊湊的圓形 | 23.8 | 8.0 | 0.12 | 4.2 | 101.4 | 16257 | 8706 |
| 500 | 緊湊的圓形 | 26.6 | 8.0 | 0.12 | 4.4 | 109.2 | 19619 | 10180 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | PVC 墊層厚度(毫米) | 裝甲帶外徑(毫米) | 護套厚度(毫米) | 外徑(約)(毫米) | 銅芯電纜重量(公斤/公里) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 緊湊的圓形 | 6.0 | 4.5 | 0.1 | 1.4 | 0.5 | 2.5 | 48.9 | 3227 | 2755 |
| 35 | 緊湊的圓形 | 7.2 | 4.5 | 0.1 | 1.4 | 0.5 | 2.6 | 51.7 | 3711 | 3050 |
| 50 | 緊湊的圓形 | 8.4 | 4.5 | 0.1 | 1.5 | 0.5 | 2.7 | 54.7 | 4372 | 3428 |
| 70 | 緊湊的圓形 | 10.0 | 4.5 | 0.1 | 1.5 | 0.5 | 2.8 | 58.4 | 5208 | 3886 |
| 95 | 緊湊的圓形 | 11.7 | 4.5 | 0.1 | 1.6 | 0.5 | 3.0 | 62.6 | 6271 | 4477 |
| 120 | 緊湊的圓形 | 13.1 | 4.5 | 0.1 | 1.7 | 0.5 | 3.1 | 66.0 | 7254 | 4989 |
| 150 | 緊湊的圓形 | 14.6 | 4.5 | 0.1 | 1.7 | 0.5 | 3.2 | 69.5 | 8420 | 5588 |
| 185 | 緊湊的圓形 | 16.3 | 4.5 | 0.1 | 1.8 | 0.5 | 3.3 | 73.5 | 9731 | 6239 |
| 240 | 緊湊的圓形 | 18.5 | 4.5 | 0.1 | 1.9 | 0.5 | 3.5 | 78.9 | 11715 | 7184 |
| 300 | 緊湊的圓形 | 20.7 | 4.5 | 0.1 | 2.0 | 0.8 | 3.7 | 85.8 | 14774 | 9111 |
| 400 | 緊湊的圓形 | 23.8 | 4.5 | 0.1 | 2.1 | 0.8 | 3.9 | 93.1 | 18350 | 10798 |
| 500 | 緊湊的圓形 | 26.6 | 4.5 | 0.1 | 2.2 | 0.8 | 4.1 | 101.0 | 21990 | 12551 |
| 導體橫截面積(mm2) | 導體結構 | 導體外徑(毫米) | 絕緣厚度(毫米) | 銅帶屏(約)(毫米) | 護套厚度(毫米) | Cable Outer diameter (approximate) (mm) | Copper core cableweight (kg/km) | 鋁芯電纜重量(公斤/公里) |
|---|---|---|---|---|---|---|---|---|
| 50 | 緊湊的圓形 | 8.4 | 10.5 | 0.1 | 3.5 | 78.0 | 5289 | 4345 |
| 70 | 緊湊的圓形 | 10.0 | 10.5 | 0.1 | 3.6 | 81.7 | 6131 | 4809 |
| 95 | 緊湊的圓形 | 11.7 | 10.5 | 0.1 | 3.7 | 85.6 | 7134 | 5341 |
| 120 | 緊湊的圓形 | 13.1 | 10.5 | 0.1 | 3.8 | 88.8 | 8086 | 5821 |
| 150 | 緊湊的圓形 | 14.6 | 10.5 | 0.1 | 3.9 | 92.3 | 9193 | 6361 |
| 185 | 緊湊的圓形 | 16.3 | 10.5 | 0.1 | 4.1 | 96.1 | 10476 | 6983 |
| 240 | 緊湊的圓形 | 18.5 | 10.5 | 0.1 | 4.2 | 101.2 | 12414 | 7883 |
| 300 | 緊湊的圓形 | 20.7 | 10.5 | 0.1 | 4.4 | 106.7 | 14548 | 8885 |
| 400 | 緊湊的圓形 | 23.8 | 10.5 | 0.1 | 4.6 | 113.8 | 17917 | 10365 |
-
電纜的生產流程
確保卓越的品質, ,喬卡 經營 完全數位化和自動化的生產線 電源電纜. 具體來說, ,這個綜合的工作流程 覆蓋 導體絞合、絕緣擠壓、金屬屏蔽和最終護套。. 而且, ,智能係統 主動監控 每個階段都確保穩定的性能和一致的產品品質。. 另外, ,工廠 利用 先進的測試設施,如局部放電測試、拉伸測試和火花測試。. 因此, ,這些嚴格的措施 保證 每條交付的電纜都嚴格符合國際標準。.
裝運包裝
為了滿足各種運輸需求,可以使用多種包裝方法。.
還有更多問題嗎?
Q: What does "N2XSEY" actually mean?
答: It’s just VDE shorthand. Here’s the cheat sheet:
2X = XLPE Insulation.
S = Copper Screen (Crucial for MV).
Y = PVC Jacket.
E = Bedding layer.
Q: N2XSEY vs. NA2XSEY: The difference?
答: Simple. N2XSEY is Copper. NA2XSEY (with the ‘A’) is Aluminum. Copper carries more current; Aluminum saves you money.
Q: Why use XLPE instead of PVC insulation?
答: Heat tolerance. PVC quits at 70°C. XLPE runs happily at 90°C. That extra headroom means you can push significantly more power through the line without melting it.
Q: Why does it need those screens?
答: To stop it from blowing up. The semi-con layers keep the electric field smooth so the insulation doesn’t fail. The Copper Screen? That’s your safety path for earth faults. Don’t run MV without it.
Q: Where can I install this?
答: Indoors, ducts, or underground—it’s versatile. But be careful: It has no armor. If you bury it directly, lay it in soft sand. Don’t let rocks crush it.
Q: What standards do you follow?
答: We don’t mess around with high voltage. It’s built strictly to IEC 60502-2 和 VDE 0276-620.
Q: How tight can I bend it?
答: 15x the Diameter. Respect that number. If you force a tighter bend, you’ll crack the screen or the insulation, and the cable will fail.
Q: Can I get a different color?
答: Sure. Red is standard, but if you need Black or Flame Retardant (FR) PVC for a specific project, just tell us. We’ll extrude it to order.
