Every electrical installation needs to consider wire gauges such as 2-gauge or 8 AWG for security, efficiency, and durability. This analysis centers around a 2-gauge wire, a good and flexible electrical conductor mostly used in harsh electrical systems and high amperage ratings. Placing these wires and comprehending their attributes, such as strength, composition, and insulation, is vital for linemen, engineers, or even enthusiasts engaging in complex electrical work. This guide is structured so that it revolves around the definition of construction characteristics, use, and rules for applying 2-gauge wire, which should help adjust this type of wiring. Learning about the stresses of such a wire will alter how readers see wires in general, as well as performance control of systems and conforming with requirements.

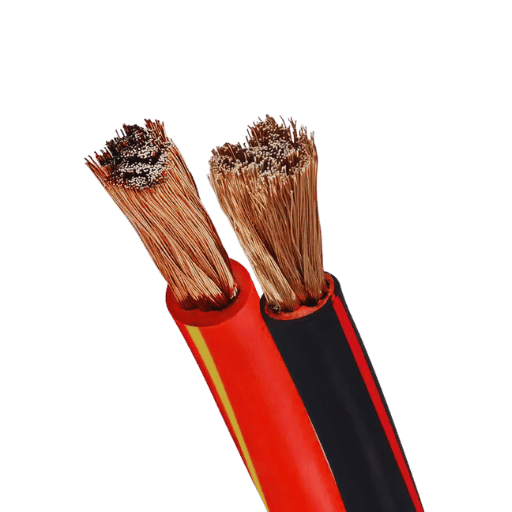

What is 2 Gauge Wire, and How is it Used?
Two gauges are sized wires that are thick and can be made from either copper or aluminum and are rated to handle high current applications such as battery cable 2. Furthermore, with its tremendous dimensions, the 2-gauge wire can support a continuous current of 150 amperes with a minor drop in voltage, making it usable to link power supply and heavy machinery. It is commonly found in automotive battery cables, large electric motors, and industrial machines, where there is a requirement for a considerable amount of power to be transmitted throughout. Furthermore, due to its significant diameter, a two-gauge wire is suitable for connecting power sources and heavy-duty equipment. It should also be noted that the wire’s insulation is quite decent, as it can handle abrasion, moisture, and poor environmental conditions, allowing the wire to be used for strenuous or outside installations. From a system perspective, using 2-gauge wires in electrical systems focuses more on improving performance and safety features to meet users’ expectations in high-power usage industries.
Definition and Characteristics of 2 Gauge Wire
2-gauge wire can also be called an electrical cable, which is quite thickly built and solid. It can be constructed using copper or aluminum, but most standard construction applications require a copper-based variant due to its high current carrying capacity. Its wide diameter enables it to transmit currents ranging from up to around 150 amperes, with a copper wire handling the upper range. 2-gauge wire insulation is applied in external lifestyles, as well as physical wear and tear, physical and mental abuse of the electrical transmission line. This harsh configuration is necessary, as with modern systems, minimal energy loss is essential over long ranges for providing reliable energy in cars, industries, and electric systems, including lighting. Thus, 2-gauge wire proves to be quite durable, efficient and reliable over all other wires in high power functions.
Common Applications of 2 Gauge Wire in Electrical Systems
The 2-gauge wire is appropriate for various vital functions within the electrical systems because of its capability and strength. It’s standard to use this wire in automotive systems, including battery and starter motor wiring, since it can handle high currents. Secondly, two gauge wire and cable industrial applications enable fastening motors and industrial equipment with low voltage drops and high deliverable current across various distances. Third, its robust insulation allows it to be used in renewable energy systems, which include solar energy panel arrays and wind turbines for electricity transmission from its source to inverters or storage systems in different environmental conditions. These examples show the range and effectiveness of 2-gauge wire in other contexts in which power continuity is a measure that needs to be maintained.
Comparing 2 Gauge Wire to Other Wire Gauges
When considering differences between the 2-gauge wire and other wires such as copper flexible wires, it is appropriate to emphasize some of its unique electric and physical attributes. For example, 2 AWG wires have a specific function, mainly to handle a lot of current and functional use of low resistance because it is mentioned in the wrapped wires as higher than 2 AWG wires. Such construction allows significant loads, placing this wire over four or even 6 AWG in performance regarding how much distance it can cover with the least wasted energy. Multi-stranding cables tend to be smaller in wire gauge, making them less suitable for high power usage as they can overheat and fail if not accurately sized. On the other hand, using large wires such as Two O or One Zero will provide the features above the disadvantages mentioned above due to their large dimensions and weight, but they will be more challenging to install in tight spaces. Therefore, the wire gauges needed to pass current and the conditions needed to install the wire will determine which gauge is optimal and safe.

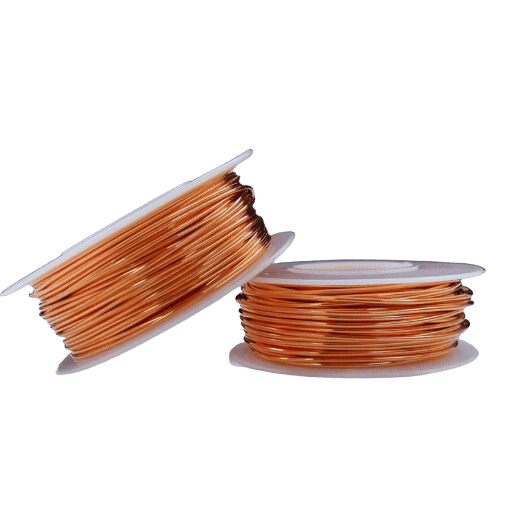

Why Choose 2 Gauge Pure Copper for Your Projects?
Advantages of Using Pure Copper in Electrical Wiring
Wiring made of pure copper is quite expensive, but in some cases, it is worth the price as copper has the second highest electrical conductivity only after silver. This means it allows efficient transfer of electric current with little energy loss, improving the performance and reliability of electrical networks’ systems. In addition, less energy means that copper dissipates heat more effectively, which is essential from an operational and safety point of view. Pure copper, on the other hand, is well known for its good thermal conductivity, and thus, less energy means that copper cools down faster, making copper cool down quicker and depicting less chance of overheating. Additionally, the ductility and malleability of copper allow it to be transformed into thin wires without the loss in tensile strength, which makes copper wires easily handled within complex settings. Also, because of its corrosion-resistant characteristics, copper can withstand harsh environmental conditions and will suit many projects where time and reliability matter.
Performance Benefits of 2 Gauge Pure Copper Wire
Employing 2 gauge pure copper wire in electrical work provides significant performance advantages. It features enormous cross-section areas, enabling the handling of larger current loads while reducing the voltage losses throughout the circuit and supplying the load with voltage. This makes it suitable for heavy-duty applications such as connecting batteries in vehicles or power distribution systems. In addition, the excellent thermal conductivity of pure copper wire minimizes the chances of overheating problems and, therefore, prolongs the life and safety of the installations. Moreover, due to its flexibility and resistance to the abnormal depletion of the environment, the wire regularly performs well in unfavorable conditions, thus, providing an effective means of undertaking heavy electrical works.
Cost Considerations: Is Pure Copper Worth the Investment?
When weighing the investment value of pure copper, my research with trustworthy online resources pinpoints key factors worth considering. First, pure copper offers a more thorough conductivity and durability, which can improve both performance and safety in electrical applications. Indeed, the purchase price of copper is higher than that of some substitutes; nonetheless, its ability to conduct electricity makes it an efficient optionmeaninglower electricity costs in the long run. Furthermore, the durability and the minimal maintenance of the copper fittings can, over the years, lower the overall costs, making up for the capital outlay. It can, therefore, be deduced that the benefits gained from enhanced reliability and performance are worthwhile to ensure the use of pure copper in harsh electrical conditions for a long time.

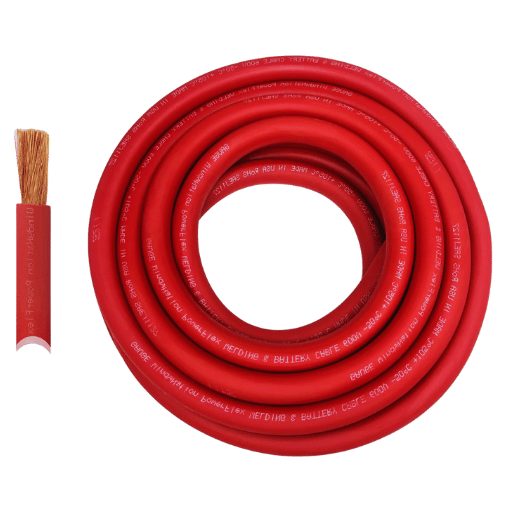

How Flexible is 2 Gauge Wire for Welding and Other Applications?
Understanding the Flexibility of 2-Gauge Electrical Wire
Wires with a thickness of 2 gauge, as expected, are less flexible than wires with a lesser gauge, but such wires maintain some form of flexibility. The wires of this gauge are engineered to sustain high voltages and are adequate for heavy-duty usage, such as welding applications where solid yet supple electrical wires are needed. The flexibility of a 2 gauge wire can be affected by the conductor used, for instance, pure copper wire is more malleable than some of the copper alloys. High-density copper two-gauge wire can be used freely in parts of an assembly where relative movement or repositioning is intended without compromising the integrity of the wire. Still, because of the general properties of the wires, all copper battery cables should be bent with care; otherwise, their cellular structure and functionality will be affected.
The Role of Stranding in Flexible Welding Cables
In response to the role of stranding in flexible welding cables, it is a prerequisite to mention that stranding means having a cable made with several smaller gauge wires twisted around each other. This technique improves flexibility and permits the cable to be constantly moved and bent without incurring any damage. The cues from primary sources indicate that stranded welding cables are far superior in flexibility and durability compared to solid conductor cables, which is extremely important in dynamic welding processes. This flexibility helps avert stress and fractures, ensuring a reliable power supply. SWC ensures great flexibility, high electrical conductivity, and proper mechanical strength when welding industrial or commercial applications. Hence, stranding not only adds strength to the flexibility but also assists in increasing the lifespan of welding cables in harsh environments.
Applications Requiring Flexible Wiring Solutions
Flexible wiring solutions are central in many industrial and commercial applications wherein the environment is kinetic and requires a tough yet versatile element. In most analysts ‘ opinion, Robotics is one of the application areas that forms part of the flexible wiring systems market. In most such processes, wires are subjected to drastic movements in limited areas of space assembled automation, thus ensuring that the methods are efficient and reliable. The automotive sector is another key sector where these wiring harnesses find extensive applications. The deployment of flexible wiring systems in modern vehicles ensures that the market requirements of various electrical units are well met with the harsh conditions and movement of the components. The aerospace industry is another segment that reaps enormous gains from rigid wiring solutions for aircraft since the solutions facilitate requisite weight saving and simplification of the installation processes, which are critical to the performance and security of the plane. Last but not least, in consumer electronics, there is an increasing urge for more miniaturized and lighter devices, and newer wiring harness configurations are required for that. Still, they do not affect the performance of the devices.

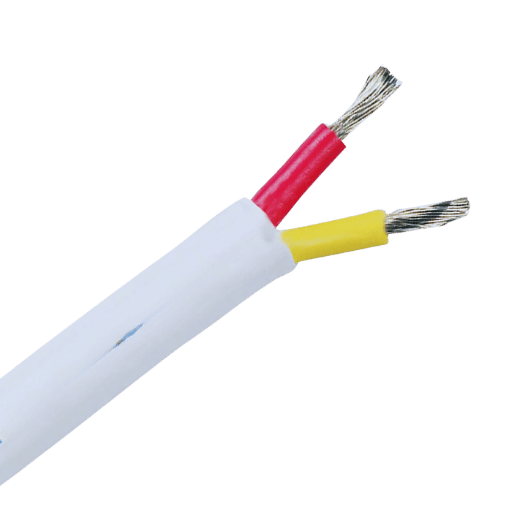

What are the Safety Standards for 2 AWG Wiring?
Electrical Ratings and Safety Certifications
Electrical ratings based on the 2 AWG gauge wire used in wiring generally allow for a load-carrying capacity of around 115 amps if a standard insulated copper wire is utilized in an ambient environment of 75°C. Of course, this also depends on environmental factors and the type of insulation used. Regarding safety certifications, NEC standards per the United States templates apply to the 2 AWG wiring, which includes parameters for acceptable methods of use and installation for safety and energy efficiency purposes. In addition, safety and performance standards/service requirements are often validated by bodies such as the Underwriters Laboratories (UL), which minimizes the risks of fire and electrical damage. Such requirements are essential for achieving safety and functional purposes, particularly in residential and industrial settings.
Proper Insulation and Jacket Materials for 2 AWG Wire
While choosing insulation and, more importantly, jacket materials for a 2 AWG wire, paying attention to temperature rating, environmental exposure, and mechanical strength is critical. Insulation materials include thermoplastics like PVC, which compromise flexibility and protection, and cross-linked polyethylene (XLPE), a polymer with high thermal and wear resistance properties. Jacket materials, which include thermoplastic elastomer (TPE) and rubber, can also be deployed to offer more mechanical, moisture, and chemical protection to the wire. These materials allow the wire to work under different operational conditions, facilitating safety and durability. For compliance with the performance and installation requirements as per the industry and safety standards, it is vital to choose the proper type of insulation and jacket material combinations.
Ensuring Safe Installation of 2 Gauge Battery Cables
In order to understand how to handle two gauge battery cables, one must understand how to follow proper rules and set practices. Start by finding cables that have the correct gauge and if the insulation material is appropriate for the weather and electrical requirements. The cable must be appropriately sized to meet the expected current load so that risks of overheating or voltage drops are avoided. During installation, all connections must be ensured that they are tightened smoothly to avoid loose terminals, particularly when attaching a battery cable, which can cause sparking and other battery issues. Furthermore, dragging the cables toward joints and sharp corners will protect the installation from insulation damage. Proper security devices like rubber grommets and cable ties should be utilized, which will further add to safety by stabilizing the cable path on the battery and decreasing mechanical load on its internal circuitry. Proper inspection and care of the installation should also assist in the early detection of operational wear and problems that could affect the electrical system as a whole.

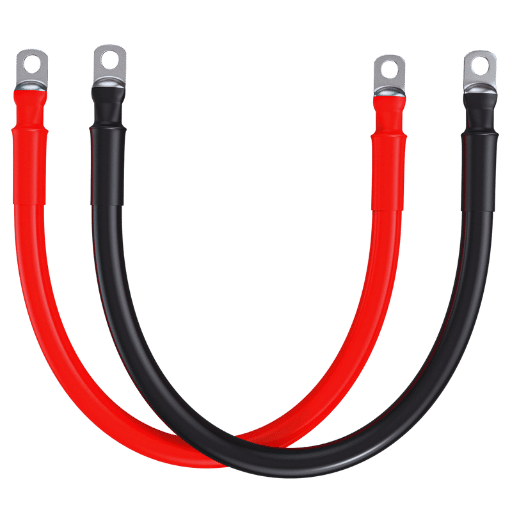

How to Choose the Right 2-Gauge Battery Cable for Your Needs?
Factors to Consider When Selecting Battery Cables
Several key considerations should be taken into account to guarantee the optimal functioning and safety of the two gauge battery cables that are being selected. To begin with, determine appropriate cable lengths to fit your specific use. This is because longer cables tend to suffer more significant voltage drops. Secondly, consider the environmental temperatures and exposure conditions the cable, for instance, copper flexible, will be exposed to choose the appropriate insulation material for the cable. Areas that require more exposure or high temperatures require rigid insulated wires, which are also heat resistant. It is essential to check the wires’ amperage rating to ensure the cable can sufficiently cope with the electrical load without overheating. Keeping these parameters in view, a suitable battery cable can be chosen that satisfies the operational requirements and enhances the life and reliability of the electrical system.
Differences Between Automotive and Marine Battery Cables
Baterie avtomobilskih i brodskih kablova se najviše razlikuju u konstrukciji i primjenama. Automobilski kablovi za akumulatore obično se koriste u kopnenim vozilima gdje su kablovi izloženi maloj vlazi i korozivnim elementima. Obično su premazani standardnim premazima za zaštitu u jednoj prosječnoj automotive okolini. Nasuprot tome, morske baterije su konstruisane da izdrže nem inoa mesta obeležavanje iz virisa, slanu vodu i uticaj hemijskih supstanci. Ovi kablovi imaju veći deblji sloj izolacije, a ponekad su i od pocinčanih bakarnih strunjača radi zaštite od korozije. Tako su morske baterije vozila sa primenjem kablova povišenog stepen varieteta kako bi bolje podnosili teške uslove rada na vodnim površinama.
Tips for Installing and Maintaining Battery Cables
To keep battery cables in good condition and functioning optimally, their installation and upkeep must be handled in the best way possible. Start by choosing the suitable cable according to the length needed, gauge, and type of insulation using the requirements of your application as a basis. During installation, check that all connections are correctly set to avoid accidental disjunction or power drop. Ensuring the cables fit properly requires proper equipment, including applications like high-quality crimpers for terminal connections. Regular checks on the wires should be carried out to check for any signs of wear, corrosion, or damage. The terminals have to be free of any visible corrosion, which can be done by combining baking soda with water, and a coating must be obtained for corrosion prevention. Maintenance and oversight are essential to maintaining the effectiveness and integrity of your electrical system over time.
Reference Sources

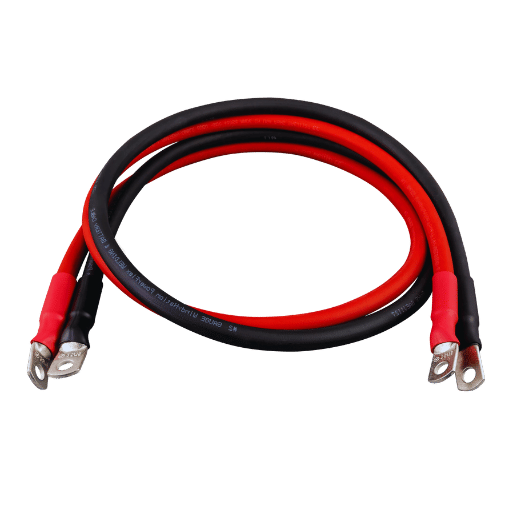

Frequently Asked Questions (FAQs)
Q: What is 2 Gauge Wire, and why is it relevant?
A: Electrical wire harnessing a larger volume of current in most circuit applications includes two gauge AWG copper wire or 2 AWG wire. It is mostly employed in car battery cables and power inverters as it has a thick and large copper core wiring, which increases the chances of maximum current flow throughout the wire.
Q: What is the amp rating for two gauge wires?
A: The wiring’s temperature rating, as well as the insulation’s type, affects its amp rating, which typically falls between 95 and 115 amps for 2 gauge wire. Thus, it is considered best for varied environments as per the requirement and ensures the standards’ specifications are met.
Q: Is 2 Gauge Wire made from pure copper ultra-flexible?
A: Definitely, 2 copper wires made from ultra-flexible copper are and, in some cases, are available in pure 2 gauge wires, which add strength in the form of conductivity and versatility in applications. A stronger wire construction gives the ability to take sharper turns and spins more efficiently for marine and automobile applications.
Q: What are the benefits of using tinned copper in 2 Gauge Wire?
A: A 2-Gauge Wire has tinned copper added to it to improve its corrosion resistance capability in marine and outdoor settings. The tin coating also protects the wire from moisture and oxidation, thereby increasing its usage period.
Q: Could you evaluate copper-clad aluminum in pure aluminum cables?
A: Copper-clad aluminum (CCA) wire, on the other hand, is cheaper and lighter than a pure copper cable but is not as good in terms of conductivity and ductility. Because the electrical characteristics are better, 2 gauge or 8 AWG cables made of pure copper are commonly used in high-end and demanding applications.
Q: Can 2 Gauge Wire be used with power inverters?
A: Definitely, a two gauge wire is helpful for power inverters,, exceptionally high amperes. With its ability to withstand high loads of electricity, it is most appropriate for providing an efficient charge conversion function by linking batteries to inverters.
Q: What types of connectors and lugs are compatible with 2 Gauge Wire?
A: 2 Gauge Wire is suitable for utilization with various lugs for large-diameter wires. These include copper lugs and tinned copper connectors, which commonly connect wire and cable connections securely.
Q: Are 2 Gauge Wire environment-friendly..?
A: Yes, when insulated properly, 2 Gauge Wire can be used in high-temperature zones. Moreover, it is important to always check the temperature rating of the wire and the thermal insulation materials, such as THHN or PVC, if they exceed the expected operational conditions.
Q: I’m looking for 2 Gauge Wire or its attachments, such as Connectors and Lugs. Where can I get that?
A: 2 Gauge Wire and related products such as connectors and lugs can be purchased from electrical supply stores, online retailers, and specialty shops. Most suppliers can provide free shipment options and many specifications, such as copper battery cable and battery cable 2.
