It is of vital importance to choose the correct generator extension cord. First, this will enhance the working performance of the generator. This article aims to provide the reader with an understanding of the facets of generator extension cords, including specifications, power limits, and safety aspects. For power supply security, this article gives various kinds of cords and their appropriateness with other appliances in the home. It also gives the safety measures that residents are supposed to take when using these cords. Understanding the best extendable cord for a generator prevents the risk of an emergency upon power loss. It ultimately prepares the household for an outage. Users gain a better working technique due to knowledge and an introduction to other conceivable dangers posed by using unsuitable materials within an establishment.
What is the Best Generator Extension Cord for Home Use?
Just like an electric one, a generator extension cable that one is likely to use at home has to be rated in terms of length, gauge, types of plug, and amperage. Generally, a ten gauge cord is rated for a 30 amp circuit, which is helpful for regular household generators. The length of the cords should be such that it permits connection to the generator and the transfer switch, but it should be less than 100 feet to avoid wastage of power. Also, solid and weather-resistant insulation must be on the outdoor cords. The most crucial plug type is the one that must fit into the generator’s outlet. Complying with the instructions provided for the correct cord can make sure that power is distributed safely and effectively during blackouts.
What is the Best Generator Extension Cord for Home Use?
A generator extension cord for home use must conform to several basic safety and performance efficiency requirements. To start with, such a cord should carry a “W” designation on the product label, which means it is suitable for outdoor use as it is more durable and made of a weather-resistant cover. Choosing the right gauge size of wire is very important, too. This is because the heaviest gauge (lowest gauge number) wire can carry more amperage; hence, for home use, it is expected to recommend an extension cord of up to 10 gauge for long runs. The length of the cord should allow safe placement of the generator away from the house, preferably 50 ft or more, so as not to encroach on the neighbor’s premises. Besides this, the power cords should be equipped with NEMA connectors, similar to the generator outlets, and features like LED power indicators for excellent safety. Considering these characteristics will ensure that it is easy and safe to operate appliances in case of power outages.
Understanding Generator Power Cord Specifications
The technical information about generator power cords can be understood effectively if the following factors are considered. The gauge size, indicated on the cord, defines the thickness of the wire; the lesser the gauge number, the thicker, higher capacity wire conceived for more power usage, like a ten gauge for heavy-duty items in the market. Always check the cord’s ampacity rating to ensure the cord is capable of sustaining the electric energy that is being generated from the electric generator. The letters assigned to the wires also indicate the type of insulation. For instance, SGTW type is synthetic rubber and thermoplastic, meaning insulations used on electric cords rated for outside. The types of connectors can also be considered critical; they have to fit the receptacle on the generator and the devices or transfer switches being utilized. Lastly, ensure the length is appropriate for the safety recommendations, such that the generator is placed at a safe distance from the living areas, but the power sockets are within reach.
Comparing 30 Amp vs. 50 Amp Generator Cords
The biggest difference between a 30 Amp and a 50 Amp generator cord is the power output associated with the usage scenarios. Being a 30 Amp cord, a maximum power of 3,600 watts will be supported, enough to power small-medium sized appliances and other equipment. It is common for portable generators to be used in the home. On the other hand, a 50 Amp generator cord has a much higher capacity of 12,000 watts and can support high-end equipment such as generators for a whole house or bi-industrial applications. This situation requires a higher capacity power supply for continuous and high-power electric devices, i.e., RVs or heavy machinery. This depends on the requirements of the power and the requirement. 50 Amp cords, however, are for harsher operational requirements and, therefore, offer more flexibility.
How Long Should Your Power Cord Be?
Determining the appropriate length of a power cord should be based on safety and functional purposes. It is usually recommended that the generator and those living areas be kept at a distance that limits carbon monoxide exposure. Most of them will say 20 feet as the standard length. Keeping the generators distanced adequately from the workings of the spaces is quite vital. The cord should also be able to reach the power outlets required, but not too much such that excess strain is created on the cord and causes safety risks through tripping hazards or power drops. Working with the cord length appropriate for the present setup whilst carefully observing safety procedures is crucial concerning safety and performance.

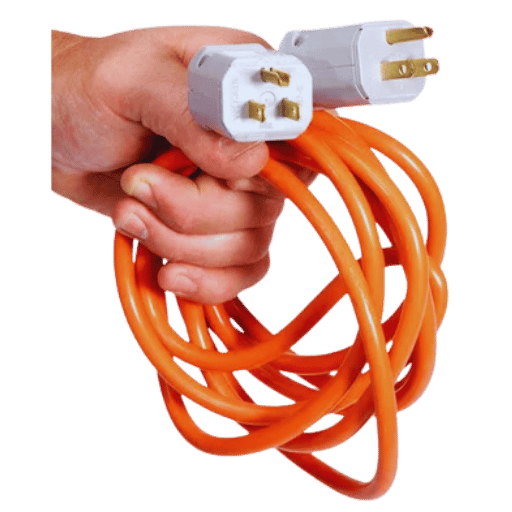

How to Properly Connect a Generator Cord to Your Home?
Steps to Connect a Generator to a Transfer Switch
- Ensure Safety: Never connect anything to the generator without first ensuring that it is switched off and all associated circuit breakers are off.
- Identify Connections for a heavy-duty extension cord: Find the location of the transfer switch, which should be close to the main electrical panel. Check if it is of the same type as your generator.
- Plug into Power Inlet Box: Attach the generator cable to the outside power inlet box and check that the links are secure.
- Switch Off Main Breaker Always ensure that the main breaker is switched off, as this separates the house from the meter to mitigate backfeeding.
- Connect to Transfer Switch: Connect the other end of the generator cable to the generator transfer switch.
- Start the Generator: Start the generator and allow it to run for approximately two minutes.
- Engage the Transfer Switch: Rotate the lever on the transfer switch to select ‘generator’ mode, which allows for the power supply.
- Check Circuit Breakers: Only those circuit breakers in the switch that feed other main circuits may be turned on, starting from the most crucial.
- Monitor Load: The load shall not exceed the generator’s rated loading at all times. Circuits should be adjusted wherever necessary.
- Return to Normal Power: After transmitting power, the transfer switch should be turned to the ‘line’ or ‘utility’ position and the generator switched off.
Using a Power Inlet Box for Safe Connections
A power inlet box is an integral part of the system for safely connecting your generator to the house. This component goes outside and acts as a socket where the generator cord is connected. Most sources 12 of electricity also agree that the power inlet box makes it easy to connect cables with a protective cover so that the wires do not get wet and cause a short circuit or different problems. The generator power will be fed into the transfer switch, directing the power to the desired circuits without causing back feed to the utility lines. By installing a power inlet box, you should also be sure it is adequately rated for the generator output and correctly sited as per local electrical standards, often by a qualified electrician. Regular maintenance and device inspection are also suggested for continued safety and operability.
Ensuring Correct Prong and Plug Types
Most importantly, I must ensure that the prong and plug types I choose when connecting my generator are correct to avoid any safety hazards or losses in efficiency. Before attempting any connections, I have to determine the guideline from where the generator unit receiver socket configuration is available in the socket. In doing so, I need to count the prongs present and check if they satisfy the power inlet box or transfer switch installed in my setup. In this case, the voltage and amperage ratings also need to match the generator specifications. The wrong generator will direct me to its manual, and some recommended electrical safety resources will help avoid erroneous connections, which could be dangerous.
Why Use a Heavy-Duty Extension Cord with Generators?
Benefits of Heavy-Duty Cords for Power Equipment
When working with power tools and incredibly portable generators, it is advisable to use a heavy-duty extension cord. First, these cords can draw more electrical current, which matches the output of the generators. That makes it possible for the equipment to function normally without overheating or dropping voltage, which could damage appliances connected to the system. Heavy-duty cords also have better insulation and construction against environmental elements such as moisture, abrasion, and the normal wear and tear that develops with aging. Most experts advise ensuring that the length and gauge of the cord are appropriate to the capacity of the generator to avoid fire outbreaks and ensure the safe operation of the offered equipment.
Preventing Power Outages with Reliable Cords
To avoid emergency power cut-off situations, better identification of extension cords used is emphasized. Some websites suggest ensuring that the cords are meant for outdoor use and have enough gauges to bear the necessary load to reduce resistance and prevent overheating. Some sources also emphasize checking the cords for any damages or wear and tear to avoid failures. It’s also good to use cords endorsed by authorities such as UL or ETL, which further substantiates the quality and dependability of the cords for generator extension power. The distance between the cord and the equipment should be as short as possible to reduce possible voltage drops and guarantee a stable electrical supply to the equipment.
Choosing the Right Gauge and AWG for Your Needs
The most important aspects when choosing the appropriate gauge and AWG for extension cords include how long the cord is and the power requirements of devices that will be plugged in. As per the major sources, on the one hand, the lower AWG number is a thicker wire, which is recommended for high-power applications and longer distances. For example, a 10 AWG cord is suggested for heavy-duty equipment that must be used over long distances if necessary. On the other hand, a 14 AWG cord may be used for light applications or short distances, but a 12 gauge is a better option for heavy-duty applications. In addition, it is also necessary to check whether the cord can withstand the maximum wattage of a single device in use, such as start-up wattage and operational wattage. These considerations assist in the appropriate selection of a cord that is efficient and safe since the chances of overheating or inadequate power supply are reduced.
Understanding Twist Lock and L14-30 Connectors
How Twist Lock Mechanisms Work
Twist lock mechanisms allow for the locking of power connections through a distinctive interlocking mechanism. In this case, the connectors are equipped with curved prongs inserted into accommodating slots on the mating receptacle. After inserting the plug into the connector, the user must turn it slightly to attach the connectors. This is especially important for a heavy-duty extension as it prevents the risk of dislodging the connectors inadvertently, a more common issue with loose-type connectors. Therefore, this design would be handy in places where standard plugs would likely be shaken loose. The twisting mechanism also possesses an additional feature of separate earthing capability, enhancing the safety and possibility of electric shock and hurting the equipment. These connectors are popular as they find usage in most requirements like industrial operations or any occasion, as long as there is a need for reliable and secure connections.
Using L14-30 Connectors for Secure Connections
The L14-30 connector is a twist lock NEMA type connector most commonly used to connect some industrial device to a 240 Volt power outlet or for generator connections in residential situations. This connector has a maximum current rating of thirty amps. The L14-30’s interlocking property allows it to hold the cables in position and prevents disconnection by accident; hence, it is helpful in applications with a lot of shakes or movement. The three-phase equipment employs two hot wires, one neutral, and one equipment grounding conductor, making it safe to power in split-phase. Such an arrangement has the advantage of evenly distributed electrical loads across the conductors, thereby improving the power connection’s strength and safety. Thanks to its strong design and dependable behavior, the L14-30 connector can be effectively used in even the harshest and most demanding applications where a constant power supply is critical.
Benefits of NEMA L14-30P and L14-30R
Several beneficial features make NEMA L14-30P and L14-30R connectors necessary in different applications. To begin with, the twist-lock construction of these connectors ensures a secure fastening, which minimizes the likelihood of disconnection caused by vibration and movement, which is essential in both construction and industrial sites. In addition, these connectors can carry 30 amps and 240 volts, which makes them adequate for substantial equipment that requires high power. Further, their suitability to most generator outlets also makes them a good option for providing power during emergency electrical backup systems. The construction of the L14-30P plug and L14-30R receptacle also incorporates components that make installation easier and safer, such as markings and construction, explaining its use in domestic and commercial applications.

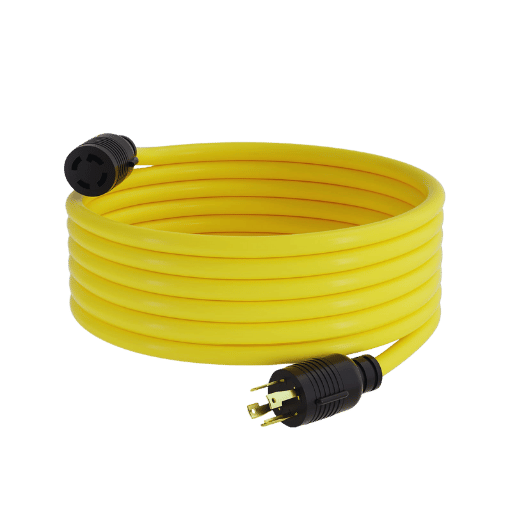

What Safety Measures Should Be Taken When Using Generator Extension Cords?
Inspecting Cords for Damage and Wear
It is essential to check and report any damage and wear of generator extension cords to avoid any safety and operational issues. To start, look through the whole length of the cord for strands that are frayed, cracked, or exposed to wires. Cables at plug ends should be checked closely as this area is mostly worn out because of constant body contact. Scorched spots should also be examined because they show that there have been instances of overheating or shorting. Look at the state of the pins of the plug and connector, they should not be broken, bent or rusted. Make sure also that the twist-lock mechanism functions as expected and is tight. Frequent checks and immediate replacement of broken cords minimize the chances of fire because of overloading the system with power.
Ensuring UL and ETL Certifications for Outdoor Use
When using outdoor generator extension cords, it is essential to confirm that they have been UL (Underwriters Laboratories) or ETL (Intertek Testing Services) certified. Such certification indicates that the cords are good quality and have been approved for outdoor electrical use. The presence of UL and ETL markings on the cords show that they have the recess, so they are less likely to cause electrical failures if exposed to moisture, fluctuations in temperature, and UV exposure. Compliant cords safeguard the user against electrical hazards, enabling reliability in power delivery outdoors. For these certifications, always examine the product label and any other documents associated with the product.
Using Cords Rated for Outdoor Environments
Electricity generating equipment, including generator extension cords meant to be used outdoors, should have a rating that meets the harsh conditions of the outdoors. Watch out for the ‘W’ that indicates the cord can be used in wet and outdoor places. These cords are made from a rigid material resistant to weather and ensure moisture, abrasion, and temperature do not penetrate. Cords with appropriate gauge sizes are preferred to ensure the operating power does not incur significant losses through longer distances. Correctly rated outdoor cords must be used to keep within performance and safety requirements to avoid electrical failure.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is a portable generator extension cord, and why do I need one?
A: A portable generator extension cord is a tough power used to safely carry current from a generator to appliances or other parts of a house. It is necessary to transfer electrical energy from a generator outside the house to the devices and electrical system in the house. It is essential for effectively transferring electricity from the generator over a distance.
Q: What gauge wire should I use for my generator extension cord?
A: The wire gauge measurement required for the generator extension cord differs from the generator’s amperage and the cord’s length. The portable generators in most homes can use a ten gauge wire to a height of about 100 feet. If the amperage is higher or the distance is longer, a heavier gauge wire, 8 or 6 gauge, may have to be used. Always opt for the lower gauge number for wider amperages and greater distance length, as thicker wire headroom is safer for power transmission.
Q: What is the ideal length of an extension cord for a generator?
A: The length of the cord is determined by the area where power should be supplied. Typically, standard lengths are 25′, 50’, or even 100’ extensions available in the market. It is good practice to keep the size of cords as short as possible to enhance power usage and efficiency. However, people should ensure that any generator is placed around 20 feet from the house as it is against the law to put it in or within 5 feet of the house, placing the cords at the needed length.
Q: I’d like to know the receptacle type of an extension cord for a generator. What is that?
A: It depends: there was a 110-hour outlet and an additional 220-amp outlet, and that outlet has to have a maximum of 30 amps. For a typical 30-amp generator, the plug would need a regular 30-amp cord with a plug, typically known as a 4-prong plug, a mixture of 6 sockets with two additional sockets plugged into one outlet. Until the plug’s sockets are correctly fitted, I recommend not using the plug to ensure no issues occur for proper power delivery to avoid problems.
Q: Is connecting several extension cords or using a power strip with the generators permissible?
A: Extension cords and power strips with generator extension cords are not allowed. This would also result in fire, overheating, and a drop in voltage levels. Instead, use one heavy-duty cord, less than 50 feet long, and connect the generator to the needed locations. A manual transfer switch or generator distribution panel powers over 2-3 devices.
Q: What is the difference between a 30-amp and a 50-amp generator cord?
A: The cord’s capacity to safely handle electrical power is the primary difference. In particular, a 30-amp generator cord is rated for a 3,600-watt generator (at 120 volts) and 7,200 watts at 240 volts. The maximum rated capacity of a 50-amp generator cord is for a generator with a continuous output of 6,000 watts (at 120 volts) or 12,000 watts (at 240 volts). As a result, the 50-amp wire must have a more giant plug and feature thicker wires to accommodate higher amperage circuits. For safe operation, the amperage rating of the cord used must always be matched to the output amperage of the generator.
Q: Do you have any other tips for enhancing the generator’s performance when using an extension cord?
A: Yes, use cords that are impact and abrasion-resistant. Such could include: – Heavy duty jacket that is resistant to weather conditions (SJTW will often be stamped on the packaging) – A certification from UL listing – Connectors are of the locking type that twists to fasten the connections – Bright colors making it hard to miss the connectors – The type of cord that is flexible so that it is easy to use during cold weather – Ends that light display when the cord has power flowing through it Such features can enhance the efficiency of a generator during use.
