In domestic and industrial installations, an 8 gauge copper wire is important as it is a common type of wire. This article focuses on the characteristics, application, and some of the installation peculiarities of 8 gauge copper wire in a way that would be useful for electricians, contractors, and people who are doing it themselves. For instance, discussions about the conductivity, load, and suitability of the 8 gauge copper wire to the electrical system will explain the relevance of this wire in electrical construction. Also, the safety precautions and the servicing considerations in this article are intended to achieve the intended purpose of the installations that use this kind of wire.

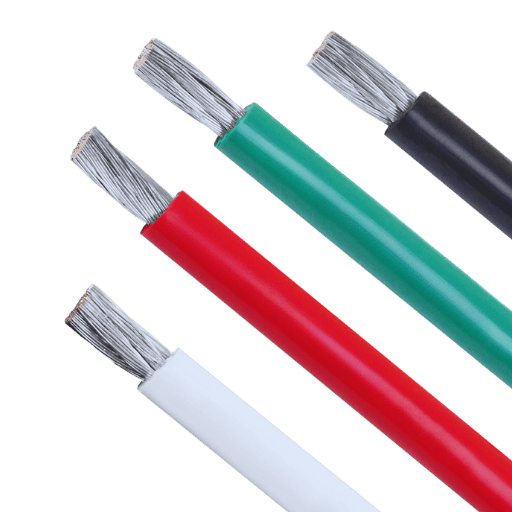

What is 8 Gauge Wire?
The wire known as 4/0 AWG copper wire has a diameter of around 0.128 inches (3.264 mm) thick which makes it an 8 gauge wire. Due to its excellent combination of flexibility and current-carrying capacity, it is quite popular in electrical systems. The wire has conduction properties that permit its use in circuits that may require an amperage of around 40, depending on the insulation as well as ambient conditions. Due to its strong properties, the wire can be used for various voltage applications regardless of the operating conditions.
Understanding 8 Gauge Wire Dimensions
The measurements of the 8 gauge wire have specific relevance when determining the use of this wire in electrical applications, as well as in construction. At 0.128 inches or 3.264 mm, the diameter of the wire has a significant impact on its electrical properties. The wire has a cross-sectional area of about 8.367 mm², which situations its higher potential current carrying capacities along with effective conductivity. It is worthwhile noting that the average 8 gauge copper wire weight is about 0.6401 pounds for 1000 feet of wire, making it simple for mass installations. The standard measurements guarantee that the wire is rigid enough to withstand the stress but flexible enough not to become a hindrance during installation, which is perfect for heavy-duty systems as well as regular wiring purposes. It is necessary to have insights into these dimensions for the purpose of electric compliance and efficient, safe installations.
Common Uses for 8 Gauge Wire
8 gauge wire is quite multifunctional and useful in various areas because of its robust nature. Its most common uses are given in the following list:
Residential Installations:Â
- It allows the wiring of circuits used with appliances like electric cookers, washing machines, and air conditioning systems that can have up to 40A rating.
- Great for large lighting fixtures which need to be connected to the electric mains.
Automotive Wiring:Â
- Used to connect amplifiers to battery or main power in-car audio systems because of its high conductivity.
- It can be used to connect after-market lighting and other accessories in vehicles.
Industrial Applications:Â
- Employed in the wiring of machinery, which has ‘a current demand’ and is sufficient to drive motorized systems.
- Used in makeshift electrical power setups, like those for construction sites, where all-around coverage is required.
Marine Applications:Â
- Offers make of secure electrical connections for boat motors and other electrical systems within boats while successfully dealing with the prevalence of moisture.
Solar Panel Systems:Â
- Employed as a link between solar panels and inverters, designed to provide high load currents typical of photovoltaic systems.
These applications emphasize the adaptability of the wire as well as its capability to transmit electric power from one place to another effectively for different areas whether domestic or commercial.
Why Choose Copper Over Other Materials?
The reason why copper is often used in electrical applications comes from its electrical conductivity, which is better than most metals, in establishing an efficient transmission of energy. It also possesses a high ductility and can be drawn into wires without performance or durability issues. Furthermore, its good resistance to rust makes it ideal for long-term installations in sensitive and important projects. Besides, its thermal expansion and contraction capabilities, along with structural strength, make copper a reliable source of consistent conductivity when subjected to varying temperature conditions. All these factors justify the sole use of copper as opposed to aluminum and other substitute materials in applications where performance reliability and lifespan matter the most.

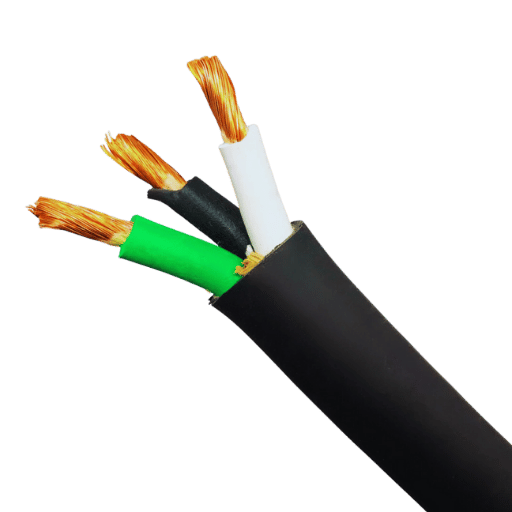

How to Choose the Right 8 Gauge Wire?
Choosing Between Solid and Stranded Cable
There are advantages of solid cables over stranded cables in terms of rigidity and stability which makes them suitable when mobility is not required, however, a higher ampacity is needed. It is usually used for fixed installations into walls with no movement or only slight movement. However, stranded cables are designed best for applications such as flexible, temporary setups or locations primarily designed for vibration and a lot of bending. These varied movements allow them to maintain development in these potentially new conditions, where conductivity remains uninterrupted even when physical force is applied to the cable.
Assessing Wire Gauge Needs
There are several parameters that the user should analyze when setting up a specific wire gauge for a particular application. The wire ampacity is the first consideration that is vital, and it measures how much electrical current the wire can withstand without melting or overheating. In practice, the wire diameter in the American Wire Gauge (AWG) system is indicated by the number that is low, as the lower numbers are thicker wires that have higher current ratings.
To elaborate, an 8-gauge wire which is fairly thick should be utilized in circuits where the ampacity requirement is 40 to 55 amps though variations exist depending on insulation materials and installation conditions. It may also be necessary to use thicker wires such as those with a 6-gauge or 4-gauge for more load applications, but in case of diminished power applications, smaller 10-gauge wires are satisfactory.
Temperature rating denotes the maximum hotness a wire can withstand since its performance will surely deteriorate if the wire is used at a temperature exceeding that rate. For instance, typical PVC-insulated wires are rated to a maximum of 75°C, while THHN-insulated wires can tolerate a maximum of 90°C. Furthermore, in order to maintain system effectiveness, the voltage drop level between the earth terminals should be kept as low as possible, especially in the case of long-distance runs. In most installations that are in accordance with the National Electrical Code, a total voltage drop of 3% or less is quite a typical threshold.
An appropriate wire type may, therefore, be chosen in consideration of installation location, be it indoors, outdoors, in wet places, or where mechanical injury may occur. In choosing the appropriate gauge wire, a compromise between these technical specifications and their price tag must be struck in order to provide a powerful electrical solution that will stand the test of time. Sourcing of such electrical documents as codes and standards is very useful in adjusting choices to meet safety requirements.
8 AWG for Electrical Applications
As a final point, while selecting an 8 AWG wire, the ampacity, insulation temperature rating, and placement details should be well noted. As per the sources available from the web, it is reasonable to surmise that 8 AWG wire can meet the current requirements of up to 40 to 55 A. One must take into consideration the insulating material, which is an important factor with regard to the wire’s upper-temperature limit. Standard examples include PVC insulation, as being limited to 75 degrees Celsius, and THHN, which has a melting point limit of up to 90 degrees Celsius. Also, maintaining efficiency through voltage drop calculations is essential for long wire runs and the accepted voltage drop target is less than 3%. Whether a wire is suitable for the environment—whether the wire would be outside of all barriers or inside—is another important consideration, as well as compliance with the electrical requirements.

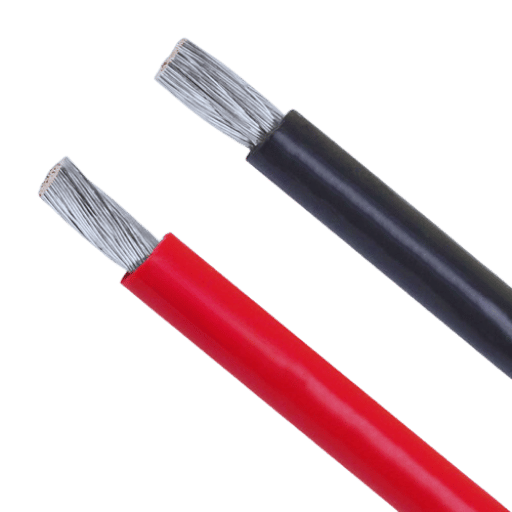

Installation Tips for 8-Gauge Electrical Wire
Proper Insulation Techniques
There are a number of important technical factors that must be addressed when insulating an 8-gauge electrical wire. The following techniques should be followed:
- Â Insulation Material Selection: Insulation materials must be selected in relation to the expected thermal and environmental situation. Polyvinyl chloride or PVC, Polyethylene, and Thermoplastic High Heat-Resistant Nylon-Coated, also known as THHN insulation, are the most common options.
- Temperature Rating Compliance: Estimate with care that the expected operating conditions will be in compliance with the temperature rating of the insulation material used. Standard insulation of PVC has an approximate maximum temperature rating of 75 degrees Celsius while the maximum temperature rating of THHN insulation is 90 degrees.
- Environmental Suitability: Context the instalation surrounding. If the insulation material is to be used in outer parts of buildings likely to moisture content, purchase or select insulation that is capable of withstanding moisture or sunlight to avoid damage and sailing the expected lifespan.
- Abrasion Resistance: In installations or surroundings where physical scraping might be a problem, specifi high strength insulation materials or additional covering layers equipped with high mechanical strength can be applied to reduce the abrasion of the insulation material.
- Sealing and Waterproofing: Seal the gaps and spaces with specific heat shrink tubes or electricity tape to prevent moisture from penetrating to the internal parts of the connection joints that cause rusting and other electric-related problems.
- Code Compliance: To ensure the safety features, electricity appliances performance, and installation practices dos and don’ts are followed, refer to and practice insulations as outlined in the NEC standards and your local regulations.
These detailed considerations are designed to ensure that electrical insulation is achieved effectively resulting in maximum reliability and enhancement of electrical installations.
Common Installation Mistakes
There are many mistakes that can be easily committed during the installation of electrical insulation that would compromise safety or efficiency. One of the basic errors is the choice of wrong insulation materials that do not conform to the environmental or thermal conditions. Not operating strictly within the permitted temperature range is likely to result in insulation failing sooner than should be expected. In addition, failure to waterproof or seal properly the connections may lead to penetration of water and later corrosion and failure of electrical components. Also, high-wear zones have poor insulation owing to neglect of abrasion resistance in these areas. Finally, aeronautical practitioners who fail to comply with the current National Electrical Code Symphony not only put lives in jeopardy illegal and regulatory sanctions. Recognition and avoidance of such errors is fundamental to the achievement of safe and reliable electrical installations.
Using Correct Connectors and Terminals
It is quite critical for the proper connectors and terminals to be selected in order to preserve the reliability of an electric system. According to the best experts, one of the guidelines states that connectors must contain the appropriate structural features in respect to the electrical loading and to the environmental parameters of the application. Connectors should have a composition to provide sufficient conductivity and low resistance. Additionally, terminals that are thermally and physically correct in size avoid getting hot and provide a good contact. For optimization of mechanical and electrical parameters, fastening tools for crimp type connectors that are meant for particular connectors should be used. In addition, always check what is already in use and make sure that the norms are respected to avoid potential hazards. If these guidelines are followed and applied properly, connection failures would not be experienced, and hence, electrical systems would last much longer.

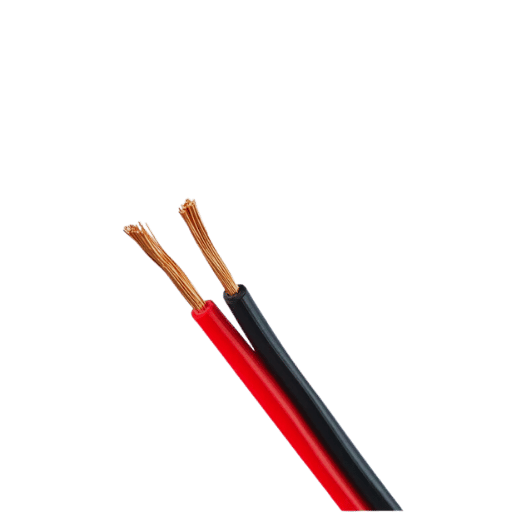

Understanding the Ampacity of 8 Gauge Copper Wire
Calculating Amperage for Safety
To determine amperage for 8-gauge copper wire in safe conditions, determine the maximum amount of current able to be applied without the wire overheating. This wire normally can handle up to about 40 amperes for longer periods in standard conditions during residential and commercial wiring. In any case, always take the National Electrical Code (NEC) requirements into consideration, as other circumstances surrounding the installation may require some ampacity values. Also, make sure the calculations do not exceed those values with regard to applicable conditions that can lead to overheating of the wires in order not to breach any safety measures.
How Durability Affects Performance
Reliability of components is essential for improving efficiency and minimizing maintenance. Quality materials can also withstand external environmental conditions such as corrosion and abrasion that compromise component operational performance over time. Energy efficiency is equally affected by durability since good materials will always guarantee reliable conductivity and, hence, low or no energy loss. In addition, well-built elements withstand more mechanical stress and thus provide better reliability to the whole system in operation. So, the usage of durable materials improves performance in the short term and extends the operational life of electrical systems in compliance with relevant safety and efficiency requirements.
Following National Electrical Code Requirements
The importance of adhering to the National Electrical Code (NEC) cannot be overstated, as it guarantees safety and conformity in installations. Electric shock hazards, fire, and general risks to installations have been addressed by the NEC in the conductors’ sizing, grounding, and protective devices’ usage. Such standards should take into account adjustments for conductor ampacities, including ambient air temperature and the number of conductors installed in a conduit, as well as equipment operating conditions. In addition, provisions of the NEC also require that certain updates be made to improve safety features that integrate with the latest technology, stressing the need to have reliable sources for the latest code changes. The NEC ensures safety standards are observed at all times as well as facilitates the adoption of the best practices in the design and maintenance of electrical systems.

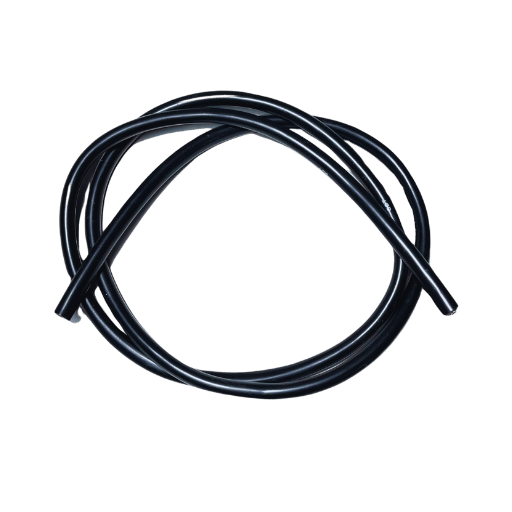

Applications of 8 Gauge Copper Building Wire
Automotive and Marine Grade Uses
In relation to the construction of automotive and marine electrical systems with 8g copper building wire, its effective conductivity and flexibility have been the most distinguishing features, and they aid customers in performing greater reliability. In the automotive industry, this gauge of wire finds its use in battery cables, wiring harnesses and charging systems, where the ability to sustain higher current loads effectively is of utmost importance. For instance, in an average 12-volt car electrical system, an 8g wire is able to bear around 80 amps depending on run length and insulation but, most importantly, ensures connection that greatly improves vehicle safety and performance.
With regards to marine applications, the features of copper as a metal with an increased resistance to corrosion is definitely a plus. 8 gauge copper wires for marine applications normally use a tin coating so as to increase resistance against corrosion due to moist or salty waters. This makes them suitable for boat wiring systems where dependable connections are needed to ensure true reliability of the onboard power for lighting, navigational systems, and engine hook-up. Some data shows that tinned copper has better conductivity and operational properties over other metals in the sea, which makes electrical systems on boats last longer.
The use of 8 gauge copper wire for both automotive and marine minimizes such environmental factors by materials selection for the individual cases. Complying with the requirements of the industry and the application of high-grade materials guarantees performance and safety of the systems even in mode operationally demanding conditions.
Residential vs. Commercial Wire and Cable Applications
Within residential practices, wire and cable applications are directed to security, simple installation, and sufficient general-purpose capacity homes. Regularly used wire types are non-metallic (NM) sheathed cable and armored cable for internal wiring, which are intended to handle moderate power loads. Such wires are generally intended for lighting, outlets, and builds-in, as well as free-standing electrical appliances. On the other hand, commercial applications require strong and unfailing wiring systems to satisfy a higher demand for electrical power as well as complex systems, including HVAC, elevators, and other sophisticated facilities. MC cables, which are normally used in commercial applications, have metal casing for extra protective purposes to withstand harsh weather and mechanical damage. They are essential to meet applicable building codes for larger structures and facilitate heavy loads common in large buildings and facilities. In both situations, the emphasis is on adherence to electrical codes and standards for safety and maintaining functional integrity in various working conditions.
The Role of 8 AWG in Ground Wire Systems
The utilitarian 8 AWG copper wire is an ideal candidate for use in the ground wire systems because of its optimal conductivity and strength and wears out slowly making it a favorable option for grounding purposes in construction and residential buildings. The wire’s size guarantees low resistance to electro-motive currents and thereby ensures that effective grounding is achieved since fault currents are discharged to earth away from appliances and other sensitive equipment to minimize electrical risks. Another aspect of 8 AWG wire is that it features thick wiring, which allows for high conductivity while at the same time is tough enough to protect against considerable environmental strain while still maintaining a secure connection to the ground. Such capability is vital in achieving the design requirements of electrical systems for effective regulation of voltage variations and providing protection against shock in such areas.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is the most common application for 8 gauge copper wire?
A: 8 gauge copper wire is suitable for use in a marine battery cable, automotive wire, and even in residential wiring because of its strength. It is also applicable in many electrical systems due to their great conductivity.
Q: How does the inclusion of oxygen-free copper (OFC) in 8 gauge wire improve its capabilities?
A: An excellent feature of oxygen-free copper (OFC) wire cacble is that it guarantees a desirable conductivity as well as corrosion resistance which renders it appropriate for high end audio cables and other works that require electrical efficiency. Its purity increases the performance especially the fragile electronic systems.
Q: What are the particular benefits of tinned copper battery cable?
A: Tinned copper battery cable is useful in the offshore industry since it is less likely to corrode than bare copper wire. The tin covering the copper conductor is a protective coating against salt water and other destructive elements, increasing the durability of the wire.
Q: What’s the difference between copper-clad aluminum (CCA) in comparison to pure copper for 8 gauge wires?
A: Copper clad aluminum (CCA) wire is made of aluminum and is coated with a thin layer of copper. This wire works as a good substitute of pure copper wires as it is inexpensive and lighter, however, it has high resistance and relatively lower conductivity. While weighing more and costlier, an 8 gauge copper on copper wire performs better when it comes to electrical work.
Q: Considering 8 gauge wire applications, why does stranded copper replace solid copper?
A: Stranded copper is used in many 8 gauge wire applications because it provides greater flexibility than solid copper wire. Such flexibility makes it suitable for automotives and several industrial uses where the wire needs to be installed at certain angles or around obstacles without breaking.
Q: What is the use of AWG with respect to 8 gauge wire?
A: AWG is American Wire Gauge which is a numerical system used to represent the size and current strength divisions of wires. Since 8 gauge is AWG wire, its fus diameter is expected to be thick, and is capable of carrying more current than other wires with a lesser guage rating. Thus, it can be useful in high power but low resistance applications.
Q: Why is heat shrink tubing suggested for 8-gauge copper wires?
A: Heat shrink tubing is generally used together with 8 gauge copper wires as a way of covering and safeguarding the wire connections. After being pulled over the connection, heat is applied to the tubing in order to make it smaller, which then forms a tightly sealed, seamless, and waterproof joint over the connection. This in turn prevents short circuits and also keep the wire safe from physical damage.
Q: Why does bare copper differ from tinned copper?
A: Copper that is bare is free of coating and is thus highly conductive but vulnerable to oxidation and corrosion, more so in harsh conditions. On the other hand, tinned copper contains a thin film of tin all around it as a protective feature against corrosion, and is especially use in marine and outdoor applications where exposure to the environment is a concern.
Q: Do you think color coding is necessary for the 8 gauge copper wire?
A: Yes, 8 gauge copper wire has color codes for easy identification of its utilization and how it is to be installed. Red is used for positive terminal connections, while black is used for negative terminal connections in battery systems. Color coding contributes to the safety and ease of repair and general servicing of electrical systems.
Q: What are the length variants of the 8 gauge copper wire?
A: For specific expectations, 8 gauge copper wires are provided with certain standard lengths including 10, 50, or 100 feet. Such a wire can be used for roofs, cables or telephone lines as determined by the installation or project.
