Solar energy is now one of the most preferred sources for electrical installations in residential and commercial establishments. With this increasing demand for sustainable and economical energy sources, so does the knowledge of the specifics of solar installations. One such element often neglected but of utmost importance is the solar conduit, widely used in solar installations. The enclosing raceway for the electrical wiring and solar conduit is essential for the protection, effective operation, and long-term usage of photovoltaic systems. This article explains how solar conduit systems work, their importance, how they are installed, and what regulatory standards are related to them. At the end of this article, the readers will understand why proper selection and use of conduits significantly improves solar installation projects.

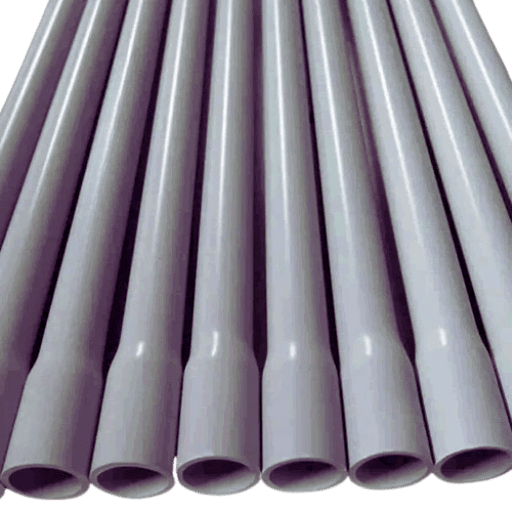

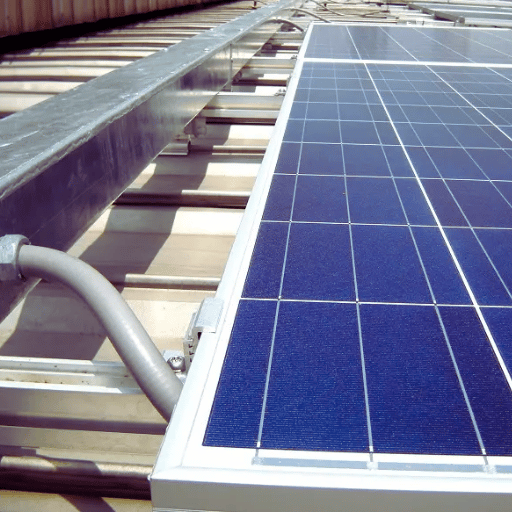

What is Solar Conduit and Why is it Important?
Solar conduit consists of a tubing system explicitly designed for solar installations to protect and divert electrical wires. Its main objective is to prevent electrical cables from being exposed to environmental and signifying mechanical threats, thus boosting the safety and dependability of the photovoltaic system. Solar conduits are essential since one of their functions is to mitigate electrical risks like electric shocks or electric fires caused by damaged or bare wires. Moreover, on top of having all cables in order, conduit systems enhance both the aesthetics and maintenance of solar installations and ensure compliance with law requirements and best practices.
The Role of Conduit in Solar Installations
Conduit is an essential part of solar installations; conduit protects the wiring and enables regulatory compliance, which is necessary for solar luminary manufacturers. It forms the second line of defense, protecting the wiring from physical abuse, UV rays, moisture, and other extraneous conditions that could compromise insulation or material integrity. Such protection is critical in averting shorts, ground faults, and fires. From an organizational perspective, integrating conduit systems reduces the wires’ layout and routing, easing maintenance, troubleshooting, and upgrades. Besides, vital conduits also help ensure compliance with the required electrical and building codes, making the installation safe and legal. So, from the concept of solar systems regulation, systems integrity, and effective service would collaterally help enhance the solar systems’ operational effectiveness.
Types of Conduit Used in Solar Applications
Solar installations commonly use many conduits designed for particular conditions and specifications. Areas that require high strength and protection against mechanical damage often use Rigid Metal Conduit (RMC). Those not using RMC can opt for IMC, which is lighter but provides decent coverage. In situations where heavy-duty ENC protection is not required, Electrical Metallic Tubing (EMT) is preferred because of its lower cost and ease of installation. For the range that does not use metallic coverings, PVC Conduit is recommended because it is non-metallic, and many of its structures have good resistance to weather, especially UV. This is why, in general, some scope of conduit application has been precisely defined. Each type of conduit has its dominant practical application and is used depending on ambient conditions, execution conditions, and regulations.
How Conduit Ensures Safety in Solar Power Systems
Conduit provides the safety of solar power systems by protecting the electrical wires against environmental factors or damage due to other physical attributes. This attachment eliminates the chances of experiencing hazards of an electrical nature, such as shorts or ground faults, which can cause fires. Cables can be installed in conduits, so it might be possible to prevent accidental contact by personnel, which reduces the risk of electric shock. Furthermore, using conduit systems also achieves the requirements of electrical safety codes and standards that aim at avoiding accidents and ensuring the stability of solar installations over the years.

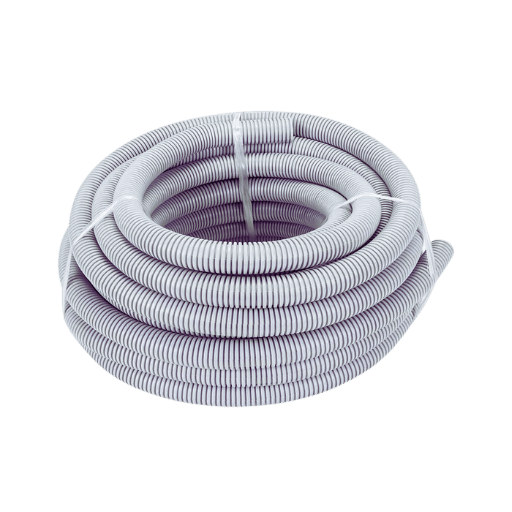

How to Choose the Right Conduit for Your Solar Installation
Considerations for Selecting PVC Solar Conduit
Several points should be analyzed when choosing PVC solar conduit for the project to enhance its effectiveness. To begin with, evaluate the climatic conditions at the installation site, such as sunlight, moisture, and temperature fluctuations, which are mitigating factors for using PVC in outdoor applications due to its UV stability. Second, the conduit dimension and volume to contain the required cables should be reviewed, and future embellishments should be provided. Adjust to the governing bodies of the area, as some may require specific satellite designs or methods of sprouting for safety purposes. Last, the installation ease and other costs of using PVC instead of different materials are assessed to get a medium between the budget limit and system reliability and durability.
Understanding Flexible Metal Conduit and Its Uses
The flexible metal conduit (FMC) is used in cases where wiring has to be installed in portions of the building that require wiring to be flexible due to vibration or movement. It is flexible enough to be installed in complicated or small areas, which would not be practical for rigid conduit systems. The use of FMC applies a form of highly efficient protection against physical abuse and can be easily reshaped to fit into different spatial configurations. In addition to a reasonably high level of mechanical protection, it effectively reduces electromagnetic interference. This type of conduit is commonly found within the electrical wiring systems of commercial and industrial sites, as well as in some parts of the residential structure where there is a need for flexible wiring. Ensuring that the FMC to be used complies with the local electrical and building codes for safe and good practice is advisable.
Comparing Non-Metallic and Metallic Conduits
Several fundamental elements, such as the application environment, durability, and costs, should be considered while comparing non-metallic and metallic conduits. Nonmetallic substances like PVC and others are less corrosive and do not weigh much, so they are preferred for outdoor or underground usage. They serve an insulating purpose, and minimal upkeep is required, thus being a very economical option in different weather situations.
On the other hand, metallic conduits such as steel or aluminum have conduits made of these metals, providing a robust structure and increased grounding capabilities. These conduits are suitable for challenging industrial or high-traffic areas susceptible to mechanical or chemical forces. Moreover, metallic conduits have better shielding against electromagnetic waves than non-metallic conduits, making interactions in high electromagnetic interference more stable.
To conclude, the appropriate selection of conduits depends on their suitability for the intended environment, compliance with local regulations, ease of installation, and cost so that the system is efficient and safe in terms of electric equipment.

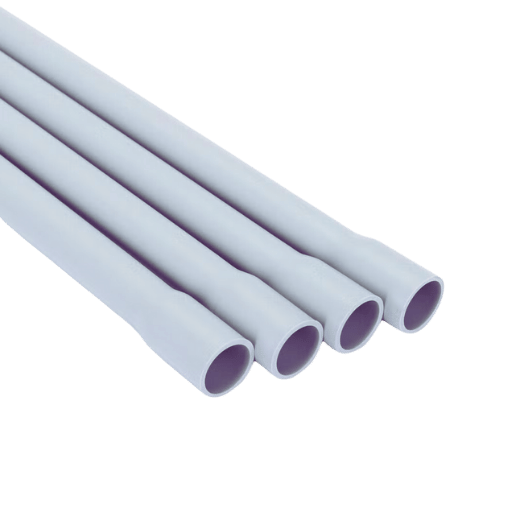

Steps to Install Conduit in Solar Energy Systems
Planning the Conduit Run
To prevent installed elements from environmental exposure while complying with the NEC or local codes and regulations, it is recommended to do a full assessment of the area in which the conduit run will be laid out, and in this case, the solar energy system. Emphasis should also be placed on minimizing the risk of accidents for maintenance purposes and the need to access high-density locations. Remember the conduit’s total length and cross-section area since this may also be important for expansion while supporting the system’s wiring. Finally, this also means that enough time and resources must be allocated, which would facilitate route alterations with minimal disruption to residents and others not relevant to the objective. These factors would guarantee that the energy lost in conduits would be negligible and the lifespan of the conduit or the overall system would increase.
Tools and Techniques for Installing Electrical Conduit
Installing electrical conduits in solar energy systems requires an appreciation of tools, skills, and practices that guarantee correct code-compliant installation. Some essential tools are conduit benders, which enable the mechanical geometry of conduit pipes to the path, fish tapes, which allow wire pulling during installation, and cutting tools for the accurate size of pipes. The other accessories with this horizontal passway include levels, measuring tapes, brackets, and clamps for fastening the conduit in position.
Some installation methods include – first, the estimated length of conduit to be used is measured, followed by cutting the conduit to size while ensuring the edges are smooth so as not to damage the wires. The installers then use appropriate cutting devices that permit the bending of the conduit to achieve the desired angle when installing the conduit. The conduit may be fitted using suitable fittings and tightly joined to ensure no leakage occurs and foreign materials cannot infiltrate the conduit. In addition, quality installation accomplished by respecting the NEC guidelines will promote compliance with electrical safety measures, limiting future system breakdowns and hazards. Overall, solar energy systems can benefit from effectively installing electrical conduits and circuitry as their efficiency and dependability would be heightened.
Common Challenges and Solutions in Conduit Installation
Electrical conduits are essential components of electrical installations, and their installation comes with multiple challenges. One such challenge is fitting conduits in areas such as corners with limited space, demanding much foresight and planning or advanced kneeling abilities to make it right. Flexible conduits or fashioned routes could lessen those considerations. A security feature that ignores weatherproofing is another frequent obstacle to protection, even worse. At this out-on-the-compound barrier, sealing conduits out to the minute dot or possibly allowing moisture to intrude on the shield is essential. Such stressors can be mitigated by using weather head fittings and sealing materials. Finally, dealing with electrical code compliance, particularly the NEC, can be a little nauseating for its large swath of content. However, staying on top of these processes ensures that installations can contain all the needed safety and compliance knowledge pertinent to regulation. By addressing these challenges early, the reliability and efficiency of the conduit systems within solar energy installations can be hugely improved.
Understanding the Conduit Fittings Used in Solar Panels
Types of Conduit Fittings and Their Applications
Conduit fittings are essential components that facilitate the electrical installation process. They enable transitions and terminations and electrically combine sections of conduits with electrical boxes. Among them are straight connectors that securely attach a conduit to a box or a panel, allowing the conductors to be wired together continuously. Elbow fittings allow for vertical and lateral turning of conduit runs, particularly around obstructions. They are essential in preserving system design configurability while retaining electrical performance. Couplings, another critical type of fitting, join two conduit segments to make them longer and make the connection solid and airtight. These fittings are crucial to installing systems, providing not only mechanical robustness and geometry but excellent environmental protection from penetration of harmful substances, thus meeting electrical requirements and enhancing the effective operation of solar panel systems installations.
Ensuring Compatibility with Solar Panels
The following factors must be considered when ensuring compatibility between conduit fittings and solar panels. First of all, material selection is of utmost importance; PVC electrical conduit and fittings should be made up of corrosion- and UV-degradation-resistant materials to provide long-term service regardless of the weather. Secondly, suitable fittings that match the specific conduit employed should be used to achieve proper closure and maintain electrical passage. Fittings are common elements, and many leading practice recommendations concerning solar installations suggest that fittings intended for outdoor service, such as those coated with glass or made of stainless steel or polymer containing UV filters, should be used. Also, manufacturers often give compatibility information or recommended charts. It also helps guarantee that the components designed will work together. This way, the durability and efficacy of the entire solar energy system are achieved while simultaneously conforming to the industry’s standard requirements and the local electrical codes.
Maintaining and Replacing Solar Conduit Fittings
Solar conduit fittings need an overhaul, and maintenance is critical. Routine checks must be done to assess whether the fittings are corrupted, damaged, or worn out. Weather inspections open up possibilities for either strength improvement or replacement. Cleaning the fittings with a non-corrosive solution assists in preventing the accumulation of dust, dirt, and odd materials, which negatively affects the lifespan of the fittings. Conduit fittings must be replaced on any signs of damage or during system upgrades. There is a need to ensure that replacement fittings are identical to the previous ones to provide the solar installation’s overall performance. Also, guaranteeing accredited contractors do these types of maintenance helps as they abide by the safety regulations and eliminate possible risks.
Where to Find a Reliable Conduit Manufacturer and Supplier for Solar Projects
Top Conduit Manufacturers in the Industry
In considering my study to identify the significant challenges in the conduit manufacturing industry, I worked on three companies that are reputed to have a quality product and retain reliability. First, Atkore International is impressive for its wide range of HVAC construction systems, including perishable items like steel and PVC conduits that meet international regulations. The second company is Wheatland Tube, also a member of Zekelman Industries, which has potential conduits for excellent materials and high manufacturing. Lastly, Calpipe Industries is considered well-known for producing stainless steel conduit systems, which are best suited for critical situations where environmental solid protection is needed. All these manufacturers also engage in extensive testing and quality assurance compliance with policies within the solar systems conduit manufacturers.
Criteria for Selecting a Supplier of Solar Conduit
When sourcing suppliers for solar conduit, I have a few chief requirements based on the best information conceivable. First, I ensure that the suppliers have been in operation for a considerable duration, manufacturing the likes of Atkore, Wheatland Tube, and Calpipe Industries products, among others. This lets me ascertain product quality and functionality, solidifying and guaranteeing their systems. I then consider how well they can offer client assistance, such as supply on demand, because these are core to running schedules. I also look into a potential supplier’s environmental standards and practices, ensuring full support for the green energy initiatives. Finally, product reviews and customer testimonials are essential in making the final decision on the supplier as they indicate whether the supplier is reliable and the quality of their service.
Exploring Conduit Solutions for Commercial Solar Projects
When evaluating conduit solutions for commercial solar projects, it is helpful to consider the global context of crucial players, such as The Home Depot, Allied Tube and Conduit, and Grainger. The Home Depot mentions that PVC and metallic conduit options are numerous and versatile enough for indoor and outdoor applications, which meets the National Electrical Code requirements. Allied Tube and Conduit have a vast range of electrical conduits, such as rigid metal conduits (RMC) and electric metallic tubing (EMT), which are said to be easy to install for large solar projects. On the other hand, Grainger guides you in choosing the suitable conduit material depending on the conditions, size of the project, and application to provide both anti-corrosion and high-temperature conduits. Considering these factors, conduit systems for commercial solar projects can be more productive, last longer, and be more compliant with regulations.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What are the different solar conduits available for solar installations?
A: Various buildings and structures, such as pole barns and barn sheds, can rely on solar energy. Solar installation can include a rigid type conduit, a PVC conduit, or other types, depending on what is required. PVC conduits are lightweight and low-cost effective, which is why they are frequently used, but this does not make them the only option. A more rigid option can also be good to go for; however, metal inner tubing can be expensive and weigh quite a lot. EMT conduit is another metal used when building, but it gives good overall protection while not being difficult to use. Rounding off the construction and installation of solar structures is a flexible conduit, which is excellent for sections that experience movement or vibrations.
Q: What do I need to know about solar conduits for my PV system?
A: Finding an ideal system is crucial for accomplishing desired results; most importantly, adjusting sections to complement the solar installation is critical. Make sure that the conduit can protect against damage or harsh weather. Correctly installing sections to complement other parts and wiring channels is very important, as some channels use a wiring system to increase accuracy and effectiveness. If the size is mismatched, different parts may end up not fitting together or, in some cases, can restrict areas from expanding. Conduits should be appropriately sized to guarantee that the system can operate at its best while not compromising local electrical codes. Making sure that everything is completed accordingly can provide a boost in performance and alkaline the lifespan of the solar system.
Q: How do I select a suitable solar conduit for my installation?
A: The selection of solar conduit depends on various factors. Many factors need to be considered, such as exposure to UV rays, temperature extremes, and physical abuse. In addition, it will also be helpful to think about the routing of your system, as this will determine if you will use rigid or flexible conduit. Also, check local building codes and regulations as they may prescribe standard practices regarding materials and means of installing conduits. Consider seeking advice from a professional solar installer or a PVC conduit manufacturer for ease.
Q: What are the benefits of using PVC Electrical conduits for solar piping or installation?
A: PVC conduit offers many benefits to solar installations. It is less bulky than metallic ones, making it easier to handle and install. PVC is also impervious to rusting and UV radiation, which is very important for solar products for outside use. It is inexpensive, and many conduit suppliers deal with different PVC ranges. Besides, Lassen couplings and couplers are pretty simple to cut and modify on-site, allowing for more leeway during installation; however, Select PVC couplers are built for outdoor use and will not be in breach of electrical codes.
Q: What are the different installation processes regarding the various solar conduits?
A: Installation processes are pretty different, depending on the type of solar conduit employed. The rigid conduit installation leaves little room for mistakes because it is not very lenient when making bends and turns. Cutting and joining together PVC conduit is less complex, and solvent cement is often employed to make the joins. Flexible and corrugated conduits are the easiest to install for tight spaces or areas with obstructions. But whatever type it is, the conduit must be well-supported and adequately secured. Whether in China, the manufacturer must ensure correct specifications and local compliances when undertaking any form of conduit installation for your solar system.
Q: What is the best practice concerning solar panel installations about the conductors?
A: When installing a solar power conduit, there are some challenges that one must keep in mind: first, standard overhead conduit and wire sizes should be able to cover all wires that extend from the solar array to the inverter, and then the electrical panel. Second, proper support and attachment methods should be used for the conduit run so that it can quickly and sufficiently endure thermal expansion and contraction, and deformation of vertical bends can be prevented using appropriate fittings and connectors. Third, the accumulation of water in the wiring conduits should be avoided. Besides, the designer must also ensure adequate allowances for the provision of wires and expansion of the solar panel in the future if the configuration of the ground or solar panel changes. Moreover, grounding and bonding metallic Conduit runs are necessary for safety reasons.
Q: If I have a solar installation, what are the effects of the type of solar conduit used?
A: The type of solar conduit can impact your installation substantially, as High-Quality conduit facilitates and ensures durability. A suitable conduit protects the wires from UV, moisture, and high/low temperatures, which may potentially damage the wiring in the future. Rigid conduit also protects against any physical harm caused by animals and other debris. Furthermore, It helps to choose the correct type of conduit for a particular installation location, providing a better shield to the wires of a system throughout the lifetime of a solar array, minimizing maintenance requirements and thereby increasing the life of solar arrays and enhancing the return on solar investment.
