The Ultimate Guide to Choosing a Solar Battery Charger for Your Boat

In the boating world, it is vital to manage power well if you want to have fun and not risk your safety on the water. There has never been a time when reliable power sources were needed more than now since people are using more electronic gadgets and systems. Solar battery chargers offer a sustainable solution by using sunlight to charge and keep operational boat batteries. The main objective of this manual is to ensure that readers get all-round information about how they can select the best solar battery charger for their boats. We will look at charger efficiency rates, compatibility with different types of batteries, installation requirements, and recommended maintenance practices. After reading through this post, one should have acquired enough knowledge which will enable them to make conscious choices concerning power usage during their boat journeys while also considering environmental conservation.

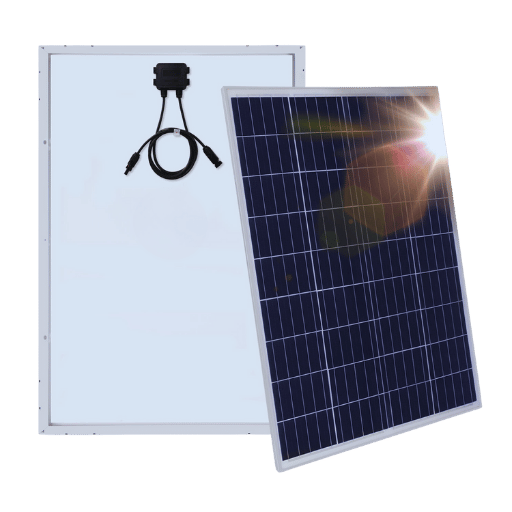

What is a Solar Battery Charger and How Does it Work?

Understanding the Basics of Solar Power

A solar battery charger is made up of solar panels that convert sunlight into electricity, which is then used to charge batteries. The main process is called the photovoltaic effect, where direct current (DC) electricity is produced by solar cells when they are exposed to light. This electric power goes into the battery and restores its stored energy. Solar battery chargers are built to charge batteries as efficiently as possible by maximizing the absorption of sunlight and working with different types of batteries. They typically have a charge controller that stops overcharging and controls the voltage and current delivered to the battery, thus making it last longer.

How Solar Panels Convert Sunlight to Electrical Energy

Solar panels, made up of photovoltaic cells (PV), have a critical role in converting sunlight into electric energy. When sun rays hit the PV cells, electrons are energized so that an electric field is created within the cell. This is how solar power is tapped, and direct current electricity is produced.

Some of the factors that affect the efficiency of this conversion are: materials used in making these cells; angle at which light strikes them; and temperatures around PV modules. For example, monocrystalline panels generally have higher efficiencies (15-22%) compared to polycrystalline ones (13-16%), hence being widely adopted for compact energy systems.

Typically each standard solar cell produces about 0.5 – 0.6 volts per cell according to recent findings while a common solar panel has series connected 60 or 72 cells resulting in outputs ranging from 250 to 400 watts. More power can also be generated by advanced panel technologies like bifacial solar panels which can capture light from both sides thus increasing overall energy production.

It’s important to get the best out of sunlight by positioning them rightly; therefore, optimizing orientation and incline angles for solar panels is very crucial. At its most efficient level, a panel should be slanted at an angle equal to the latitude where it’s situated, then face towards the South as much as possible but not less than the North, too, because every degree matters when working with such sensitive devices like batteries that store energy from the sun. It should also be noted that regular check-ups along with proper care practices enable us to achieve optimal performance levels from our PV stations thereby enhancing their durability as well as reliability during charging periods.

The Role of a Solar Charge Controller

To have a solar power system work properly, the necessary components should be present; one such element is a solar charge controller. This component regulates the voltage and current passing between the solar panels and batteries. The key purpose of these devices is to prevent overcharging as well as keeping battery within safe voltage levels. It also improves battery life by managing charging process which can lead to damage through too much discharge or higher voltages.

Essentially there are two types of charge controllers namely PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). While being simpler and cheaper than the latter, PWMs reduce battery’s voltage by steps until it matches what’s required for charging it up again. On the other hand, MPPTs adjust where panels operate so that most sunlight is tapped into saving energy; this converts more amps from surplus volts.

Further functionalities include load control which allows modern ones to distribute electricity among connected appliances according to their needs at any given moment in time. These days they usually come with monitoring capability enabling users watch over things like how fast batteries are filling up or discharging as well overall system performance thereby enhancing efficiency throughout installations.

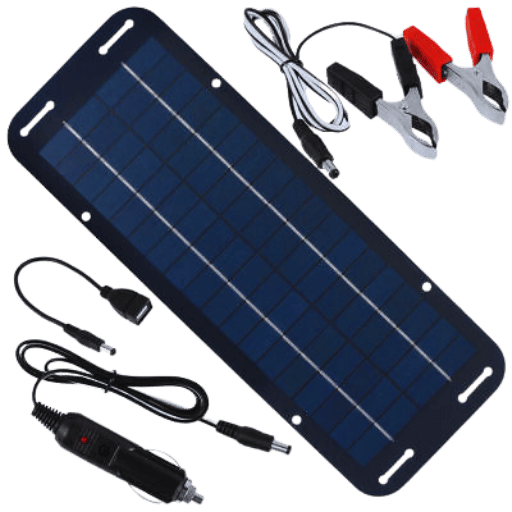

Why Use a Solar Battery Charger for Your Boat?

Benefits of Solar Power for Marine Use

Marine applications can benefit from solar power in the following ways:

1. Energy Autonomy: Solar systems on boats lower dependence on fuel as a source of energy while at sea.
2. Cost Saving: The use of solar energy cuts down on fuel expenses and maintenance costs associated with traditional generators, hence generating savings over time.
3. Eco-Friendly: Solar power emits no hazardous gases, making the sea cleaner and better for living organisms.
4. No Noise Pollution: When compared to other alternatives, solar systems are quiet in their operation thus maintaining calmness in marine environments.
5. Reliability: In view of sunny weather conditions, fewer moving parts enable low maintenance requirements while ensuring a steady supply of electricity.

Reducing Reliance on Traditional Power Sources

Using solar power systems in marine applications certainly lowers the dependence on traditional energy sources such as diesel generators. With solar energy being tapped, these boat owners can create a self-sufficient energy environment that allows them to stay at sea without shore power for longer durations. This change not only guarantees more effective use of energy but also reduces the need to refuel conventional power supplies hence simplifying logistics and cutting costs. The addition of solar technologies reduces the vessel’s environmental impact while still keeping its operational capabilities, thus promoting sustainable marine activities.

Environmental Advantages of Solar Energy

The use of solar power systems in marine environments offers several environmental benefits. To begin with, solar energy significantly cuts down on greenhouse gas emissions since it produces electricity without burning fossil fuels such as coal and oil, which releases carbon dioxide into the atmosphere. This move is important for reducing global warming effects and nurturing vibrant sea life. Additionally, by using sunlight as fuel – we can save nonrenewable resources like petroleum or natural gases while driving towards sustainable power supplies. There’s even more; conventional methods of generating electricity usually consume larger amounts of water than solar panels do; hence, this technology protects marine habitats better. Last but not least importantly, integrating sun-derived power sources into activities at sea helps conservation efforts because they are clean and never run out!

What Types of Solar Battery Chargers are Available?

Different Types of Solar Battery Chargers

They are available in different types to satisfy the needs of users.

1. Portable solar battery chargers: These models are small and light, perfect for outdoor activities and small electronic devices. The sun is the power source here; its rays are converted into electricity through a built-in panel.
2. Built-in solar battery chargers: These are directly embedded in products like solar lamps or garden tools and can function continuously without external power.
3. Solar battery maintainer: They are intended for lead acid-type batteries found typically on motorbikes, boats, cars, etc. They draw only enough current to maintain a charge without overcharging.
4. Off-grid solar battery charger: Designed for independent systems that operate on their own; thus, they can be used in areas where there is no access to traditional power sources.
5. Solar charge controllers: These appliances do not directly recharge batteries but regulate voltage and current from solar panels to batteries to ensure effective and safe charging.

Each class exists with separate purposes as well as features for particular energy needs and working conditions.

Comparing Solar Trickle Chargers and Regular Chargers

Although solar trickle chargers and regular chargers are used for the same reason, which is charging batteries, they are very different in terms of their efficiency and the way they operate. They work by using the sun’s energy to give a continuous low-level charge to batteries, thus making them good at keeping battery life healthy and promoting longevity, especially when the battery is not used often in any given application. For vehicles that are stored over long periods this becomes more necessary since it guards against deep discharge.

On the other hand, regular chargers normally rely on electricity from power grids and have the ability to rapidly replenish power in cells. They are best suited for situations where quick power restoration is needed. But if left unattended, they can overcharge batteries, leading to a reduced lifespan of a battery. In summary, whether one should use a solar trickle charger or a normal charger depends on what you want it for (application), how often you plan on using your batteries or devices powered by them (usage frequency) as well as where there will be sunlight available.

Choosing Between Portable and Fixed Solar Chargers

When making a choice between portable or fixed solar chargers, one should take into account features like expected usage, location and energy needs. Portable solar chargers are made to be flexible and easy to carry, which makes them perfect for outdoor activities such as camping or traveling, where one may need to charge devices on the move. They usually have a foldable design, and they are lightweight and hence can be easily stored or deployed conveniently. Nevertheless, their power output might be limited so they would work best for smaller devices like smartphones and tablets.

On the other hand, fixed solar chargers are permanently installed in one place like rooftops or next to stationary structures. In general, these types of chargers have higher capacity, which enables them to charge larger batteries more efficiently, hence making it possible for multiple devices to be powered at once, especially in off-grid systems. While fixed systems require a bigger initial investment plus a complex installation process, they produce greater output over a longer period, thus being suitable for home energy systems or sustained power demands. Ultimately, whether someone chooses a portable or fixed solar charger depends on their mobility needs, power requirements, and installation capabilities available to them.

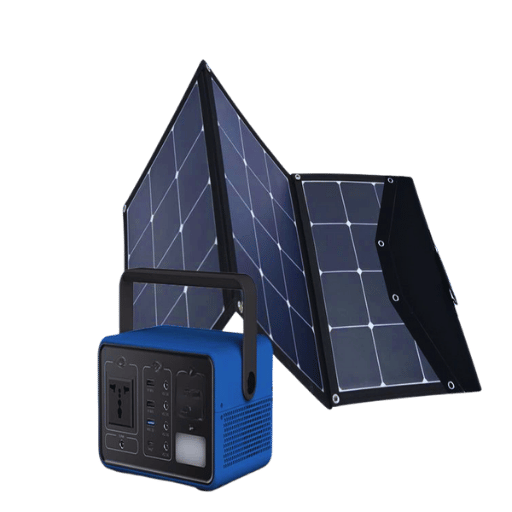

How to Select the Right Solar Battery Charger for Your Boat

Determining Your Boat’s Power Needs

For your boat’s power requirements to be accurately determined, several questions need to be answered:

1. What equipment will you have on board? Name all the electronic devices like navigation systems, lights and communication equipment.
2. What is the combined wattage of these devices? Find the sum of the wattages used by all appliances to comprehend what amount of energy should be accounted for.
3. How long do they remain in use each day? This will enable you to count the number of hours within which each device operates daily.
4. What is your battery capacity? Assess how much battery space you currently have in order not to risk depletion during usage hours.
5. How are you going about charging it? To guarantee a constant supply of electricity, think over solar mains, or generators that will reload your batteries back.

Factors to Consider When Choosing a Solar Battery Charger

When picking out a solar battery charger for your boat, there are various things you need to think about in order to achieve the best performance and efficiency.

1. Type of Charger: Determine whether you want a portable or fixed solar charger depending on how much energy you require and how mobile you need to be. Portable chargers offer more flexibility whereas fixed chargers produce higher amounts of energy.
2. Wattage Rating: Make sure that the charger’s wattage rating matches up with your power needs. Chargers with higher wattages can greatly decrease charge time especially for larger batteries.
3. Efficiency: Check out solar chargers which have high conversion efficiencies. This is normally shown on product specifications; better efficiency leads to more effective use of solar power.
4. Durability: Go for chargers built for marine environments because these should be able to withstand water exposure, UV light and vibrations encountered during boating activities.
5. Compatibility: Ensure that the charger is compatible with your battery type (e.g., lithium-ion or lead-acid) so as not to damage it while maximizing its performance.
6. Portability: If mobility is necessary, consider weight and size of the solar charger for easy transportation and set-up convenience.
7. Warranty And Support: Examine what warranties are available from manufacturers and what kind of customer service they provide; this may give some indication about how reliable their products will be over time.

By considering all these points, you will be able to select the appropriate solar battery charger that meets your needs as well as increasing energy efficiency throughout boating trips.

Calculating the Right Size Solar Battery Charger

To decide what size solar battery charger you need, you have to know a few technical specs and do some math. First, figure out how much power you use by finding the total watt hours (Wh) your batteries need per day. To do this, multiply battery voltage (V) by its amp hour rating (Ah) (Wh = V x Ah).

Next, take into account the amount of sunlight available where you are because it affects how well a solar charger works and how much energy it produces. Some sources say that a good solar charger should put out at least 20-25% more watts than those figured above to allow for losses in efficiency due to shading, angle and temperature.

For example: let’s say that you consume 100 Wh every day and get 5 full sun hours on average; then the appropriate solar charger would be about 20 Watts. This rating ensures that on perfect conditions the charger can provide enough energy while acknowledging inefficiencies especially during cloudy days or early morning/late afternoon.

Finally, make sure that the voltage and type of your battery match up with those of the charger so they are compatible and nothing gets fried. With these calculations done in advance one can choose a suitable size solar battery charger for their needs while maximizing performance during outdoor activities.

How to Install and Use a Solar Battery Charger on Your Boat

Step-by-Step Installation Guide

1. Choose Location: Ideally, choose a location on the boat where it is exposed to the maximum amount of sunlight during the day and is not obstructed.
2. Collect Materials: You will need solar charger, mounting brackets, screws and wires that are compatible with your battery.
3. Attach Charger: Use screws and mounting brackets to secure solar charger in place. Make sure it is angled correctly so that it can receive sunlight effectively.
4. Wire Up: Connect the output terminals of the solar charger to the battery using the right gauge wire. The positive terminal should match with the positive battery terminal while the negative terminal should match the negative terminal.
5. Ensure Voltage Compatibility: Always check if voltage rating of solar charger matches that of your battery lest you damage it or fail to achieve desired outcome.
6. Test System: Once through with installation process, verify whether this device produces power by checking its output using a multimeter; also ensure charge reaches storage device like these cells.
7. Fix Connections Properly: If everything is okay, then fasten all wires and connections tightly so that they do not shake when the boat is moving.
8. Routine Checkups: Regularly examine connections and entire system for any signs of corrosion, debris or other things which can prevent them from working well.

Tips for Optimal Solar Panel Placement

1. The angle of Installation: Tilt the solar panel at an angle of around 30 degrees, but adjust accordingly with the location on Earth and time of year.
2. Avoid Shadows: Do not place the panel in a location where it will be shaded by masts, rigging or sails during most hours of sunlight.
3. Surface Cleanliness: The surface of your solar panels should be cleaned regularly so that dirt, algae or salt does not accumulate on them and block light from being absorbed and charge from being created efficiently.
4. Consider Weather Patterns: Think about what kind weather usually happens in your area. If you want more power all year round, then try to put it where it will get direct sun for many months.
5. Wiring Accessibility: Make sure you can reach wiring when need be while keeping safe against water damage etc.

Maintenance and Troubleshooting

1. Routine Inspection: Do a routine inspection of the solar panel system for signs of physical damage, loose connections, or corrosion. This should be conducted at least twice per year or more often if severe weather conditions prevail.
2. Cleaning Procedures: Similarly, if there is an unexpected decrease in the power output, examine the panel for dirt and other debris. Use soft cloth or sponge with mild soapy water to wash it; avoid use of any abrasive materials that may scratch the glass.
3. Electrical Checks: On a regular basis, use multimeter to measure voltage output from the solar panel. Low readings can indicate a possible panel problem or fault in connected devices.
4. Battery Care: Check battery charge level occasionally. If after regular exposure to sunlight it does not become full then look for faults in connecting wires and charging circuitry.
5. Fault Diagnosis: When there are issues with your system not operating properly check troubleshooting manuals from manufacturers. Check out common failures such as shadowing or inverter faults and follow procedures recommended.
6. Professional Assistance: If you have recurrent problems or see that your solar energy system has been damaged in any way, it is better to call some professional technicians who specialize in solar energy systems for an all-inclusive diagnosis and repair.

What are the Best Solar Battery Chargers for Boats on the Market?

Top-Rated Solar Battery Chargers

1. Renogy 100W 12V Monocrystalline Solar Panel Kit: This kit includes a highly efficient monocrystalline panel and charge controller, making it ideal for diverse marine needs.
2. ALLPOWERS 18V 12V 10W Portable Solar Panel Charger: Compact in size, light in weight, and provides different charging options due to its high conversion rate which suits both lead acid and lithium batteries.
3. Bioenno Power 12V 10Ah Lithium Phosphate Battery with Solar Charger: Advanced Li technology integrated into this solution ensures effective charging for long-term marine applications.
4. Sunpower 50W Flexible Solar Panel Charger: It is lightweight and flexible enough to be easily installed on boats with curved surfaces while still maintaining high efficiency.
5. TP-solar 20W 12V Monocrystalline Solar Charger: It is designed to endure harsh weather conditions as well as being waterproof, therefore it can also be the most suitable one for outdoor purposes where fast battery charging is required in boats.

Customer Reviews and Experiences

Efficiency, convenience, and reliability in diverse marine conditions are the main things that customer reviews on solar battery chargers have shown. The Renogy 100W Monocrystalline Solar Panel Kit is used by many people who like its performance under different weather conditions, such as sunny or cloudy, where it can keep charging steadily during long journeys. Another one is the ALLPOWERS 10W Portable Solar Panel Charger, which is loved because of its size, which makes it small enough to fit into boats without taking too much space but still produces a lot of power. Equally important is Bioenno Power 12V 10Ah Lithium Phosphate Battery which has been said to work well for long periods, especially when there’s a need for a continuous supply of energy at all times in some environments and lastly, Sunpower 50W Flexible Solar Panel seems to satisfy most boat owners due to being easily installable even on curved surfaces alongside its adaptability feature according them with what they require from such an item. Generally speaking, these examples suggest that the said devices would be worth buying so as not only to save money but also to utilize more power while out boating.

Where to Buy Your Solar Battery Charger

1. Amazon.com: Amazon has a large collection of solar battery chargers from different brands with competitive prices and customer reviews that help people choose wisely. Moreover, they have next-day delivery options and detailed product descriptions.
2. Renogy.com: Renogy is one of the leading manufacturers in the solar industry, so their official website offers various marine specific solar battery chargers. They give out detailed specifications along with installation guides supported by a dedicated customer service team.
3. Walmart.com: Walmart is a convenient platform to purchase solar battery chargers as they display some top-selling items at low costs. In addition to this, they allow buyers to pick up products themselves from nearby stores after making an online order which saves time and effort.

These are great places for boat owners looking for efficient and dependable sun-powered charging solutions.

Reference Sources

Solar panel

Battery charger

Solar power

Frequently Asked Questions (FAQs)

Q: What are the advantages of using a solar battery charger for my boat?

A: The benefits of using a solar battery charger for your boat include energy cost savings, environmental friendliness, and the ability to maintain the charge on your boat’s batteries even away from shore power. Solar chargers provide an ecological way to keep your deep-cycle marine batteries in good shape and give you mobile power when needed.

Q: How do I choose my boat’s solar battery charger?

A: To pick an appropriate solar battery charger for your boat, consider the capacity of your boat’s battery pack, how many watts of solar energy you will require, and how much power your marine gadgets consume. Also, take into account the type of batteries you’re using, such as Lifepo4 or others, to ensure compatibility with the output of these panels.

Q: Can my Boat Batteries be Efficiently Charged by Solar Panels?

A: Yes, solar panels can efficiently charge your boat batteries if you choose the proper size and kind. Ensure that the panels have enough wattage to meet your energy needs and are installed correctly to maximize exposure to sunlight’s power.

Q: What kinds of marine solar panels are best?

A: The best types in terms of durability are those made specifically for use in marine environments, like marine sun-powered boards. They also offer enhanced water resistance over other options. Another useful choice is flexible PV modules since they fit snugly around vessels’ curves.

Q: How do I attach solar panels to charge my boat’s battery?

A: To attach solar panels that will help charge your Boat Batteries, first determine a location on your vessel where there is maximum exposure to sunlight. Securely fix them onto a surface; join a current controller that helps regulate energy flow between converters; then wire these devices up with each other; or install them according to the producer’s guidelines for more details.

Q: What should I do to size the solar panel needed to charge my boat’s batteries?

A: The size of the solar panel required for charging your boat’s batteries depends on daily energy consumption and battery capacity. A common practice is to calculate total watt-hour usage and then select panels with equal or greater wattage ratings. Suppose you use approximately 600-watt-hours daily; considering efficiency losses and sunlight availability, this may call for a minimum 100-watt solar panel system.

Q: Is it possible to employ a solar generator to supply power for my boat?

A: Yes. You can use a solar generator to meet your boat’s energy requirements. It combines solar panels, charge controllers, and battery storage systems into one portable unit, providing demand power. This makes it perfect for boats because they need reliable energy sources while out at sea, and it is also environmentally friendly.

Q: Do marine solar battery chargers need any upkeep?

A: There are several tips for maintaining marine solar battery chargers. Firstly, ensure that the surfaces of these devices are clean and free from dust or other particles which might hinder their efficiency levels by collecting onto them over time; secondly, inspect wiring connections, occasionally looking out for signs like fraying wires or rusted terminals since this could cause poor contact between components reducing performance efficiency; lastly, check if charge controls work properly because failure either leads to undercharging where power is insufficient or overcharging damages.
