Knowing about electrical wiring and cables like M4 600v ER is important if you work in construction, remodeling, or any other electrical project. Among available cable types is a 1/0 3 conductor cable, which can bear heavy electric loads while still being strong enough for long-lasting use in homes and commercial buildings. This post will discuss what this type of wire is made up of, where it should be used, its strengths and weaknesses, etcetera — all to help readers understand everything regarding these wires. This knowledge applies whether one has been working as an electrician for years or just starting their first DIY attempt at fixing something around the house – because no matter who you are, knowing more never hurts!
What is a 1/0 3 Conductor Cable?
Understanding the term ‘3 Conductor’
‘3 conductor’ describes a cable consisting of three separate conductors. These are commonly used for transmitting electricity, e.g., AWG 3 conductor with ground. In a standard 1/0 3 conductor cable, these three conductors generally include one hot, neutral, and ground wire. This setup enables effective electric current distribution while meeting safety requirements and electrical code compliance. A grounding wire increases protection against electrical faults, thus making it necessary to have a 3-conductor configuration in different electrical systems for safety and correct operation.
Uses and Applications of 1/0 3 Conductor Cable
One of the main reasons why 1/0 AWG 3 conductor cable is used universally across various electrical applications is because it can handle heavy loads without compromising safety. Here are some general examples:
- Home Wiring: Generally, the wire is used for circuit breakers and service panels, which provide electricity to large household appliances like electric stoves, water heaters, and air conditioners.
- Commercial Settings: Its tough build, such as cables with grounds, makes it appropriate for places of work with lighting systems, power distribution points, and motors, among other things.
- Industrial Use: This type of cordage is commonly utilized in industries for machines or any other equipment that needs a strong and reliable power connection.
- Temporary Power Supply: To ensure safety, 600-volt rated cables may be necessary for temporary power supply purposes. Moreover, due to its flexibility coupled with durability features, the 1/0 AWG 3-conductor cable can also serve well in temporary installations at construction sites or during events.
Therefore, employing one ought naught three wires ensures efficient delivery of electricity while still conforming to various safety measures, thus making it adaptable for different uses.
Key Features of 1/0 3 Conductor Cable
1/0 3 conductor cables are famous in electrical circles because of several reasons.
- Ampacity: This cable has been designed to bear heavy loads. It can handle up to 150 amperes depending on the type of insulation and installation conditions used; hence, it can work efficiently in high-demand settings.
- Durability: Made from high-quality materials, this wire is resistant to abrasion, moisture, and other environmental factors, which increases its lifespan in different applications while also making it more reliable.
- Flexibility: Being flexible allows such cables to be installed even in narrow places or intricate configurations where easy routing is required, either at home or in industries.
- Compatibility: They can be used together with normal connectors and terminal blocks, thus creating no integration problems into the electrical systems already existing within various buildings.
- Safety Compliance: These types of wires follow safety standards set by industries and electrical codes; hence, they are especially safe for use during installations involving bare copper.
The given properties ensure that the 1/0 3 conductor cable can meet many needs without compromising safety and effectiveness.
How to Choose the Right 1/0 3 Conductor Cable?
Considerations for Conductor Material
When choosing a 1/0 3 conductor cable, the material used as a conductor, such as THHN or copper, is very important if you want good performance and reliability. These are the main materials for conductors and each of them has different properties:
- Copper Conductors: This metal conducts electricity well, so it has lower resistance than aluminum, which guarantees efficient operation overall. This means power losses can be minimized while improving effectiveness at high loads, making it perfect for heavy-duty applications. Moreover, its tensile strength is higher than that of any other common metals, thus enhancing durability under mechanical strain.
- Aluminum Conductors: Compared with copper, aluminum has lesser electrical conductivity but greater lightness and cost-effectiveness. Its lighter weight makes it easier to handle during installation, especially overhead installations where labor may be required frequently. However, proper terminations must be considered lest corrosion set in, leading to contact resistances that adversely affect performance.
The choice between copper or aluminium conductors for a 1/0 3 conductor cable greatly determines its performance and life span, depending on various application needs, such as environmental conditions, financial limitations, and desired conductivity.
AWG and Size Specifications
American Wire Gauge (AWG) is a system used to measure the diameter of electric cables. The wire has an approximate diameter of 0.324 inches (8.25 mm) for 1/0 (one aught) conductors based on ampacity, which is the maximum current that can be passed through a conductor without immediate or progressive deterioration taking place; this typically allows for 150 amps with copper and about 120 amps with aluminum conductors under certain conditions.
To select the right size for your needs, you must take into account not only ampacity but also ambient temperature and installation conditions because they affect how well a conductor will work in its environment – these things should also be considered when thinking about electrical safety codes that might apply locally or any other factors which might influence what gauge should be used so as to comply with regulations designed around ensuring safe practices are followed in such situations.
Evaluating the Outer Jacket and Insulation
To evaluate electrical cables’ outer jackets and insulations, some key factors have to be considered for the best performance and longevity. The outer jacket acts as a defense line against mechanical stresses, environmental hazards, and chemical exposures. PVC (Polyvinyl Chloride), XLPE (Cross-Linked Polyethylene), and rubber are commonly used as jackets, each having different features that regard flexibility, temperature resistance, and chemical compatibility.
On the contrary, insulation helps prevent electrical faults by providing adequate dielectric shielding. Commonly used insulation materials include thermoplastic or thermosetting plastics that differ according to voltage capacities and temperature ratings. An inclusive review should look into electrical & thermal ratings, compliance with applicable standards such as UL or NEC, specific environmental conditions where cable shall be used, etcetera. This evaluation process ultimately affects the overall reliability of an electrical installation, especially when using TC-ER cables safety-wise.
Is 1/0 3 Conductor Cable Rated for 600 Volts?
600 Volts Rating Explained
Rated for 600 volts, the 3-conductor 1/0 cable can be used in different commercial and residential settings. This rating represents the highest voltage that the cable can handle without causing any failure or hazards. Additionally, it refers to insulation and materials used in manufacturing this wire, which has to meet standards set forth by NEC (National Electrical Code) among other bodies such as UL (Underwriters Laboratories). However, what must not escape attention is that though rated at six hundred volts, one should work with much lower figures to guarantee safety over long periods after the installation has been done. Consequently, correct fitting methods coupled with strict observance of local regulations act as vital tools for preserving soundness within electric systems.
Compliance with UL Standards
To maintain safety and reliability in electrical installations, including those with 1/0 3-conductor cables rated for 600 volts, it is important to comply with Underwriters Laboratories (UL) standards. The tests are designed by UL to evaluate how well electrical materials perform under different conditions. These measures guarantee that the wires have good insulation qualities, can resist fire and possess enough mechanical strength necessary for them to operate safely at or below their rated voltages. This act does not only make things safe but also lets consumers know this is what they should expect as a minimum from any product that has been produced according to recognized industry standards, hence reducing chances where people could be harmed by electrical failures. Therefore, whoever installs or uses such wires must ensure that they are listed by UL and pass relevant tests so as to achieve the highest performance levels while following safety rules.
Understanding Voltage Ratings per NEC
The National Electrical Code (NEC) provides specific rules about voltage ratings to ensure electrical design and installation are safe. These ratings indicate the maximum amount of voltage that a cable can safely carry under normal operating conditions according to the NEC. For example, if a cable has a 600-volt rating it means that the cable will operate without any problem at any voltage below this value if it is installed correctly. Also, it is necessary to derate cables depending on the area where they are being installed as per NEC; such areas include temperature, conduit fill, and frequency of use, which may cause overheating and failures if not considered properly. Hence, one must evaluate all these aspects during installation together with VNTC cable usage while following NEC guidelines for electrical system safety.

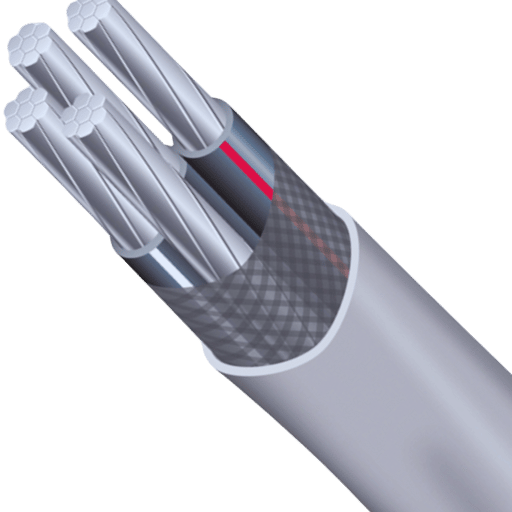

Installation Guidelines for 1/0 3 Conductor Cable
Direct Burial Installation
To comply with safety standards, there are some important things to think about when you install 1/0 3 conductor wire through a direct burial. First of all, it is necessary to use cables that are rated for direct burial; these wires usually have an outer sheath designed to be resistant to moisture, soil acidity, and temperature changes. Another crucial point is the correct depth at which they should be buried; normally, NEC requires at least 24 inches unless Type UF cable is used, which can allow for shallower installations.
In addition to this, during planning for a direct burying operation it is recommended that marking or warning tape should be put above the cable so as to inform future diggers about underground wires presence. Compliance with local and state regulations cannot be ignored since they may have their own specific requirements concerning burial depth and material used. Finally, yet importantly, installers need to thoroughly inspect the condition of the wire and surrounding soil as regards environmental hazards like excess moisture, which could lead to the gradual degradation of cable quality over time.
Using Cable Trays
Cable trays are a great way to organize and support electric cables and conductors in a facility. NEC compliant cable management systems should be designed with wire safety in mind — they keep wires safe by preventing physical damage while ensuring that air can flow around them. Load capacity and material compatibility should always be considered when working with any type of cable tray system; metallic ones may withstand harsher environments than nonmetallic options, which could be better suited for corrosive areas. Spacing requirements are important too; if you bundle too many together, it will cause them to overheat, thus reducing electrical performance or, worse, creating an unsafe condition. Good practice is also necessary during installation, such as securely anchoring it down or making sure its size matches what’s needed because these things help maintain the integrity of the overall system over time, even as electrical systems grow and change.
Installation in Raceways and Conduits
One important part of electrical safety and compliance is the placement of electric cables into raceways or conduits. Depending on environmental conditions, mechanical protection requirements, and cable types, they can be made of different materials like EMTs or PVCs. It is necessary to follow the National Electric Code (NEC), which sets rules for such things as how many degrees a bend should be maintained, when to strap down conduit runs with brackets, or what kind of boxes should be used where cables need room inside them. When fitting wires, care must also be taken not to pack too many into one run because this could cause overheating and increased risk of failure due to crowding in general. In addition, junctions should always be well sealed against moisture so that systems will work for a long time without going bad from rust, etc. Finally, regular checking up on these points combined with following local laws guarantees reliable installation and operation over the useful life of any TCER cable system.

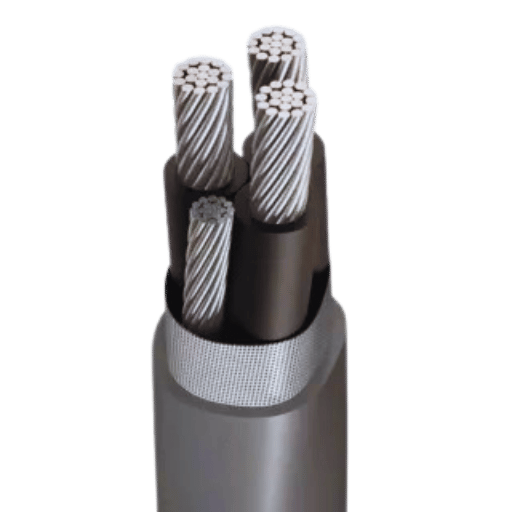

Manufacturer Equivalents and Related Products
Top Manufacturers of 1/0 3 Conductor Cable
Some manufacturers of 1/0 3 conductor cable that is known for following industry standards and being trustworthy include those with bare copper conductors. The main ones are:
- Southwire Company, LLC: This is among the best producers in the field because they create many different kinds of cables designed to meet specific performance requirements.
- General Cable: General Cable is famous for its various innovations and top-notch quality in producing cables meant for different applications under different environmental conditions.
- Belden Inc.: Specializes in providing strong electrical and electronic solutions ranging from low voltage to high voltage, and it heavily invests in technology improvements.
- Miller Electric: Miller Electric focuses mainly on welding and electrical equipment. Hence, their cables are rated at 600v, which makes them most suitable for heavy-duty electric use where 3-conductor 1/0 wires will be required.
- Anixter International: Anixter has positioned itself as a leading distributor of electrical communication network products; therefore, it stocks cables supplied by multiple reliable manufacturers to ensure that clients have access to quality solutions.
These brands have gained recognition due to their focus on producing safe products while adhering to set guidelines thus making them dependable sources for one ought naught three wire ropes.
Comparing Manufacturer Equivalents
While comparing the makers of one and three conductor cables with the ground, there are several items to examine; these include but are not limited to performance specifications, applications, and environmental adaptability. Here are some of the comparisons that frequently appear among the top three sites:
- Performance Ratings: Most top manufacturers, such as Southwire, General Cable, or Belden, conform to international and national standards, which assure that their products meet stringent safety and reliability levels. However, they still differ slightly in terms of material composition, such as THHN versus bare copper, for example. This affects overall performance, though both may be compliant.
- Application Appropriateness: Manufacturers design different types of wires based on specific usage needs. For example, Southwire makes good cables for residential or commercial wiring, while General Cable offers more rugged ones intended for industrial environments. Similarly, Belden’s high-voltage solutions can be used where electronic systems require a robust power supply.
- Environmental Resistance: Some makers prioritize resilience under harsh conditions during production, like Miller Electric, which mainly deals with outdoor or heavy-duty applications where cables should continue working at all times even if exposed to extreme weather. On the other hand, certain indoor-use-only alternatives might be supplied by other manufacturers that need flexibility and easy installation capability.
In conclusion, it is important to know such differences so that one can make an informed decision when buying 1/0 3 conductor wire depending on their project’s specification and environment setting.
Related Products and Alternatives
Suppose we want to consider other options for a 1/0 3 conductor cable. In that case, we must look into some substitutes that are closely aligned with standards of performance, environmental resilience, and application suitability. Typically, the following products are recommended as alternative options by different industries:
- Copper-stranded cable 2/0 AWG: This offers higher current carrying capacity and is used in heavy-duty applications like a connection for large residential service entrances or industrial machines.
- Thhn/then wire: It is known for its versatility and can be used indoors and outdoors. Its insulation has good moisture resistance and heat protection, making it suitable for many installation conditions.
- URD (Underground Residential Distribution) Cable: Designed for underground use where power supply reliability is required in harsh environments, such cables work best. Therefore, they may also serve as an option when working on projects involving outdoor settings for distributing residential electricity.
Evaluate these choices carefully against your specific project needs to better decide on electrical wiring requirements solutions.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is 1/0 3 conductor cable and what does it consist of?
A: A 1/0 3-conductor cable is an electrical wire made up of 3 stranded copper conductors with a ground. This type of cable is commonly used in tray cable systems, among other applications, where it is insulated with a PVC jacket. Such cables are appropriate for wet or dry locations and are often utilized in hazardous areas.
Q: How does a tray cable differ from an MC cable?
A: Tray cable (TC) is approved for use within cable trays and raceways. It typically has a PVC jacket that may be UL-listed for direct burial; however, MC (Metal Clad) cable includes a metallic sheath, perhaps aluminum interlocked armor, offering additional mechanical protection most often employed within heavier industrial settings.
Q: Is 1/0 3 conductor cable UL listed and suitable for direct burial?
A: Yes, most of these cables are UL-listed and approved for direct burial; hence, they may be installed underground without any supplementary protective measures.
Q: What are the applications of one zero three conductor cables in electrical systems?
A: Feeder circuits widely utilize this sort of wire for power distribution; they can also serve as control circuitry while acting as feeder cables within industrial and commercial environments. They are also applicable to cable trays and conduits, and they can even be used as electric wires in dangerous places.
Q: Which materials are usually used to insulate the conductors in one zero three conductor cables?
A: Normally, the conductors have insulation made from either PVC or XLPE materials, which exhibit high thermal resistance together with good dielectric properties necessary for safe working conditions; moreover, overall jackets could be manufactured using PVC to enhance environmental resistance.
Q: Can wet and dry places both use one-zero three-wire cables?
A: One-zero three-wire cables can be used in wet or dry locations. They are usually made with materials resistant to moisture, sunlight, and other environmental elements.
Q: What is the benefit of using stranded copper conductors in a one-zero three-wire cable?
A: Stranded copper conductors have excellent flexibility, which makes it easy to install the cable and run it through conduits or trays. Additionally, they provide better electrical conductivity, thus improving overall electrical system performance.
Q: What does “90C” mean about a one-zero three-wire cable?
A: The term “90C” refers to the maximum temperature rating of the cable, which is 90 degrees Celsius (194 degrees Fahrenheit). This rating represents the highest temperature at which this wire should be operated not to compromise its efficiency or durability.
Q: Are there any known manufacturers of one-zero three-wire cables?
A: Southwire is an example of a reputable manufacturer that produces reliable one-zero three-wire cables that meet industry standards for quality. Such products find wide application in different electrical and industrial sectors due to their dependability.
