Understanding SOOW Cable: A Comprehensive Guide to Portable Power Solutions

The world today is fast-paced and demands power solutions that are reliable and versatile more than ever before. It becomes crucial to look into SOOW cable, which still remains a giant among others in this regard due to its strength of design and high performance, especially when it comes to portable power applications. This manual seeks to explain what exactly SOOW cable is by looking at its design characteristics, specifications as well as practical uses in different industries. Additionally, through this article, readers should be able to know why they should use SOOW cable over other types of power cords, the safety precautions involved while using it, and how it compares with them. Therefore, by the time you finish reading this text, you will have enough knowledge about selecting an appropriate SOOW wire for your needs.

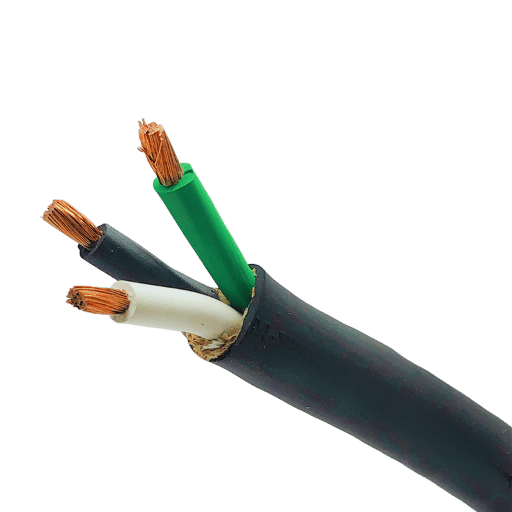

What is SOOW Cable, and How is it Used?

Definition and Composition of SOOW Cable

Primarily created for business and industrial uses, soow cable is a type of portable power cord. Service, oil-resistant, outdoor, and weather-resistant (SOOW) is what the abbreviation stands for. In order to increase its strength, this cord has flexible stranded copper conductors covered with thermoplastic elastomer (TPE) blend insulation material, while the outer jacket is made up of synthetic rubber compound that’s highly resistant to moisture, oil, and abrasion. These cables can withstand up to 600 volts and work in various temperatures, which makes them ideal for use under harsh conditions.

Common Applications of SOOW Cable

SOOW cable is widely used in different sectors because it is adaptable and strong. It can be applied in many ways, such as powering heavy machinery at construction sites, supplying temporary electricity for outdoor events, or ensuring uninterrupted electric supply in industrial manufacturing establishments. For instance, it is commonly found in boat lifts and temporary power supplies within marine environments. Moreover, this type of wire can resist severe weather, hence being appropriate for outdoor lighting systems as well as agricultural machinery, among others. In general terms, SOOW cables are necessary wherever there is a need for portable power that lasts long, too.

Advantages of Using SOOW Portable Cord

SOOW portable cords have many benefits that can be utilized in different industries. First off, they are extremely flexible and adaptable so they can move around easily in dynamic settings like building sites or temporary installations. Another key advantage is their resistance to environmental factors such as moisture, UV light, and chemicals, which means they will last longer even when used under harsh conditions. Finally, these cables have a high voltage rating (up to 600 volts), so they can work for heavy-duty applications where large equipment needs power without compromising safety or performance. In summary, durability + flexibility + high-performance ratings = SOOW portable cords as an essential modern electrical system component!

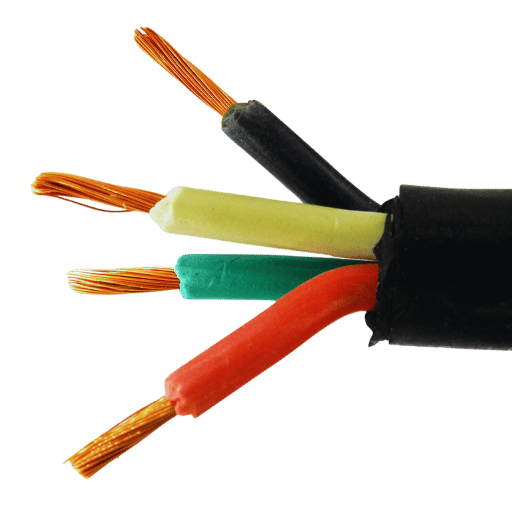

How Does SOOW Cable Compare to SJOOW Cable?

Differences Between SOOW and SJOOW Cables

The difference between SJOOW and SOOW cables lies in how they are made and what they are designed to do, despite serving the same purpose within an industrial setup.

1. Voltage Rating: The maximum voltage at which SOOW cables can operate is 600 volts hence should be used in places with high demands for electricity. On the other hand, SJOOW cable ratings are 300V which means that it might not be suitable for use in areas requiring large amounts of power supply.
2. Conductor Size: Due to its larger conductor sizes as compared to SJOOW cables; this makes it possible for them to carry more current thus delivering higher power levels. For instance, while SOOW wires may have conductors measuring between 14AWG up-to four ought AWG; those found in SJ00w range from sixteen gauge (16) through six gauge (6).
3. Insulation and Jacket Material: In most cases SOOW cords have their insulations made out of ethylene propylene diene monomer rubber commonly known as EPDM, which provides better resistance against moisture coupled with flexibility under extreme temperatures. Conversely, thermoplastic elastomer(tpe) is typically used on the outer sheathings of most sj00ws due to its good performance but poor resistance under harsh conditions.
4. Applications: Heavy-duty industries require strong cables like those offered by soow because these come with robust construction features plus a higher volt rating. Lighter-weight construction types such as sjoow are more applicable in residential places or light commercial establishments where there might be some bending around corners, etcetera.
5. Weight and Flexibility: In terms of weight alone, you would find out that soow is much heavier than sjoow since it uses heavy-duty materials during manufacture, thus making them less portable when compared against each other, especially if applied on certain job sites which call for frequent movement from one place to another. However, both remain flexible, though sjo0w, being lighter, can be easily moved around.

Therefore, the choice between SOOW and SJOOW cables depends on factors like voltage capacity, environmental conditions as well as weight requirement of an application to ensure safety while maximizing performance.

Choosing the Right Cable for Your Needs

When you need to pick between SOOW and SJOOW cables, there are a few things that you should keep in mind. These factors determine how well the wire will work for your application. First, look at electrical needs – voltage/current load; SOOW wires can handle heavy-duty industrial settings where high power delivery is needed most, while SJOOW ones suffice for lighter residential uses, too. Second, environmental conditions matter a lot – moisture exposure or extreme temperatures might be encountered as well as wear possibilities; here, SOOW with robust EPDM insulation would be best suited against such challenging environments, but if it is not so demanding, then a TPE jacket of SJOOW can offer enough flexibility too. Thirdly, weight and mobility should also be considered, especially when one expects frequent movements of the cable; in this case, lightness makes handling easier; therefore, a person may prefer to use SJOOW instead of any other type among those available on the market today. By considering these things one will be able to choose wisely and ensure safety plus efficacy during electrical installations.

Cost and Performance Considerations

The evaluation of SOOW versus SJOOW cables considers several measurable factors. In general, the cost is higher for SOOW cables due to their heavy duty build and better insulation characteristics. On average, depending on gauge size and length, one foot of an SOOW cable costs between $1.50 and $3.00 while one foot of an SJOOW cable usually ranges from $1.00 to $2.50 which makes it cheaper for light duty applications.

Another significant contributor to choosing between the two is performance measurement. For instance, voltage handling capability often stands at 600 volts maximum with higher ampacity ratings that allow accommodation of large electrical loads in most cases for SOOW cables, but normally only up to 300 volts rating coupled with low ampacity rating applies to SJOOWs. Similarly, temperature tolerance levels differ since SOOWs have a range between -40°F and 90°F which can survive severe environmental conditions, whereas SJOOs operate best within temperatures as low as -20°F up until 90°F.

These perceptions therefore imply that people should assess both initial expenditures on cables as well as performance indicators so as not only to select but also install appropriate types depending on specific application requirements which will guarantee efficiency reliability safety and affordability throughout their electrical ventures.

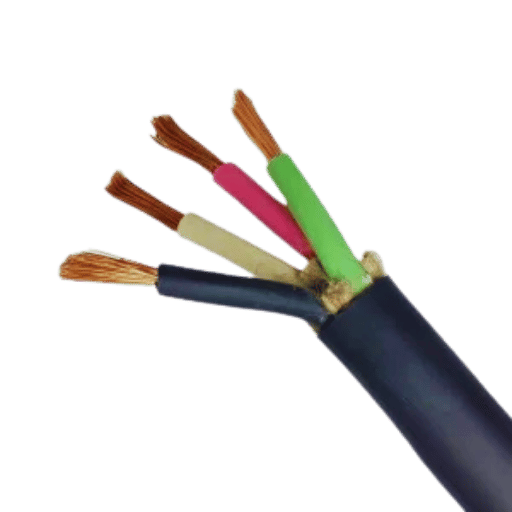

What Are the Specifications of SOOW Cable?

AWG and Conductor Details

Usually, SOOW cables are offered in different sizes of American Wire Gauge (AWG), from 6 AWG to 18 AWG. To achieve this flexibility and conductivity, the conductors are stranded and made of copper, which is therefore ideal for use in dynamic conditions. As per the conductor count, such a cable might have more than one; however, there are normally two, three, or four conductors, depending on what is needed for a particular application. Rubber is used as insulation material due to its excellent resistance against abrasion, moisture, and many chemicals, which ensures durability and good performance under harsh conditions.

600 Volt Insulation Characteristics

The SOOW cable’s insulation has been created in such a way that it is able to withstand up to 600 volts of electrical stress which ensures safe and dependable use both in homes and industries. The thermoplastic or thermoset rubber is the main insulating material used because it complies with strict safety standards. This type of insulation made from rubber offers good dielectric strength usually rated around 600 volts per mil thickness.

Additionally, this insulation has excellent resistance to different environmental conditions like ozone and UV rays, among others, as well as chemicals, hence making them last longer when used outdoors or in industrial areas. The performance of insulation greatly depends on its thickness, where wall thickness may vary depending on gauge size for SOOW cables, ranging between 0.050 and 0.120 inches thick. With this strong covering, there are no chances for electrical breakdowns or short circuits, thus ensuring maximum safety while not compromising on efficiency.

Durability and Flexibility Factors

The SOOW cable is designed for both strength and adaptability, therefore it can be used in many different environments. The rubber insulation protects against moisture and wear, while also remaining flexible at low temperatures where other materials would become stiff and brittle. This allows them to bend without breaking which keeps them working efficiently.

In addition to this, their durability is increased through construction methods such as reinforced stranding or tough conductive materials that are often used to make them stronger against things like mechanical stress, which could cause damage if not dealt with properly during the installation process. Also they have good resistance towards chemicals hence making sure they can be able to withstand industrial use where there might be more than one type of chemical involved in different procedures done within its operational environment at any given time. As a result of all these factors together, durability plus flexibility equals reliability, so those who choose SOOW cables will get dependable performance out of them without having to replace or maintain them frequently.

How do you properly install and maintain SOOW cable?

Installation Best Practices for SOOW Cables

If you want to get the best performance and safety when installing SOOW cables, consider these tips:

1. Preparation stage: Inspect the wires for any damages before proceeding with installation. Clear the area off debris and other objects that may pose as threats.
2. Cable routing: Run wires in such a way that they don’t come into contact with sharp edges or where there are possibilities of being pinched. In case necessary, use cable trays or conduit to guard them.
3. Bend radius: The minimum bend radius stated by the manufacturer must be followed strictly so that no harm is caused on cable’s internal structure.
4. Connections: Every connection should be secure enough and able to withstand expected loads without failing at any point during service life; also it has to be used together with compatible connectors which will ensure electrical continuity is maintained throughout.
5. Fastening: Attach cables firmly enough to prevent them from moving while in operation but not too tight lest they lose their flexibility; this can be done using cable ties or clamps.
6. Testing phase: After completing installation works, do continuity test to confirm whether all circuits within the wire are functioning properly before putting them into use.
7. Maintenance check-ups: Regularly inspect these lines for signs of wear and tear; anything showing such signs should be replaced immediately. Otherwise, it may cause accidents later on.

These recommendations help in increasing the durability and dependability of SOOW cable installations.

Maintenance Tips to Ensure Longevity

To elongate the lifetime of SOOW cables, do the following maintenance:

1. Routine Checks: Conduct regular visual assessments for signs of tear, wear or damage. Give more attention to high-stress points and areas that frequently move.
2. Cleanliness: Ensure that surfaces of a cable are clean and dirt-free. Avoid chemicals, moisture and other dirt which can break down insulation and affect how they work.
3. Environmental Protection: Try as much as possible to protect them from extreme temperatures, chemical exposures and UV light because these can compromise their strength.
4. Load Management: Do not exceed the electrical load ratings indicated on them. Overloading them may cause overheating, leading to early failure.
5. Documentation: Keep records about inspection results; what you did during maintenance period etc., so that it helps in tracking performance over time and identifying any recurring issues.

By following these tips, you will be able to ensure the reliability of SOOW cables throughout their working life.

Common Mistakes to Avoid

To elude these typical mistakes when it comes to SOOW cables:

1. Forgetfulness of Periodic Inspections: If someone fails to carry out regular checks, then he or she can easily not notice any wear and tear. Regular inspections are vital for keeping an eye on the condition of cords and identifying problems before they become major.
2. Disregard for Load Ratings: People do not pay attention to specified electrical load ratings. It is dangerous to put too much weight on the cables because excessive heat will be generated, thus shortening their lives and endangering safety at large.
3. Inappropriate Storage Habits: Improper storage such as keeping them wet or in very hot places greatly affect insulation integrity. Ensure that you keep them under good conditions like cleanliness and dryness without subjecting them to extreme temperatures which may change abruptly.

By knowing about this errors frequently made while handling SOOW cables, one can significantly increase their durability as well as dependability.

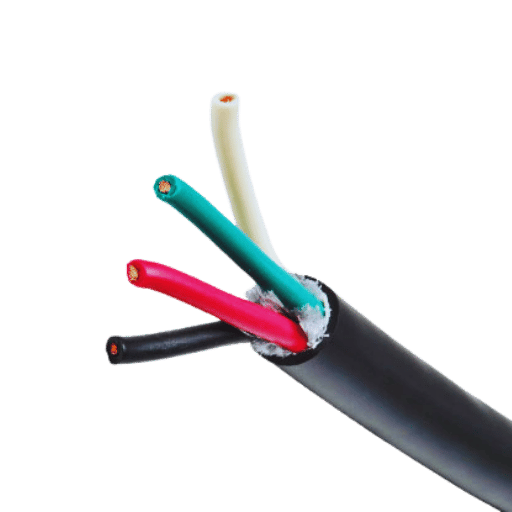

What Safety Considerations Should Be Taken When Using SOOW Cable?

UL Ratings and Compliance

While using SOOW cables, it is important to make sure they are UL-listed for safety and performance. UL ratings mean that the wire has been tested against electrical safety, flame resistance, and environmental durability standards. If a cable meets these requirements, it not only proves its capability of handling certain electric loads but also shows suitability for various outdoor or industrial uses as well. Make sure you see proper UL Markings on the product to verify this compliance with all necessary performances criteria for your application needs, whether they may be domestic or commercial ones!

Weather and Water Resistance

SOOW cables are made to resist the impact of different environments, which makes them ideal for both indoor and outdoor applications. They usually have thermoset elastomer insulation and a jacket that is resistant to weathering; these features protect against moisture, UV rays and wide temperature ranges better than any other design. This resistance towards water and climate change is especially important when it comes to systems operating in rain, snow, or high-humidity areas because it prevents cable breakdowns and electrical faults from happening. When choosing an SOOW cable, always check if it’s labeled as weather resistant so that its efficiency under harsh conditions can be maintained at maximum level.

Oil-Resistant Properties

Oil-resistant cables, also known as SOOW cables, have the ability to resist oil, which is necessary for their application in places where they are likely to come into contact with oil and other petroleum-based substances. The insulation and the outer jacket of these types of cables are usually made from materials such as thermoset elastomers that are designed specifically not to be affected by oily stuffs. As per National Electrical Manufacturers Association (NEMA) standards, oil resistant cables should be tested in different ways, including immersing them in oils for longer periods at higher temperatures without any significant change in their physical properties or performance levels.

For example, the ASTM D-2000 standard classifies materials with various grades according to how well they can withstand certain conditions in contact with oils, thus ensuring that one chooses the right type for his/her needs. Such tests show that correctly rated SOOW cable still maintains its mechanical strength even after being exposed to oil, which only causes slight swelling or reduction in rebound resilience. Such features make this kind of cable suitable for automotive repairs, factories, and other industrial settings where there is frequent contact between machines and lubricants such as grease or fuel, among others. Always refer to the manufacturer’s data on resistance behavior against oils together with suitability under specific environments so as not only to meet safety requirements but also to ensure full compliance with regulations.

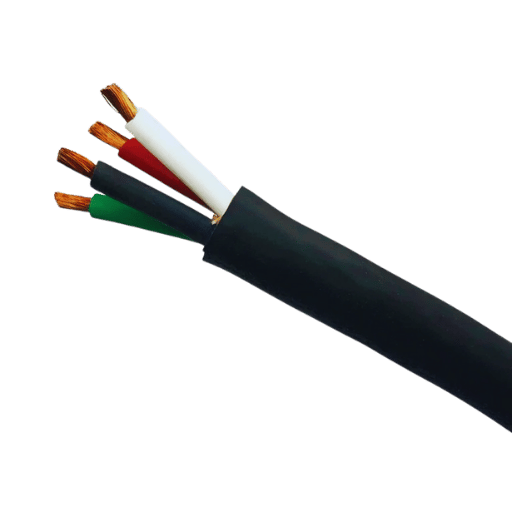

How do you select the right SOOW cable for your application?

Matching Cable Specifications to Your Application

To ensure compatibility with your application when choosing SOOW cables, consider the following key specifications:

1. Voltage Rating: Ensure that the cable’s voltage rating meets or exceeds the operational requirements of your equipment.
2. Conductor Size: Pick an appropriate conductor gauge that can accommodate the current load without getting overheated.
3. Environmental Conditions: Consider weather aspects like high and low temperature, humidity, and likely exposure to chemicals such as oil.
4. Certification Standards: Confirm that it is in accordance with applicable standards, including NEMA and ASTM, for safety and performance.
5. Cable Length: Establish the required length of cable for installation, considering any possible voltage drop along the distance.

By following these specifications deliberately you will be able to get a SOOW cable which would be effective in your specific application.

Considering Environmental Factors

For best results when choosing SOOW cables, one must consider environmental factors. These include:

1. Temperature Range: It is important to ensure that the cable can still perform its functions within the expected temperature limits. In places where there is too much heat or extreme coldness, it may be necessary to use wires rated for such harsh conditions.
2. Moisture and Humidity: You should evaluate how likely it is for the cable to come into contact with water or moisture because if left in wet environments for long periods, insulation may start rotting. If this is the case then choose those lines which have higher resistance against dampness.
3. Chemical Exposure: Examine whether there will be any contact between chemicals like oils or solvents and them; hence they should be made from materials resistant to corrosion caused by these substances while retaining their strength.
4. UV and Ozone Resistance: Do confirm that ultraviolet (UV) radiation cannot affect your wire over time as well as ozone since both deteriorate things especially when exposed outdoors.

By considering all of these elements around us we can prevent failures and make sure our SOOW cords serve various needs reliably.

Consulting Industry Standards and Guidelines

When it comes to choosing SOOW cables, the most important thing is following industry standards and guidelines that are relevant for safety and compliance. These organizations include the National Electrical Manufacturers Association (NEMA) and Underwriters Laboratories (UL); they have set rules that should be adhered to when using flexible cords and cables. A few of these regulations are:

1. NEMA WC 70: This standard gives the specifications on rubber as well as thermoplastic flexible cords featuring various performance criteria for different applications.
2. UL 62: It is a certification about flexible cords and cables – here manufacturers must meet the construction, performance testing plus safety requirements aimed at making sure their products are safe and reliable.
3. NEC (National Electrical Code): NEC provides necessary instructions for wire or cable installation in different environments with emphasis on necessary ratings together with conditions under which they can be used safely.

The above standards should be followed so that not only do your chosen SOOW cables comply with safety regulations but also work best for what you need them in.

Reference Sources

Wire

Electrical cable

Power cable

Frequently Asked Questions (FAQs)

Q: What is SOOW cable, and what does it stand for?

A: Portable power cord that is service, oil resistant, oil resistant jacket and weather resistant. These cables are known for their durability and flexibility in the field.

Q: What are the main applications of SOOW cable?

A: It can be used as an extension cord cable with ultra flexibility or a portable power solution for tools, lights, motors (small), battery chargers etc., also can be connected to industrial machinery and motor assembly.

Q: What is the voltage rating for a standard SOOW cable?

A: 600v, which makes them suitable for heavy-duty applications where you need reliable and robust electrical cords.

Q: How does SOOW cable differ from SJOOW cable?

A: The difference between these two types lies in their voltage capacity; while one can handle up to 600 volts (SOOW), another should not exceed 300 volts (SJOOW). Also it should be noted that besides being less flexible than SJOOW cables, they are more heavy duty oriented.

Q: What are the conductor specifications available for SOOW cables?

A: Some examples include awg 3 conductor 600v portable power and 3 conductor 600v portable power extension cord, but there are many gauges like 6 AWG or even 18 AWG.

Q: What are the main properties of SOOW cable jackets?

A: The jackets of SOOW cables are both resistant to oil and weather, which means that they can be used in severe environmental conditions. They were also created to be flexible and durable so as to provide long-lasting performance in tough applications.

Q: Can SOOW cables work outside?

A: Yes, SOOW cables can function outdoors because they are weather-resistant. Their design allows them to withstand extreme temperatures, moisture, as well as exposure to UV light thereby making these suitable for both indoor and outdoor use.

Q: What safety approvals do SOOW cables usually have?

A: Normally UL or CSA certifies safety standards on SOOW cables thus ensuring compliance with different safety levels required by various industries such as manufacturing industry or commercial sector among others.

Q: What advantages come from using SOOW cables for portable power solutions?

A: Some benefits associated with using SOOW cords for portable power solutions include their 600v high voltage rating, oil resistance flexibility durability ability to survive harsh environments; all these features together make it possible for them to be used when providing electricity supply at different points where there is need of energy for operating wide range tools equipments machinery etcetera.

Q: Is it possible to use SOOW cords with motor assemblies?

A: Absolutely, yes! Soow cord is safe enough even when connected directly to motors; therefore, this means one can use it without any fear, especially if he/she wants something strong enough to power heavy-duty machines like electric motors.
