One of the most important components in contemporary power distribution systems, particularly in the electrification of neighborhoods, is the underground residential distribution (URD) aluminum cable. In particular, this guide aspires to enable readers to understand the properties of aluminum URD cables and where these types of wires are used as secondary conductors. Appropriate attention will be devoted to analyzing their construction, advantages, and challenges encountered in using these cables, thus making the essential factors that dictate the use and installation of aluminum URD cables in residential distribution systems clearer. Furthermore, we want to cite relevant standards and practices that will factor in these critical elements’ design and efficient operation within electrical systems.

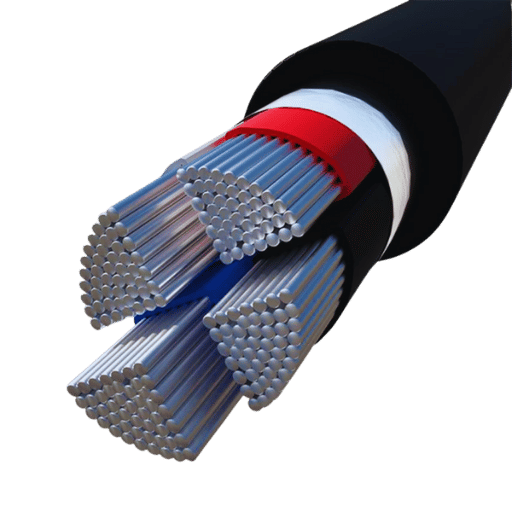

What is URD Cable?
Overview of URD Cable and Its Applications
As the name suggests, underground residential distribution (URD) cable is used to transmit and distribute power in underground conditions as efficiently, safely, and reliably as possible. Usually made of aluminum or copper conductors, the URD cables utilize several layers of protective coatings, which, most of the time, act as dielectric materials against hostile environmental elements such as water, chemicals, and mechanical wear. Typical applications include supplying power to housing sub-divisions, commercial centers, or other utility infrastructure projects where overhead lines are impractical or undesired. URD cables have the additional advantage of providing reliable service within cities and improving aesthetics by hiding unsightly overhead wires. They are also usually used with transformers or other infrastructure to ensure the system can operate and meet local utility standards.

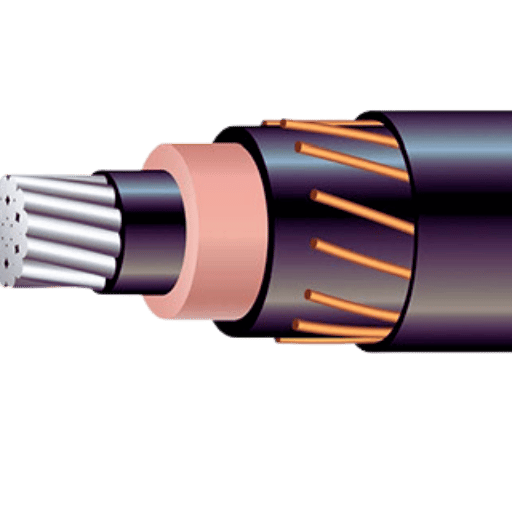

Components and Structure of URD Cable
The URD cables’ adequacy and longevity owe much to the variety of components used, such as the insulated conductors and protective sheathing. The conductor is the most important part of the cable, which is often aluminum due to its efficiency in electrical conduction and lightness in weight. In most instances, the conductors are made as strands to increase flexibility and reduce the overall weight of the cable. The application of an insulating layer arises out of necessity to secure the wire from moisture, chemical contamination, and mechanical wear and support it.
In addition, the URD cables usually come with a semi-conductive layer that improves the distribution of the electric field and reduces the dielectric stress. Furthermore, when more protection is required, especially for below-ground installations, a moisture seal housing is imposed, which operates as a barrier from the surrounding climate. Lastly, a layer of armor, which might be made of steel or other material meant to protect external forces, might also be incorporated into some URD cables. This layered structure prevents URD cables from wearing out and failing in harsh environments when buried underground.
Common Materials Used in URD Cable Construction
Various raw materials in constructing URD cables use these figures to improve their quality and working lifespan. The conductors are also mostly made out of aluminum, which has the advantages of good conductivity, low weight, and cheap, making it very efficient when transmitting electricity. The insulation materials are usually made of cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC), which are quite effective against moisture, thermal extremes, and exposure to chemicals. The semi-conducting layer is usually constructed of special polymers whose main purpose is to aid in electric field control and, hence, relieve some shear forces arising from the insulation. Higher electric strength thermoplastic materials such as high-density polyethylene (HDPE) are also used to form the moisture barrier jacket for external environmental protection. Where extra incorporation for mechanical strength is needed, the armor layer could be of gunmetal or aluminum, thus protecting the cable from compression as well as abrasion. All these materials have a significant role in improving the failure levels and the overall life of URD cables when they are buried.

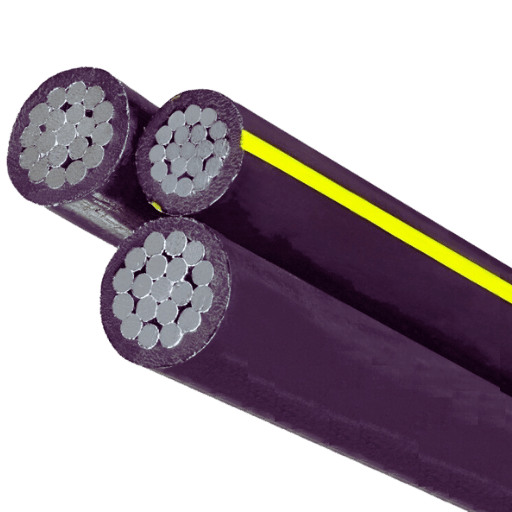

How to Choose the Right URD Cable?
Factors to Consider When Selecting URD Cable
In choosing the right URD cable for a specific application, certain important requirements must be made to make the cable function properly, safely, and for a long. These include:-
- Voltage rating: Depending on the application, installation of URD cables at different voltage ratings is permissible. Such cables are rated 600V to 35kV. However, to avoid any failure of the insulation and dangerous situations, it is necessary to choose a volt-rated cable in accordance with the minimum voltage specified in the application.
- Ampacity: Ampacity represents the maximum electric current a conductor can carry without getting extremely hot. When choosing the cable, one should ensure that the ampacity provided is sufficient for the load it will be under, in addition to the installation parameter, ambient temperature, and cable tying up.
- Environmental Conditions: It is also essential to know the environmental conditions under which the cable chosen will be used. These conditions include soil type, moisture content, chemical exposure, pollution, and exposure to disinfectants. The insulation and jacketing materials chosen should protect against these circumstances.
- Installation Method: Different installation methods, such as digging and burying cables, piping, or aerial fitting, affect the choice of URD cable in most service entrance applications. Some installation methods may require certain types of cable constructions, such as extra armor or moisture barriers.
- Length of Run: The length of the cable run could affect its performance concerning voltage drop considerations. It may be necessary to upsize a conductor for longer runs to reduce energy losses and keep voltage levels stable.
- Regulatory Requirements and Standards: This condition should be fulfilled, especially for compliance with local/ state and national electrical codes. A relevant URD cable should comply with relevant industry codes, such as the National Electrical Code (NEC) and Underwriters Laboratories (UL).
- Cost and Budget: Choosing the cable that meets performance specifications is equally important, but project costs may also be a factor. The total cost of ownership, which factors material costs, installation costs, and future maintenance costs against the cable’s life span, should be examined to arrive at a competent financial decision.
These factors should be considered when choosing a URD cable that is technically compliant and enhances the efficiency and safety of the electric supply system.
Understanding Cable Ratings and Specifications
Cable ratings and specifications are crucial in evaluating electric cables’ performance, safety, and lifespan. These ratings comprise the following:
- Voltage Rating: This indicates the voltage level for which the cable is rated. A cable voltage rating must be consistent with the system capacity to prevent insulation failure.
- Current Carrying Capacity (Ampacity): Ampacity is the highest current level a cable can carry without heating up excessively. It is determined by environmental factors such as ambient temperature, the type of insulation used on the cable, and the manner of installation.
- Temperature Rating: Each cable type functions within a particular temperature range. Thermal rating is essential in choosing cables required for specific installation conditions to avoid thermal damage.
- Insulation Type: Various insulation types protect against environmental damage, chemical attack and physical wear and tear. The choice of insulation can increase the reliability and life of the cable.
- Sheath and Armor Types: The external covering of the cable, which is sometimes armored, shields the cable from environmental abuses. Analyzing the sheath materials and corresponding ratings ensures the cable can handle the particular installation conditions.
Familiarizing thoroughly with these ratings and specifications allows an electrical engineer or electrician to make educated choices about the security and efficiency of electrical installation.
Best Practices for URD Cable Installation
With the installation of underground residential distribution (URD) cables, observing industry codes and best practices becomes imperative for safety and reliability purposes, especially for insulated conductors. Some of the best practices based on the experts’ suggestions are as follows:
- Proper Burial Depth: According to the National Electrical Code (NEC), URD cables must be buried at least 24 inches deep from the ground surface, mainly in service entrance applications. This prevents interference from surface activities and meets the local by-laws regarding cable placement.
- Trenching and Backfilling: When digging out trenches, care should be taken to avoid sharp stones or other materials that could puncture cable sheaths. Also, backfilling should be done properly, without foreign materials, dirt fill should be clean, and no items should injure the cable in the future.
- Cable Support and Protection: Support cables appropriately, but avoid lowering cables to cause unwarranted jungling during installation. Where there is flooding potential or the soil is unstable, it is advisable to use a conduit or extra protective measures to restrict cable exposure to water and damage from erosion.
- Connection and Termination: Ensure that connections and terminations are carried out acceptably, using the available connector and seal that prevents moisture ingress. Following manufacturer guidelines for termination kits is critical to avoid damaging the cable.
- Routine Inspection and Testing: Upon completion of the installation, inspection, and testing must be done to ascertain that the URD cable system is working correctly. Preventive maintenance and diagnostic tests can be implemented to avoid and detect faults and expand the installation’s life cycle.
By adhering to these recommendations, practitioners will thus ensure a well-executed installation of the URD cable while observing the set standards, safety requirements, and operational performance specifications.

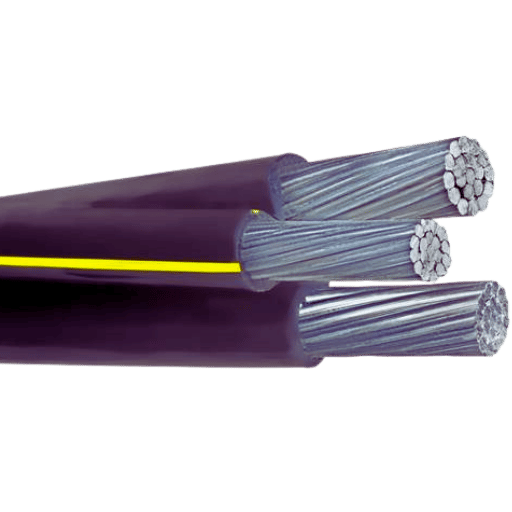

What are the Different Types of URD Cables?
Triplex Aluminum URD Cable
Triplex Aluminum URD cables allege the three twisted along together insulated conductors that are typical in underground distribution systems. Using such cables as these is mainly favored because they are lightweight and have less strain caused by corrosion, which is meant for outdoor use. The fact that aluminum conductors are used makes the cables lighter while providing sufficient electrical conductivity, thus making it very convenient for manipulation and installation processes. It is also customary for triplex cables to incorporate a neutral, which equalizes loads and eliminates interference. Their construction demonstrates how power is practically distributed concerning various standards. Properly installing these triplex aluminum URD cables is very important to ensure they will be reliable and last long.
Quadruplex URD Cable
Quadruplex URD cables are composed of four insulated wires assigned as a bundle. It usually consists of three-phase wires and one neutral wire. This design is ideal in dry residential distribution systems where transferring power and balancing load is advantageous. Quadruplex cables are mainly made of aluminum and copper wires, although aluminum is preferred because it is lightweight and not prone to corrosion. Numerous conductors allow for proper energy transfer while avoiding voltage losses in long transmission periods, especially with concentric cables. Installation practices should conform to set industry guidelines and be designed to endure specified connectors and protection, which preserves the structural and functional integrity of the cables over the life cycle. Routine maintenance inspection is also essential for keeping the equipment in working order and effectively utilizing the installed system.
Duplex URD Cable and Their Uses
The Duplex Underground Residential Distribution cable configuration entails two cables with insulation for each conductor containing one of the phase conductors and a neutral one. The most common use of these cables is to bring underground power from the utility companies into the residential neighborhoods. Such cables are designed to reduce energy and voltage loss, thus making them ideal when power density requirements are moderate. Typical uses of the cables include power to individual houses, street lighting, and connections of the outputs from transformers in developed areas. However, if laid properly, duplex URD cables always perform their electrical functions while protecting the cables from environmental conditions, thus improving the safety and service life of power distribution systems. Periodic assessments and adherence to those practices are also necessary to maintain the performance or structural level of the installations.

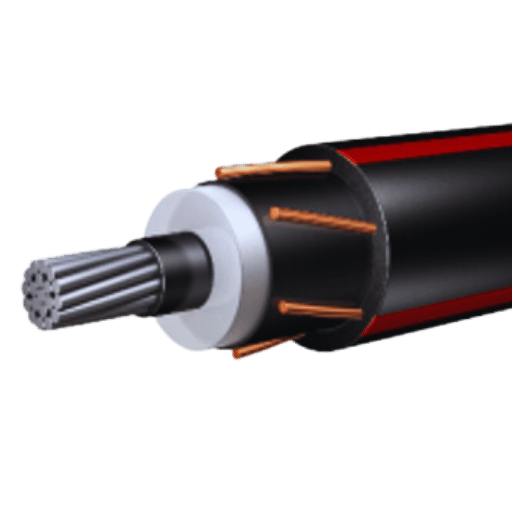

Understanding the Installation of URD Wire
Installation Techniques for Underground Residential Distribution
To ensure effectiveness and safety considerations, certain practices should be followed when implementing URD Underground Residential Distribution (URD) cables. To begin with, an accurate trenching technique must be adopted. A trench must generally be a minimum of 24 inches deep so that the cables can be allowed and yet guarded against physical forces.539 Again, sand or similar material should be used for bedding the cable to provide the needed cushion and make the cable resistant to abrasion, thus increasing the life span of the distribution cable.
Furthermore, sharp curves in the cable layout should be avoided when installing cables vertically or horizontally, considering the manufacturer’s requirements for minimum bend radius. Thus, after the wires have been laid, the cable routing should be marked so that no further installation works in that area will damage the installed cables. It is prudent to place warning tape along and above the buried cables to warn any personnel involved with construction works that cables or utilities are below.
Last but not least, the backfill should not contain sharp objects, and the soil should be well compacted so that it does not settle again later. Inspections during and immediately following an installation are necessary to ensure regulatory compliance and the continuing usefulness of URD systems.
Direct Burial vs Conduit Installation
The proper method of laying Underground Residential Distribution (URD) cables must be determined, whether direct burial or the cable needs to be in a conduit. Direct burial cable is a type of cable intended for underground use without any further conduit for protection. Disadvantages include ease of installation and material cost savings. Such types of cables lose heavily on the insulation material used for the cable’s insulation. This method is acceptable in locations where the risk of physical damage is lower, especially using cables with direct burial capability.
Conversely, conduit systems use cables run through protective casings, which help prevent wear and tear, water intrusion, and other environmental factors. While this could be counterproductive since it could increase the cost and complexity of wire installation, later repairs and enhancements can be accomplished with minimal difficulties as wires can be pulled through the conduits without digging again.
In conclusion, direct burial is preferred for its ease and low cost in less aggressive areas with a risk of disturbance. At the same time, conduit installation is opted for in areas with high congestion where extra protection and future developments are required. However, it should always be noted that such decisions must include the local bylaws, soil types, and disturbances that may happen in the future.
Safety Measures and Standards for URD Wire Installation
Several standards and best practices must be followed to ensure the safety of the Underground Residential Distribution (URD) wire installation. For example, the National Electrical Code provides some of the most important rules relating to cable ratings, depth of burying the cabling, and the requirement of any warning notices to prevent the risk of accidental damage by digging later on. They often include local utility rules that may define how specific installations must be done for the safety of people and structures.
Soil conditions must also be assessed, and existing utilities must be established before groundwork commences. Utility locating services can make this possible. Risk factors are also further reduced by using personal protective equipment (PPE) and safety barriers during installation. Cables put in place should also be inspected for damages that may affect their performance and safety in the long run. Complying with safety and other standards and measures enables professionals to manage the installation process effectively despite regulatory setbacks.

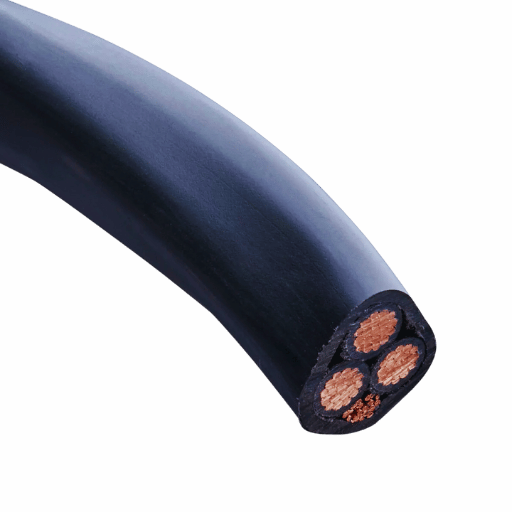

FAQs about Aluminum URD Cables
What is the Ampacity of Conductors in URD Cable?
The ampacity of the conductors in Underground Residential Distribution (URD) cable refers to the amount of electric current that can pass through the conductors safely without causing overheating. This rating is affected by several elements, such as the conductor’s dimensions and insulation, ambient temperature, and the installation mode, all of which are important in the functionality of the distribution cable. The National Electrical Code (NEC) provides ampacity tables that detail current ratings for various conductor configurations and types. For instance, the ampacity of an average 2 AWG aluminum URD cable is approximately 90 amperes when it has been properly buried; this is selected based on the proper depth of burial and environmental temperature. Therefore, it is necessary also to consult both the NEC requirements and the manufacturer’s recommendations on the expected ampacity of an installation. Compliance with these recommendations enables effective distribution of electrical energy and a reduced risk of power failure.
Can URD Cable Be Used in Wet or Dry Locations?
Yes, underground residential distribution (URD) cable can apply to the wet and dry behaviors paid to its installation, which must follow specific rules and regulations for safety and operational purposes. While primarily referring to the significant publications on electrical safety, URD cables are made of moisture-resistant materials, but one must still do wet-rated cables. In such ways, the National Electrical Code Title 70, or NEC, provides that Wires, cables, and accessories installed in water or wet areas should be designed purposefully for that use. In addition, the relevant installation techniques should be followed, including the minimum suitable burial depth and the minimum distance from wet areas to the cable to avoid degradation of its performance and reliability. Therefore, as a rule of thumb, it is essential to read the suppliers’ specifications and ensure that the cables align with the requirements of the national electrical code and, therefore, the intended geographical conditions.
What Are the Voltage Ratings for URD Cables?
Depending on their construction and application, the voltage ratings for the Underground Residential Distribution (URD) cables range between 600 volts and 5000 volts. The primary type of residential URD cables has a maximum voltage rating not exceeding 600 volts, which is practical for networks supplying electricity to homes. In contrast, URD cables with high voltage ratings are manufactured for commercial and even industrial applications for increased power supply since it is expected in such industries. The URD cable of choice should be rated for the required voltage and compliant with any particular code or regulation that applies to the installation works. Adherence to the outlined requirements while distributing electricity is confirmed by manufacturers and local authorities.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is an Aluminum URD Cable?
A: An Aluminum URD Cable serves as a branch wire for underground residential distribution, primarily for secondary maps. It can be utilized in underground cable installations with a voltage of 600v.
Q: What is the material content of Aluminum URD Cables?
A: 1350 aluminum or aluminum alloy is most commonly used as the material for such cables. The cable can consist of phase and neutral conductors covered with cross-linked polyethylene (XLPE) insulation.
Q: What is the voltage rating of an Aluminum URD Cable?
A: The cable design is made for 600v underground use and applies to secondary distribution systems.
Q: Are aluminum URD cables applicable to residential distribution?
A: Aluminum URD cables are typically used for residential distribution wires, preferably in underground secondary distribution networks.
Q: What is the insulation of Aluminum URD Cables?
A: Aluminum URD Cables use cross-linked polyethylene (XLPE) insulation, which is highly resistant to abrasion and can withstand temperatures up to 90°C.
Q: How is the conductor in the Aluminum URD Cable designed?
A: The conductor for this purpose can be a stranded or compressed 1350-H19 aluminum conductor or 8000 series aluminum, commonly applied to insulated conductors. This helps achieve cable flexibility and coated cable robustness.
Q: Where can Aluminum URD Cables be installed?
A: Aluminum URD Cables can be installed in ducts, directly buried, or where they are required in underground electrical systems. They are manufactured to meet grown-up demands and are preferably suited for most indoor operations.
Q: Are there any requirements for using the Aluminum URD Cable, and if so, what are they?
A: Yes, according to organizational standards such as the NEC and ICEA standards, the cable can be ensured to be viable when an underground secondary distribution system is fitted.
Q: What standard types of conductors should one expect from aluminum URD cables?
A: It includes the phase conductors and a neutral conductor, and it is also possible for the Aluminum URD Cables to have a single conductor. These employ insulated conductors to avert electrical faults and enable energy distribution mode of operation.
Q: Why is cross-linked polyethylene insulation specified in Aluminum URD Cables?
A: XLPE, or Cross-linked polyethylene insulation, is very important as it offers excellent electrical insulation properties, is heat resistant up to 90°C, and is highly resistant to abrasion, making it suitable for use within the ground.
